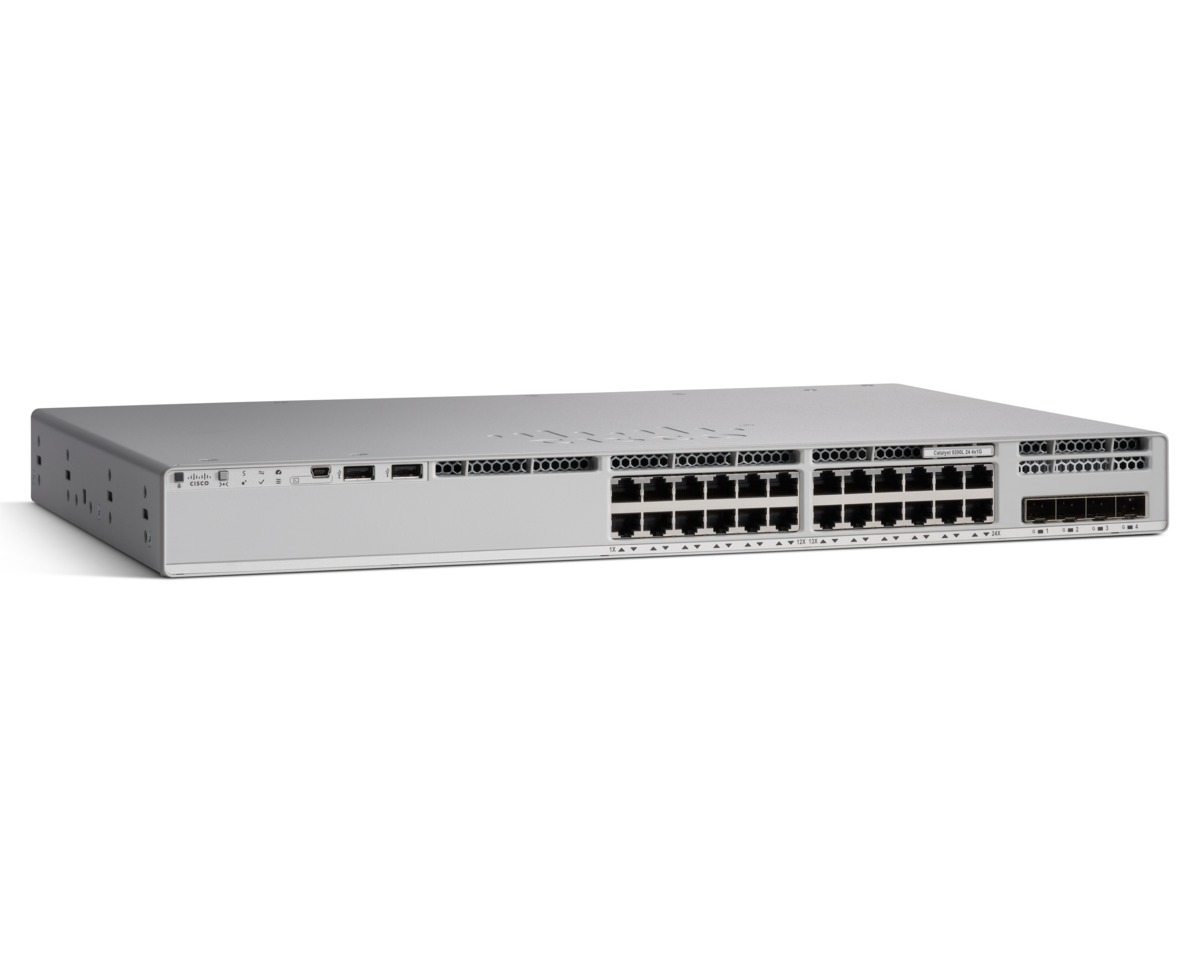

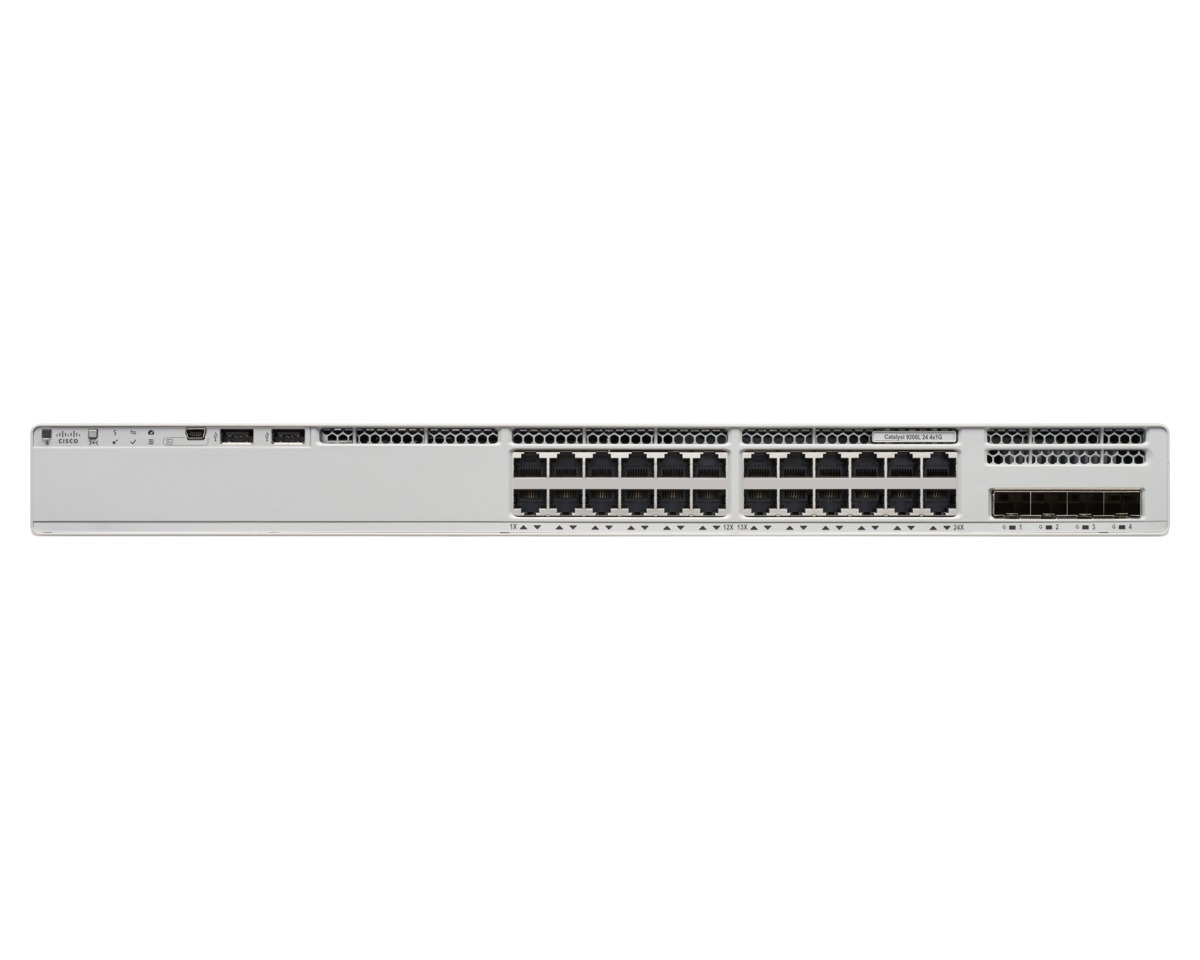

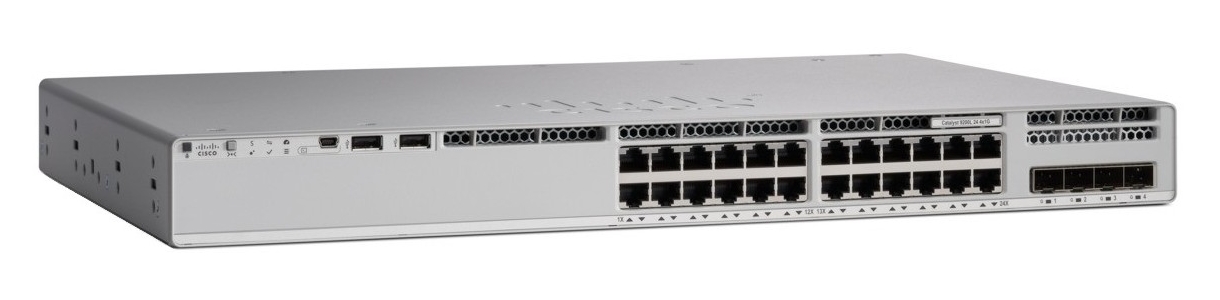

Cisco Catalyst 9200L Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Roll over image to zoom inClick to Open expanded view
Cisco Catalyst 9200L Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Cisco Catalyst 9200L Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Cisco Catalyst 9200L Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Print
Model: C9200L-24P-4X-E

Cisco Catalyst 9200L Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey

Manufacturer:
Cisco
Cisco Catalyst 9200L, Managed, L3, 10G Ethernet (100/1000/10000), Full duplex, Power over Ethernet (PoE)
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst 9200L. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE)
  • Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
  • Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
  • Flexible downlink options with data or PoE+
  • Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
  • UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
  • Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
  • Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
  • Advanced network monitoring using Full Flexible NetFlow
  • Cisco Software-Defined Access (SD-Access):
  • Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
  • Network assurance and improved resolution time through Cisco DNA Center
  • Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
  • Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
  • ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Product Properties

  • Model
  • C9200L-24P-4X-E
  • Bullet points
  • Point
  • Advanced network monitoring using Full Flexible NetFlow
    Cisco IOS XE
    Cisco Software-Defined Access (SD-Access):
    Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
    Flexible downlink options with data or PoE+
    Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
    Network assurance and improved resolution time through Cisco DNA Center
    Plug and Play (PnP) enabled
    Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
    UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
    Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
  • Data transmission
  • Forwarding rate
  • 95.23 Mpps
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Packet buffer memory
  • 6 MB
  • Switching capacity
  • 128 Gbit/s
  • Design
  • Certification
  • RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1
  • Electromagnetic compatibility
  • 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
  • Product colour
  • Grey
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Traffic classification
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • IPv4 multicast entries
  • 3000
  • IPv6 multicast entries
  • 1500
  • Multicast MAC address table
  • 1000 entries
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Copper ethernet cabling technology
  • 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • IP routing
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Number of VLANs
  • 4096
  • Routing entries
  • 3000
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 45 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging data
  • Package type
  • Box
  • Performance
  • Flash memory
  • 4000 MB
  • Internal memory
  • 2000 MB
  • Memory type
  • DRAM
  • Ports & interfaces
  • Power connector
  • AC-in jack
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • 10G Ethernet (100/1000/10000)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Input current
  • 1.6 - 0.7 A
  • Number of power supply units
  • 1
  • Power consumption (max)
  • 740 W
  • Power consumption (typical)
  • 600 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 24
  • Protocols
  • Management protocols
  • SNMPv1/v2c/v3
  • Routing protocols
  • CDP, EIGRP, OSPF, RIP, VRRP
  • Security
  • Access Control List (ACL)
  • Yes
  • Security algorithms
  • 128-bit AES
  • Weight & dimensions
  • Depth
  • 288 mm
  • Height
  • 44 mm
  • Width
  • 445 mm
