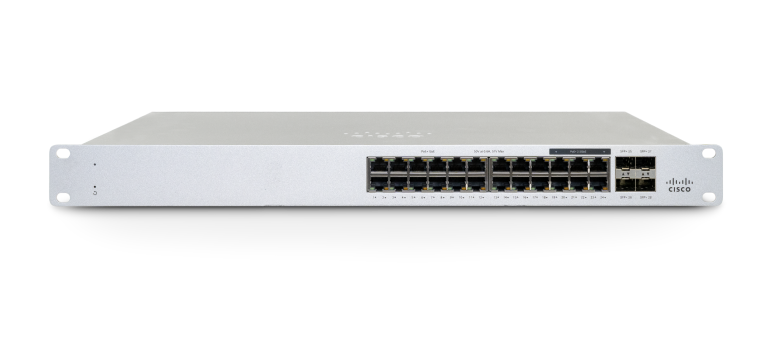

Cisco Meraki MS130-24-HW network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U White
Roll over image to zoom inClick to Open expanded view
Print
Model: MS130-24-HW

Cisco Meraki MS130-24-HW network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U White

Manufacturer:
Cisco
Cisco Meraki MS130-24-HW, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS130-24-HW. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3bt. Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS130-24-HW
  • Data transmission
  • Switching capacity
  • 56 Gbit/s
  • Design
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Product colour
  • White
  • Rack mounting
  • Yes
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Multicast features
  • Multicast features
  • Multicast traffic suppression
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1Q, IEEE 802.3bt
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Voice VLAN
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Performance
  • Fanless
  • Yes
  • Firmware upgradeable
  • Yes
  • Mean time between failures (MTBF)
  • 789842 h
  • Ports & interfaces
  • Number of management ports
  • 1 pc(s)
  • SFP module slots quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Input current
  • 0.85 A
  • Power source
  • AC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Protocols
  • IPv4 & IPv6 features
  • IPv4/IPv6 access-control list (ACL)
  • Security
  • Authentication
  • MAC-based authentication
  • Authentication type
  • IEEE 802.1x, RADIUS
  • DHCP features
  • DHCP snooping
  • IGMP snooping
  • Yes
  • Security algorithms
  • SNMP
  • Weight & dimensions
  • Depth
  • 250 mm
  • Height
  • 34 mm
  • Weight
  • 3.26 kg
  • Width
  • 440 mm
