Description

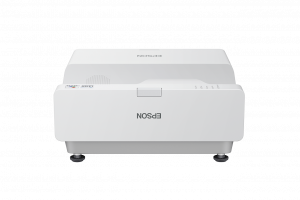

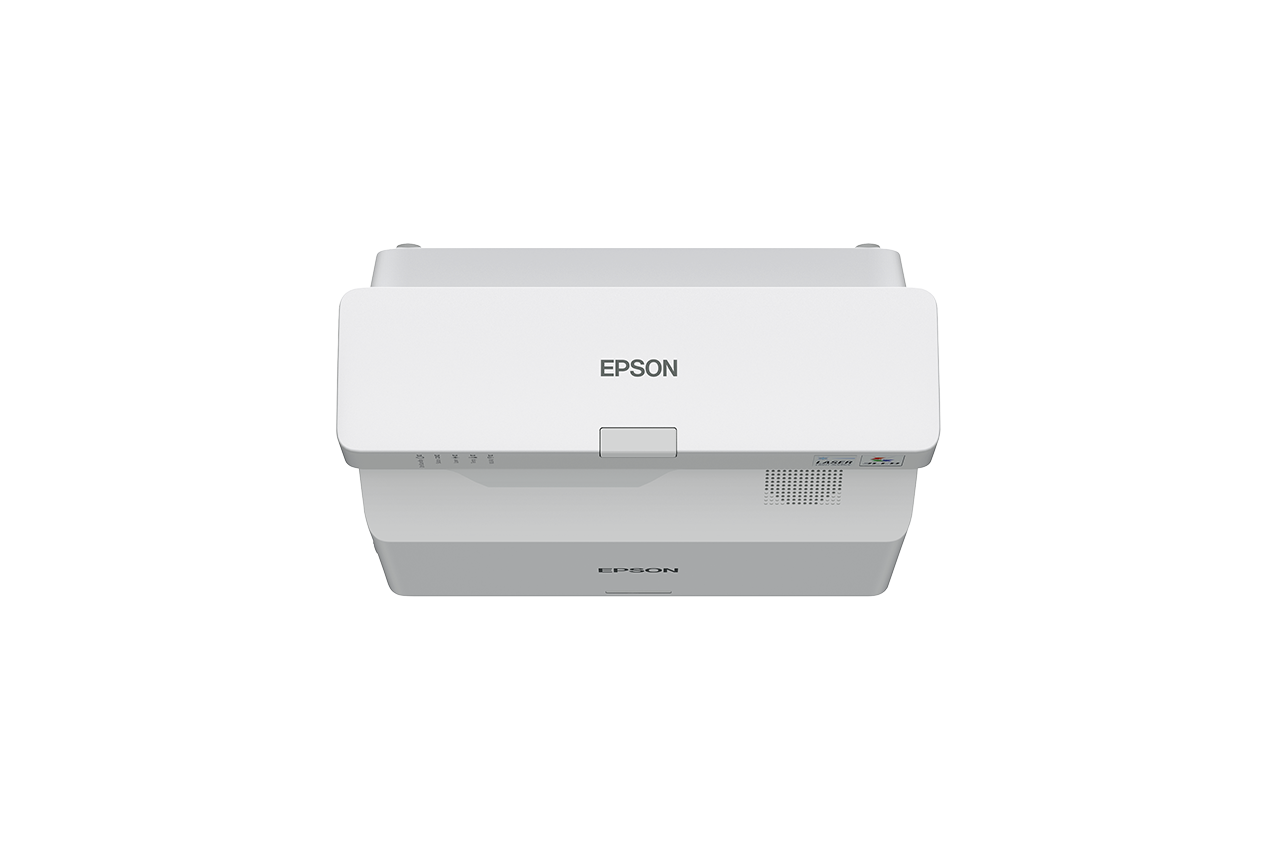

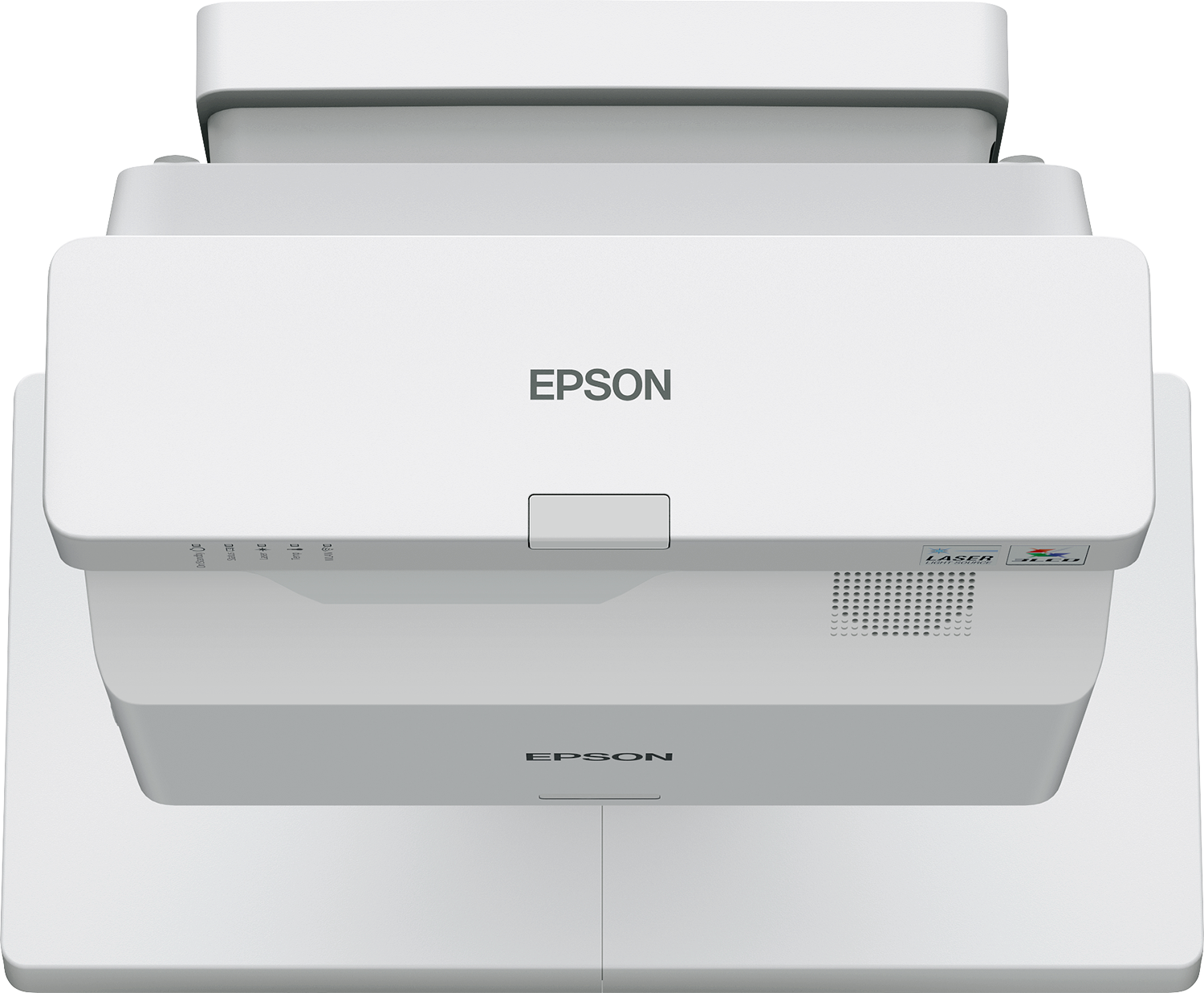

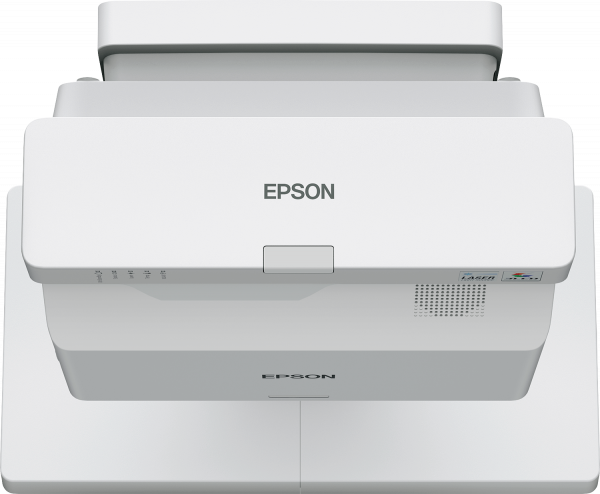

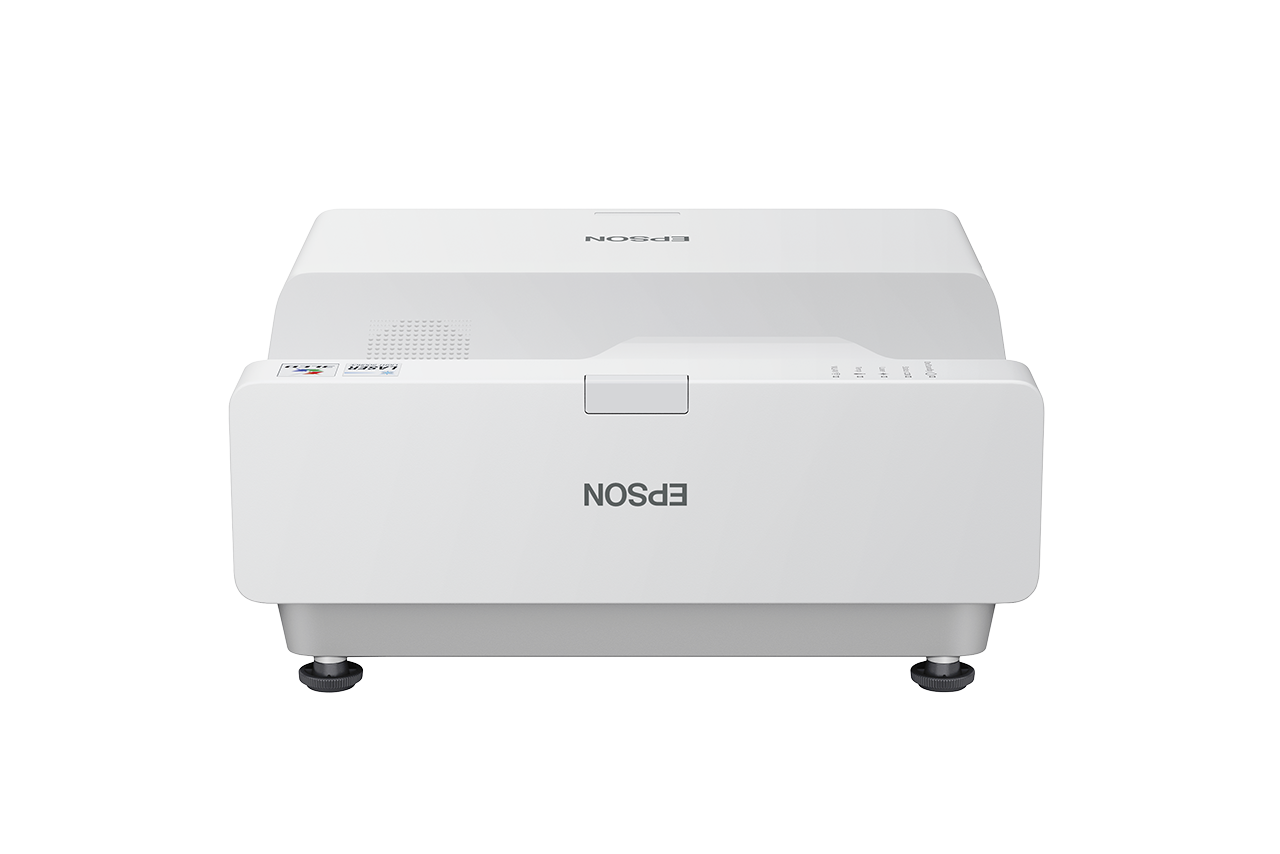

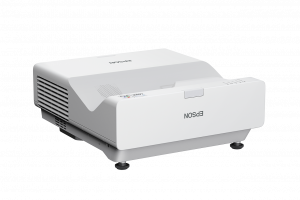

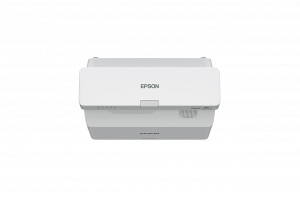

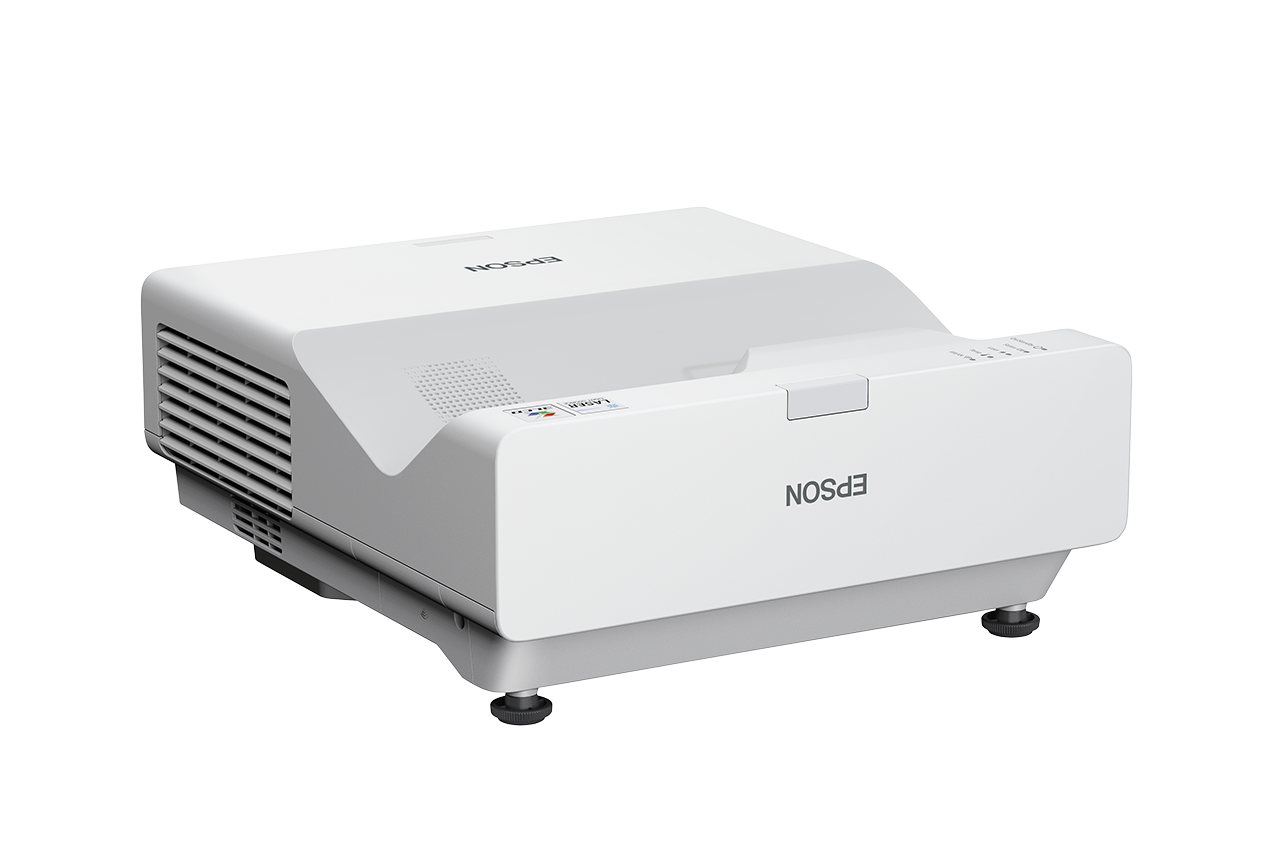

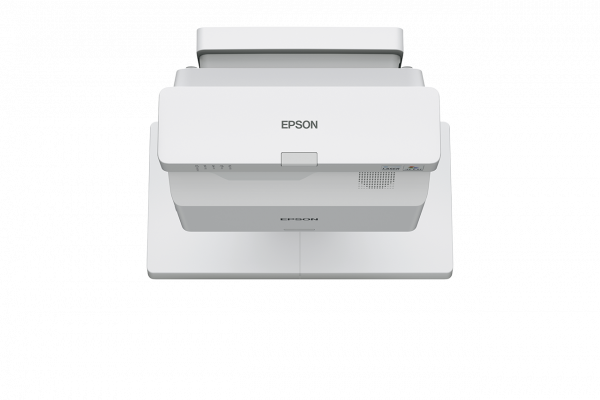

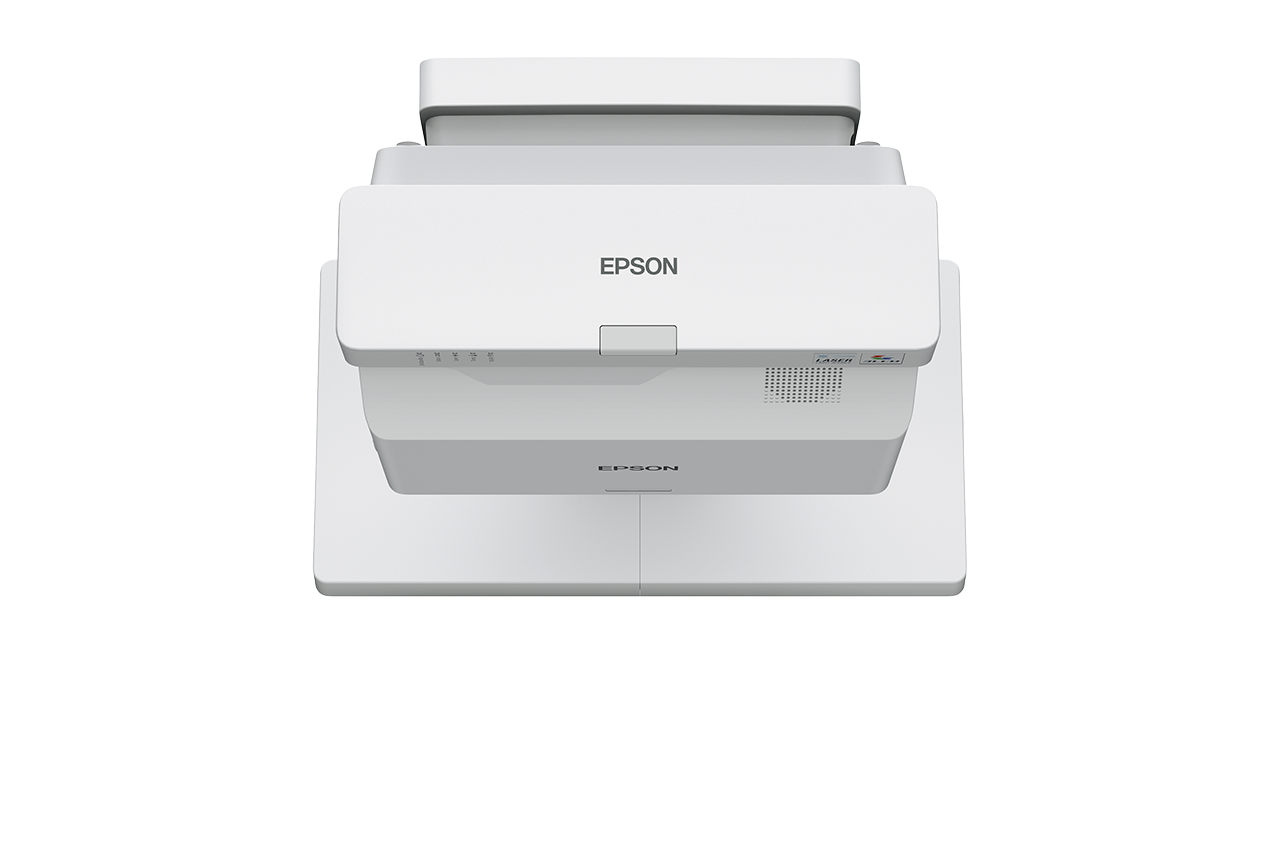

Epson EB-770F. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 30000 h. Focus: Manual, Focal length range: 3.7 mm, Zoom ratio: 1.35:1. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB. Noise level: 37 dB, Noise level (economic mode): 27 dB, Country of origin: Philippines

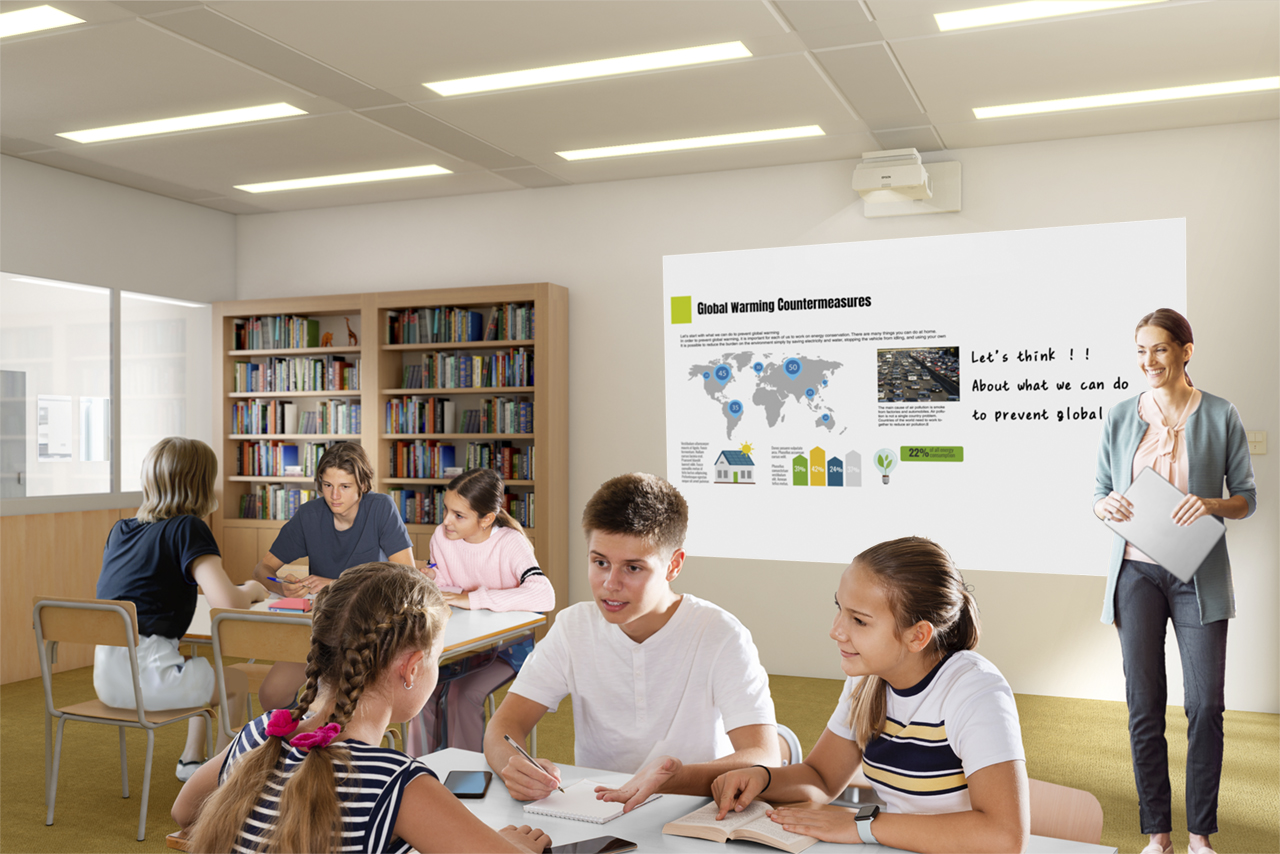

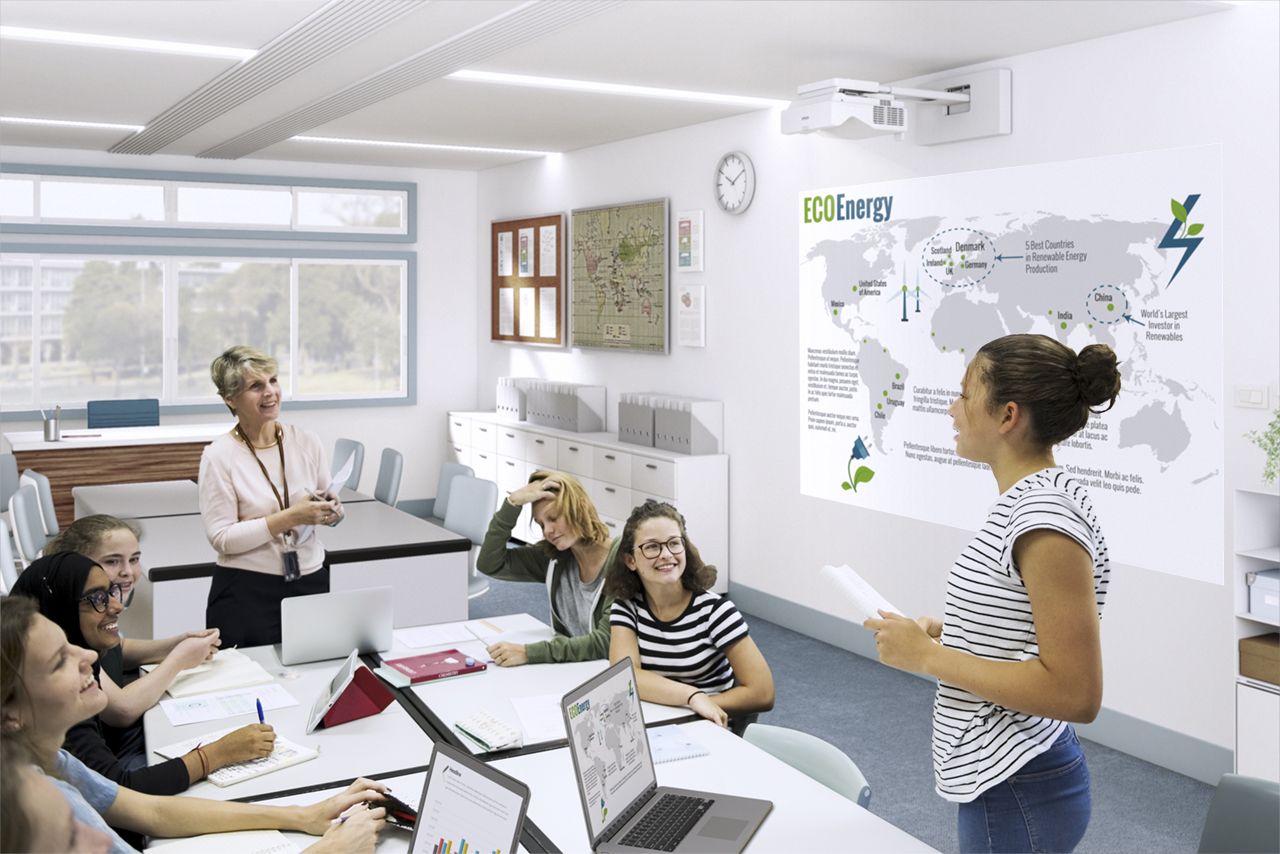

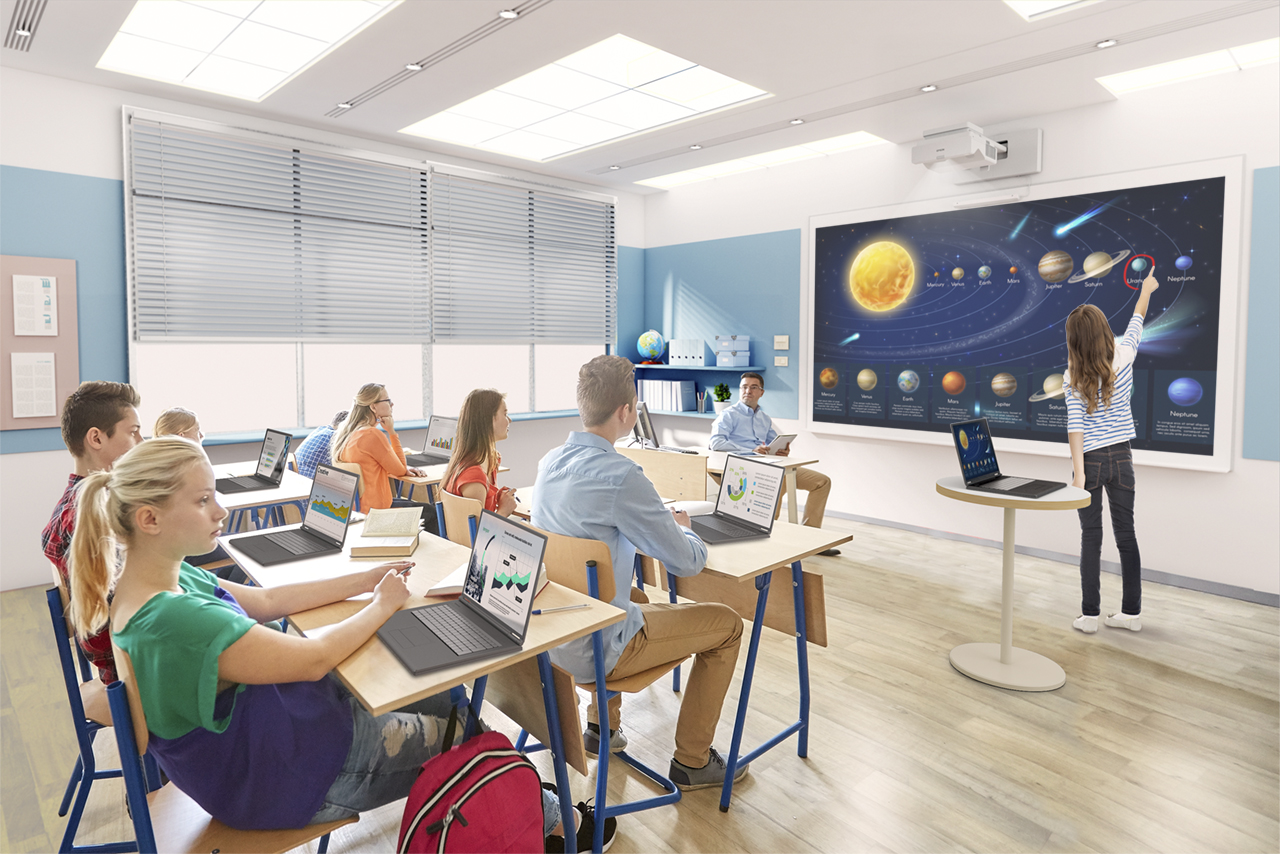

Scalable FHD display for any room: 49-150" UST display for unrestricted viewing (no shadows/reflections)
Bright and energy efficient laser: 4,100lm CLO with 3LCD technology for brighter colours at only 205W
Effortless connectivity options: Auto-on, wired / wireless display with USB 2A output for smart sticks
Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty
Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA79080

EAN
8715946715841

Bullet points

Point
Bright and energy efficient laser

Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Effortless connectivity options

Scalable FHD display for any room

Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Product colour
White

Display

Built-in display
No

Features

Country of origin
Philippines

HDCP
No

High Dynamic Range (HDR) supported
No

Noise level
37 dB

Noise level (economic mode)
27 dB

Password protection
Yes

Screen mirroring
Yes

Lens system

F-number (relative aperture)
1.6

Focal length range
3.7 mm

Focus
Manual

Throw ratio
0.25 - 0.35:1

Zoom capability
Yes

Zoom ratio
1.35:1

Light source

Light source type
Laser

Service life of light source
30000 h

Logistics data

Pallet gross height
2.1 m

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
2.1 m

Pallet length (UK)
120 cm

Products per pallet
12 pc(s)

Products per pallet (UK)
24 pc(s)

Products per pallet layer
2 pc(s)

Products per pallet layer (UK)
4 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
16 W

TV tuner integrated
No

Network

Bluetooth
No

Ethernet LAN
Yes

Wi-Fi
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Warranty document

Control panel
0.62 inch with C2 Fine

Interface
USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input

Option type
Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01

Security features
Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Supported network protocols
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Bundled software
Epson Creative Projection, EasyMP Multi PC Projection, Epson BarCode Fonts, Epson Classroom Connect

Cables included
AC

Remote control included
Yes

Ports & interfaces

Audio Return Channel (ARC)
No

Component video (YPbPr/YCbCr) in
0

Composite video in
1

HDMI ports
3

Headphone outputs
1

Mini-USB 2.0 ports quantity
0

USB 2.0 ports quantity
0

USB 2.0 Type-A ports quantity
2

USB 2.0 Type-B ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (standby)
0.5 W

Power consumption (typical)
197 W

Power source
AC

Projector

Contrast ratio (dynamic)
5000000:1

Contrast ratio (typical)
2500000:1

Keystone correction, horizontal
±3°

Keystone correction, vertical
±3°

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection technology
3LCD

Projector brightness
4100 ANSI lumens

Projector brightness (economic mode)
2800 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
1524 - 3810 mm (60 - 150")

Vertical scan range
192 - 240 Hz

Technical details

Mobile app support
Yes

Other features
21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

Video

Video colour modes
Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
395 mm

Height
133 mm

Package depth
485 mm

Package height
325 mm

Package weight
8.73 kg

Package width
450 mm

Weight
5.9 kg

Width
356 mm
