Product Properties

Manufacturer
Epson

Model
V11HA83180

EAN
8715946715711

Bullet points

Point
Create engaging displays: Up to 150" Full HD displays, 4,100 lumens and 3LCD technology

Easy installation: 360 degree rotation with portrait projection support

Fit and forget reliability: Low maintenance laser projector with a 5 year warranty

Flexible playback: Play content directly from a USB stick

Versatile signage projector: Compact, unobtrusive, ultra-short-throw design for tight spaces

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Presentation

Product colour
Black

Product type
Ultra short throw projector

Display

Built-in display
No

Features

Country of origin
Philippines

Noise level
37 dB

Noise level (economic mode)
27 dB

Password protection
Yes

Lens system

F-number (relative aperture)
1.6

Focal length range
3.7 mm

Focus
Manual

Throw ratio
0.25 - 0.35:1

Zoom capability
Yes

Zoom ratio
1.35:1

Light source

Light source type
Laser

Service life of light source
20000 h

Logistics data

Pallet gross height
2.07 m

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
2.07 m

Pallet length (UK)
120 cm

Products per pallet
12 pc(s)

Products per pallet (UK)
24 pc(s)

Products per pallet layer
2 pc(s)

Products per pallet layer (UK)
4 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
16 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Miracast
Yes

Wi-Fi
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty Documents

Control panel
0.61 inch with C2 Fine

Interface

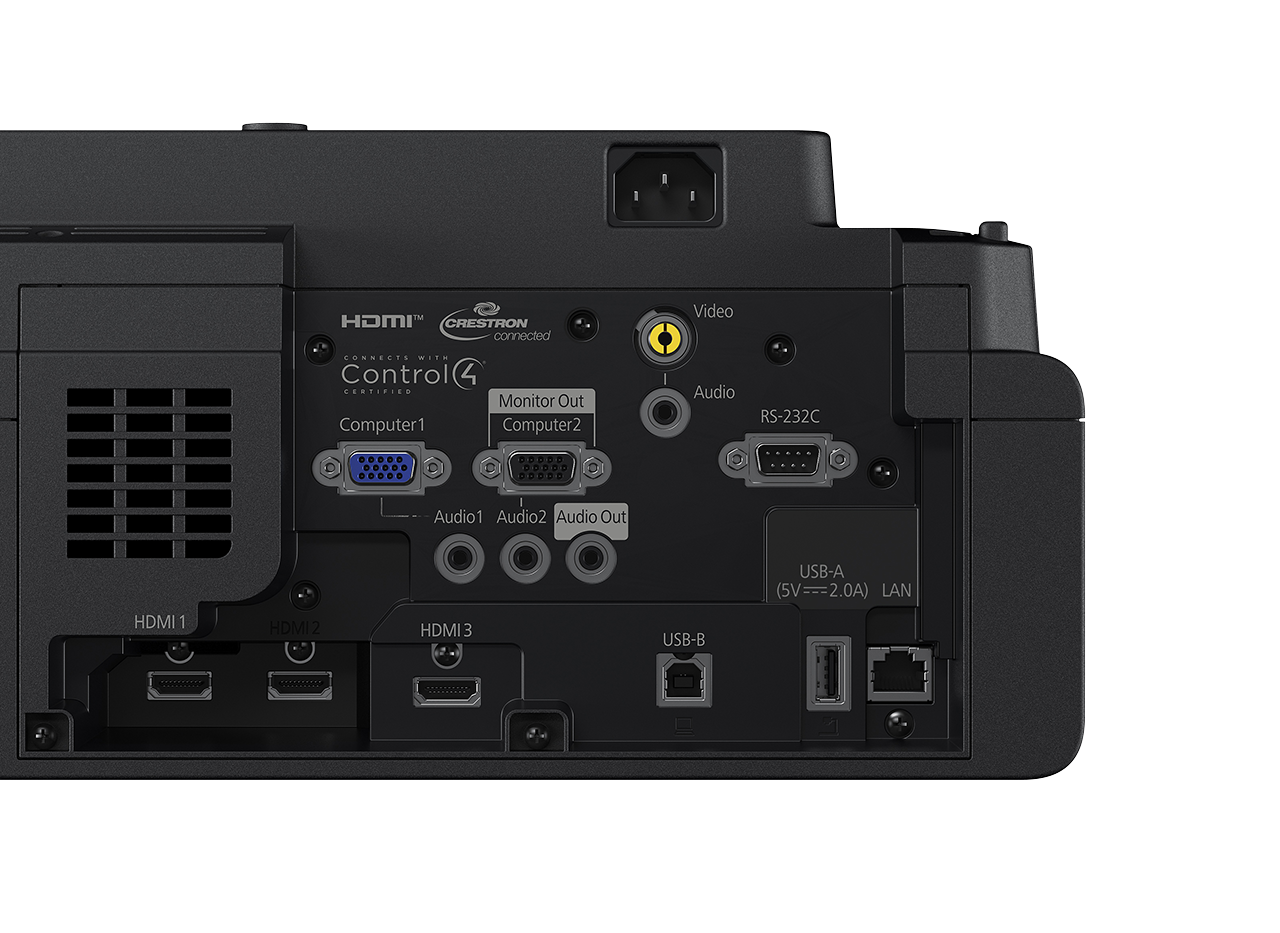

USB 2.0-A (2x), USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Wi-Fi Direct

Option type
Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01

Security features
Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Supported network protocols
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Batteries included
Yes

Bundled software
Epson Creative Projection, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management

Cables included
AC

Manual
Yes

Quick start guide
Yes

Remote control included
Yes

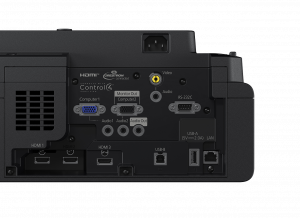

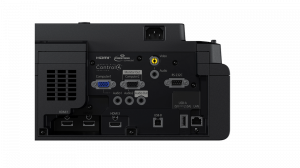

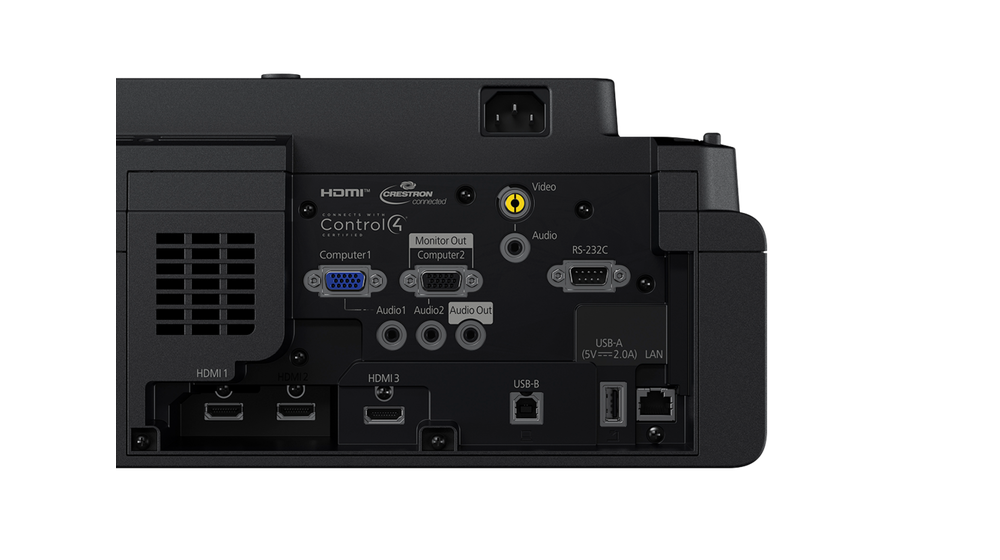

Ports & interfaces

AC (power) in
Yes

Audio (L/R) in
2

Audio (L/R) out
1

DVI port
No

HDMI ports
3

Serial interface type
RS-232C

USB 2.0 ports quantity
1

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
220 - 240 V

Power consumption (standby)
0.5 W

Power consumption (typical)
263 W

Power source
AC

Projector

Contrast ratio (dynamic)
5000000:1

Contrast ratio (typical)
2500000:1

Keystone correction, horizontal
±3°

Keystone correction, vertical
±3°

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection distance (tele)
0 - 0.7 m

Projection distance (wide)
0 - 0.4 m

Projection technology
3LCD

Projector brightness
4100 ANSI lumens

Projector brightness (economic mode)
2800 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
1524 - 3810 mm (60 - 150")

Supported aspect ratios
16:9, 21:9

Vertical scan range
192 - 240 Hz

Storage

Card reader integrated
No

Technical details

Mobile app support
Yes

Other features
21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

Warranty period
5 year(s)

Video

Full HD
Yes

Supported video modes
1080p

Video colour modes
Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
395 mm

Height
133 mm

Package depth
485 mm

Package height
320 mm

Package weight
8.67 kg

Package width
450 mm

Weight
5.9 kg

Width
356 mm

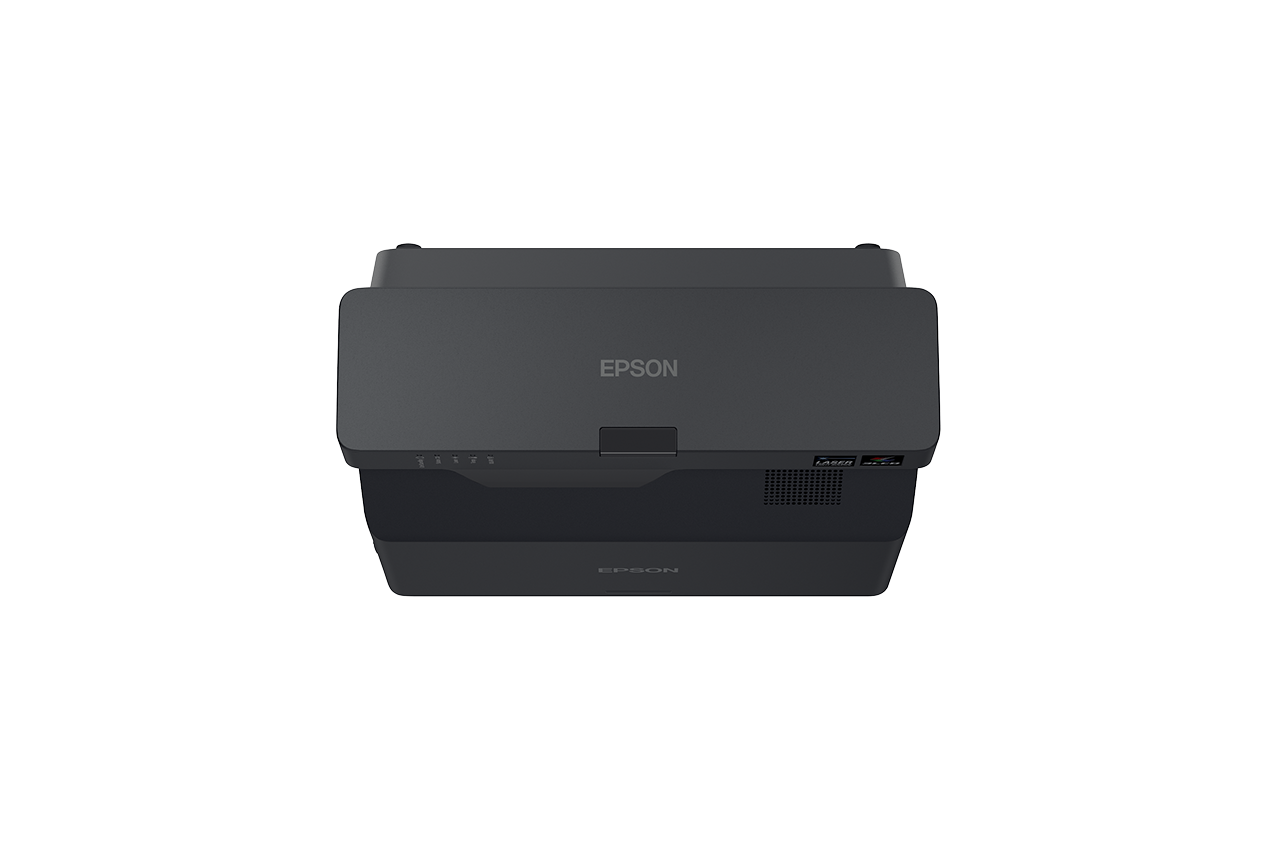

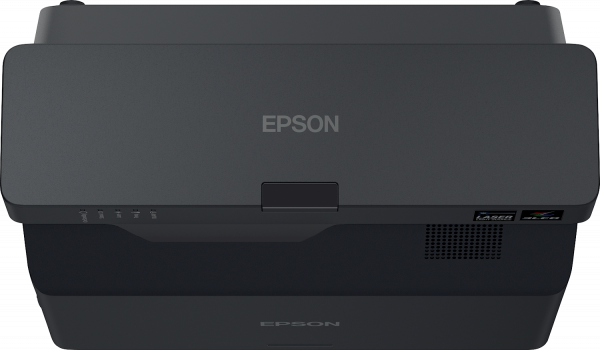

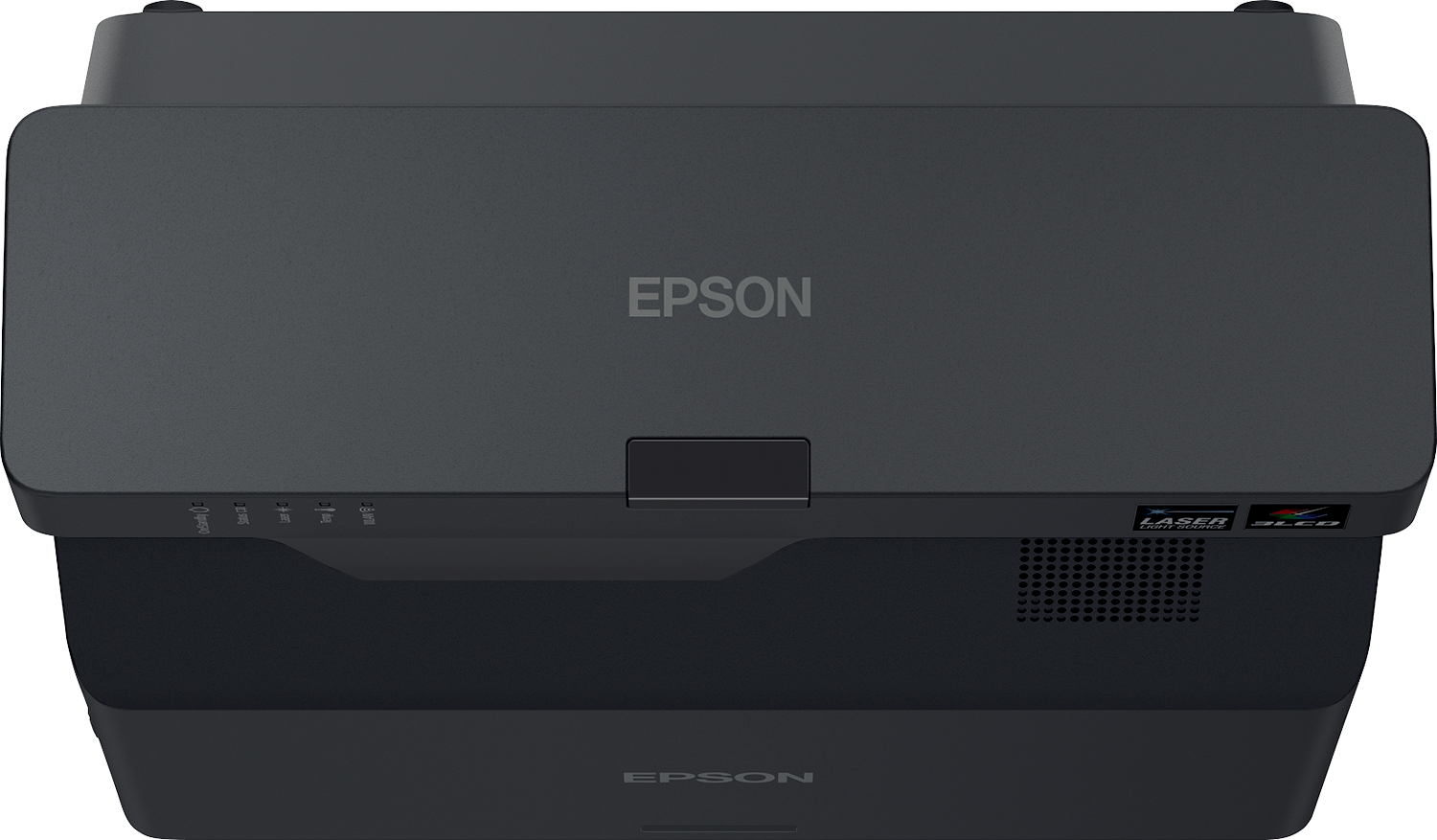

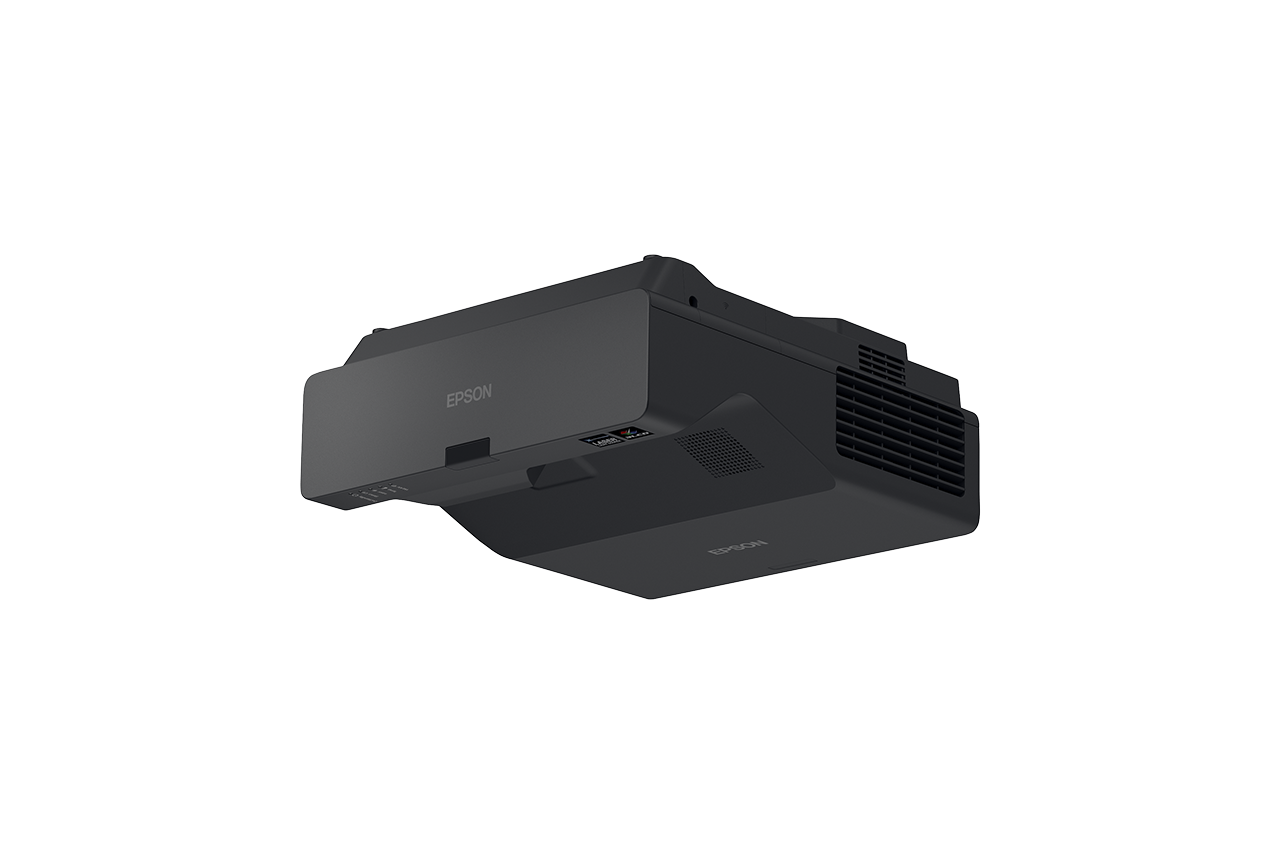

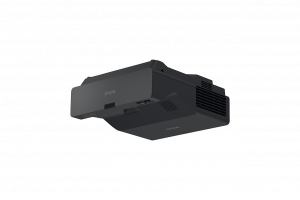

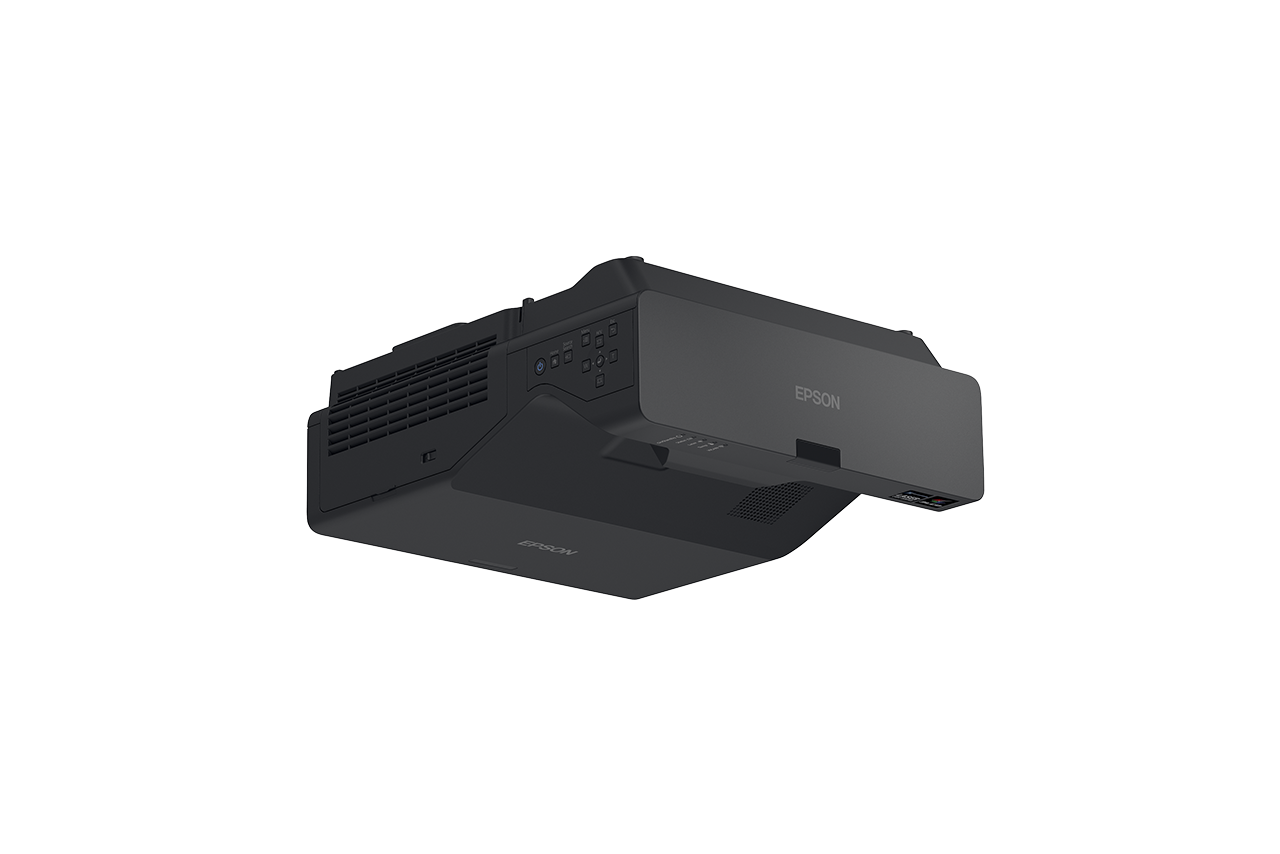

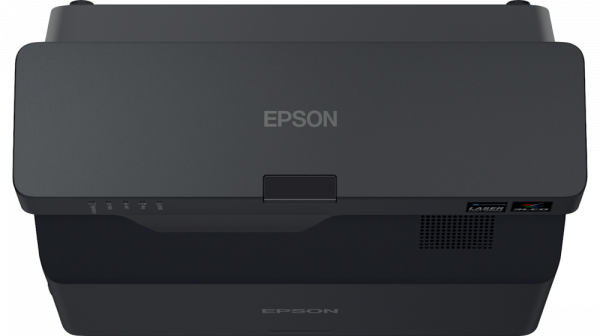

Epson EB-775F
