Product Properties

Manufacturer
Epson

Model
V11H923540

EAN
8715946688992

Bullet points

Point
Easy installation: 360 degree rotation with portrait projection support

Fit and forget reliability: Low maintenance laser projector with a 5 year warranty

Flexible playback: Play content directly from a USB stick

Ultra-short-throw signage projector: Compact, unobtrusive design.

Up to 130-inch display: Full HD resolution, 5,000 lumen brightness and 3LCD technology

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Business

Placement
Ceiling, Desktop, Wall

Product colour
White

Product type
Ultra short throw projector

Features

Country of origin
Philippines

Noise level
36 dB

Noise level (economic mode)
27 dB

Password protection
Yes

Lens system

F-number (relative aperture)
1.5

Fixed focal length
3.9 mm

Focal length range
3.9 mm

Focus
Manual

Throw ratio
0.27 - 0.37:1

Zoom capability
Yes

Zoom ratio
1.35:1

Zoom type
Auto

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
12 pc(s)

Products per pallet (UK)
12 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
2

RMS rated power
8 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100 Mbit/s

Smart TV
No

Web browser
Yes

Wi-Fi
No

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
CD Manual, Cable cover, Lens cap, Power cable, Projector feet, Remote control incl. batteries, Warranty document

Control panel
0.62 inch with C2 Fine

Interface
USB 2.0-A (2x), USB 2.0, Powered USB, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in (3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Jack plug out, Jack plug in (3x)

Option type
Wireless LAN unit

Security features
Kensington lock, Password lock, Padlock, Security cable hole, Password protection

Supported network protocols
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Batteries included
Yes

Bundled software
Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Cables included
AC

Packaging content
CD manual, cable cover, lens cap, warranty document

Remote control included
Yes

Warranty card
Yes

WLAN adapter included
Yes

Ports & interfaces

Audio (L/R) in
3

Audio (L/R) out
1

Component video (YPbPr/YCbCr) in
0

Composite video in
1

DVI port
No

HDBaseT port
Yes

HDMI ports
4

S-Video inputs quantity
0

Serial interface type
RS-232C

USB 2.0 ports quantity
2

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
3

Power

AC input frequency
50 - 60 Hz

AC input voltage
220 - 240 V

Power consumption (economy mode)
262 W

Power consumption (standby)
0.5 W

Power consumption (typical)
366 W

Power source
AC

Projector

Contrast ratio (dynamic)
5000000:1

Contrast ratio (typical)
2500000:1

Heat dissipation
1244 BTU/h

Keystone correction, horizontal
±3°

Keystone correction, vertical
±3°

Matrix size
1.57 cm (0.62")

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection distance (tele)
0 - 0.8 m

Projection distance (wide)
0 - 0.4 m

Projection technology
3LCD

Projector brightness
5000 ANSI lumens

Projector brightness (economic mode)
3500 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
1651 - 3302 mm (65 - 130")

Vertical scan range
192 - 240 Hz

Software

Software support
via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Storage

Card reader integrated
No

Technical details

Mobile app support
Yes

Other features
A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network administration, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App

Sustainability certificates
TCO

USB display function
2 in 1: Image/ Sound

Video

Full HD
Yes

Video colour modes
Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
375 mm

Height
210 mm

Package depth
595 mm

Package height
345 mm

Package weight
13.2 kg

Package width
530 mm

Weight
9.4 kg

Width
458 mm

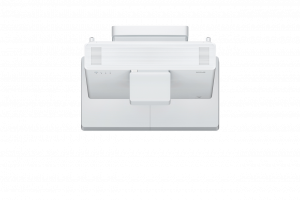

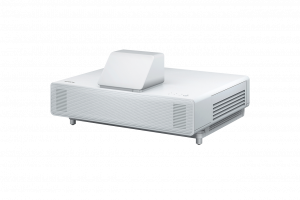

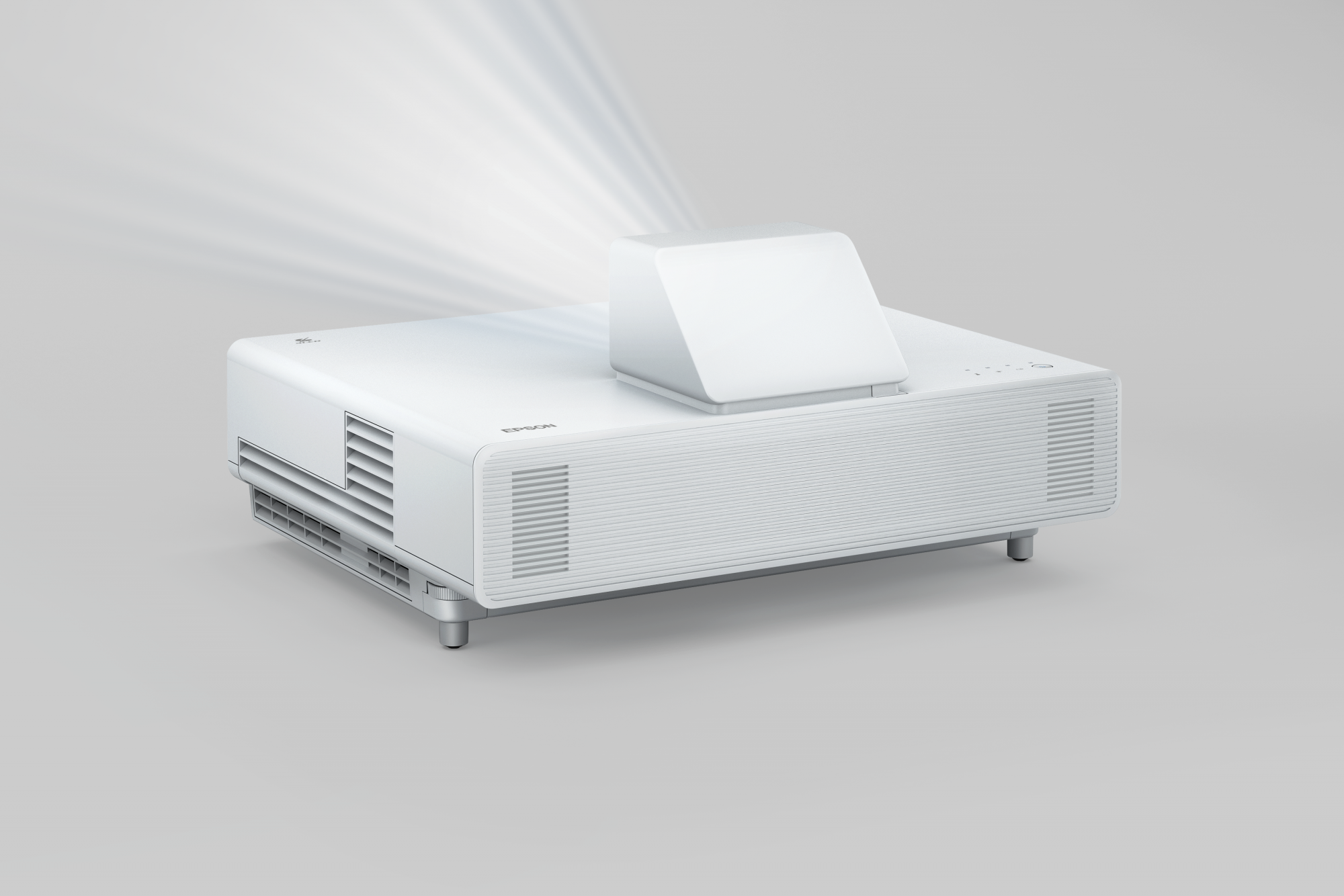

Epson EB-800F
