Product Properties

Manufacturer
Epson

Model
V11H993040

EAN
8715946686400

Bullet points

Point
Any room, any size: Bright, large-format display options up to 120"

Document camera compatibility: Create a totally immersive experience with top sound and live visuals

Every-angle viewing: No restricted angles, shadows, glare or blind spots

Exceptional reliability: Maintenance-free laser technology for fit-and-forget peace of mind

Multiple collaboration options: Expand connectivity through BYOD devices, VC cameras and more

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Placement
Desktop

Product colour
White

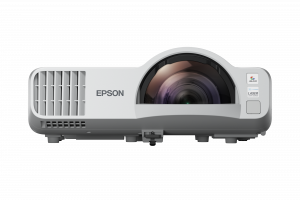

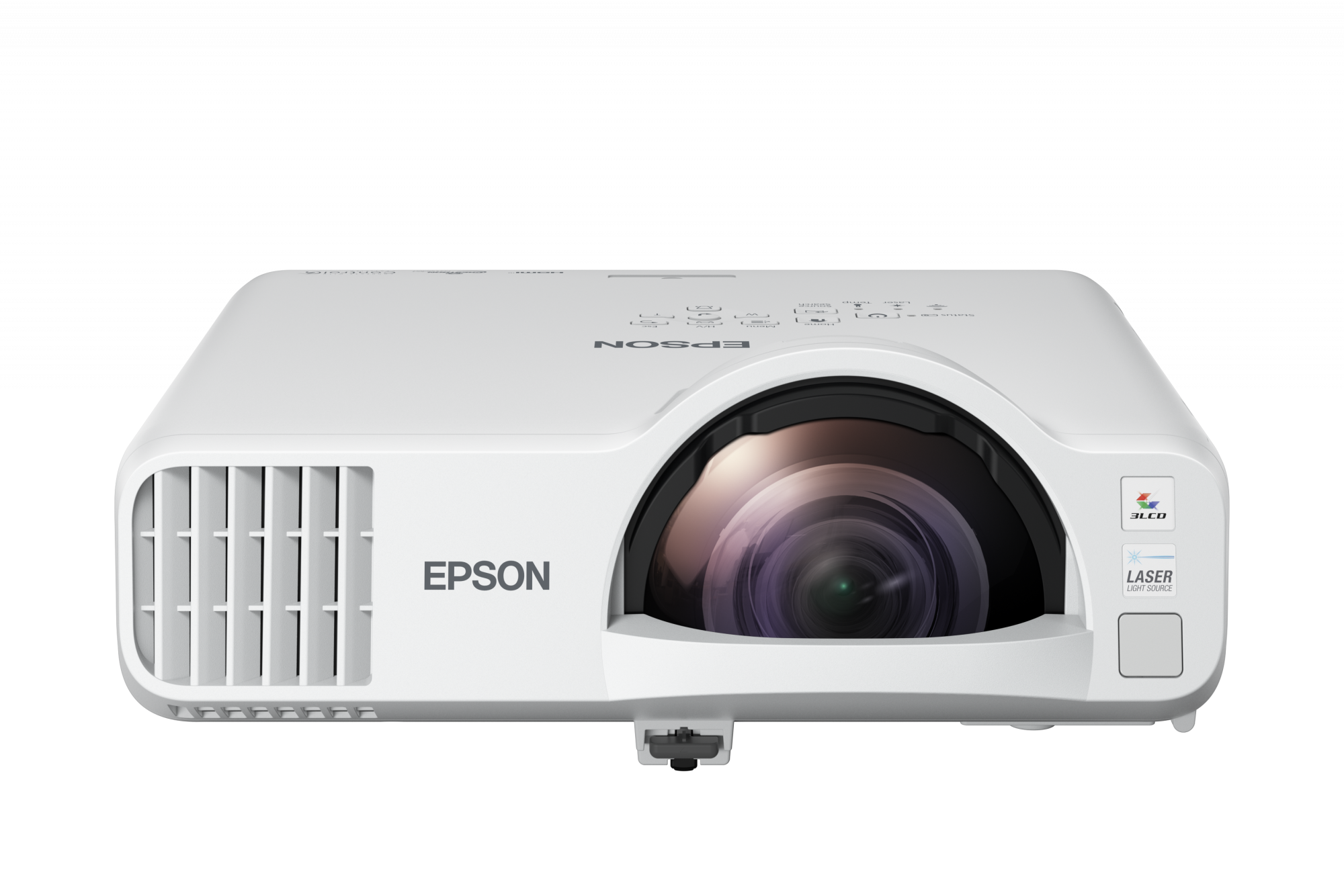

Product type

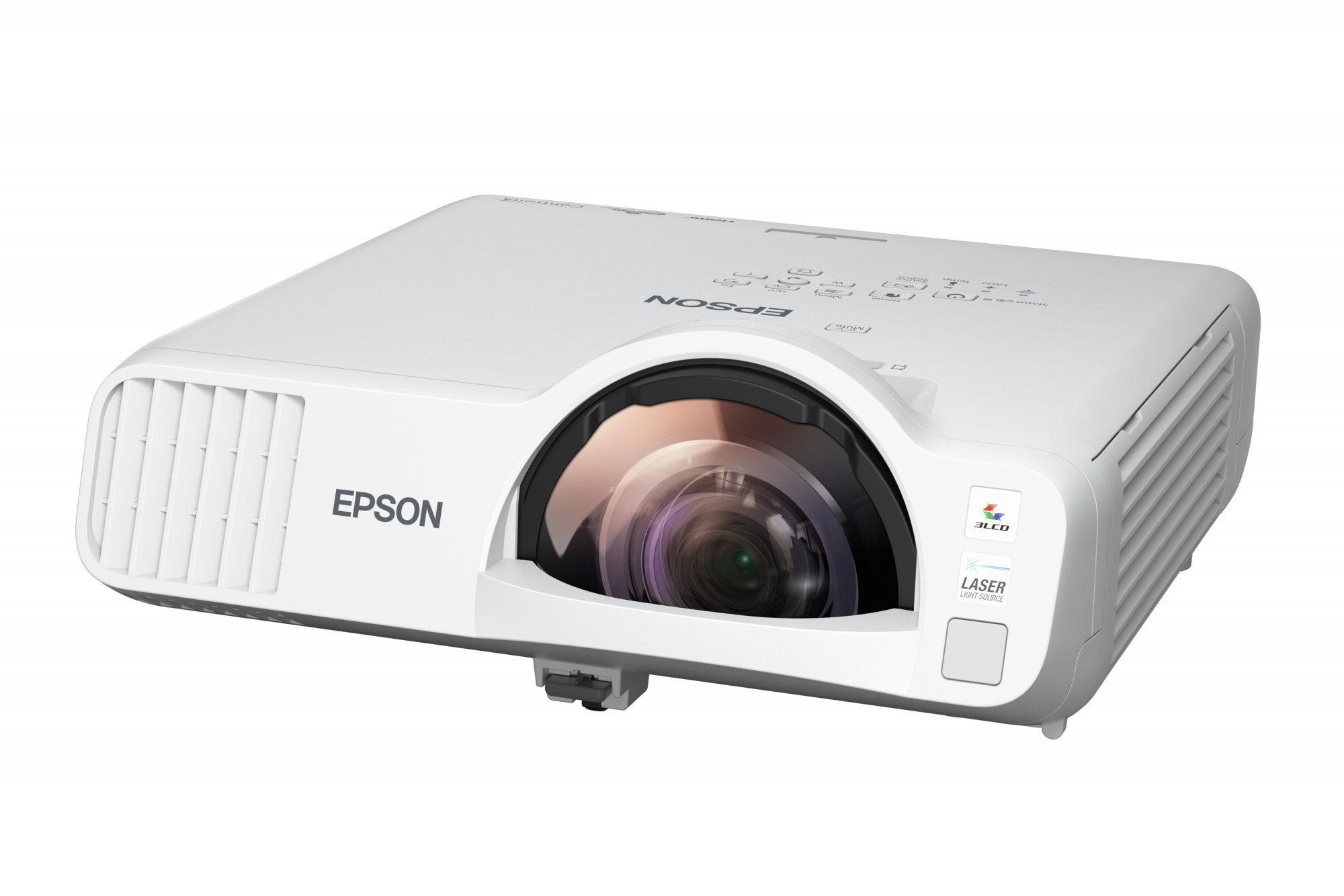

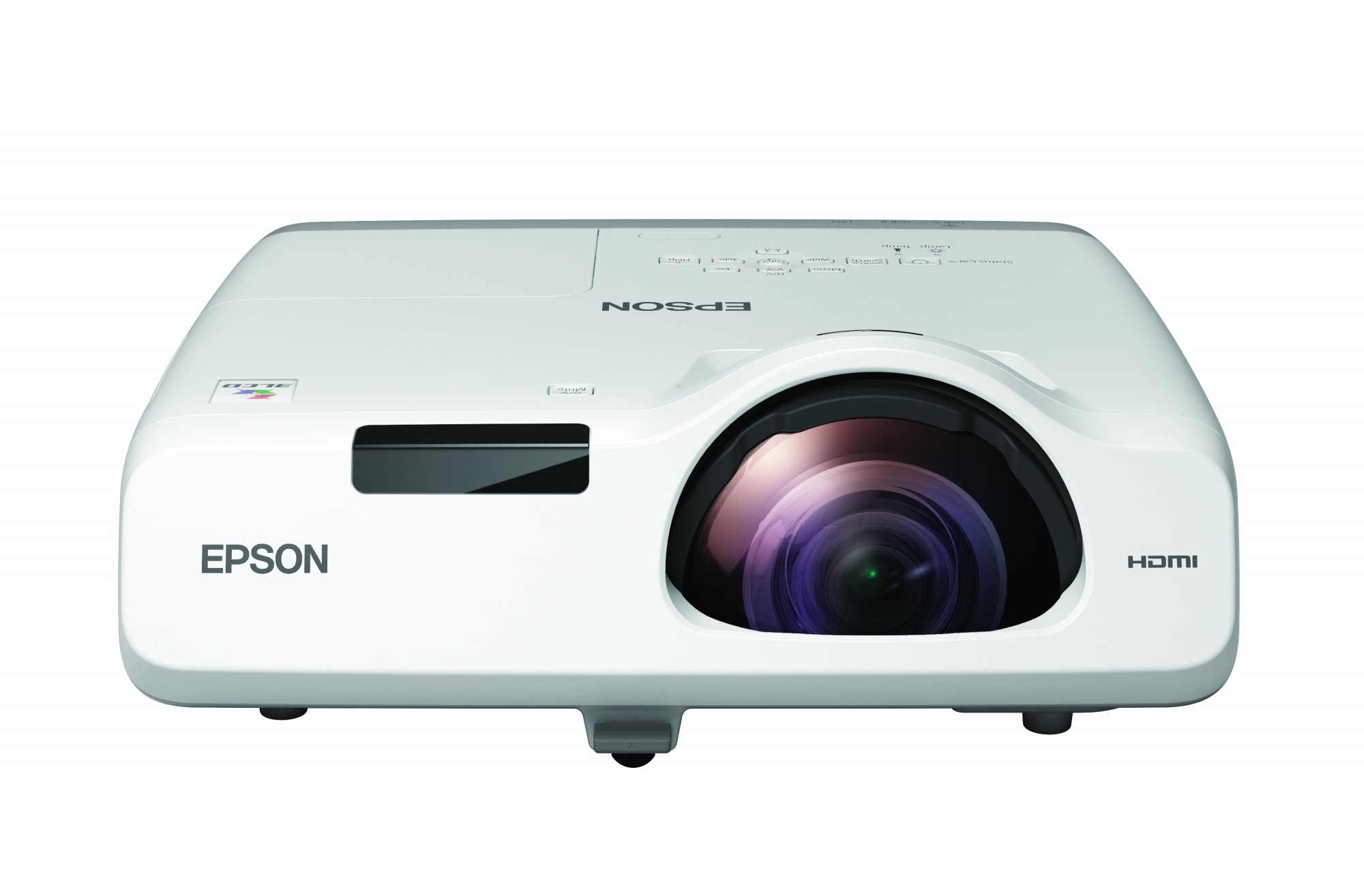

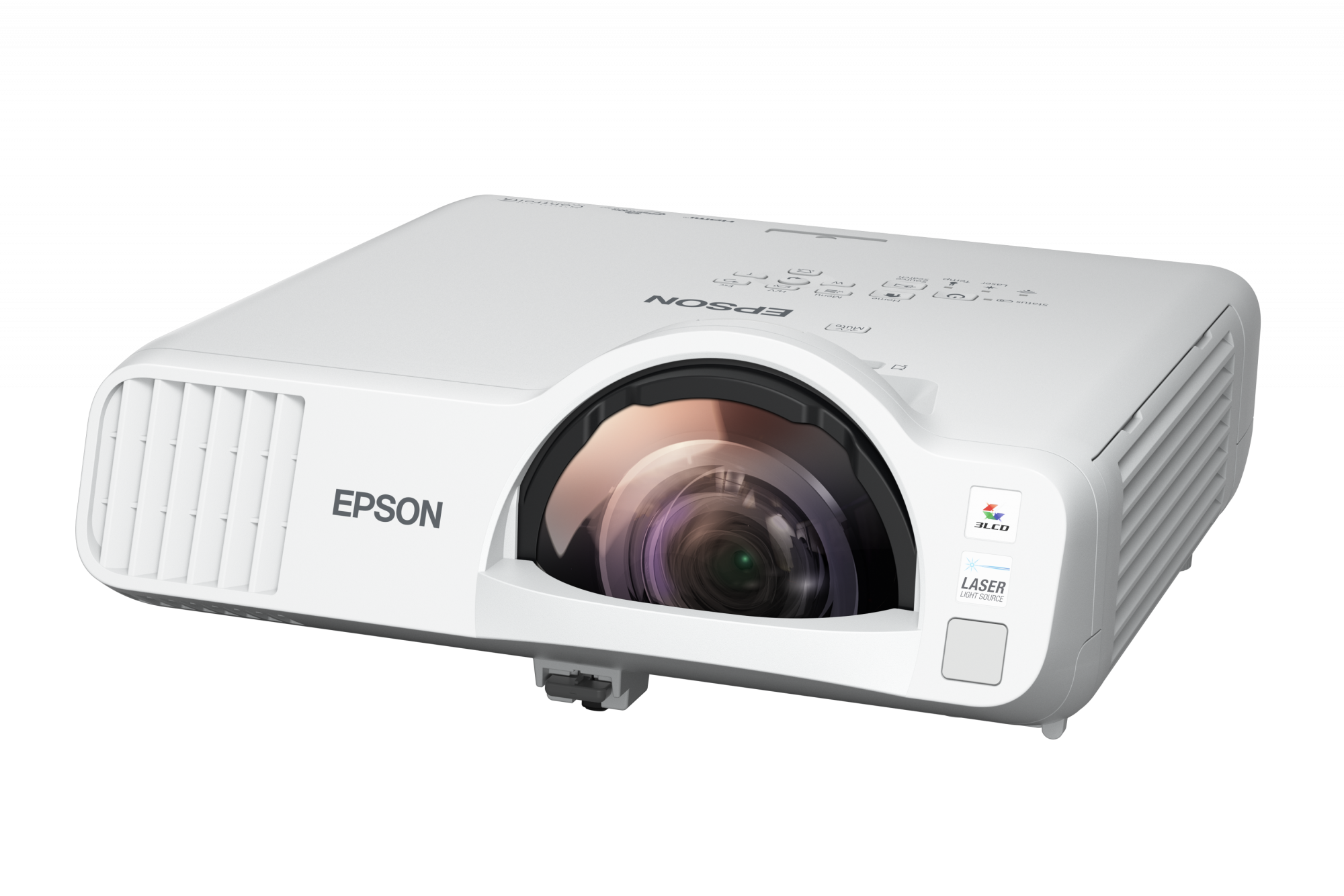

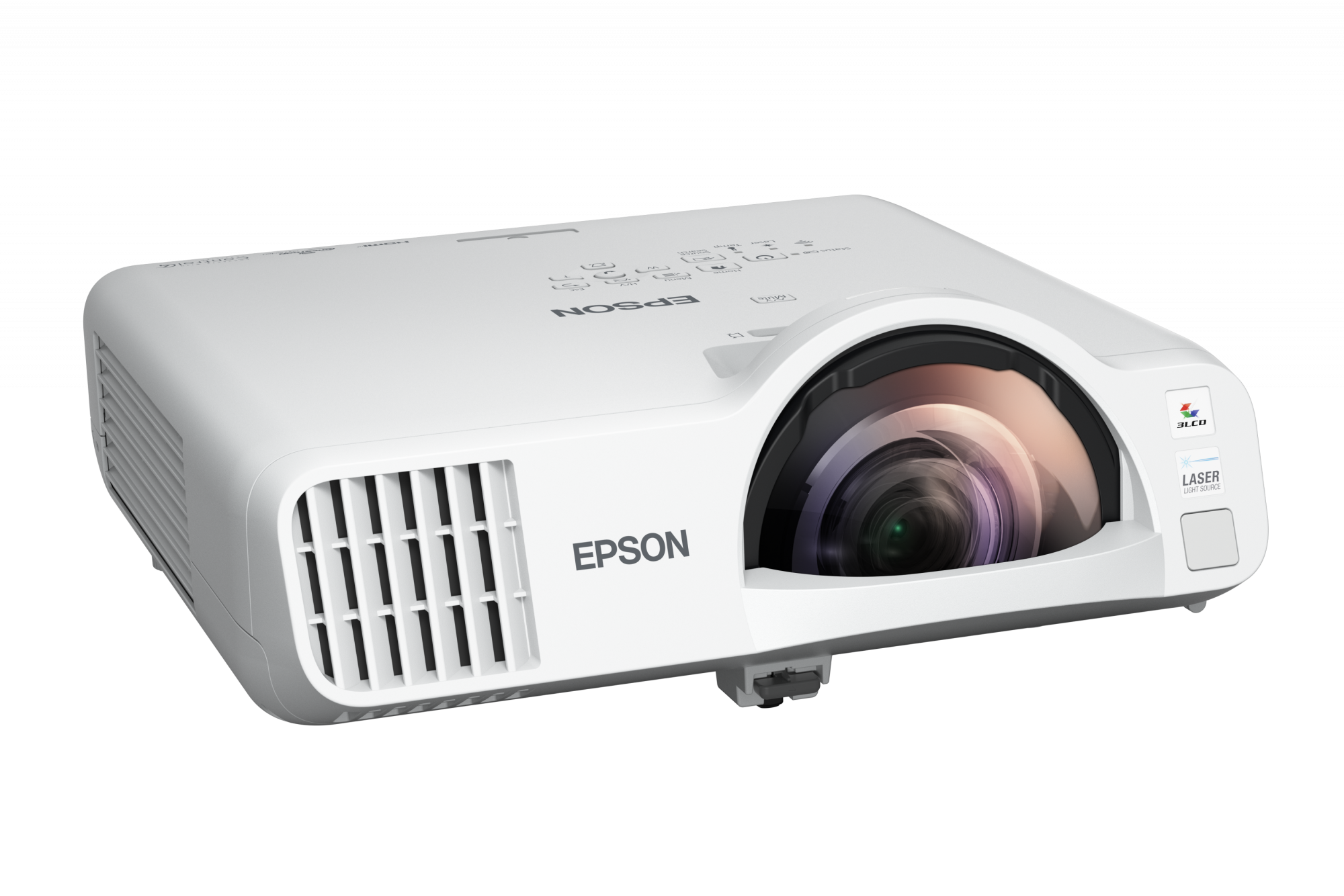

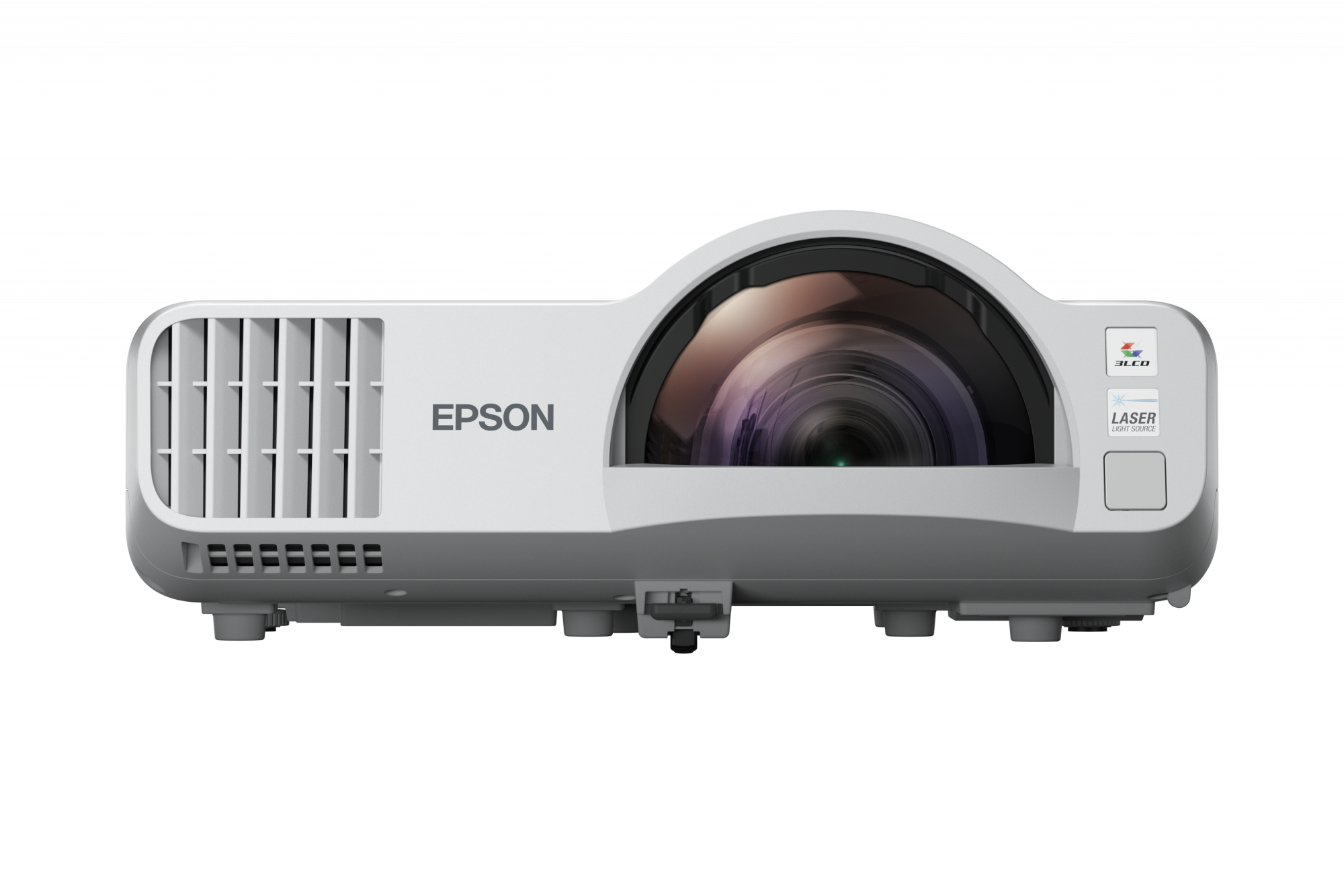

Short throw projector

Features

Country of origin
China

Interactive
No

Noise level
36 dB

Noise level (economic mode)
26 dB

Password protection
Yes

Lens system

F-number (relative aperture)
1.6

Fixed focal length
6.4 mm

Focal length range
6.4 mm

Focus
Manual

Throw ratio
0.48 - 0.65:1

Zoom capability
Yes

Zoom ratio
1.35:1

Zoom type
Auto

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet weight (UK)
0 g

Products per pallet (UK)
32 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
16 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Miracast
Yes

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
HDMI Cable 1.8m, Power cable, Quick Start Guide, Remote control incl. batteries

Control panel
0.59 inch with C2 Fine

Interface
USB 2.0-A, USB 2.0, RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (2x), Miracast, Jack plug out, Jack plug in (2x), Microphone input

Option type

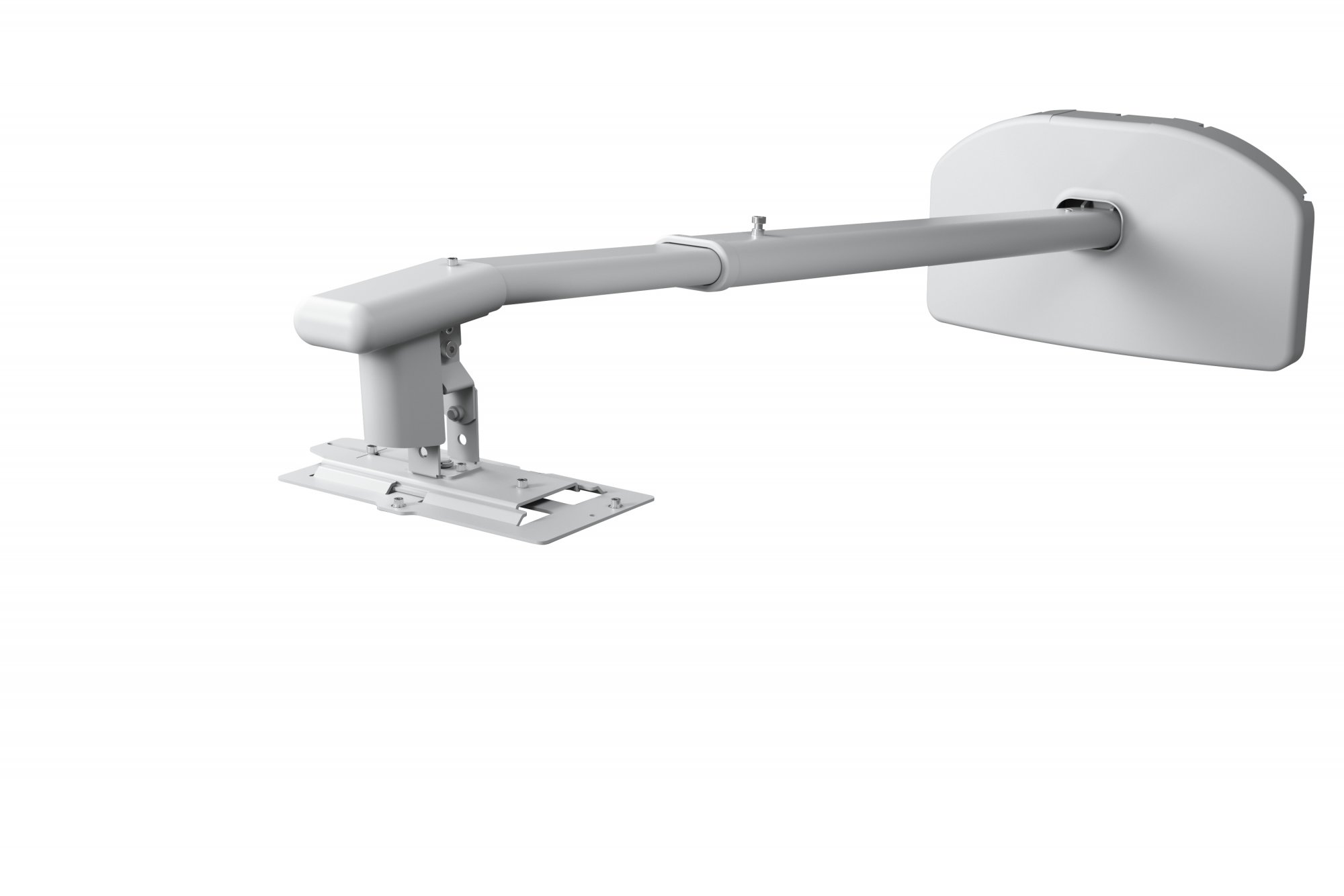

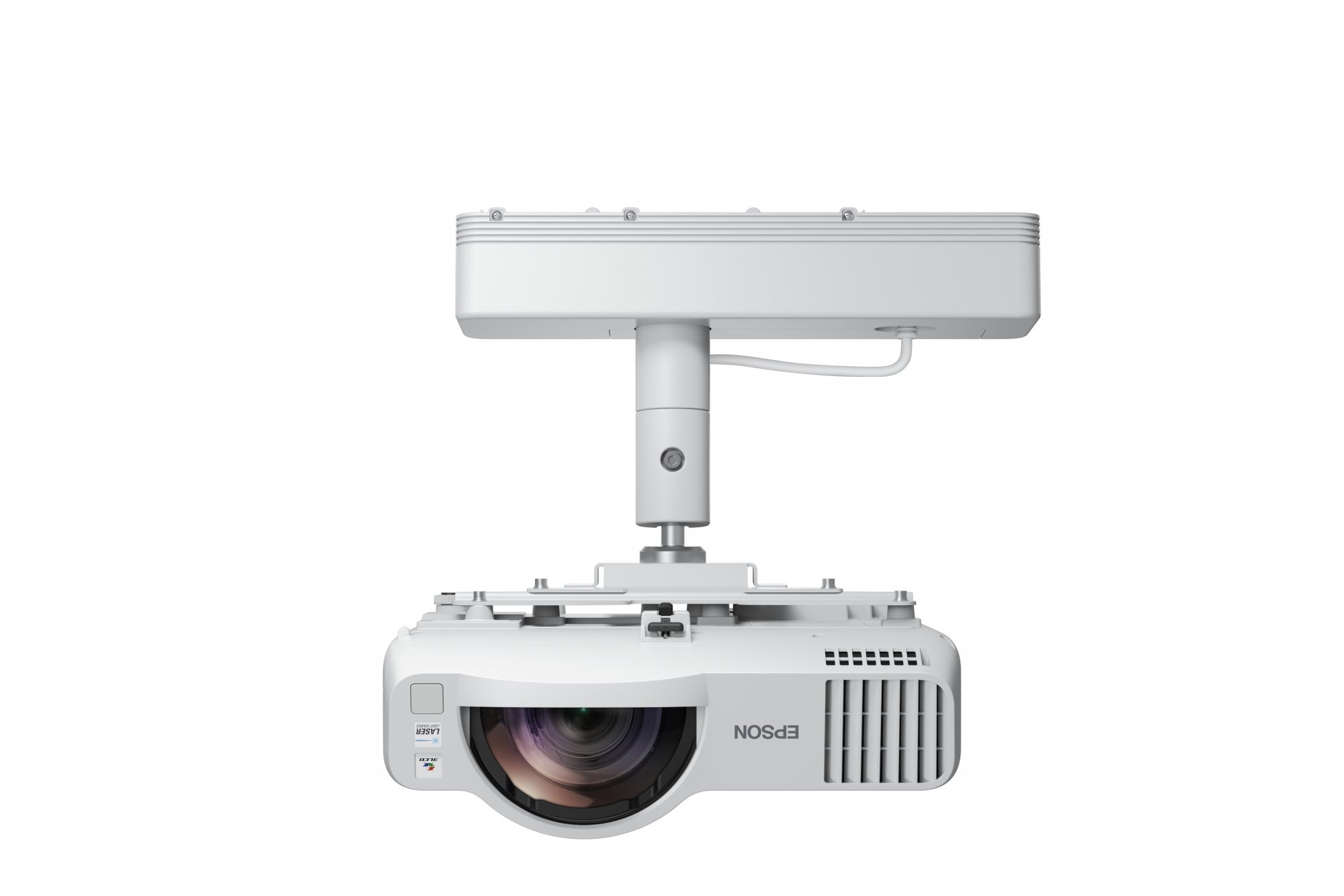

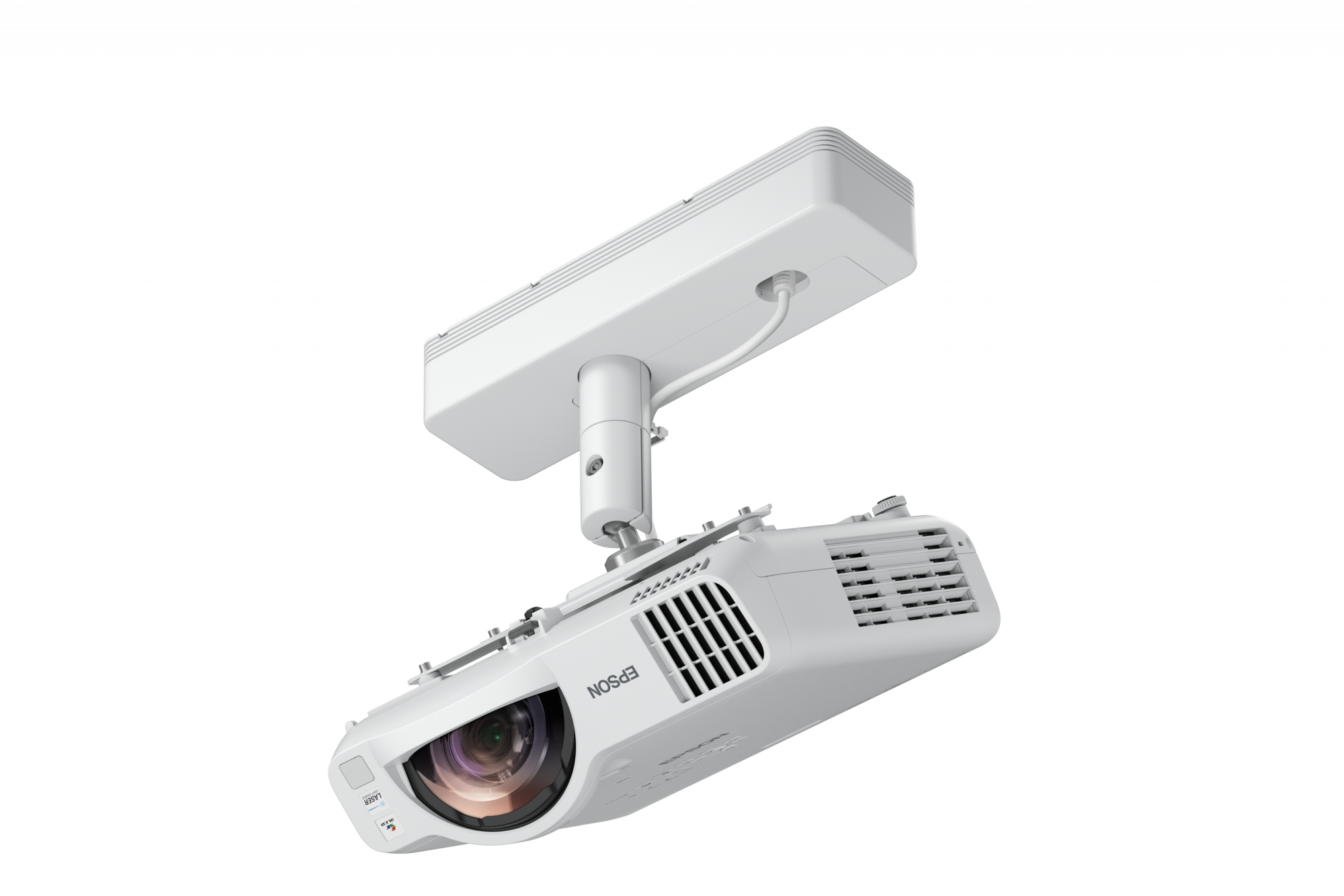

Connection and control box, Document camera, External Speaker, Wall mount, Wireless LAN unit

Security features
Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Supported network protocols
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Bundled software
Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management

Cables included
AC, HDMI

Quick start guide
Yes

WLAN adapter included
Yes

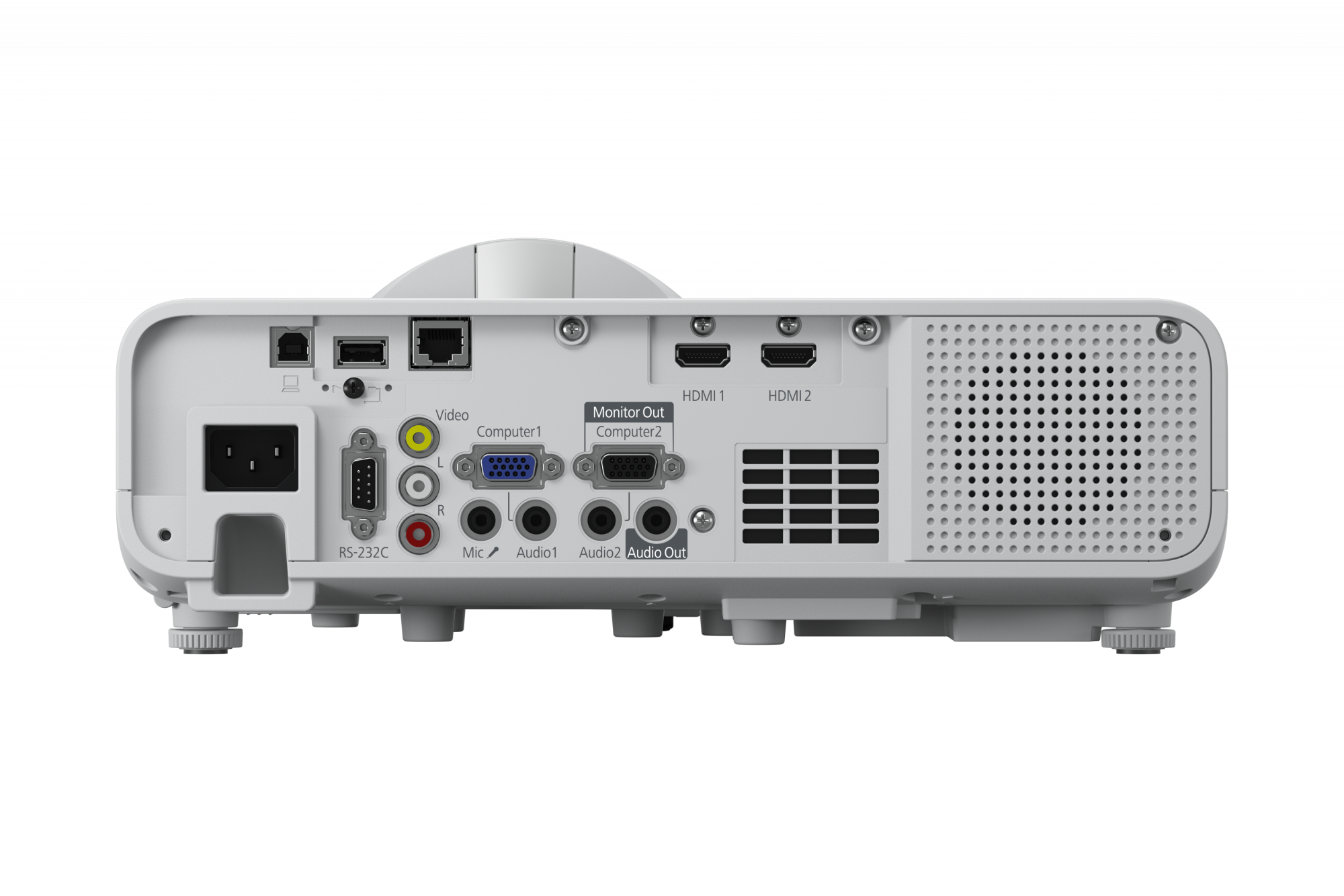

Ports & interfaces

Audio (L/R) in
1

DVI port
No

HDMI connector type
Full-size

HDMI ports
2

Microphone in
Yes

Serial interface type
RS-232C

USB 2.0 ports quantity
1

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
193 W

Power consumption (standby)
0.5 W

Power consumption (typical)
254 W

Power source
AC

Projector

Colour light output
3800 ANSI lumens

Contrast ratio (dynamic)
2500000:1

Contrast ratio (typical)
2500000:1

Keystone correction, horizontal
±15°

Keystone correction, vertical
±15°

Matrix size
1.5 cm (0.59")

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection technology
3LCD

Projector brightness
3800 ANSI lumens

Projector brightness (economic mode)
2660 ANSI lumens

Projector native resolution
WXGA (1280x800)

Screen size compatibility
1346.2 - 3048 mm (53 - 120")

Vertical scan range
100 - 120 Hz

White light output
3800 ANSI lumens

Software

Software support
via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Technical details

Mobile app support
Yes

Other features
Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Instant on/off, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, Quick Corner, Schedule Function, Set-up wizard, Split-Screen-Function, Web Control, Web Remote, Wireless LAN capable
