Description

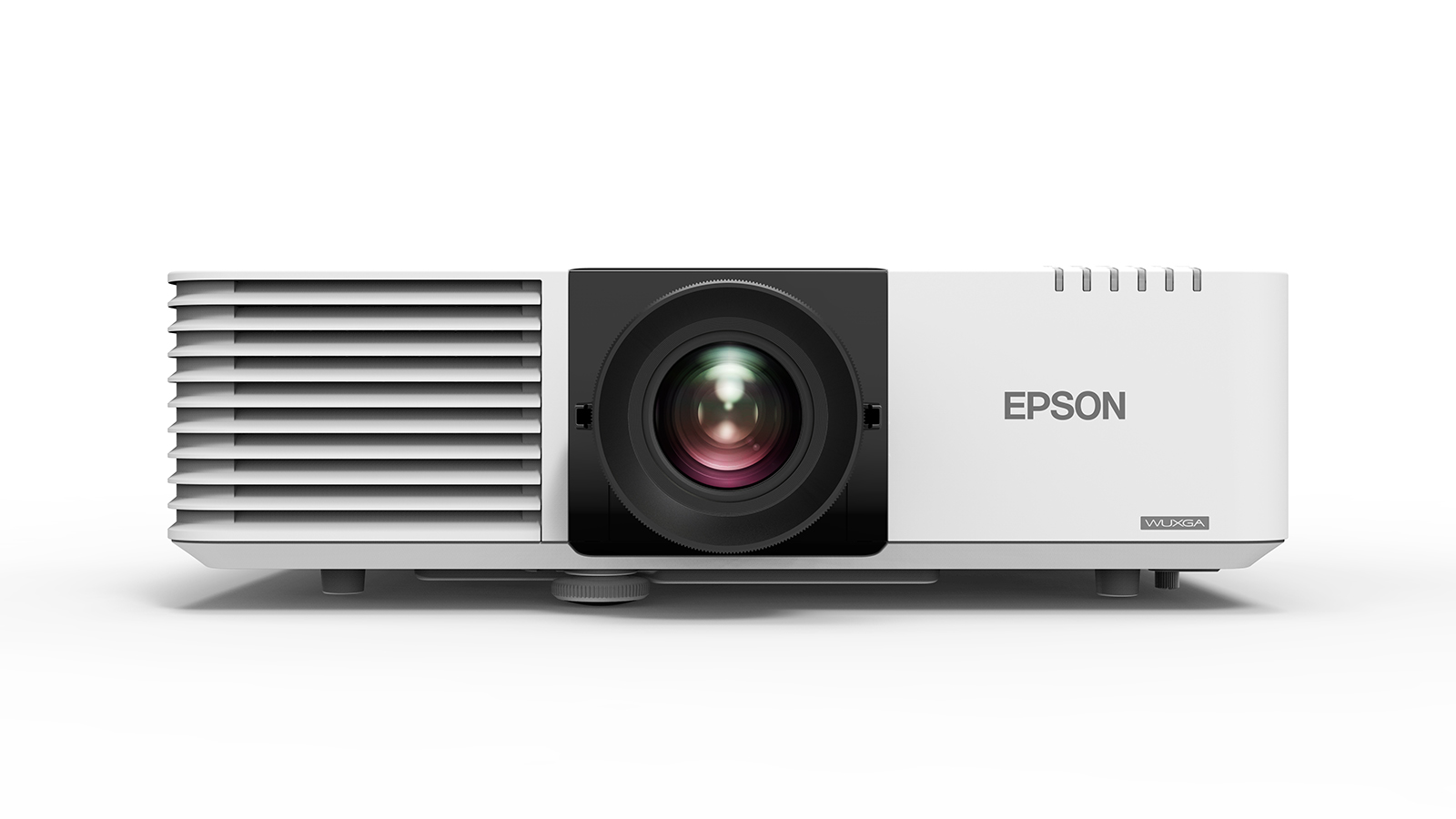

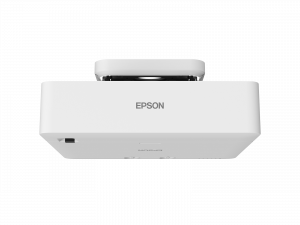

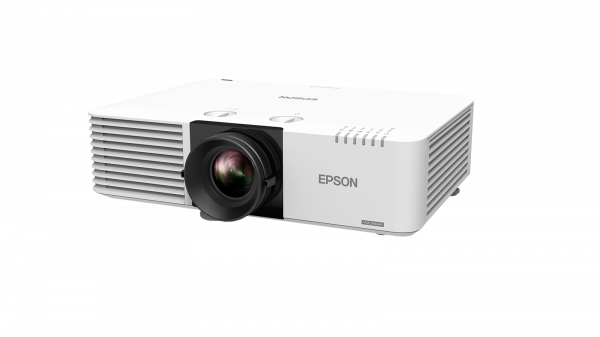

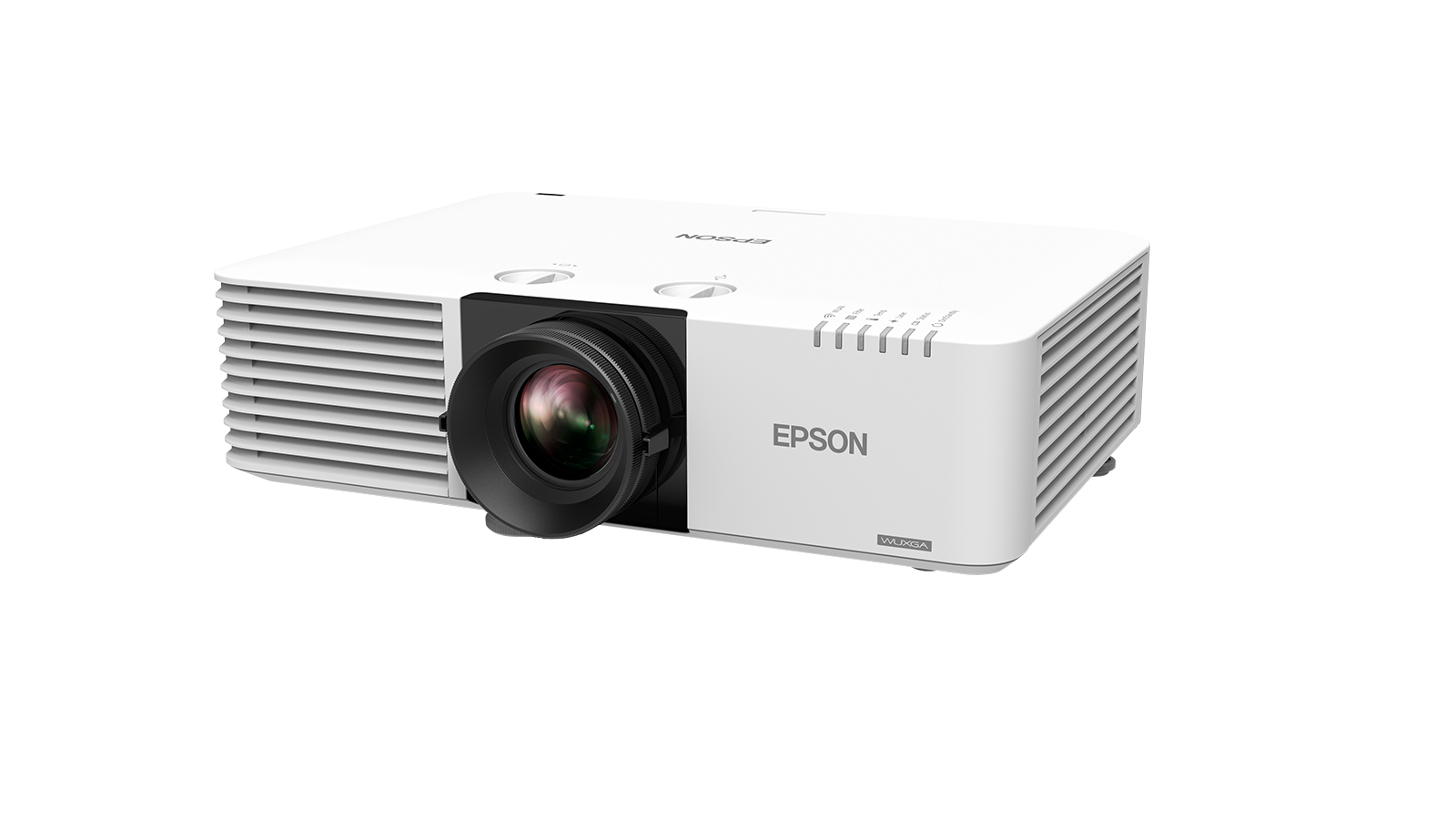

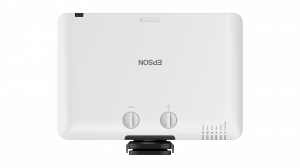

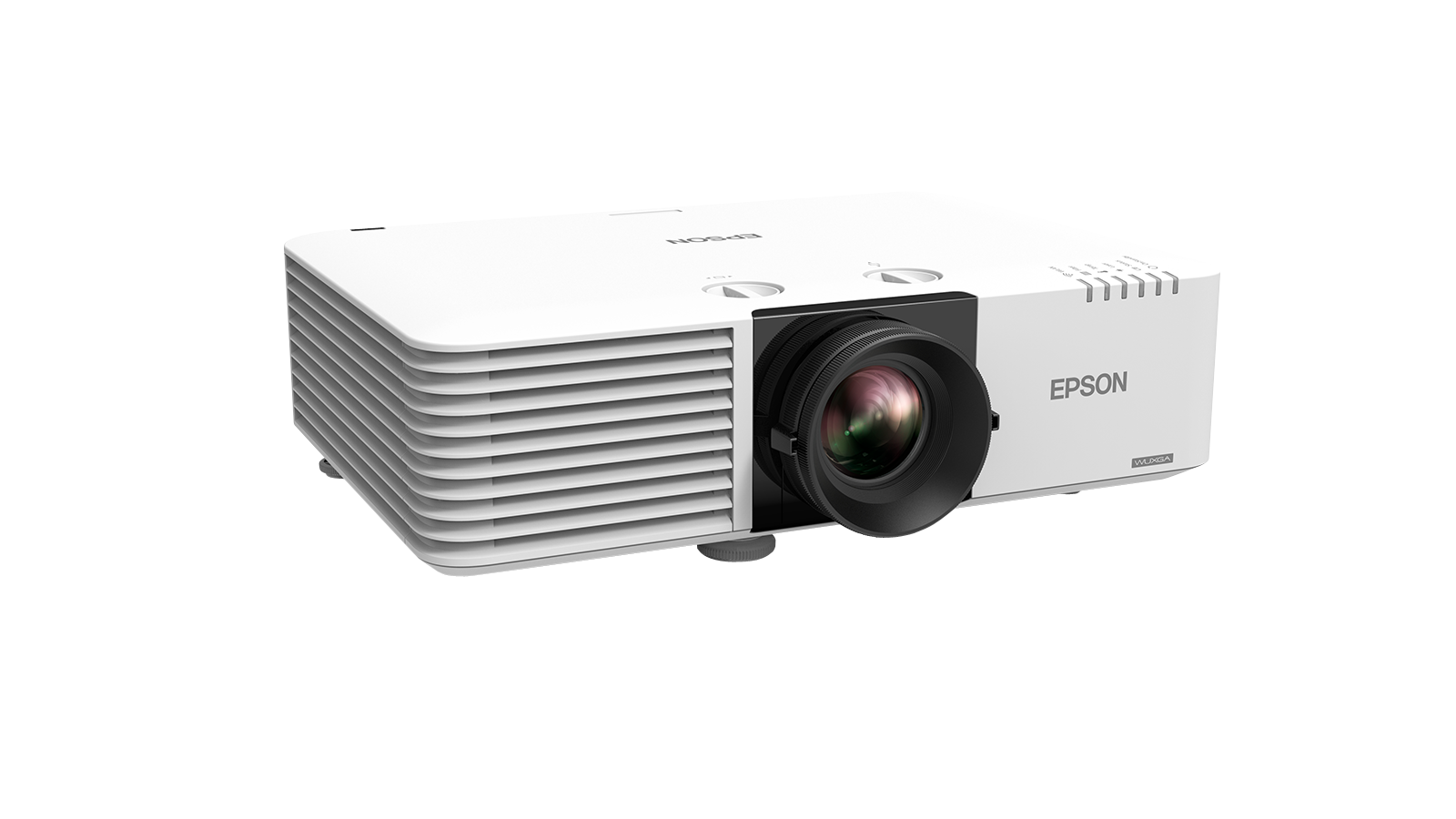

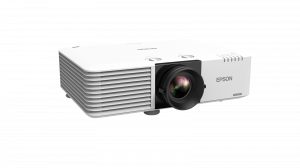

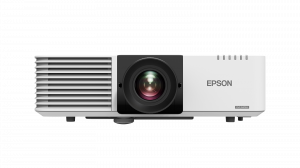

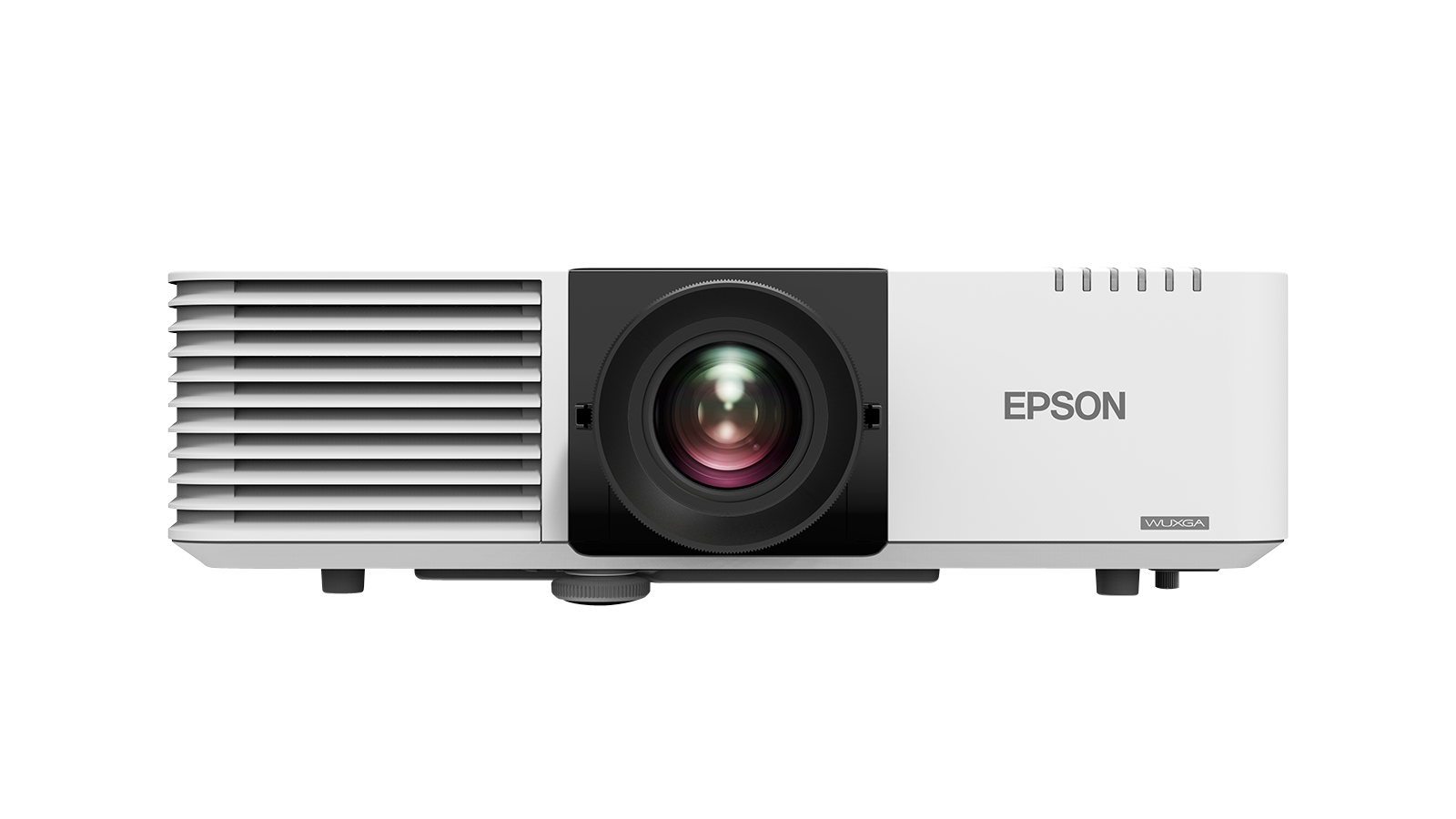

Epson EB-L630U. Projector brightness: 6200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection. Serial interface type: RS-232C, HDMI connector type: Full-size

6,200-lumen brightness: Crisp images and bright colours, even in well-lit rooms
WUXGA resolution: Sharp Full HD images for excellent clarity
Futureproofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
Easy, flexible installation: Lightweight and compact design with wide lens shift

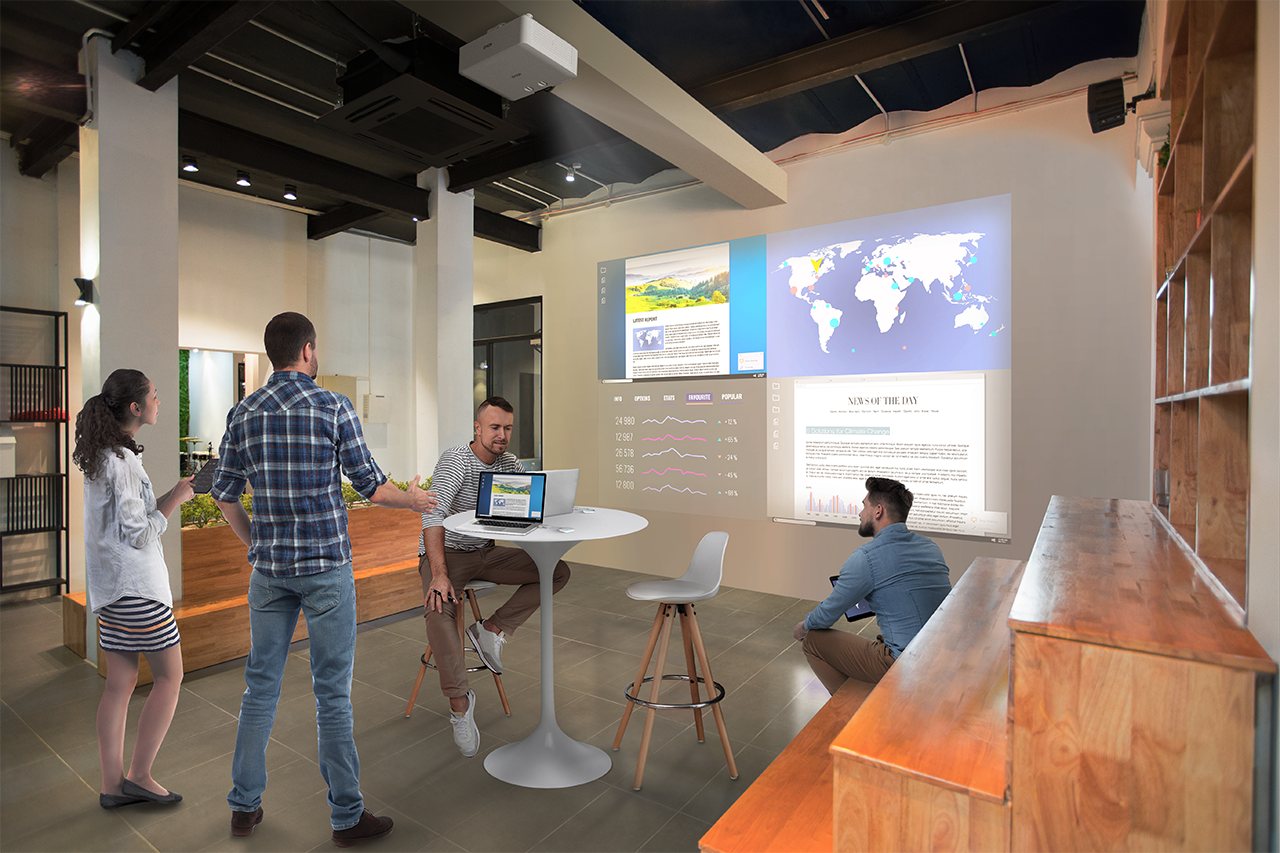

Support social distancing: Scalable display size of up to 500 inches

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA26040

EAN
8715946695310

Bullet points

Point
6,200-lumen brightness: Crisp images and bright colours, even in well-lit rooms

Easy, flexible installation: Lightweight and compact design with wide lens shift

Futureproofed connectivity options

Support social distancing: Scalable display size of up to 500 inches

WUXGA resolution: Sharp Full HD images for excellent clarity

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Presentation

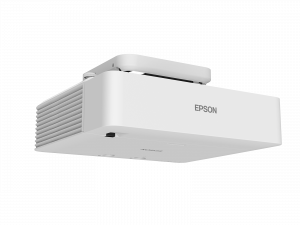

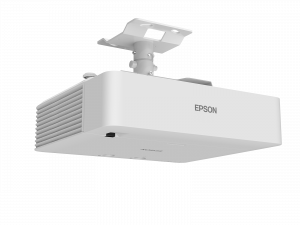

Placement

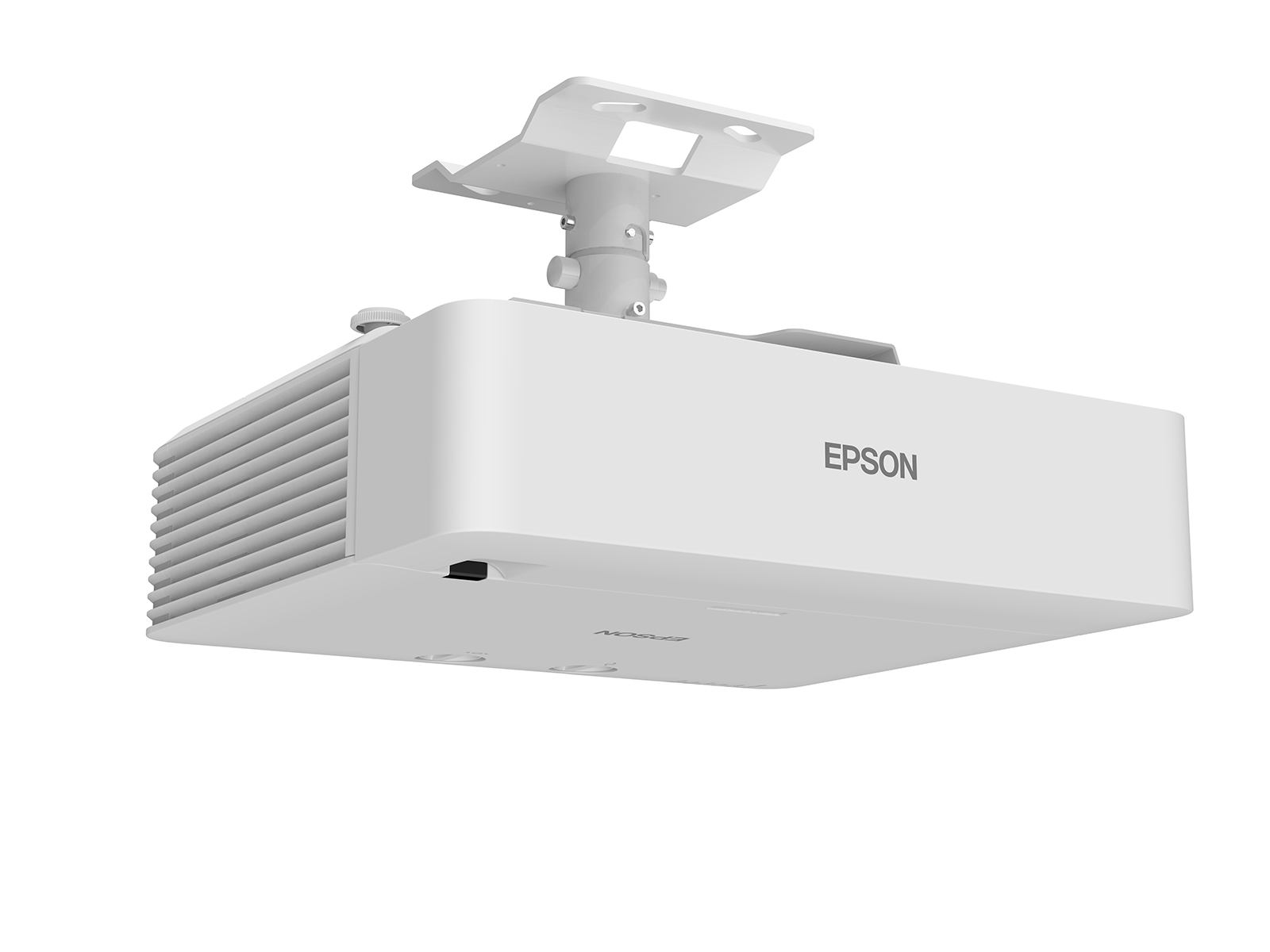

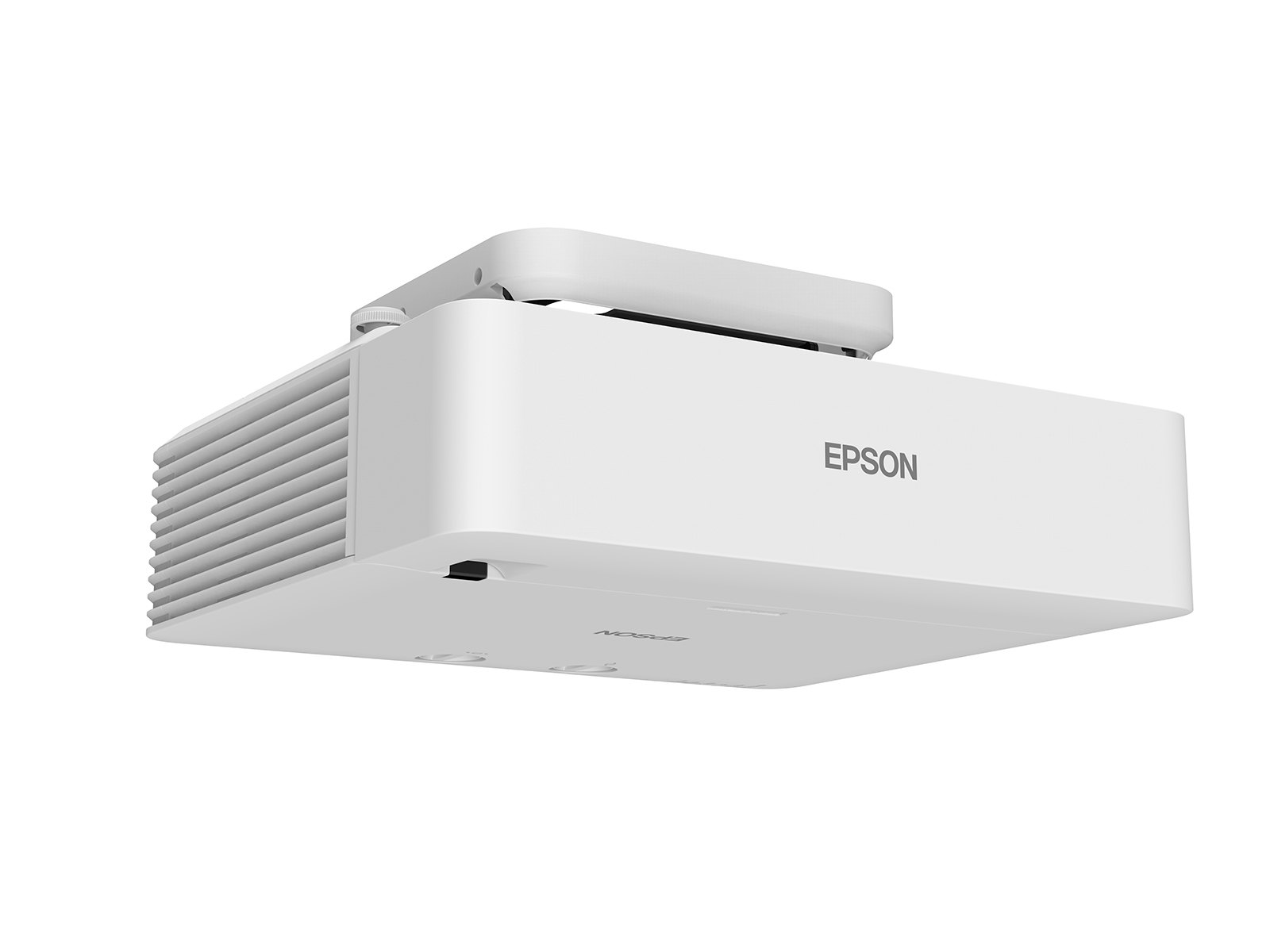

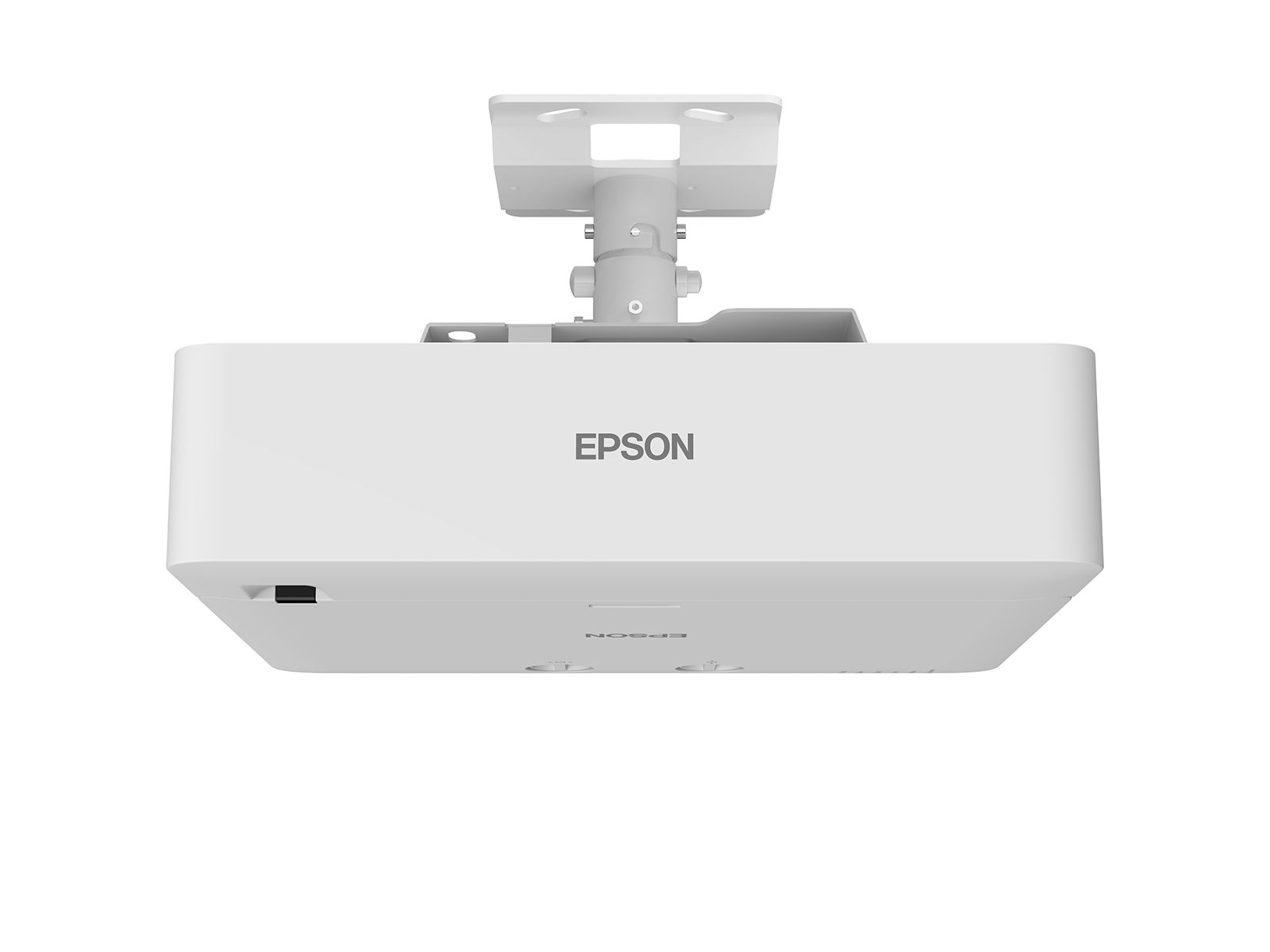

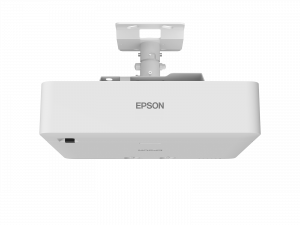

Ceiling, Desktop

Product colour
White

Product type
Standard throw projector

Display

Built-in display
No

Features

Country of origin
Philippines

HDCP
Yes

Interactive
No

Noise level
38 dB

Noise level (economic mode)
27 dB

Password protection
Yes

Lens system

Aperture range (F-F)
1.5 - 1.7

Focal length range
20 - 31.8 mm

Focus
Manual

Horizontal lens shift range
-20 - 20%

Throw ratio
1.35 - 2.2:1

Vertical lens shift range
-50 - 50%

Zoom capability
Yes

Zoom ratio
1.6:1

Zoom type
Manual

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
14 pc(s)

Products per pallet (UK)
14 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
10 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Miracast
Yes

Smart TV
No

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Supported network protocols
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Batteries included
Yes

Cables included
AC

Manual
Yes

Remote control included
Yes

Warranty card
Yes

WLAN adapter included
Yes

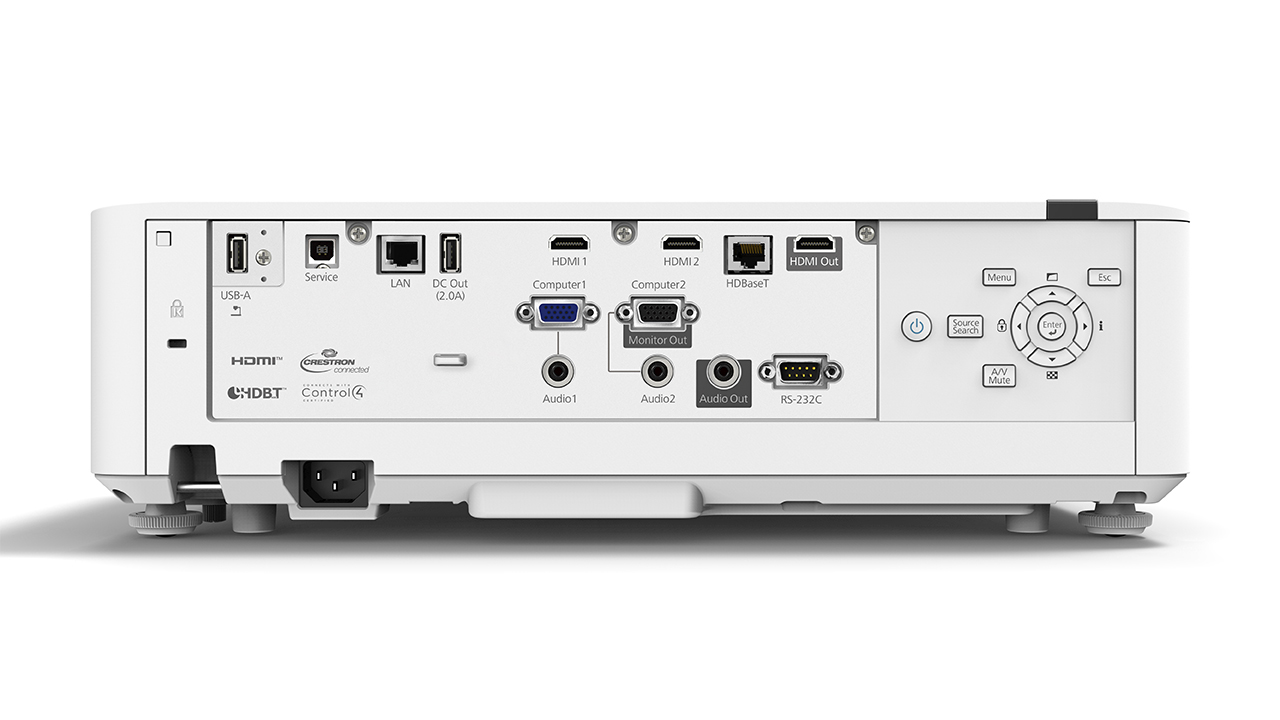

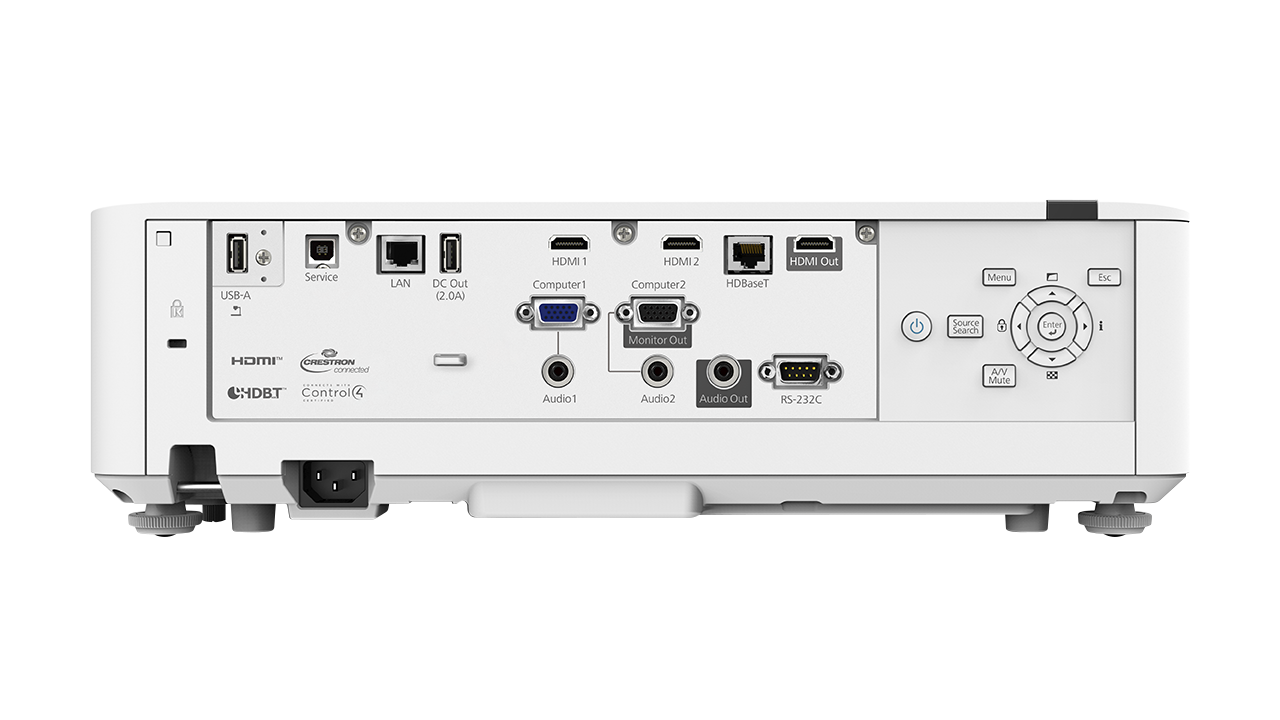

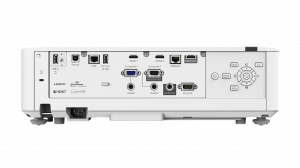

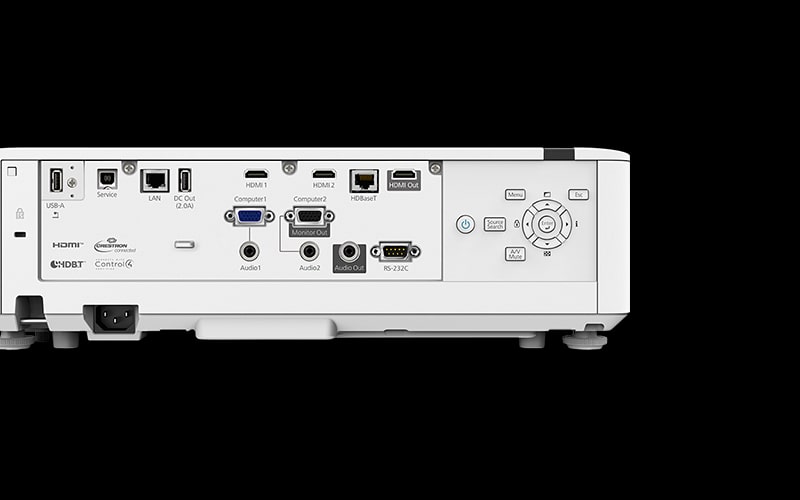

Ports & interfaces

AC (power) in
Yes

Audio (L/R) in
0

Component video (YPbPr/YCbCr) in
0

Composite video in
0

DVI port
No

HDBaseT port
Yes

HDMI connector type
Full-size

HDMI ports
3

PC Audio in
Yes

PC Audio out
Yes

Serial interface type
RS-232C

USB 2.0 ports quantity
2

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100-240 V

Power consumption (economy mode)
258 W

Power consumption (standby)
0.3 W

Power consumption (typical)
345 W

Power source
AC

Projector

Contrast ratio (typical)
2500000:1

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-30 - 30°

Matrix size
1.7 cm (0.67")

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection distance
1.44 - 23.84 m

Projection distance (tele)
2.4 - 23.8 m

Projection distance (wide)
1.4 - 14.8 m

Projection technology
3LCD

Projector brightness
6200 ANSI lumens

Projector brightness (economic mode)
4340 ANSI lumens

Projector native resolution
WUXGA (1920x1200)

Screen size compatibility
1270 - 12700 mm (50 - 500")

Smart projector
No

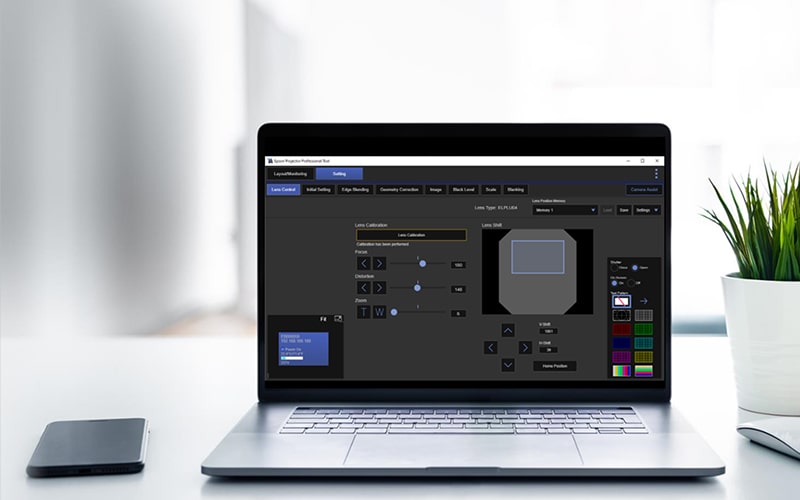

Software

Software support
via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Storage

Card reader integrated
No

Technical details

Sustainability certificates
TCO

Video

Full HD
Yes

Video colour modes
Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection

Video processing
10 bit

Weight & dimensions

Depth
339 mm

Height
136 mm

Package depth
565 mm

Package height
210 mm

Package weight
12.3 kg

Package width
540 mm

Weight
8.4 kg

Width
440 mm
