Description

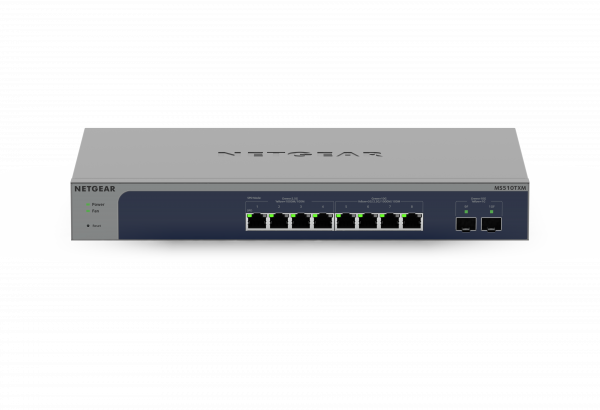

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM). Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 32000 entries, Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting

Provides 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 Access Point connectivity, IP surveillance and mobility
Easy-to-use web browser-based management GUI with configurable L2/L2+ network features like VLANs and QoS
10G speed on regular ports and uplink connectivity to core network
Includes 1-year of Insight Premium or Pro subscription
Managed by NETGEAR Insight - ideal with other NETGEAR Insight managed devices
Provides an industry-leading Limited Lifetime warranty at no extra cost with product registration

Product Properties

Manufacturer
Netgear

Model
MS510TXM-100EUS

EAN
606449152364

Bullet points

Point
10G speed on regular ports and uplink connectivity to core network

Includes 1-year of Insight Premium or Pro subscription

Managed by NETGEAR Insight - ideal with other NETGEAR Insight managed devices

Provides an industry-leading Limited Lifetime warranty at no extra cost with product registration

Data transmission

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
32000 entries

Number of queues
8

Packet buffer memory
2 MB

Switching capacity
140 Gbit/s

Design

LED indicators
Activity, Fan fail, Link, Power, Speed

Number of fans
2 fan(s)

Product colour
Grey

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Cloud-managed
Yes

Quality of Service (QoS) support
Yes

Switch layer
L2+

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast support
Yes

Number of multicast groups filtered
256

Network

10G support
Yes

Broadcast storm control
Yes

Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x

Number of VLANs
256

Port mirroring
Yes

VLAN support
Yes

Operational conditions

Heat dissipation
160.458 BTU/h

Non-operating altitude
0 - 3000 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Cables included
AC

User guide
Yes

Packaging data

Rack rails
Yes

Performance

Built-in processor
Yes

Firmware upgradeable
Yes

Flash memory
64 MB

Internal memory
256 MB

Mean time between failures (MTBF)
1059519 h

Noise level
25 dB

Processor frequency
1000 MHz

Ports & interfaces

SFP+ module slots quantity
2

Switch Number of Ports
8

Switch Port Speed
10G Ethernet (100/1000/10000)

Power

Power consumption (max)
47 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Security

Access Control List (ACL)
Yes

DHCP features
DHCPv6 snooping

IGMP snooping
Yes

Password protection
Yes

Queue scheduling algorithms
WRR+SP

Weight & dimensions

Depth
206 mm

Height
43 mm

Weight
2.08 kg

Width
330 mm
