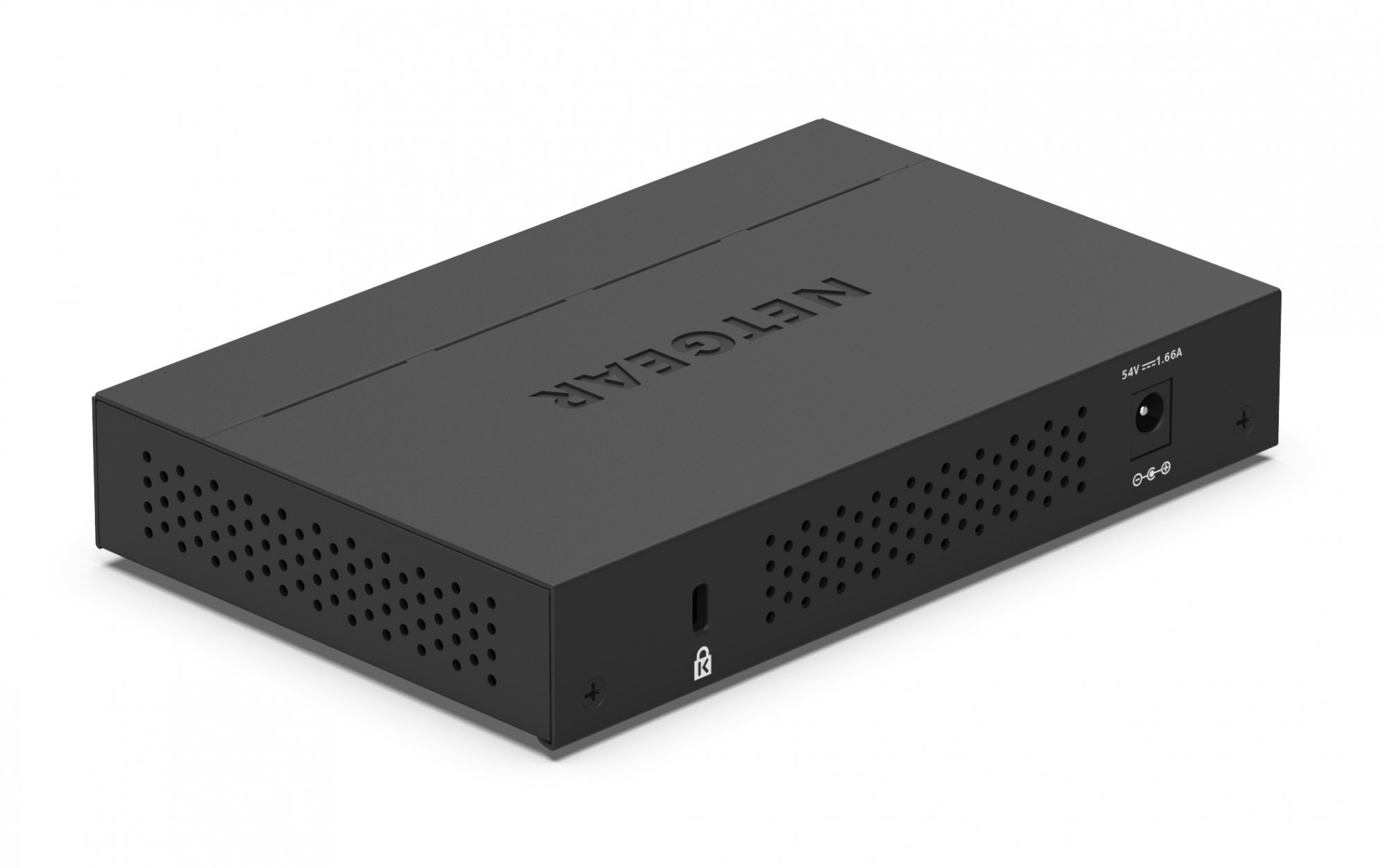

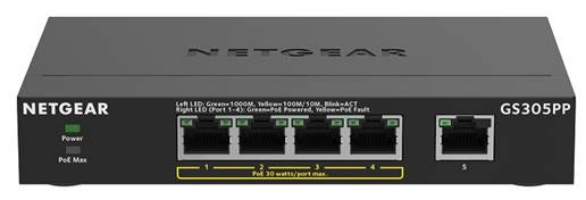

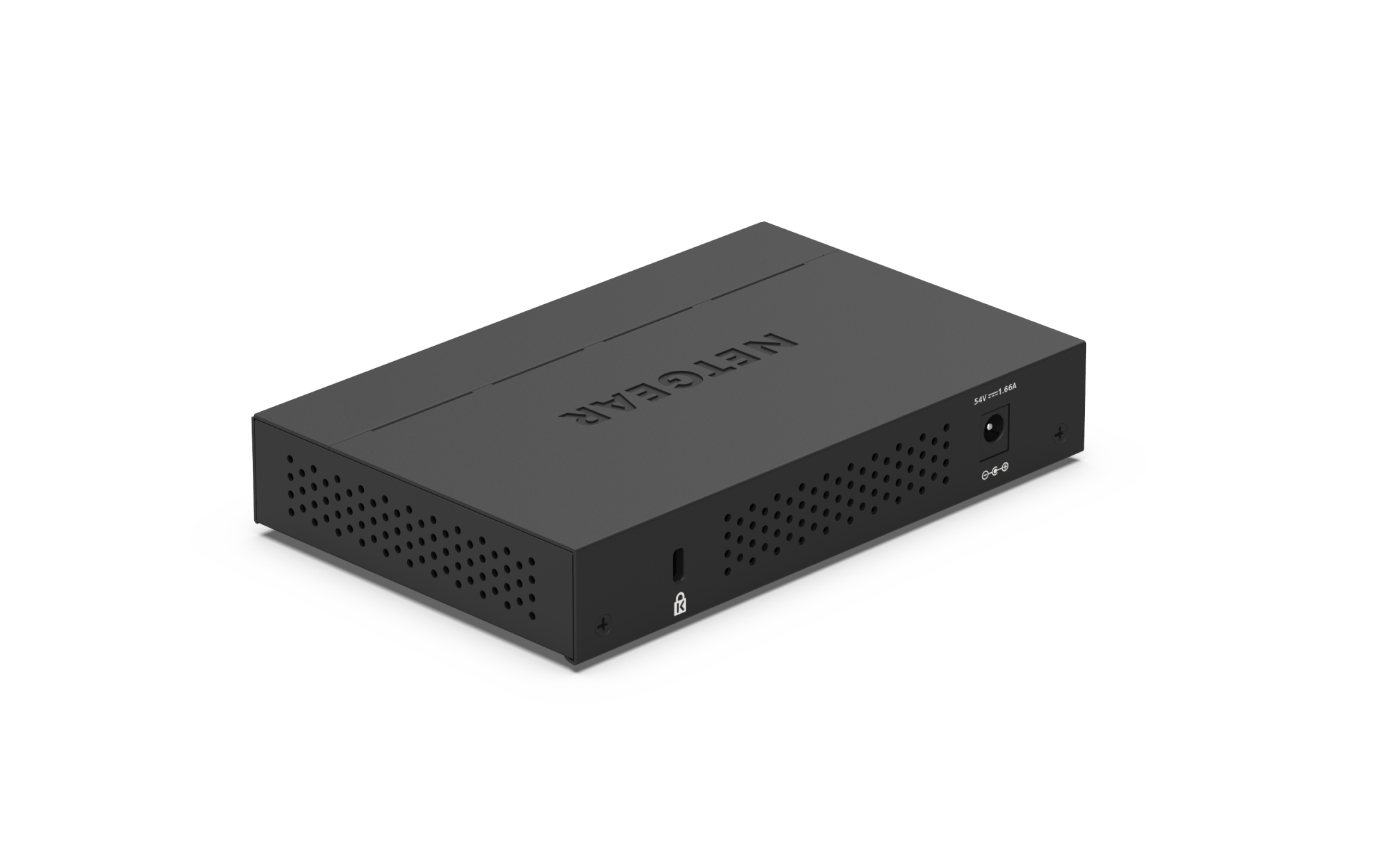

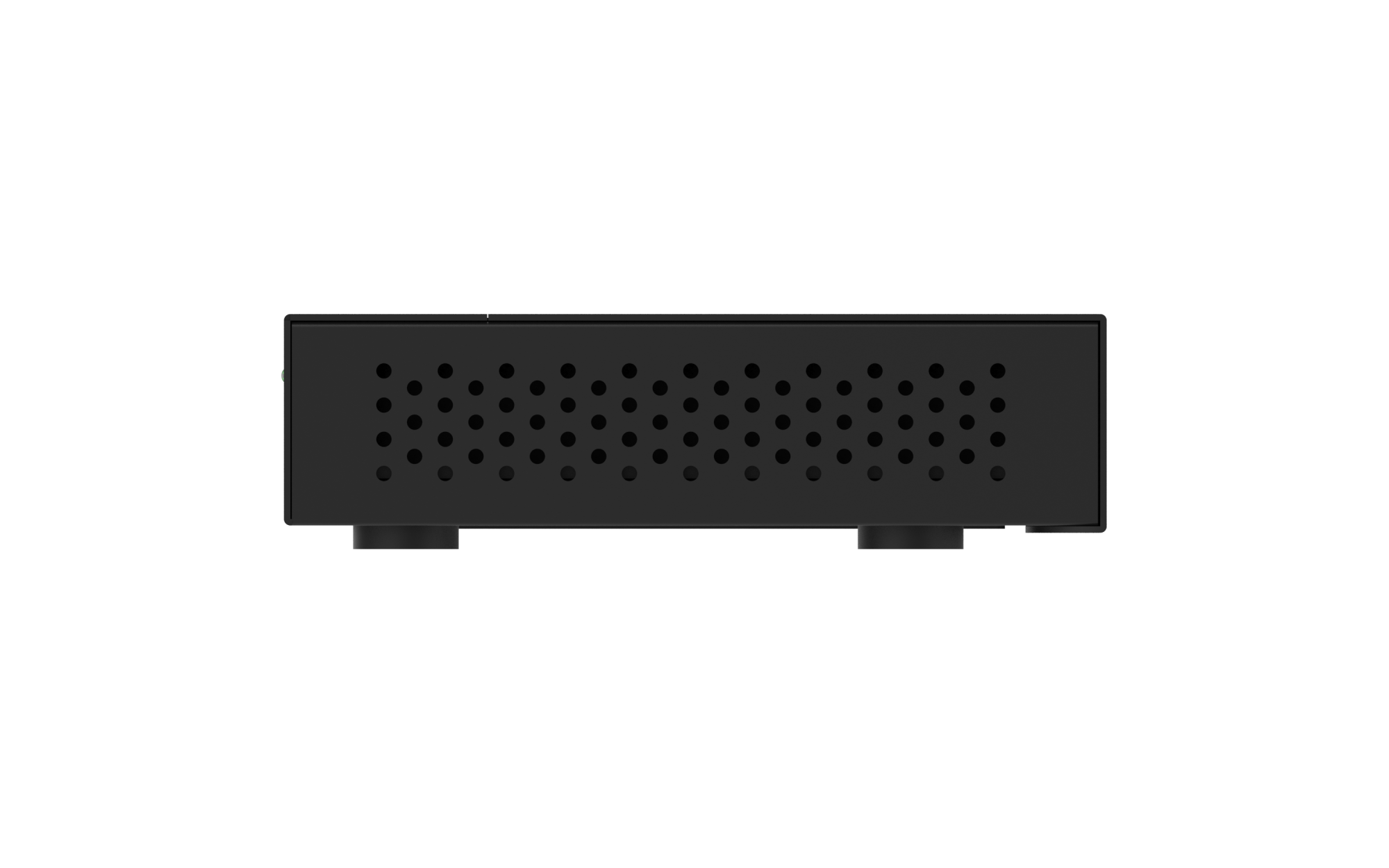

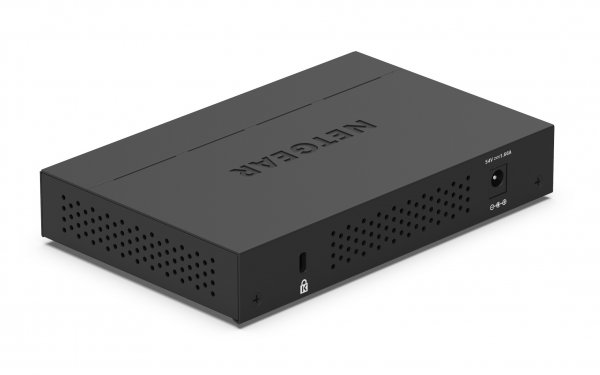

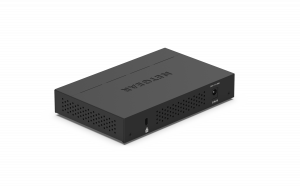

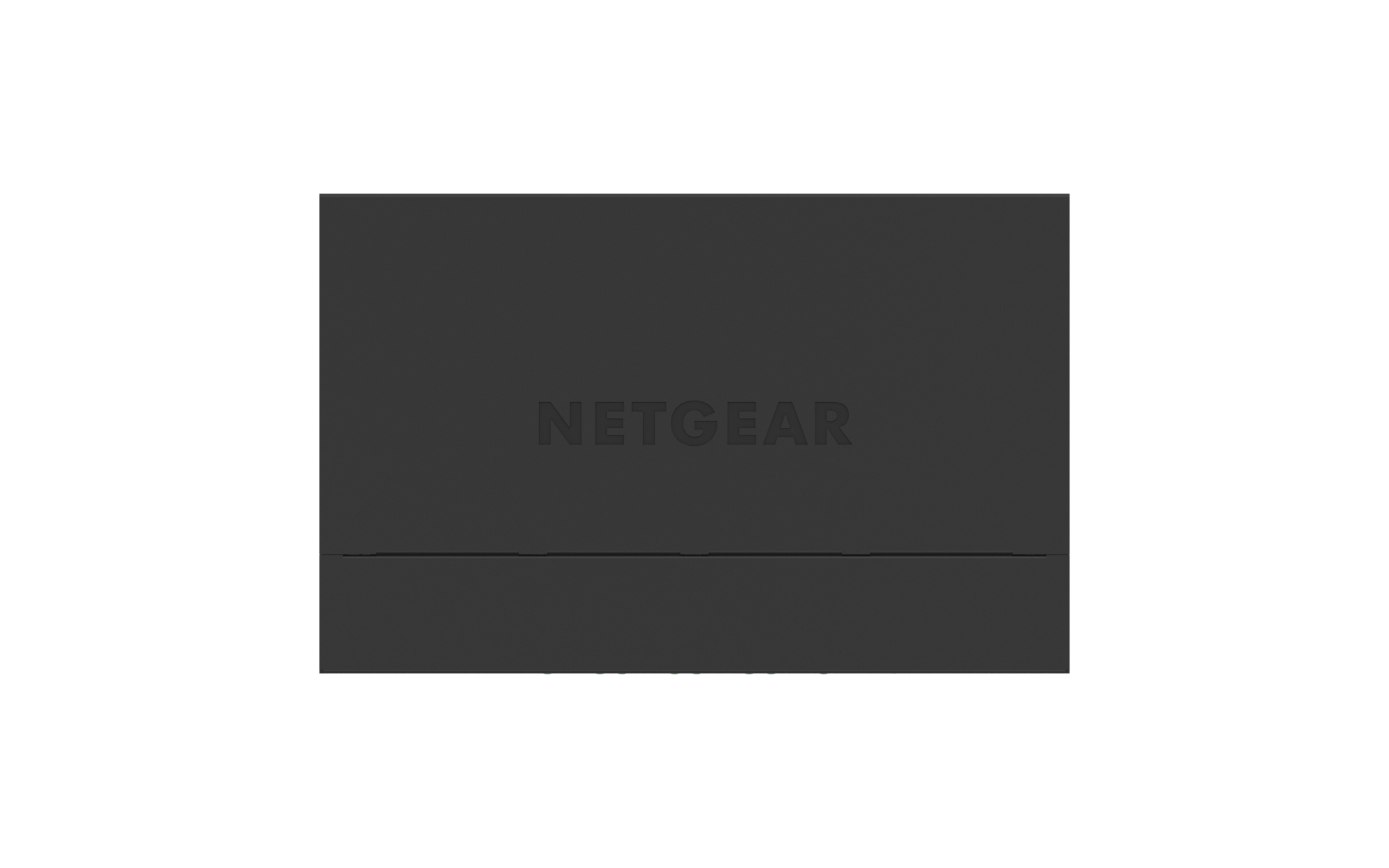

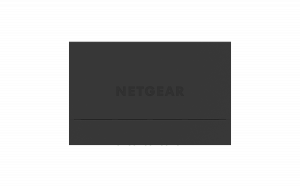

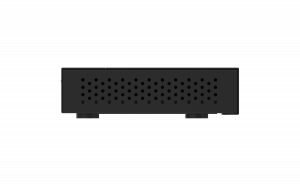

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Print
Model: GS305PP-100UKS
EAN: 606449142440

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
Netgear
NETGEAR GS305PP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

NETGEAR GS305PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • LED indicators for ease of use
  • Energy-efficient technology for power savings
  • Fanless design for silent operation
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Non-blocking switching architecture for maximum throughput at wire speed
  • 802.1p QoS for traffic/frame prioritization
  • Plug-and-play; no setup required
  • Durable and rugged metal case
  • Desktop or wall-mountable; GS324 is also rack-mountable (rack-mount kit included)
  • Ideal for small office and home networks
  • Standards-based technology ensures interoperability with any standardsbased devices in the existing network
  • Power up to 4 PoE-capable devices (GS305P/GS305PP and GS308P only)
  • 802.3af Power Over Ethernet (PoE) for IP cameras, VoIP/Internet-based phones, wireless access points (GS308P only)

Product Properties

  • Model
  • GS305PP-100UKS
  • EAN
  • 606449142440
  • Bullet points
  • Point
  • 802.1p QoS for traffic/frame prioritization
    Auto-MDI/MDIX eliminates the need for crossover cables
    Desktop or wall-mountable; GS324 is also rack-mountable (rack-mount kit included)
    Durable and rugged metal case
    Energy-efficient technology for power savings
    Fanless design for silent operation
    Ideal for small office and home networks
    LED indicators for ease of use
    Non-blocking switching architecture for maximum throughput at wire speed
    Plug-and-play; no setup required
    Power up to 4 PoE-capable devices (GS305P/GS305PP and GS308P only)
  • Data transmission
  • Jumbo frames
  • 9216
  • Jumbo frames support
  • Yes
  • Latency (1 Gbps)
  • 2.4 µs
  • MAC address table
  • 2000 entries
  • Packet buffer memory
  • 128 MB
  • Packet forwarding rate (1 Gbps)
  • 1448000 pps
  • Static route
  • Yes
  • Switching capacity
  • 10 Gbit/s
  • Design
  • Housing material
  • Metal
  • LED indicators
  • Activity, Link, PoE, Power
  • Product colour
  • Black
  • Rack mounting
  • No
  • Reset button
  • Yes
  • Wall mountable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Master (outer) case gross weight
  • 8.31 kg
  • Master (outer) case height
  • 306 mm
  • Master (outer) case length
  • 469 mm
  • Master (outer) case width
  • 237 mm
  • Products per master (outer) case
  • 6 pc(s)
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Cable length detection
  • Yes
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Networking standards
  • IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • Operational conditions
  • Heat dissipation
  • 304 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Packaging content
  • Manual
  • Yes
  • Packaging data
  • Package depth
  • 269 mm
  • Package height
  • 73 mm
  • Package weight
  • 1.27 kg
  • Package width
  • 215 mm
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 5
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Power connector
  • DC-in jack
  • Switch Number of Ports
  • 4
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • DC input voltage
  • 54 V
  • Input current
  • 1.66 A
  • Power consumption (max)
  • 88.89 W
  • Power consumption (typical)
  • 2.89 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 4
  • Total Power over Ethernet (PoE) budget
  • 83 W
  • Technical details
  • Layers per pallet (air)
  • 4 pc(s)
  • Layers per pallet (sea)
  • 6 pc(s)
  • Master (outer) cases per pallet layer
  • 10 pc(s)
  • Products per shipping (inner) case
  • 6 pc(s)
  • Shipping (inner) case height
  • 30.6 cm
  • Shipping (inner) case length
  • 23.7 cm
  • Shipping (inner) case net weight
  • 8.34 kg
  • Shipping (inner) case width
  • 46.9 cm
  • Weight & dimensions
  • Depth
  • 101 mm
  • Height
  • 29 mm
  • Weight
  • 410 g
  • Width
  • 158 mm
