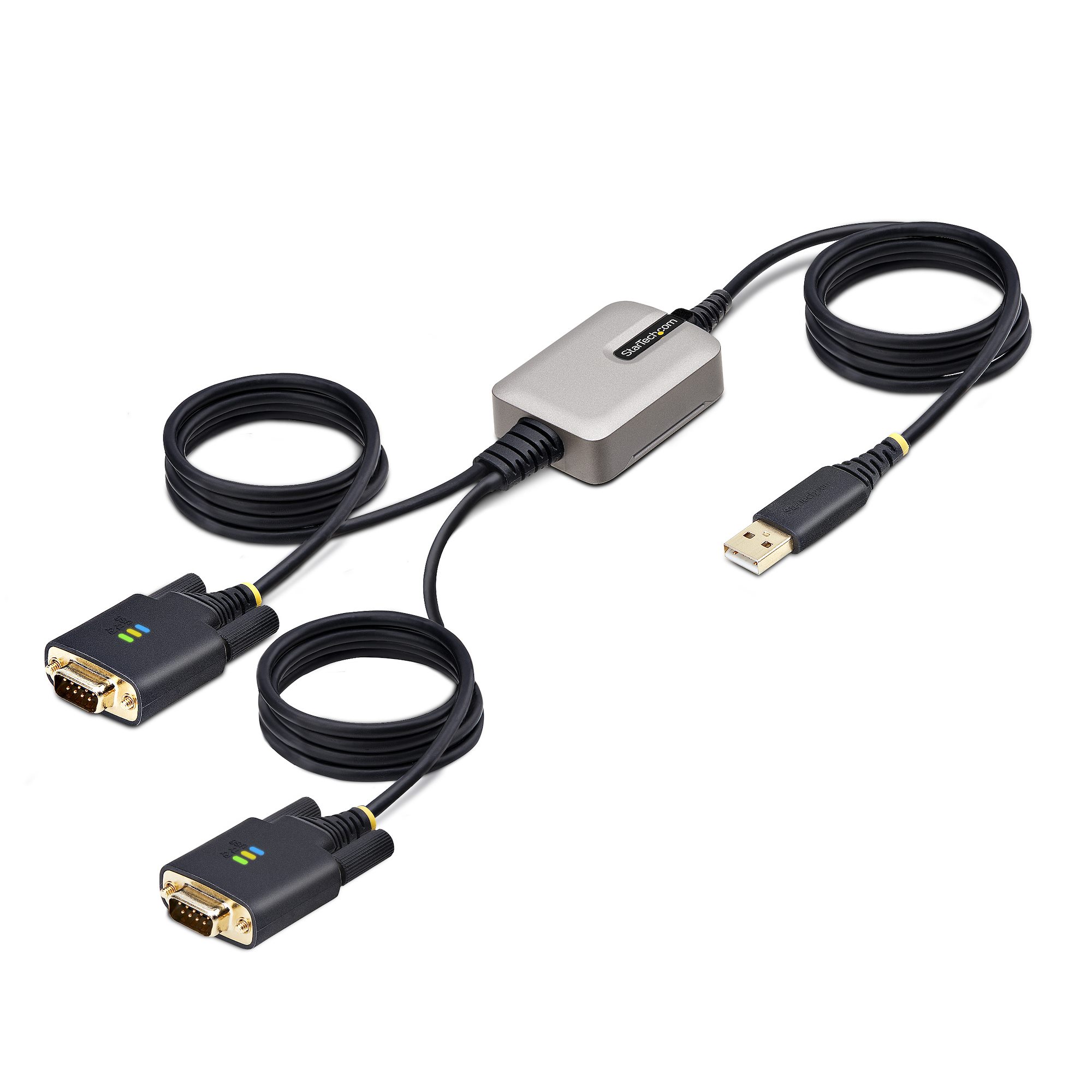

StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction
Roll over image to zoom inClick to Open expanded view
StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction
StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction
StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction
Print
Model: 2P6FFC-USB-SERIAL
EAN: 65030898379

StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction

Manufacturer:
StarTech.com
StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction, USB-A, 2 x DB-9 RS-232, 4 m, Black, Grey
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

    Description

    StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction. Connector 1: USB-A, Connector 2: 2 x DB-9 RS-232, Cable length: 4 m. Product colour: Black, Grey

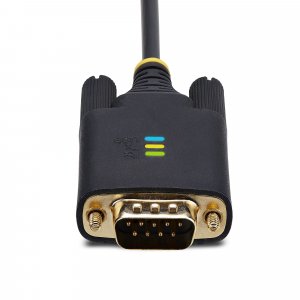

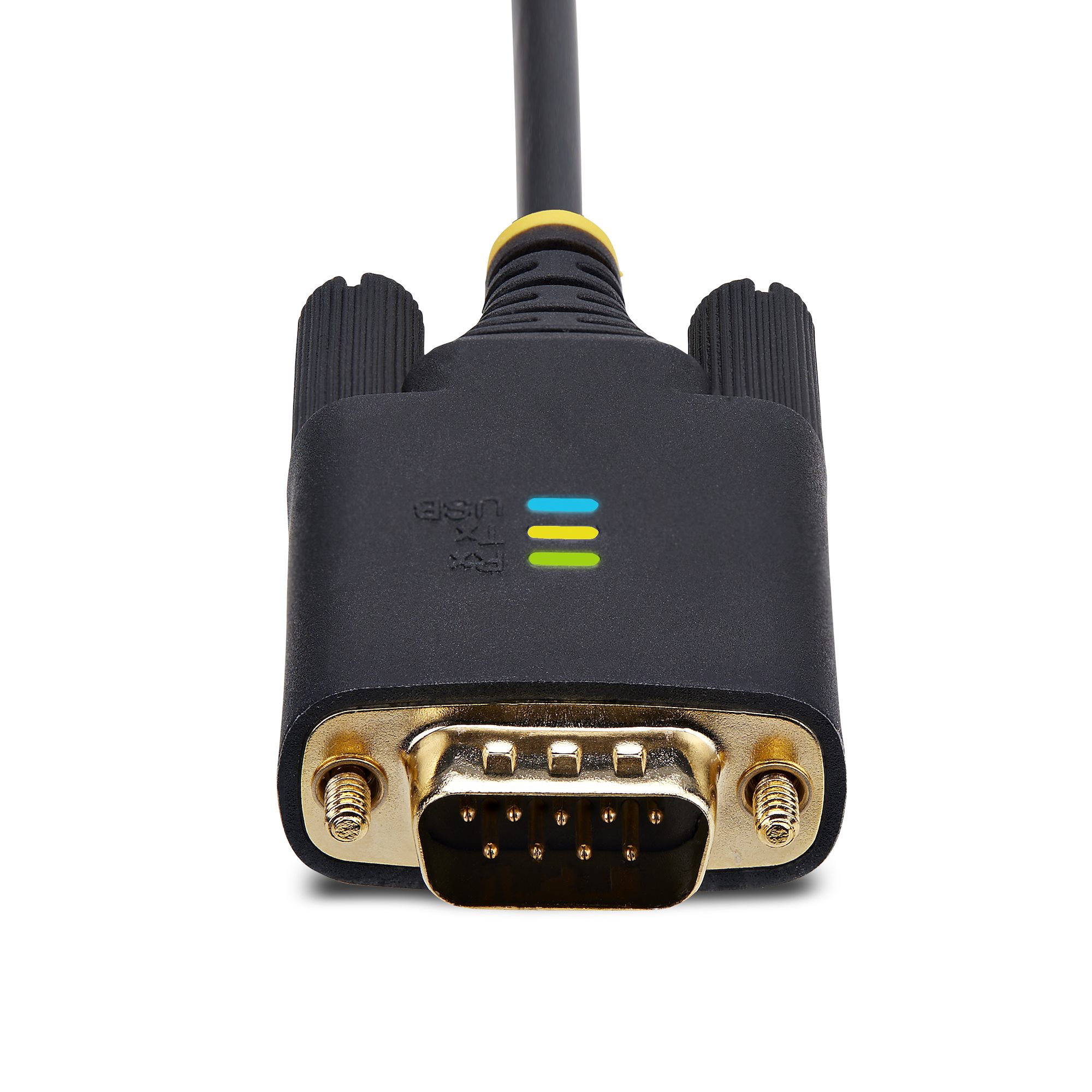

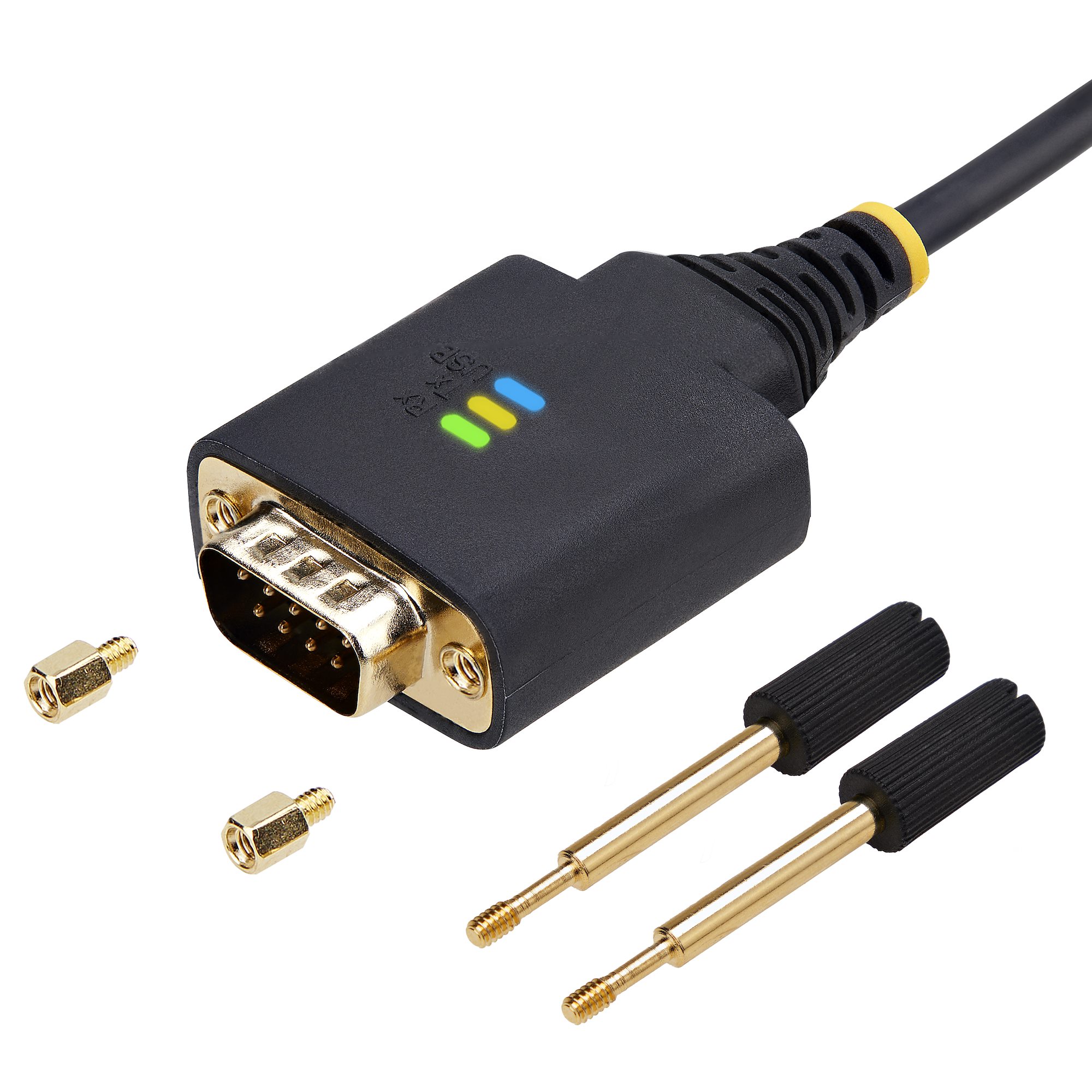

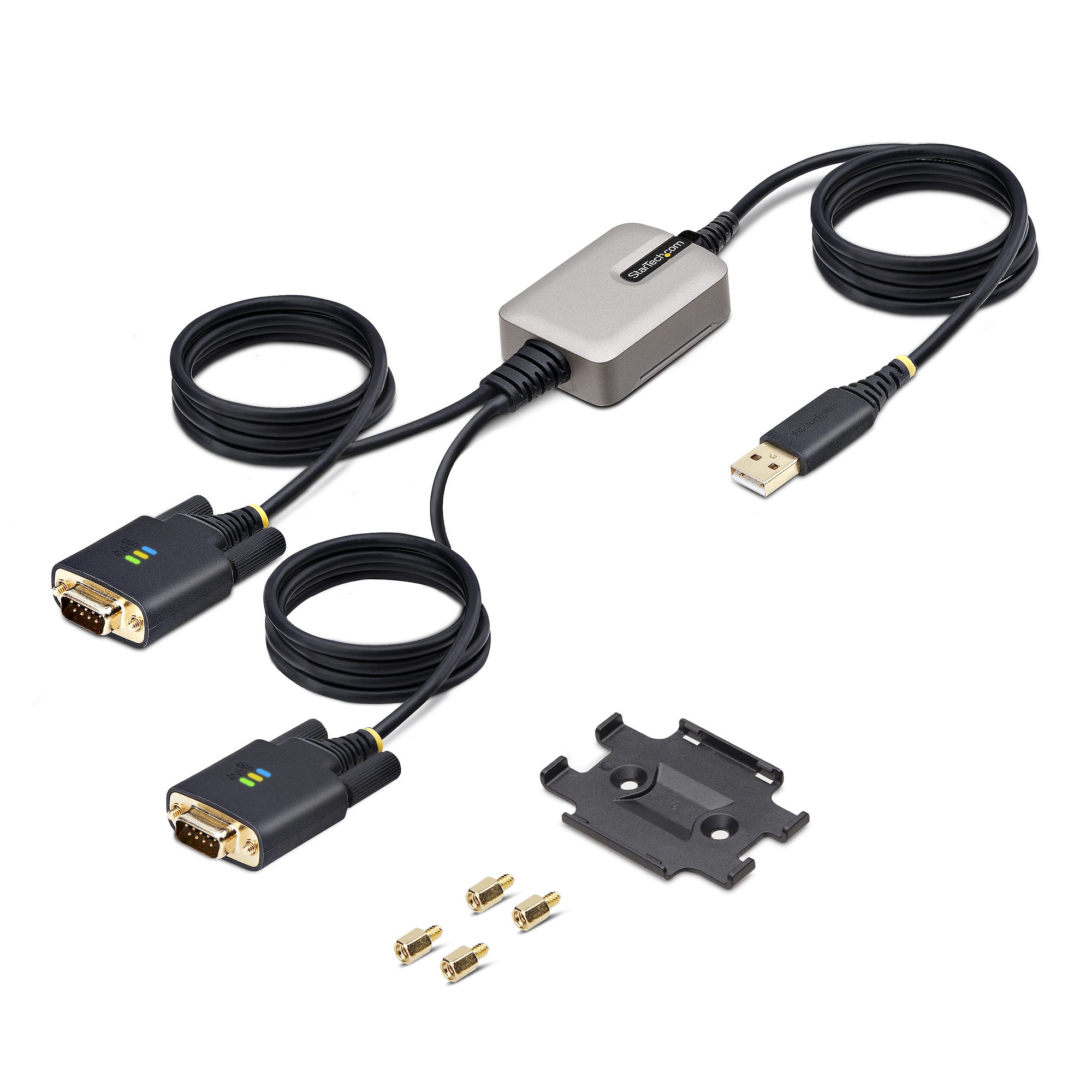

    • INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to serial devices using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add two DB9 RS-232 ports to a computer, using a USB-A port

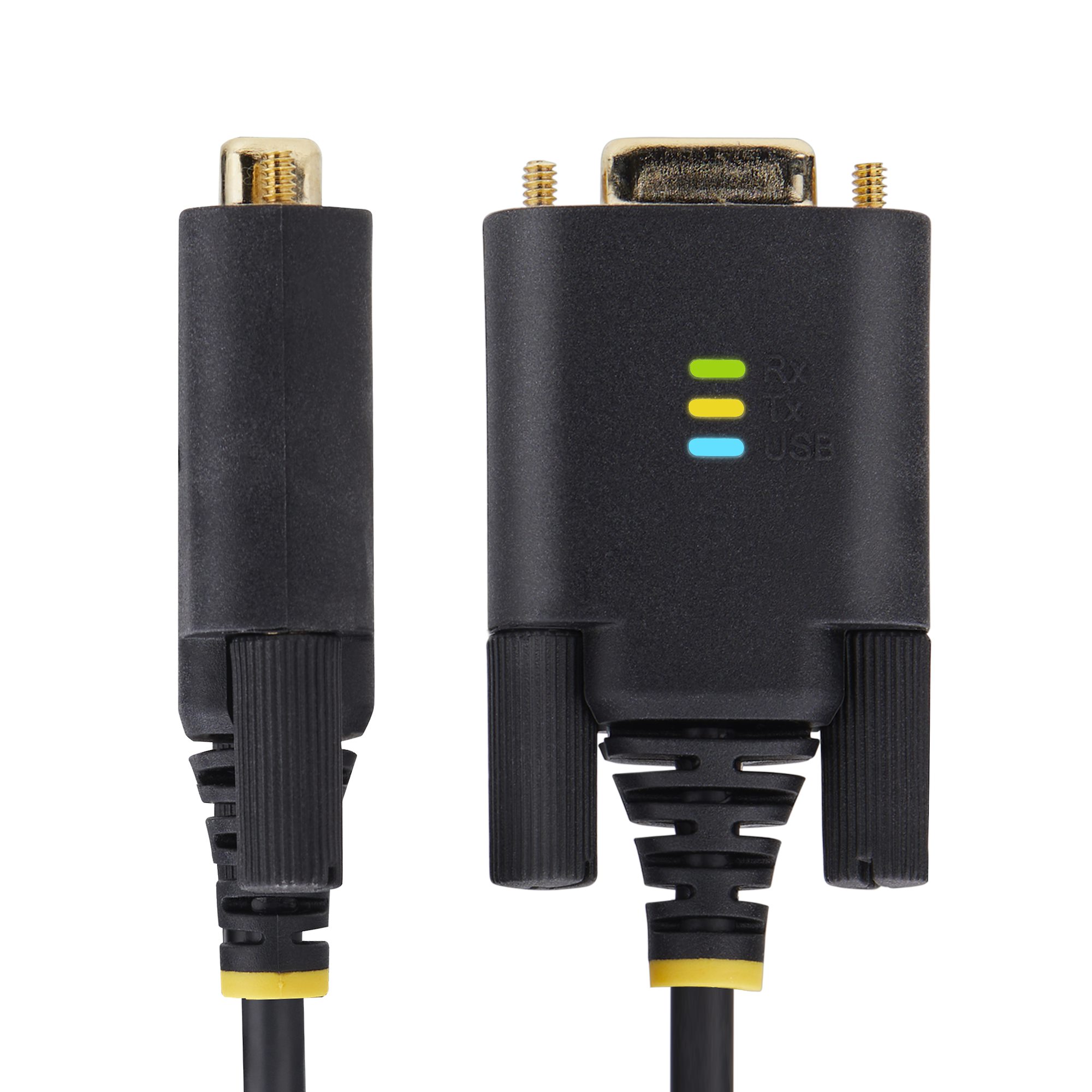

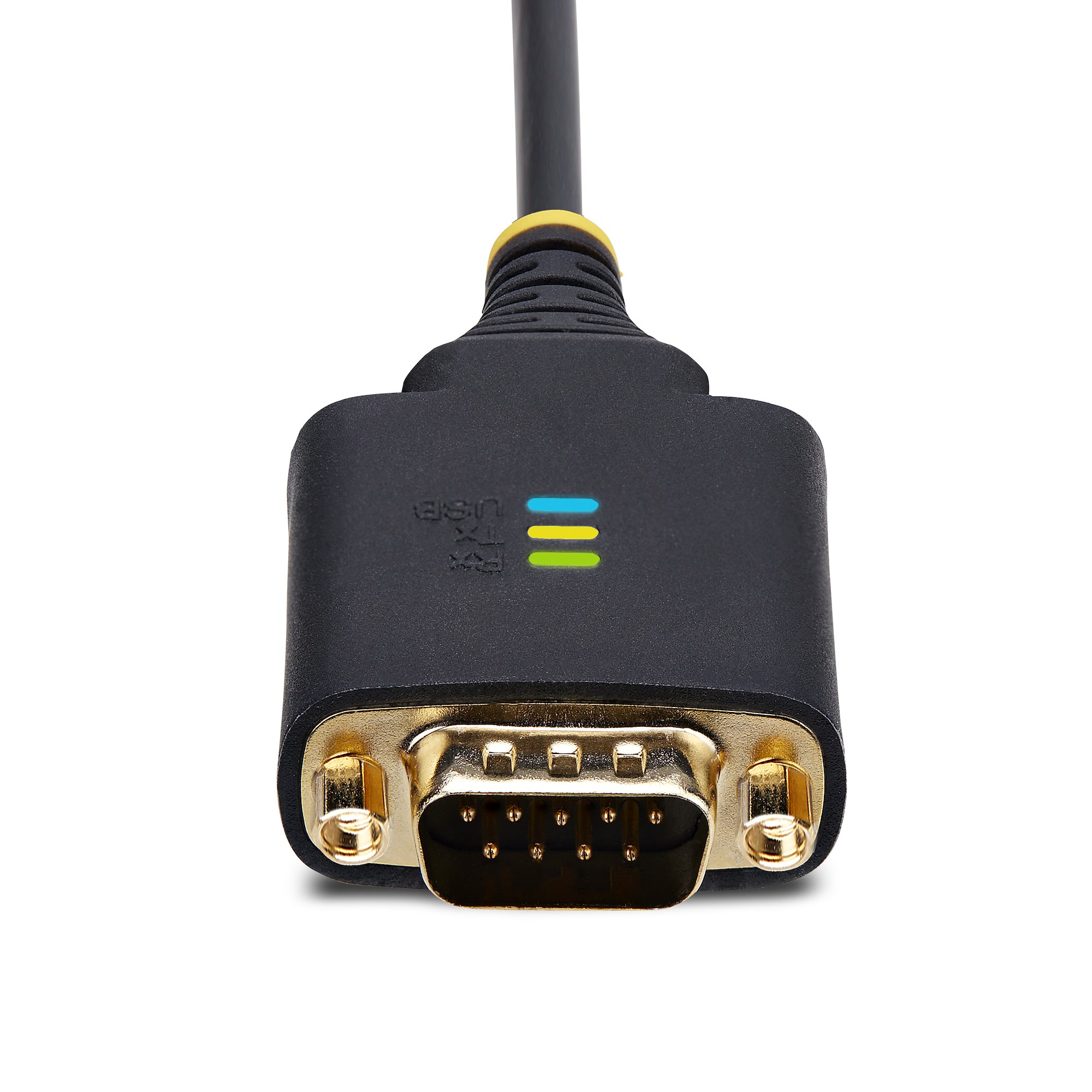

    • LED INDICATORS: Each port has dedicated Transmit and Receive LED indicators offering real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
    • COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted

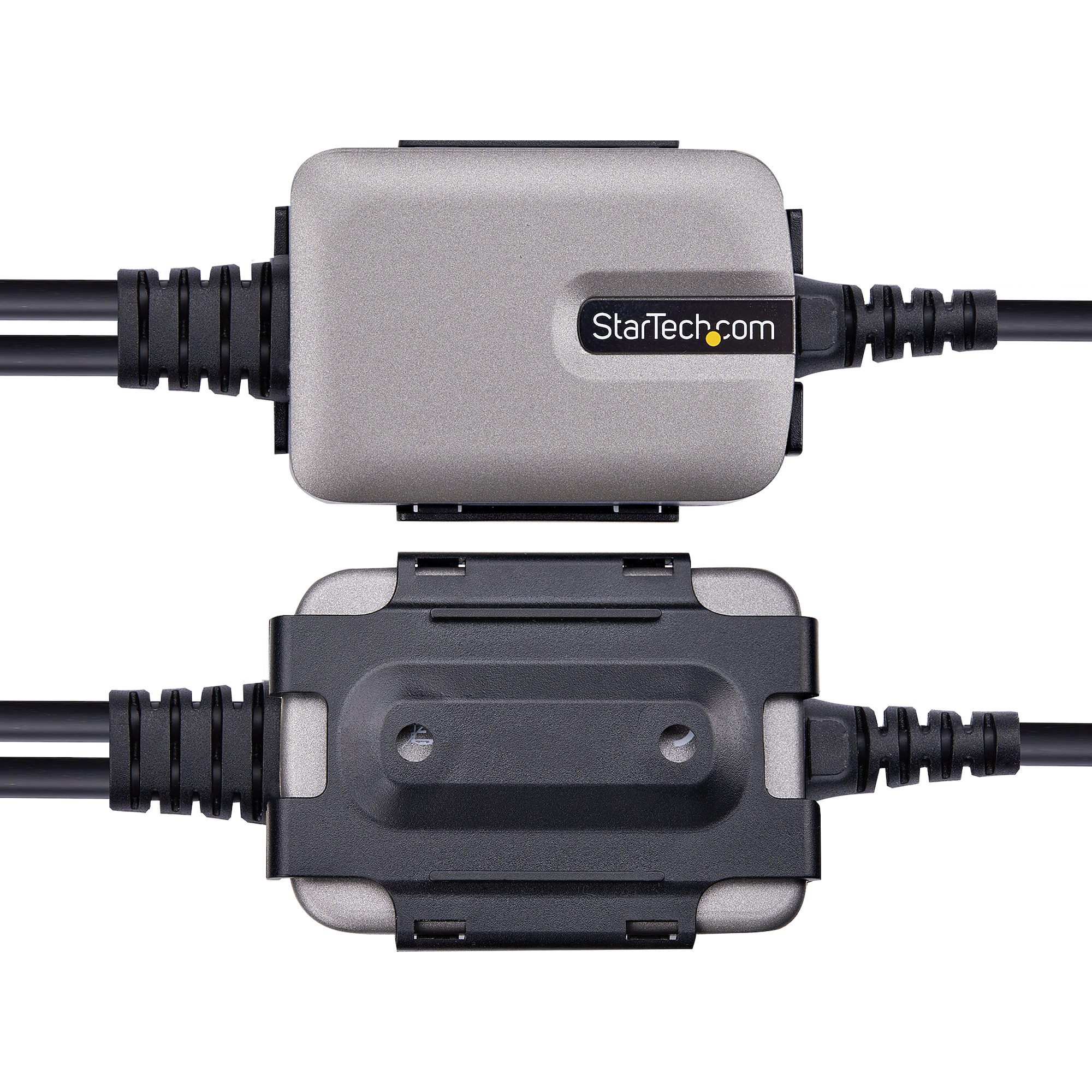

    • BUILD QUALITY: One-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance the 2-port serial adapters reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Mounting bracket included
    • TECH SPECS: 2x DB9 RS232 Ports; 6.5ft (2m) cable length between hub and peripherals (13ft/4m total product length); FTDI FT2232H Chipset; Max Baud Rate: 921.6Kbps; 4KB FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits

    Product Properties

    • Model
    • 2P6FFC-USB-SERIAL
    • EAN
    • 65030898379
    • Bullet points
    • Point
    • BUILD QUALITY
      COMPATIBILITY
      INTERCHANGEABLE NUTS & SCREWS
      LED INDICATORS
      TECH SPECS
    • Certificates
    • Compliance certificates
    • RoHS
    • Logistics data
    • Master (outer) case height
    • 250 mm
    • Master (outer) case length
    • 330 mm
    • Master (outer) case width
    • 585 mm
    • Products per master (outer) case
    • 40 pc(s)
    • Operational conditions
    • Operating temperature (T-T)
    • -40 - 80 °C
    • Relative humidity
    • 0 - 95%
    • Storage temperature (T-T)
    • -40 - 80 °C
    • Packaging content
    • Manual
    • Yes
    • Packaging data
    • Package depth
    • 155 mm
    • Package height
    • 55 mm
    • Package weight
    • 290 g
    • Package width
    • 225 mm
    • Performance
    • Baud rate
    • 921.6 Kbit/s
    • Cable jacket material
    • Thermoplastic elastomer (TPE)
    • Chipset
    • FTDI - FT2232H
    • Compatible operating systems
    • Windows 7, 8/8.1, 10, 11 Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 macOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0 Linux 4.15.x+- LTS Versions Chrome OS
    • Data bits
    • 7, 8
    • Data transfer rate
    • 0.48 Gbit/s
    • FIFO (First In, First Out)
    • 4048 B
    • LED indicators
    • Yes
    • Parity bit
    • Even, Mark, No, Odd, Space
    • Product colour
    • Black, Grey
    • Stop bits
    • 1, 2
    • Ports & interfaces
    • Cable length
    • 4 m
    • Connector 1
    • USB-A
    • Connector 1 form factor
    • Straight
    • Connector 1 gender
    • Male
    • Connector 2
    • 2 x DB-9 RS-232
    • Connector 2 form factor
    • Straight
    • Connector 2 gender
    • Male
    • USB version
    • 2.0
    • Sustainability
    • Sustainability compliance
    • Yes
    • Weight & dimensions
    • Depth
    • 4000 mm
    • Height
    • 20 mm
    • Weight
    • 280 g
    • Width
    • 45 mm
