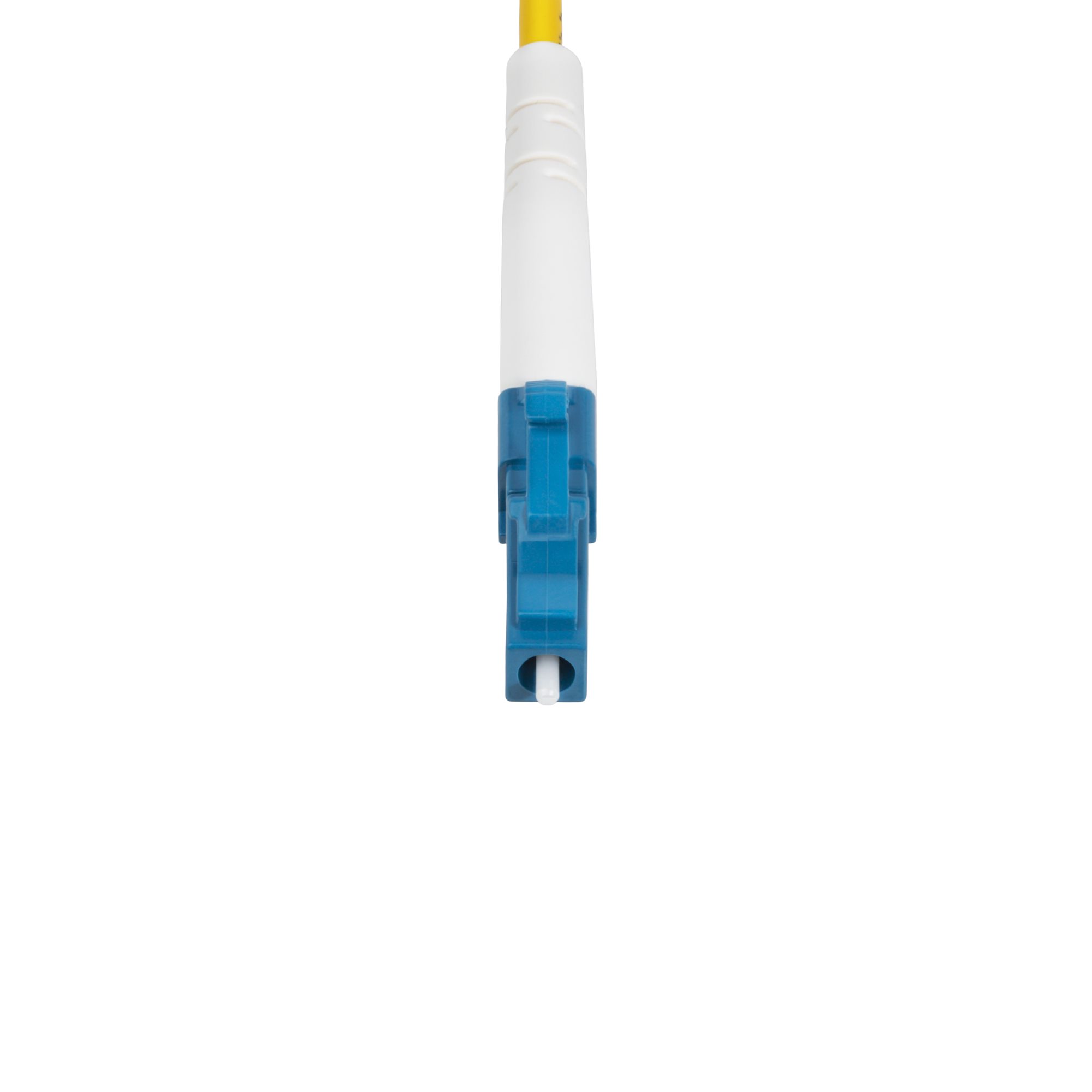

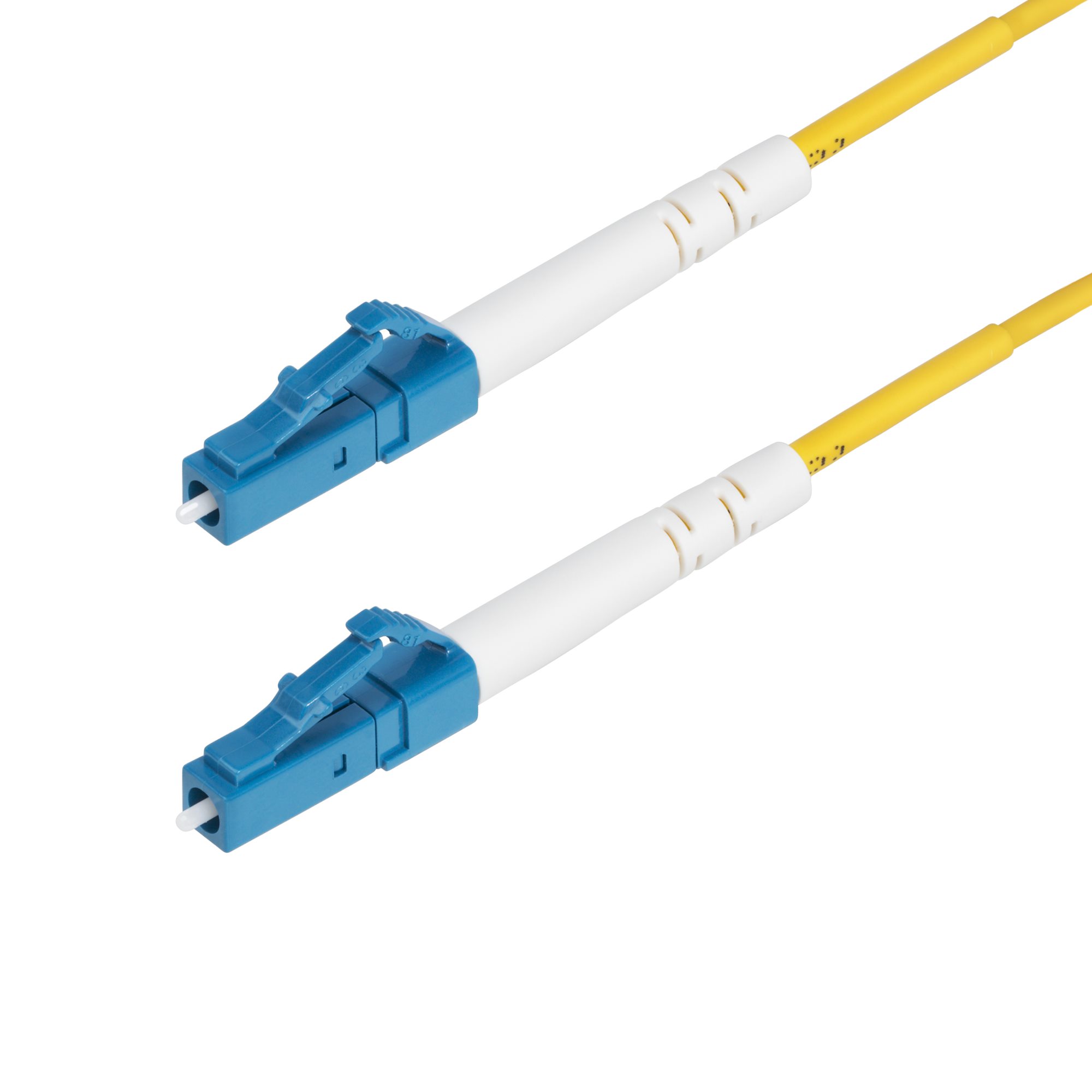

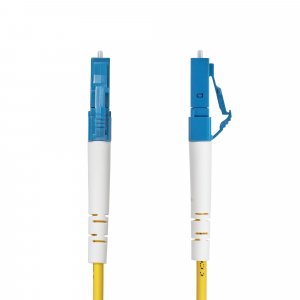

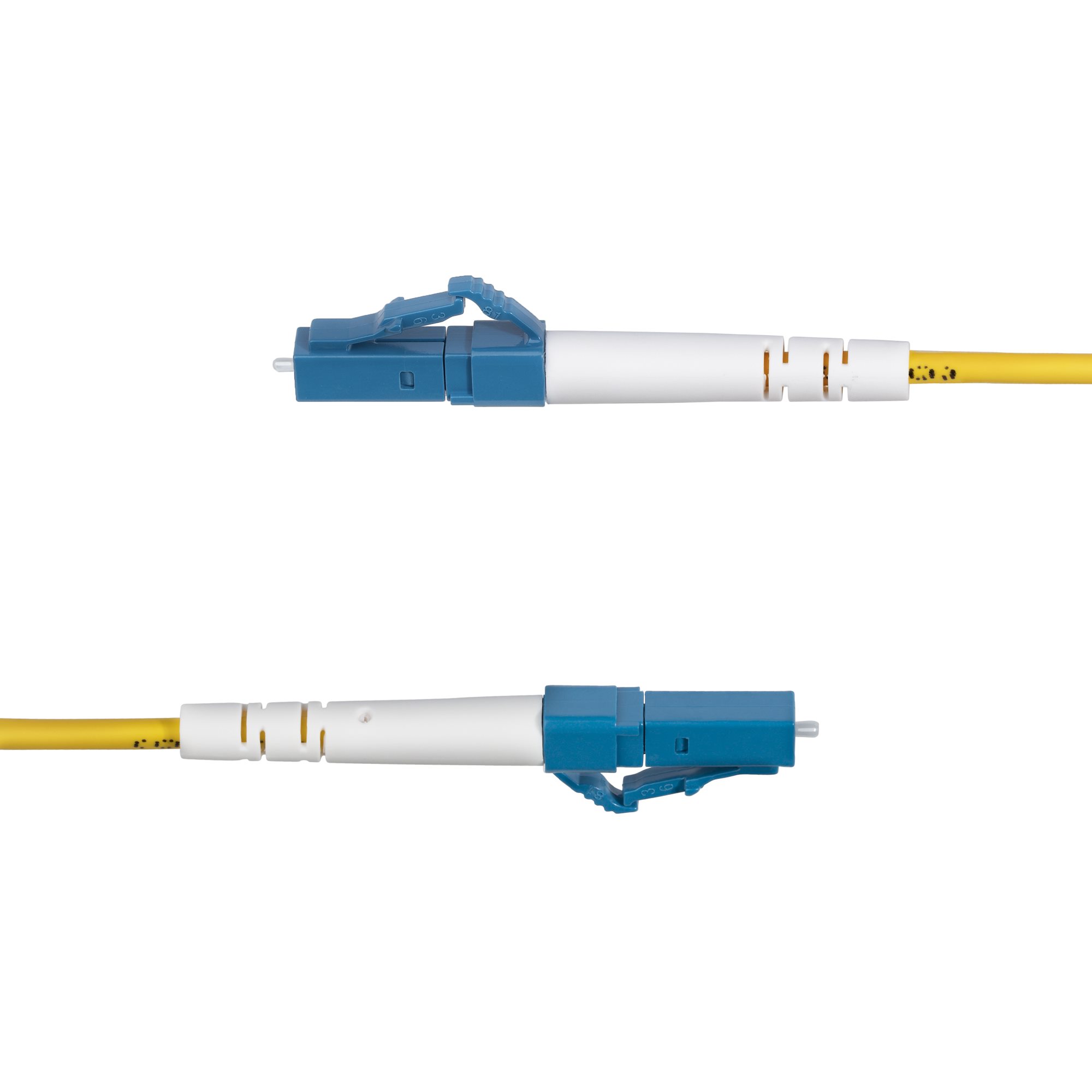

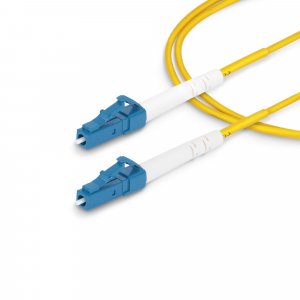

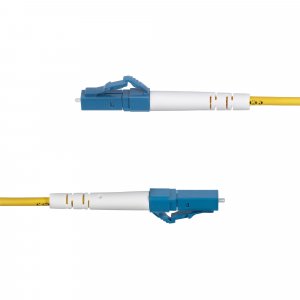

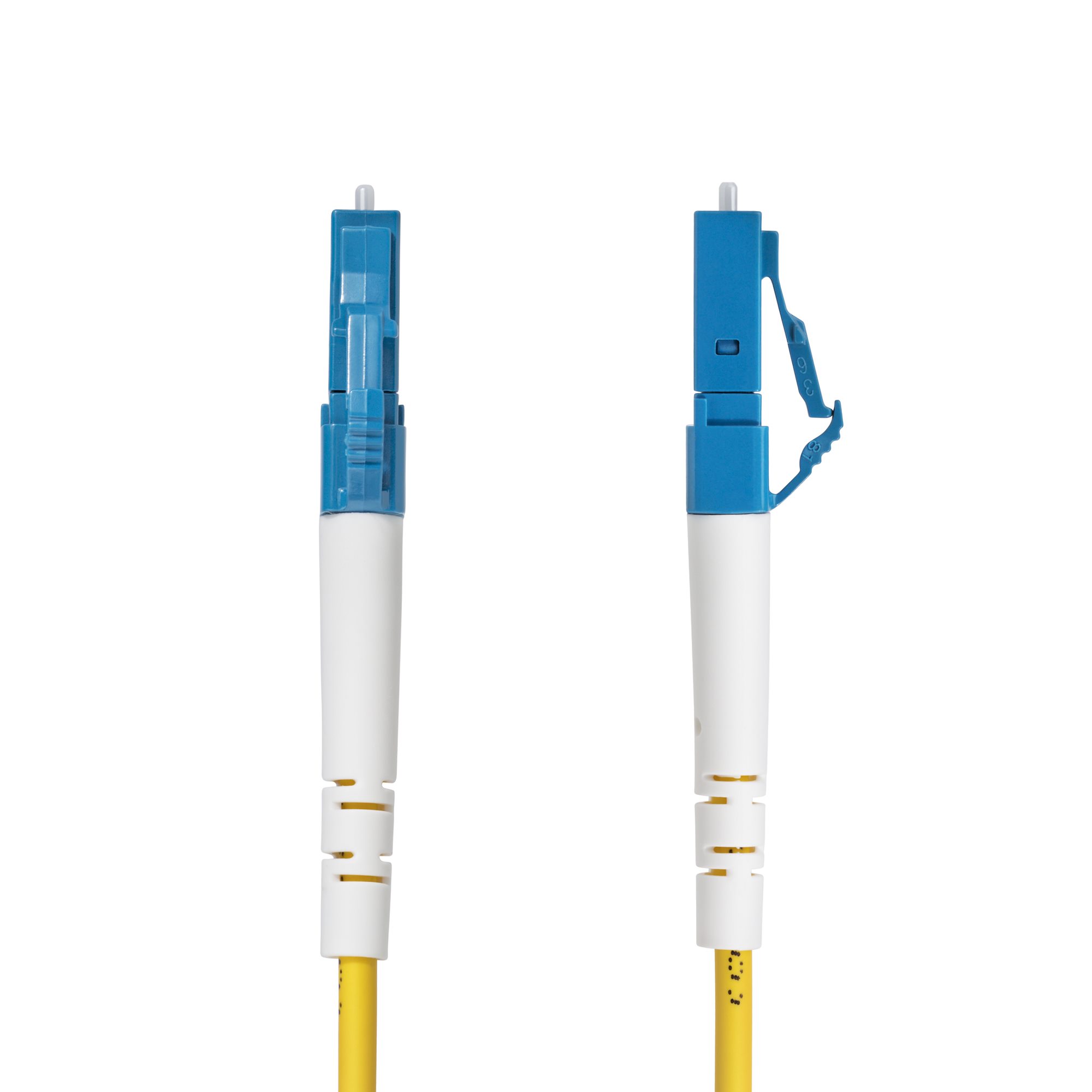

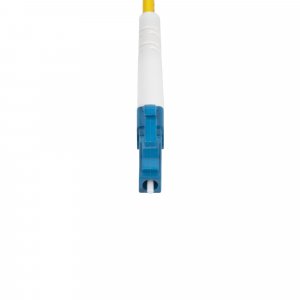

StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
Roll over image to zoom inClick to Open expanded view
StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
Print
Model: SPSMLCLC-OS2-1M
EAN: 65030906647

StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

Manufacturer:
StarTech.com
StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord, 1 m, LC/UPC, OS2, LC, LC
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord. Cable length: 1 m, Cable type: LC/UPC, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm
  • SIMPLEX OS2 CABLE: Single Mode Simplex OS2 Fiber Cable is immune to EMI and optimized for 40G/100Gbps networks; Supports bi-directional (BiDi) transmission over a single fiber; Ideal for space-constrained installations requiring minimal fiber count
  • QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
  • SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
  • COMPATIBILITY: Simplex Single Mode Fiber Patch Cord supports 40G/100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for point-to-point setups or single-fiber NICs and SFPs
  • SPECS: 1 meter (3.3 foot); OS2 Single Mode; LC/LC (UPC) Simplex; 100Gbps; 9/125µm; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded

Product Properties

  • Model
  • SPSMLCLC-OS2-1M
  • EAN
  • 65030906647
  • Bullet points
  • Point
  • COMPATIBILITY
    QUALITY CONSTRUCTION
    SAFETY AND RELIABILITY
    SIMPLEX OS2 CABLE
    SPECS
  • Features
  • Cable length
  • 1 m
  • Cable type
  • LC/UPC
  • Cladding diameter
  • 125 µm
  • Connector 1
  • LC
  • Connector 1 gender
  • Male
  • Connector 2
  • LC
  • Connector 2 gender
  • Male
  • Connector polish type
  • UPC
  • Core diameter
  • 9 µm
  • Data transfer rate
  • 100 Gbit/s
  • Fiber mode structure
  • Single-mode
  • Fibre optic type
  • OS2
  • Insertion loss
  • 0.3 dB
  • Jacket material
  • Polypropylene, Low smoke zero halogen (LSZH)
  • Product colour
  • Yellow
  • Return loss
  • 55 dB
  • Wavelengths supported
  • 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
  • Logistics data
  • Master (outer) case height
  • 280 mm
  • Master (outer) case length
  • 380 mm
  • Master (outer) case width
  • 380 mm
  • Products per master (outer) case
  • 650 pc(s)
  • Operational conditions
  • Operating temperature (T-T)
  • -20 - 60 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Other features
  • Attenuation (max)
  • 0.35 dB/km
  • Packaging content
  • Quantity per pack
  • 1 pc(s)
  • Packaging data
  • Package depth
  • 200 mm
  • Package height
  • 1 mm
  • Package weight
  • 12.4 g
  • Package width
  • 220 mm
  • Weight & dimensions
  • Bending radius
  • 1 cm
  • Cable diameter
  • 2 mm
