Model: PEXUSB312A3
EAN: 65030887427

StarTech.com 2-Port USB PCIe Card with 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Profile - Windows & Linux

Manufacturer:
StarTech.com
StarTech.com 2-Port USB PCIe Card with 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Profile - Windows & Linux, PCIe, USB 3.2 Gen 2 (3.1 Gen 2), Full-height / Low-profile, PCIe 3.
Please log in to see your price
Related products

Description

StarTech.com 2-Port USB PCIe Card with 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Profile - Windows & Linux. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card form factor: Full-height / Low-profile. Product colour: Black. Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,..., Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019. Width: 120 mm, Depth: 110 mm, Height: 19 mm

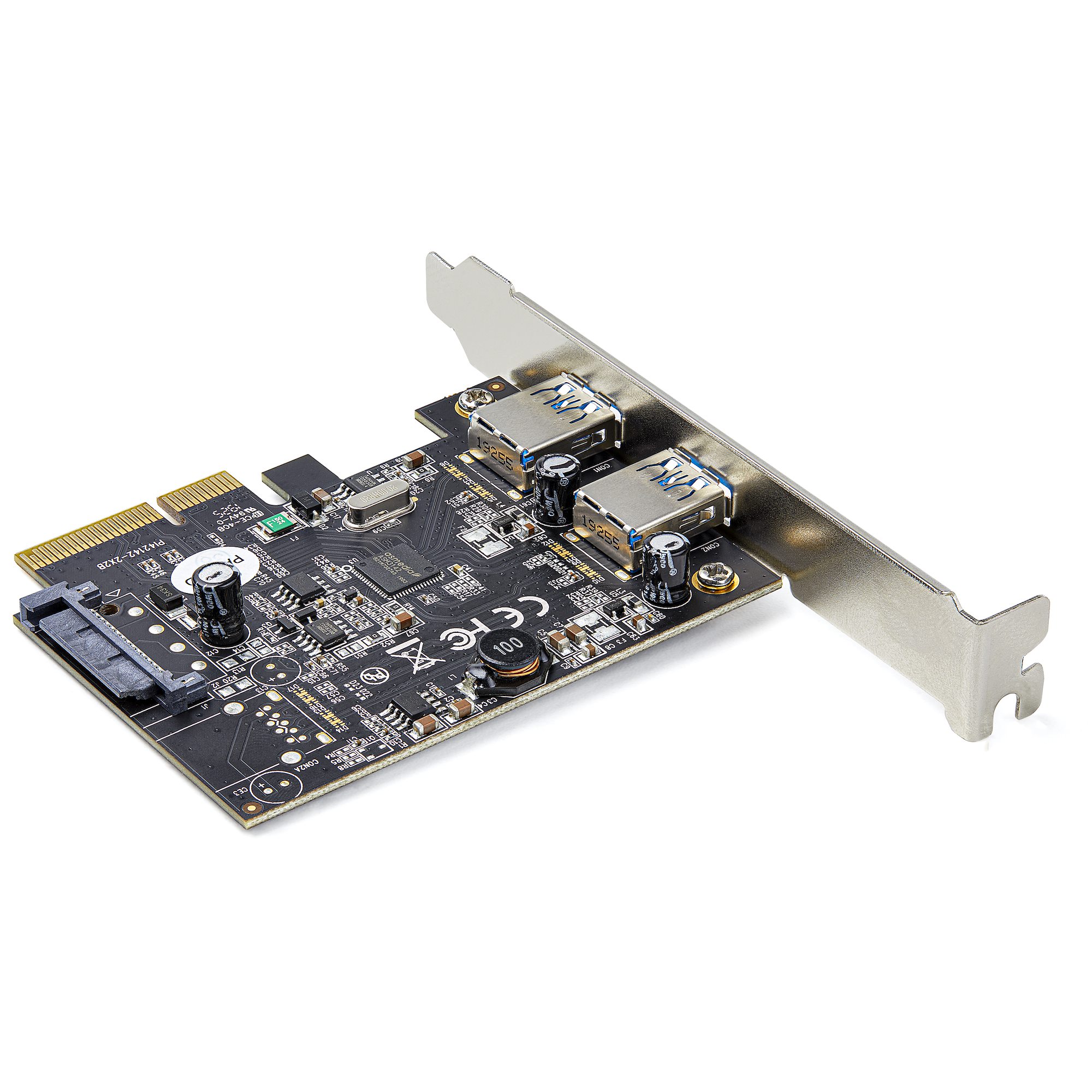

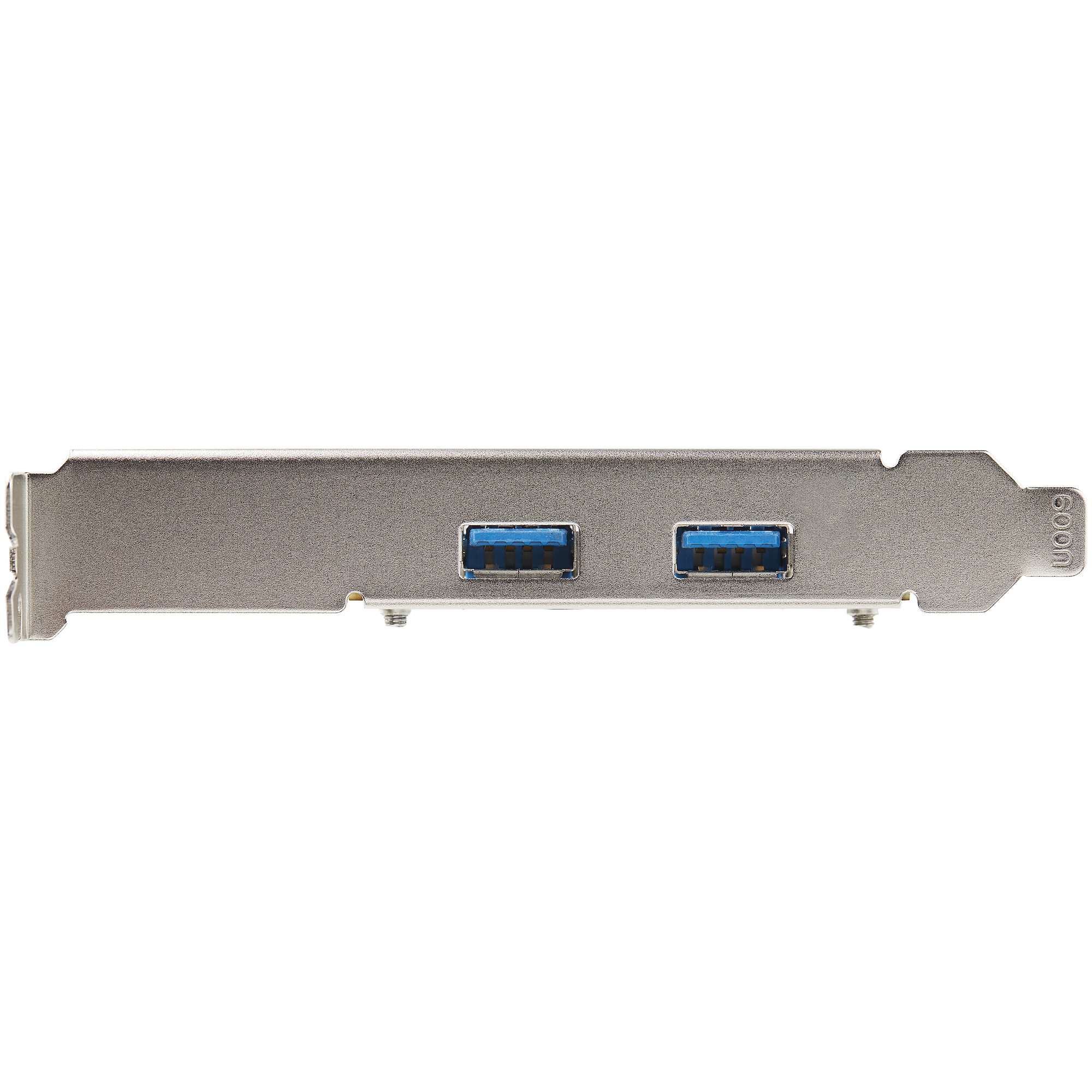

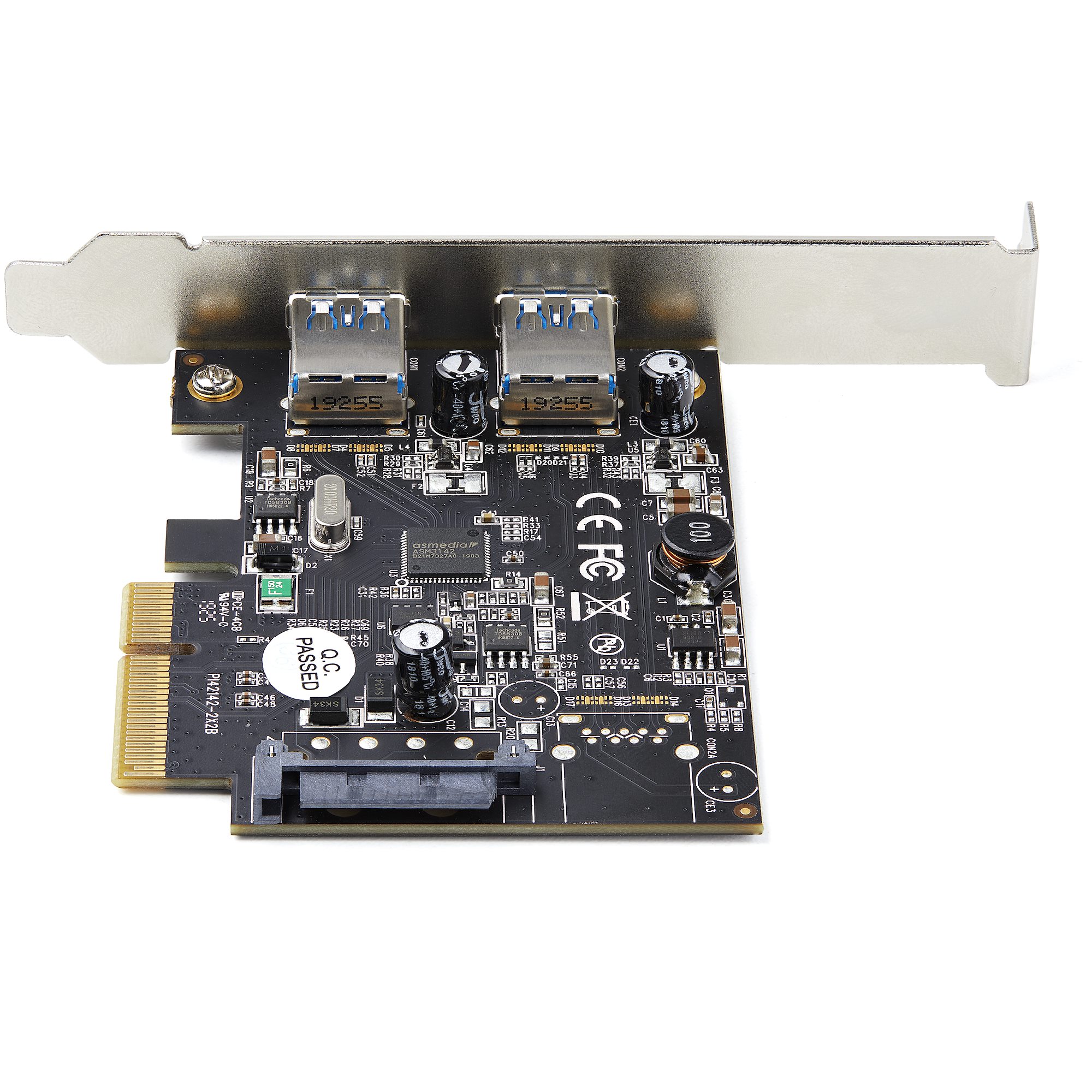

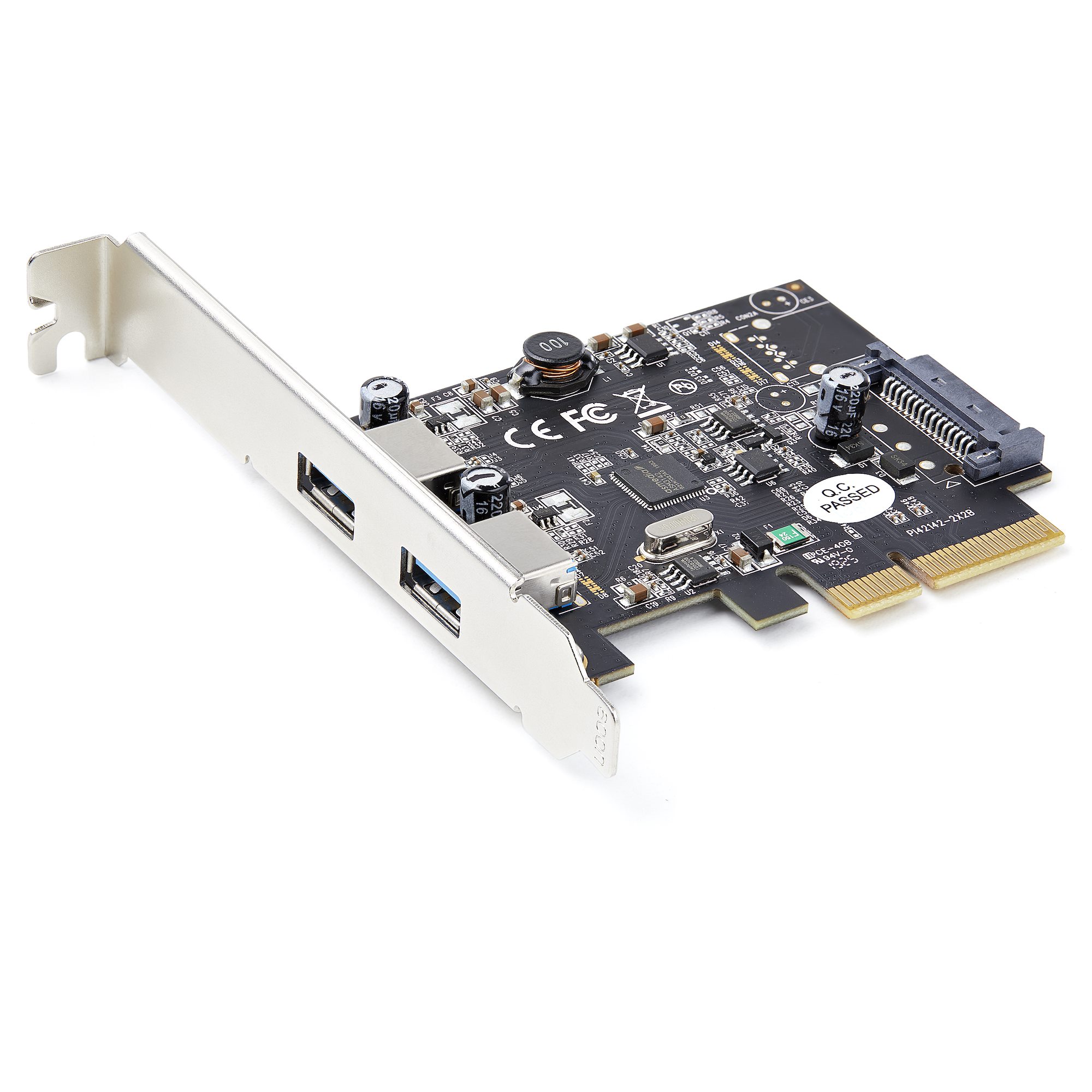

  • HIGH PERFORMANCE: 2-Port USB PCIe Card with ASMedia ASM3142 host controller (PCIe 3.0 x4) has two SuperSpeed 10Gbps USB-A ports (USB 3.1 Gen 2 / USB 3.2 Gen 2x1); Speeds up to 10Gbps/port; Upgraded version of our popular USB card PEXUSB312A2
  • MAXIMIZED USB PERFORMANCE: Add-on card supports Multiple Ins for max bandwidth when using mixed-speed devices; Supports UASP & optimized for SSDs/HDDs, NVMe, thumb drives; Supports USB 3.0/2.0 devices
  • POWER: USB PCI Express 3.0 expansion card w/ SATA power header supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 4.5W (5V @ 0.9A) per USB-A port
  • COMPATIBILITY: USB PCIe adapter card installs in full or low-profile PCIe 3.0 x4 slot and up; Bracket included; Backward compatible w/ PCIe 2.0; Supports Win/Linux/macOS w/auto drivers on Win 8 & up
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; This USB-A PCI-e card for desktop is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support

Product Properties

  • Model
  • PEXUSB312A3
  • EAN
  • 65030887427
  • Bullet points
  • Point
  • COMPATIBILITY
    HIGH PERFORMANCE
    MAXIMIZED USB PERFORMANCE
    POWER
    STARTECH.COM ADVANTAGE
  • Design
  • Internal
  • Yes
  • Product colour
  • Black
  • Features
  • Data transfer rate (max)
  • 10 Gbit/s
  • Logistics data
  • Harmonized System (HS) code
  • 84733020
  • Master (outer) case height
  • 370 mm
  • Master (outer) case length
  • 315 mm
  • Master (outer) case width
  • 590 mm
  • Products per master (outer) case
  • 80 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Operating temperature (T-T)
  • 5 - 50 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging data
  • Mounting brackets included
  • Yes
  • Package depth
  • 145 mm
  • Package height
  • 30 mm
  • Package weight
  • 142 g
  • Package width
  • 215 mm
  • Quick installation guide
  • Yes
  • Ports & interfaces
  • Expansion card form factor
  • Full-height / Low-profile
  • Expansion card standard
  • PCIe 3.0
  • Host interface
  • PCIe
  • Internal SATA ports quantity
  • 1
  • Output interface
  • USB 3.2 Gen 2 (3.1 Gen 2)
  • SATA power connector type
  • SATA 15-pin
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
  • System requirements
  • Linux operating systems supported
  • Yes
  • Mac operating systems supported
  • Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
  • Windows operating systems supported
  • Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Server operating systems supported
  • Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
  • Weight & dimensions
  • Depth
  • 110 mm
  • Height
  • 19 mm
  • Weight
  • 78 g
  • Width
  • 120 mm
