Model: 2P1FFC-USB-SERIAL
EAN: 65030898393

StarTech.com 2ft (60cm) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction

Manufacturer:
StarTech.com
StarTech.com 2ft (60cm) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction, USB-A, 2 x DB-9 RS-232, 0.6 m, Black, Gre
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

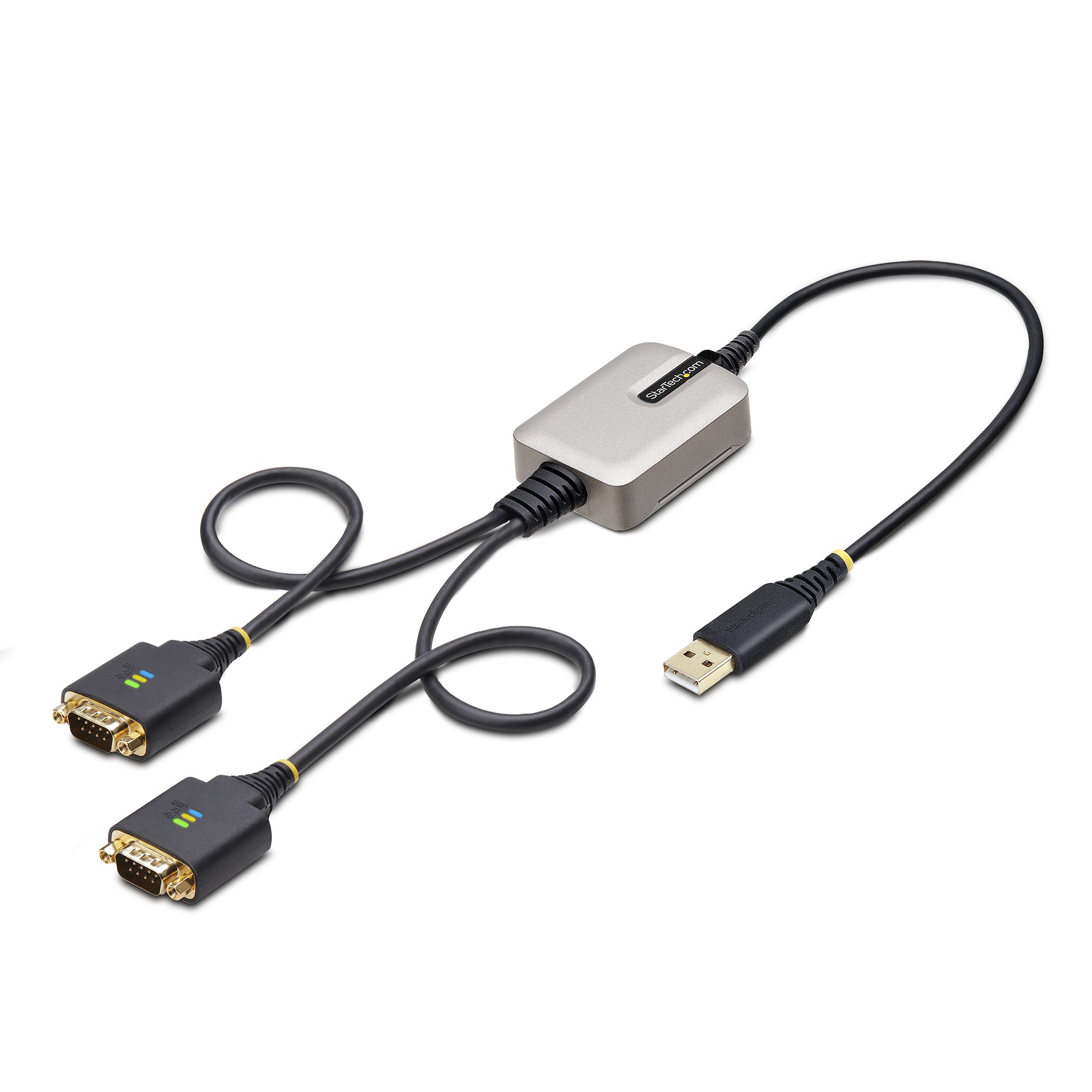

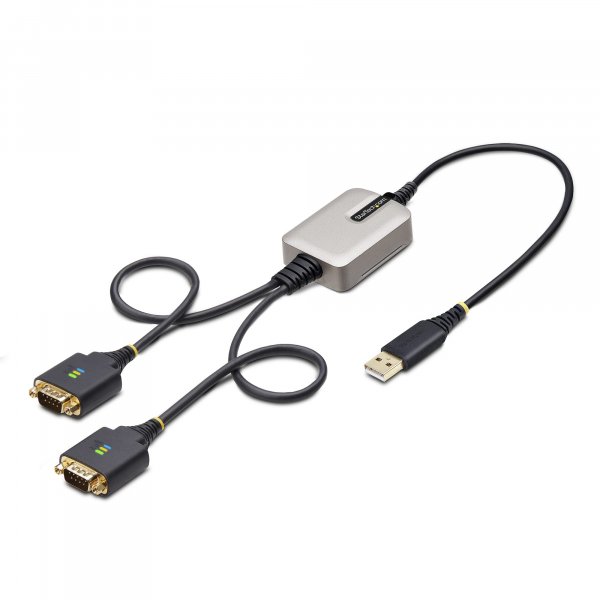

StarTech.com 2ft (60cm) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction. Connector 1: USB-A, Connector 2: 2 x DB-9 RS-232, Cable length: 0.6 m. Product colour: Black, Grey

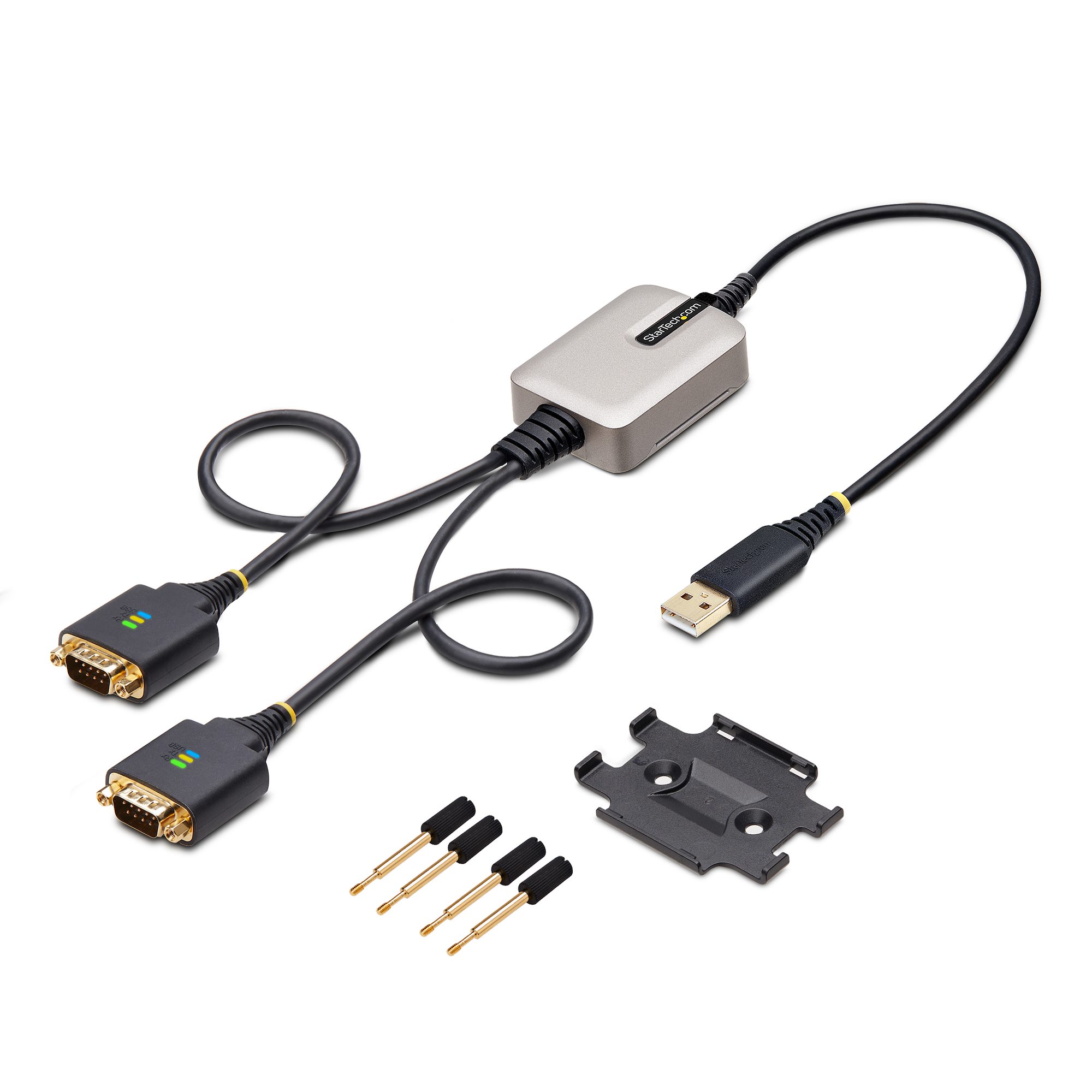

  • INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to serial devices using the pre-installed DB9 nuts, or install the included DB9 screws for compatibility with serial peripheral devices/cables; Add two DB9 RS-232 ports to a computer, using a USB-A port

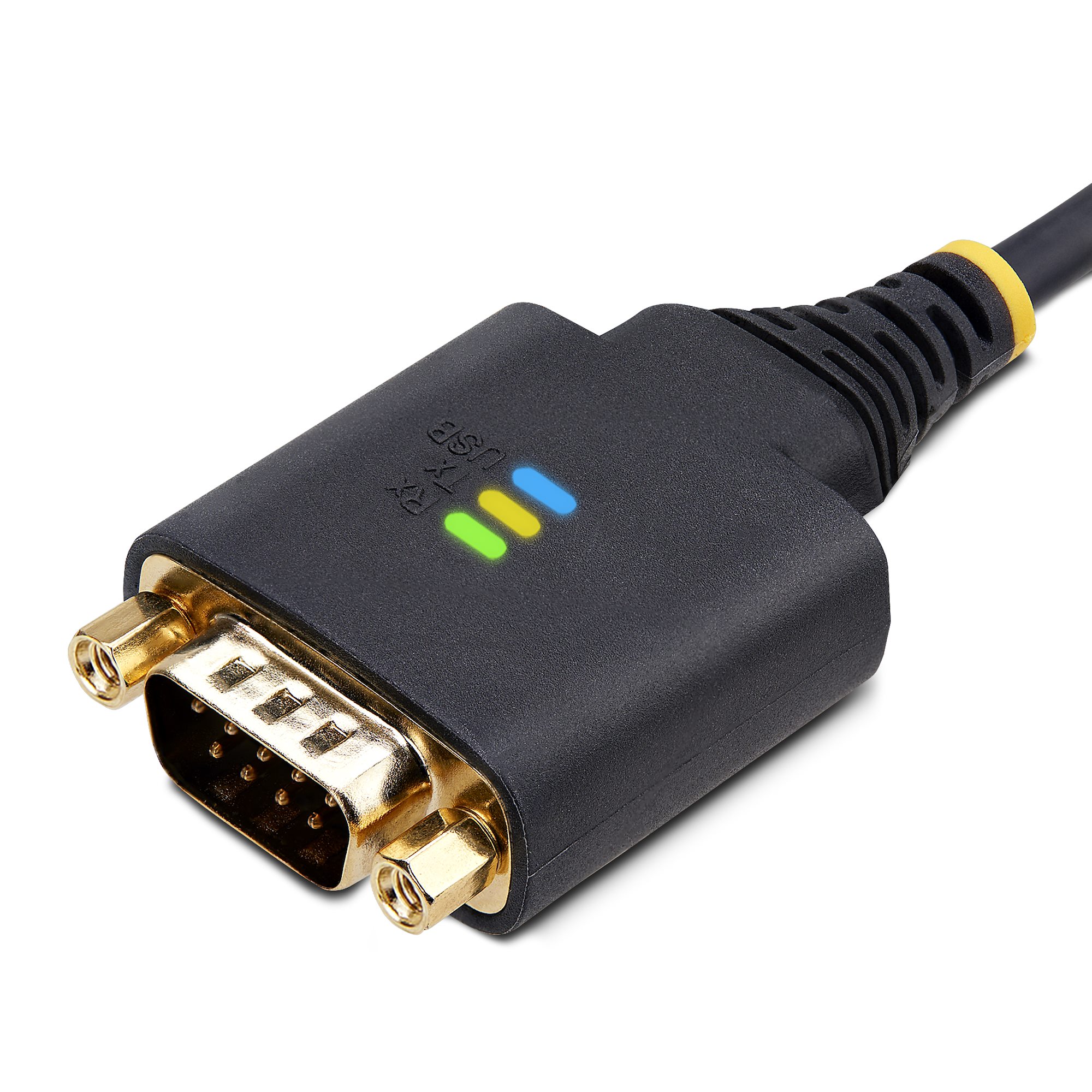

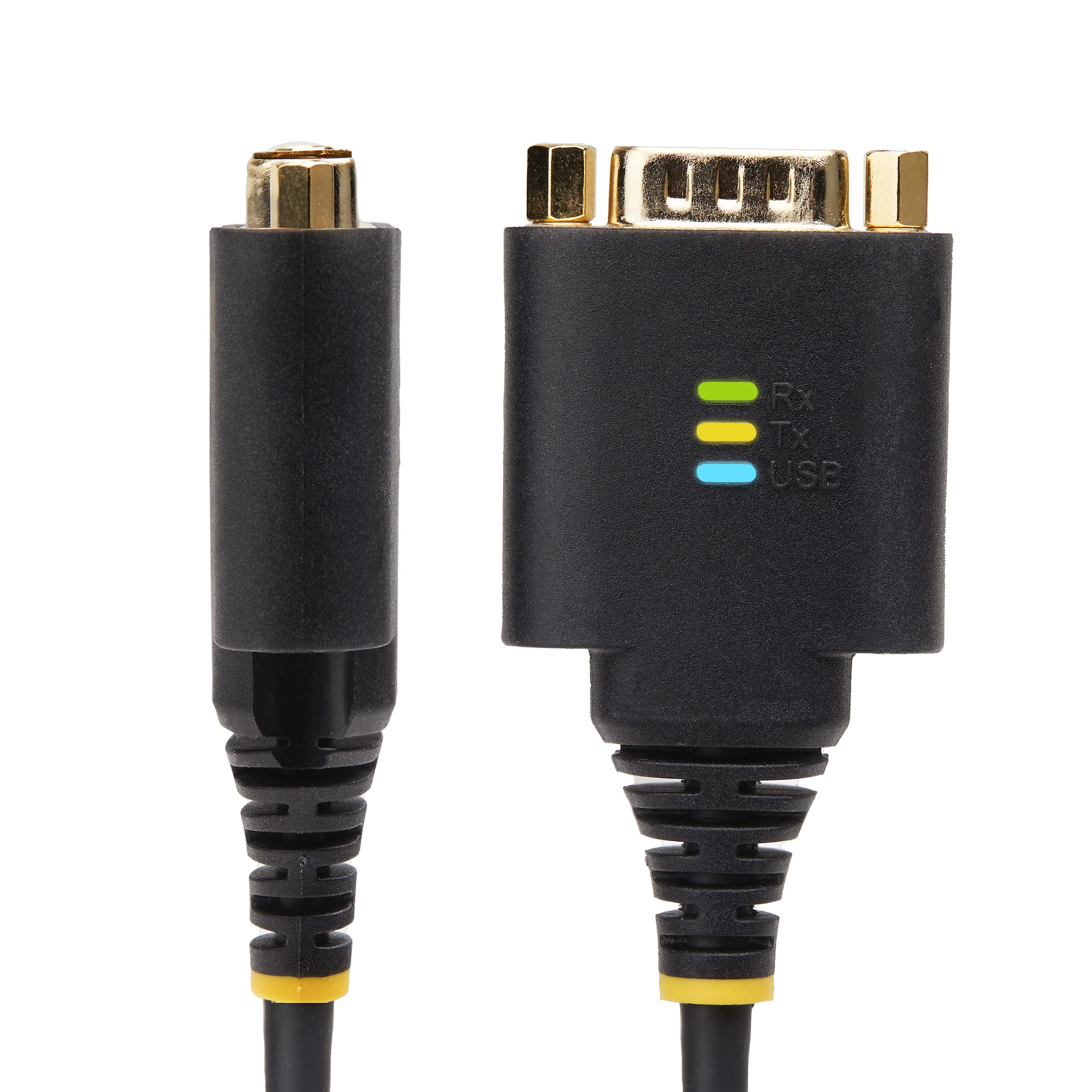

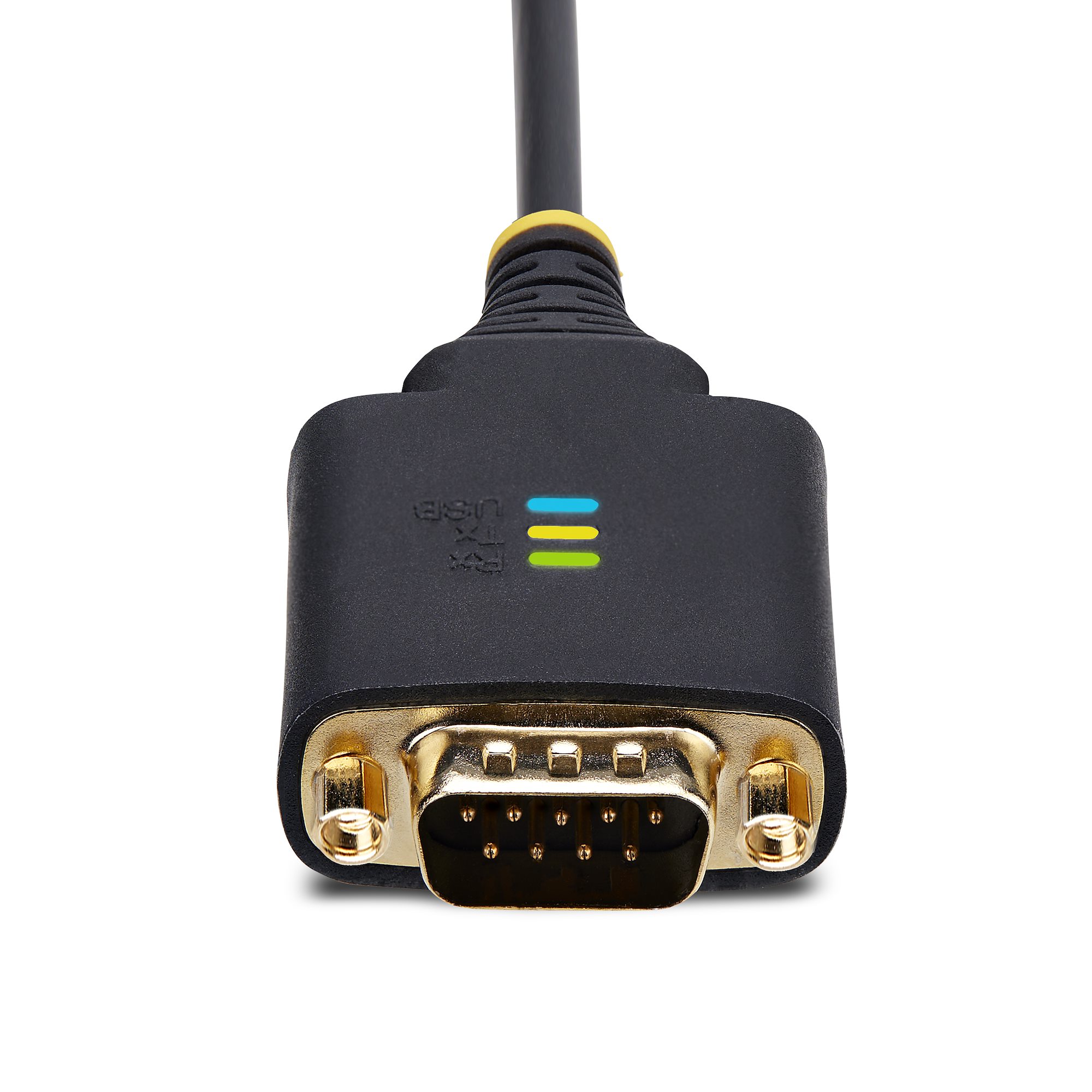

  • LED INDICATORS: Each port has dedicated Transmit and Receive LED indicators offering real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
  • COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted

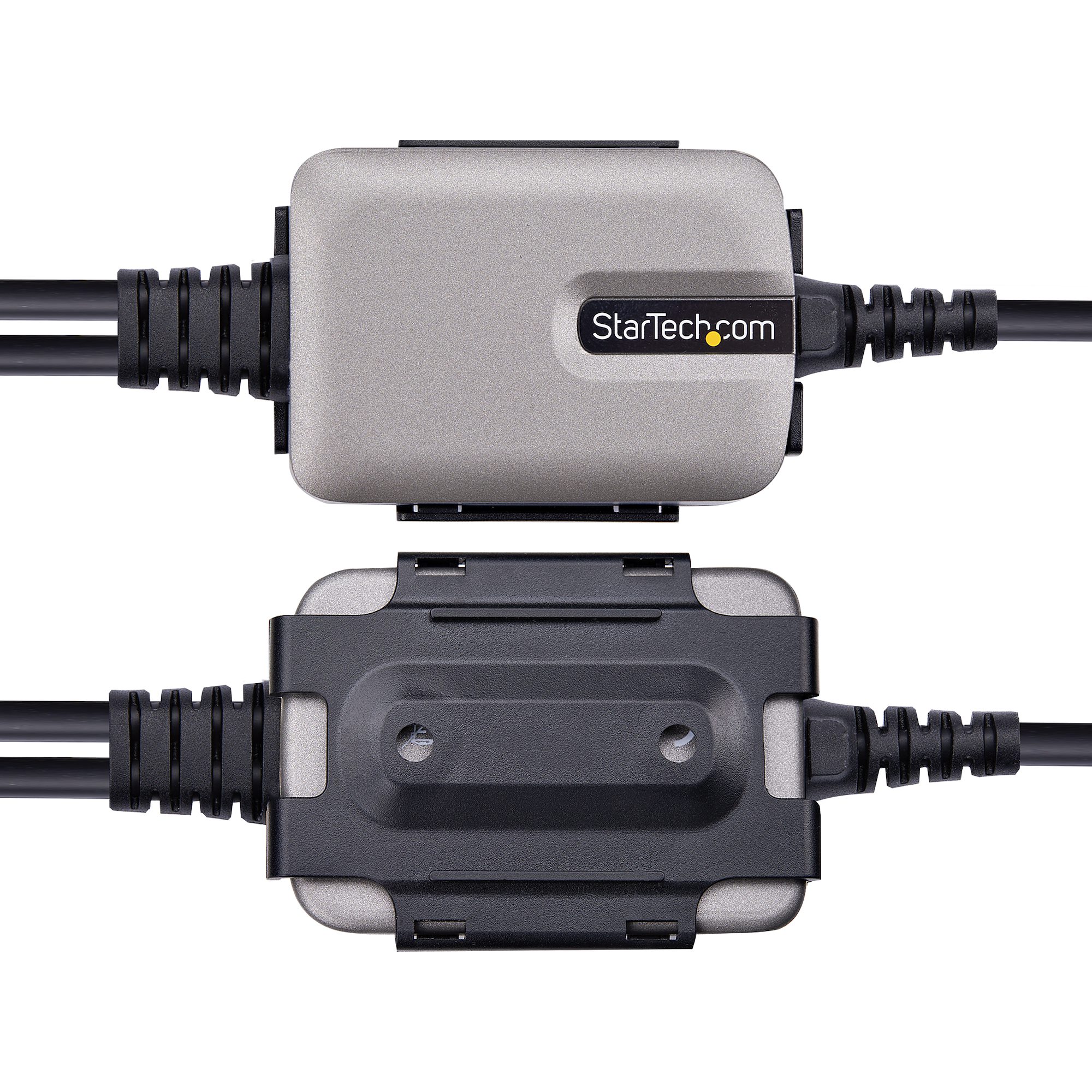

  • BUILD QUALITY: One-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance the 2-port serial adapters reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Mounting bracket included
  • TECH SPECS: 2x DB9 RS232 Ports; 1ft (30.5cm) cable length between hub and peripherals (2ft/61cm total product length); FTDI FT2232H Chipset; Max Baud Rate: 921.6Kbps; 4KB FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits

Product Properties

  • Model
  • 2P1FFC-USB-SERIAL
  • EAN
  • 65030898393
  • Bullet points
  • Point
  • BUILD QUALITY
    COMPATIBILITY
    INTERCHANGEABLE NUTS & SCREWS
    LED INDICATORS
    TECH SPECS
  • Certificates
  • Compliance certificates
  • RoHS
  • Logistics data
  • Master (outer) case height
  • 250 mm
  • Master (outer) case length
  • 330 mm
  • Master (outer) case width
  • 585 mm
  • Products per master (outer) case
  • 20 pc(s)
  • Operational conditions
  • Operating temperature (T-T)
  • -40 - 80 °C
  • Relative humidity
  • 0 - 95%
  • Storage temperature (T-T)
  • -40 - 80 °C
  • Packaging content
  • Manual
  • Yes
  • Packaging data
  • Package depth
  • 155 mm
  • Package height
  • 55 mm
  • Package weight
  • 160 g
  • Package width
  • 225 mm
  • Performance
  • Baud rate
  • 921.6 Kbit/s
  • Cable jacket material
  • Thermoplastic elastomer (TPE)
  • Chipset
  • FTDI - FT2232H
  • Compatible operating systems
  • Windows 7, 8/8.1, 10, 11 Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 macOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0 Linux 4.15.x+- LTS Versions Chrome OS
  • Data bits
  • 7, 8
  • Data transfer rate
  • 0.48 Gbit/s
  • FIFO (First In, First Out)
  • 4048 B
  • LED indicators
  • Yes
  • Parity bit
  • Even, Mark, No, Odd, Space
  • Product colour
  • Black, Grey
  • Stop bits
  • 1, 2
  • Ports & interfaces
  • Cable length
  • 0.6 m

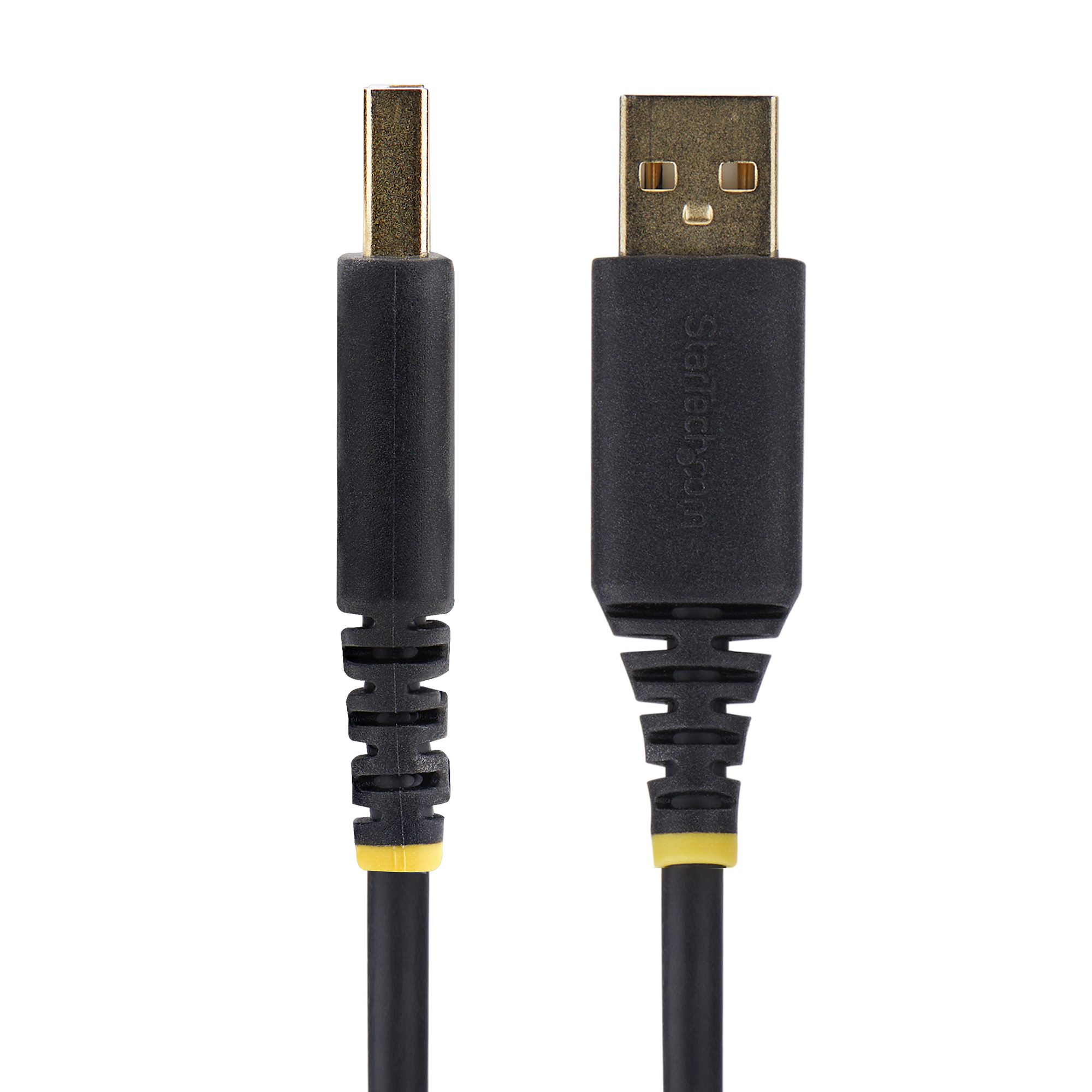

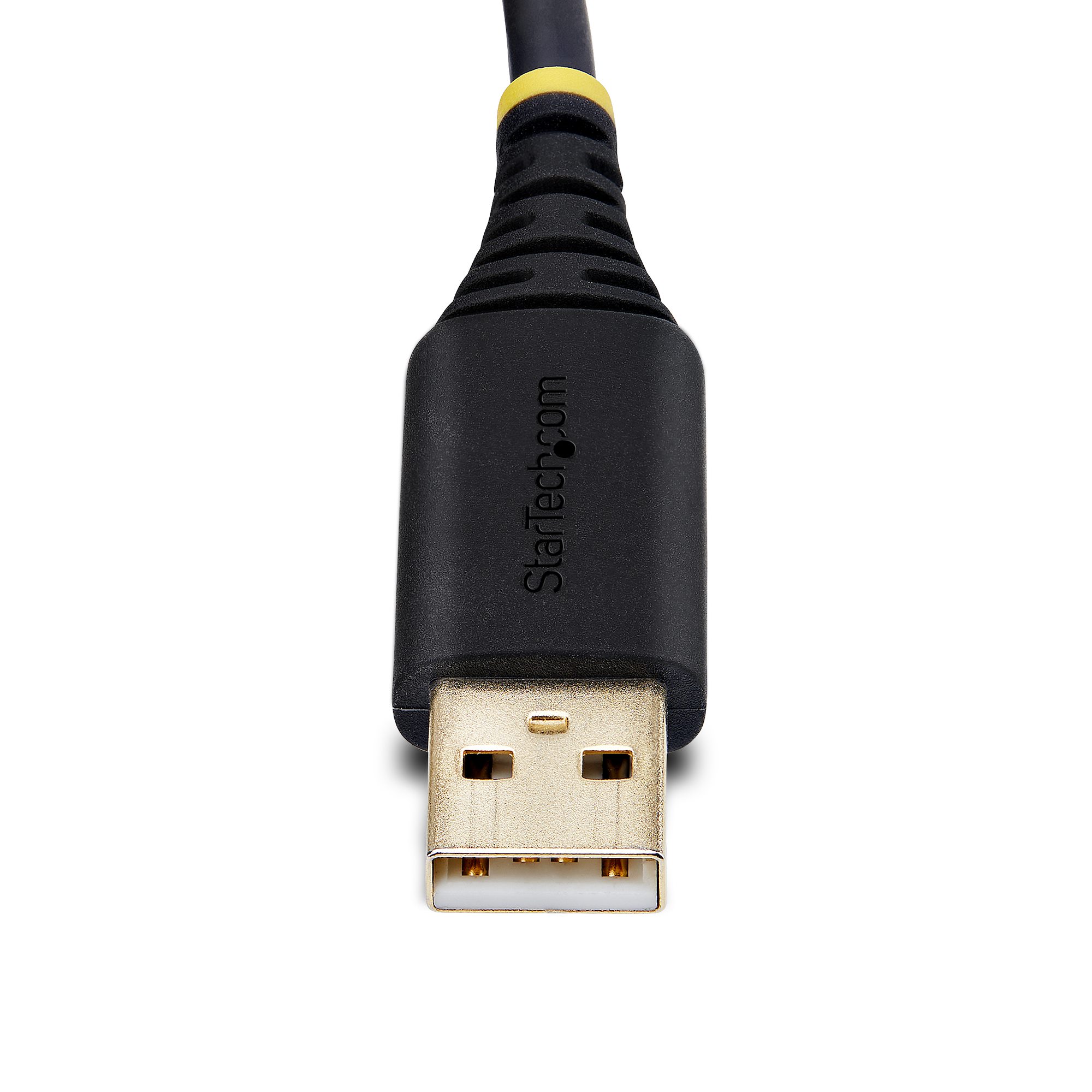

  • Connector 1
  • USB-A
  • Connector 1 form factor
  • Straight
  • Connector 1 gender
  • Male
  • Connector 2
  • 2 x DB-9 RS-232
  • Connector 2 form factor
  • Straight
  • Connector 2 gender
  • Male
  • USB version
  • 2.0
  • Sustainability
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 610 mm
  • Height
  • 20 mm
  • Weight
  • 110 g
  • Width
  • 45 mm
