Description

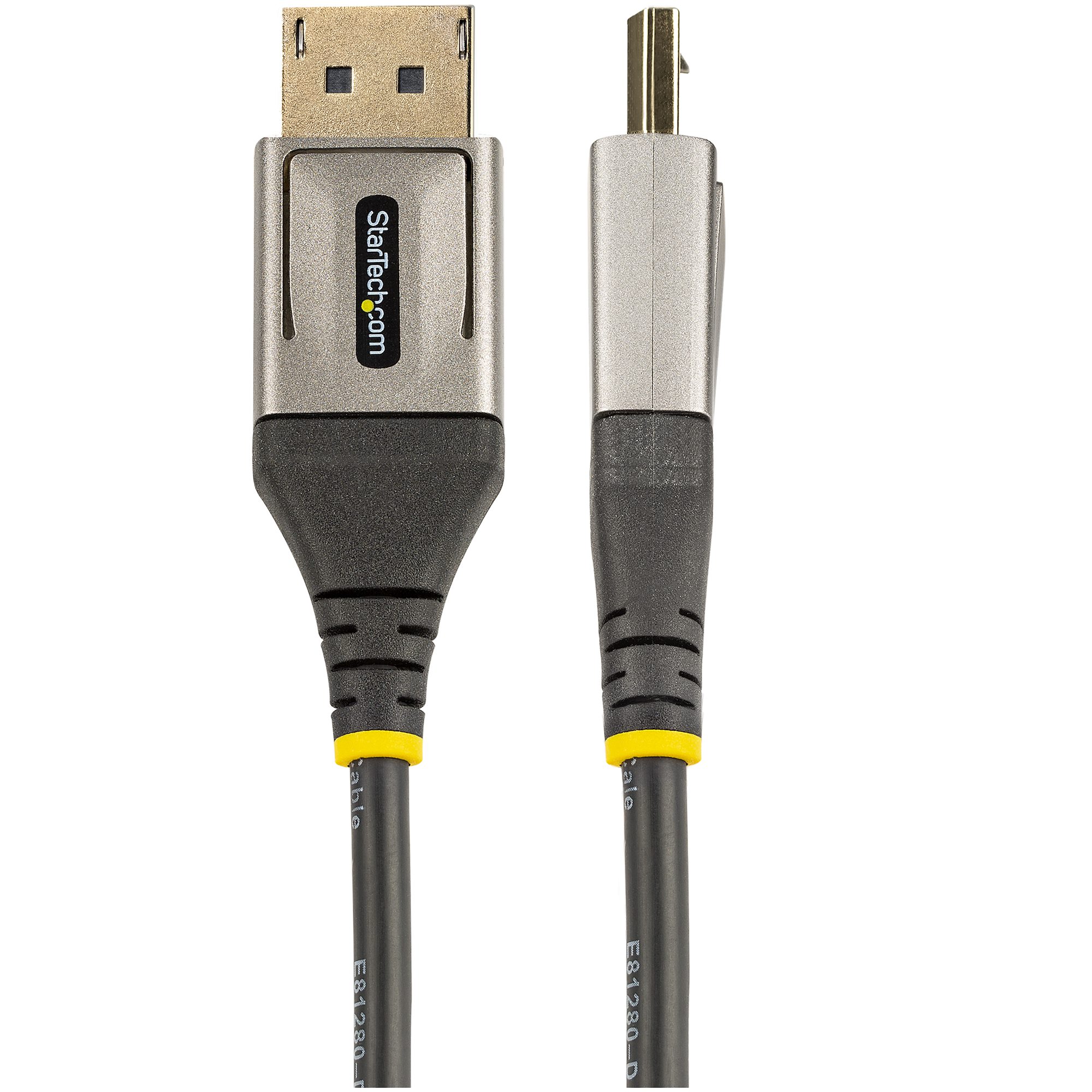

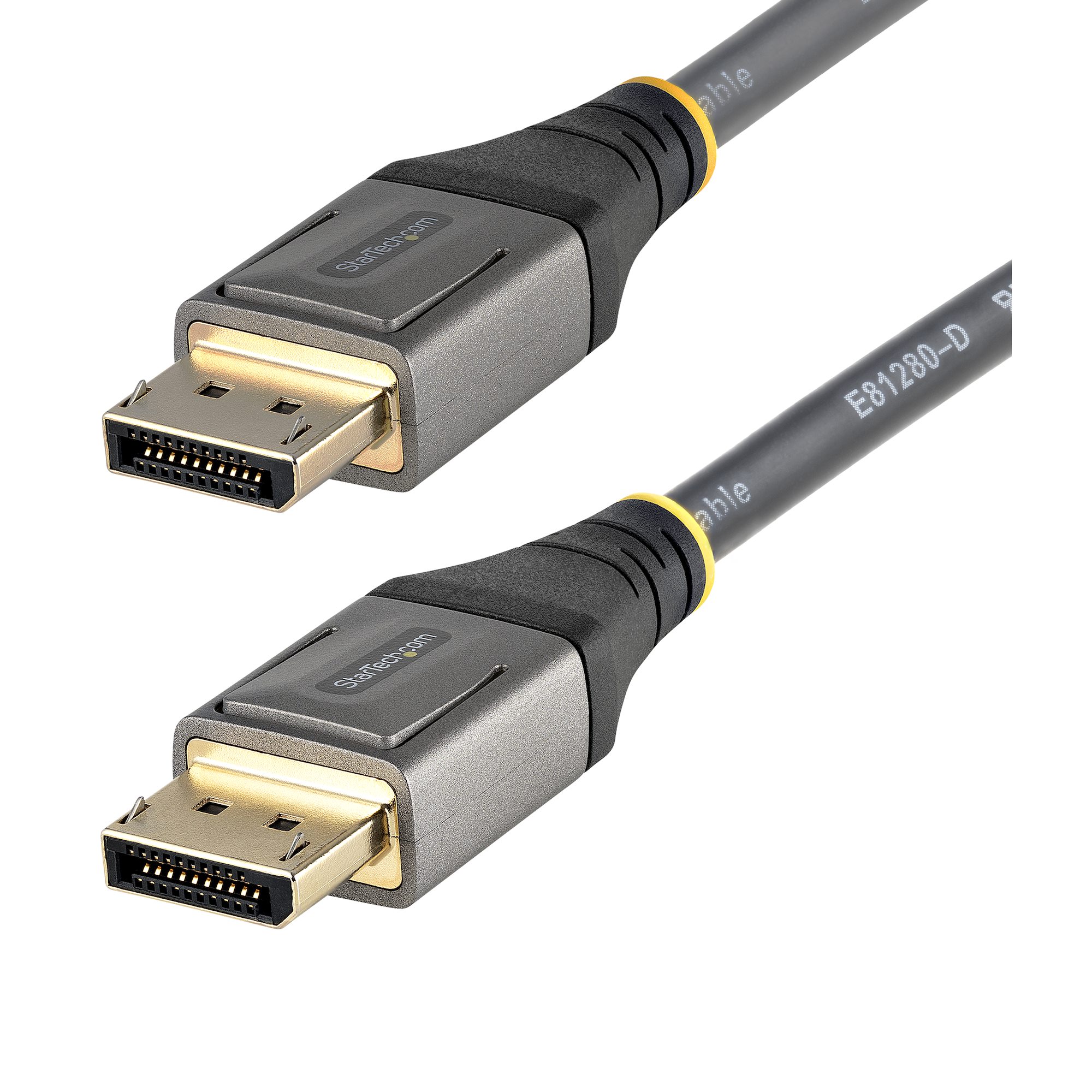

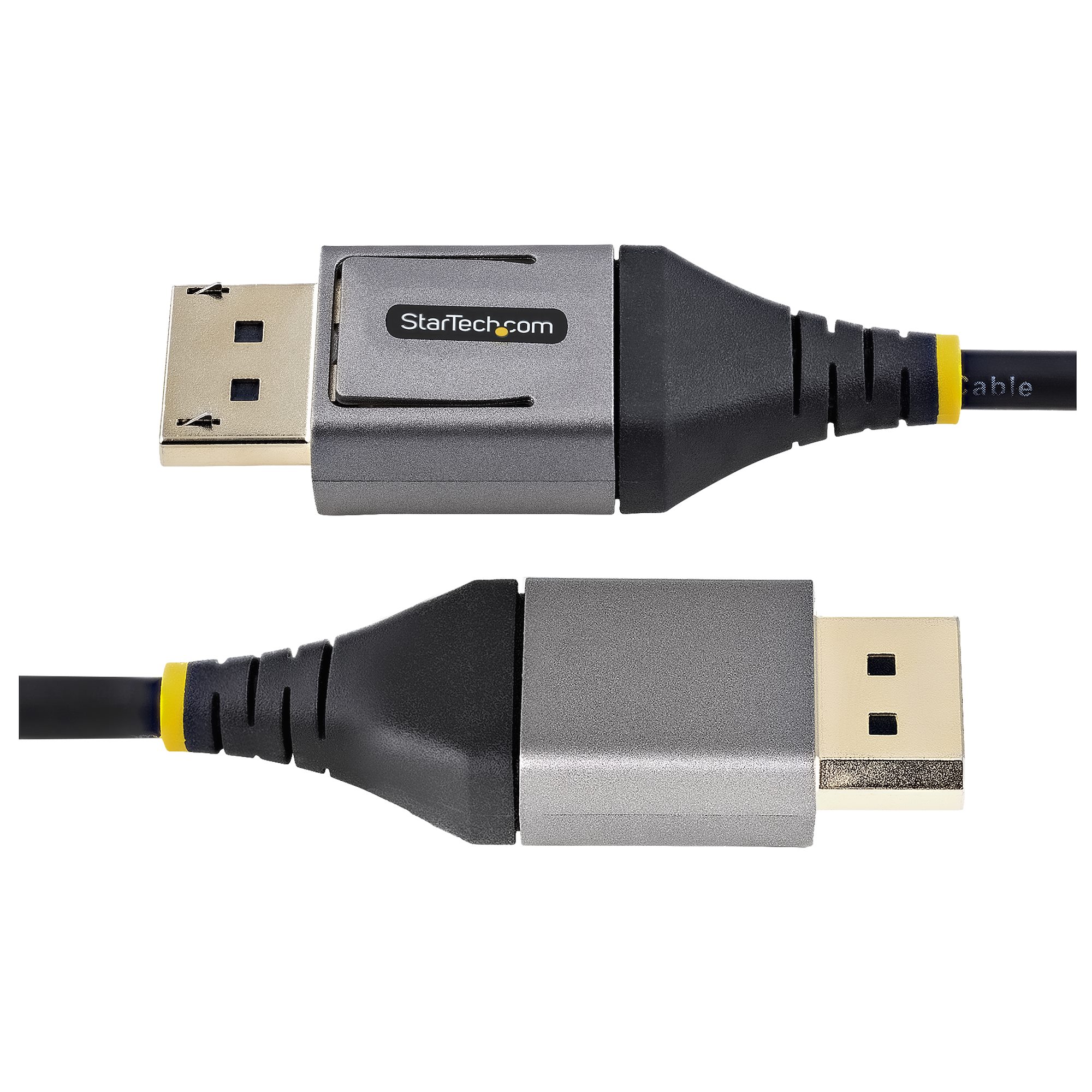

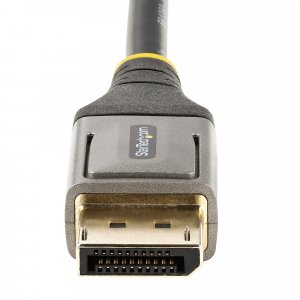

StarTech.com 3ft (1m) VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HDR10 - Ultra HD 4K 120Hz Video - DP 1.4 Cable / Cord - For Monitors/Displays - DisplayPort to DisplayPort Cable - M/M. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Sustainability certificates: RoHS. Cable diameter: 4.5 mm, Weight: 56 g, Quantity per pack: 1 pc(s). Master (outer) case width: 400 mm, Master (outer) case length: 330 mm, Master (outer) case height: 270 mm

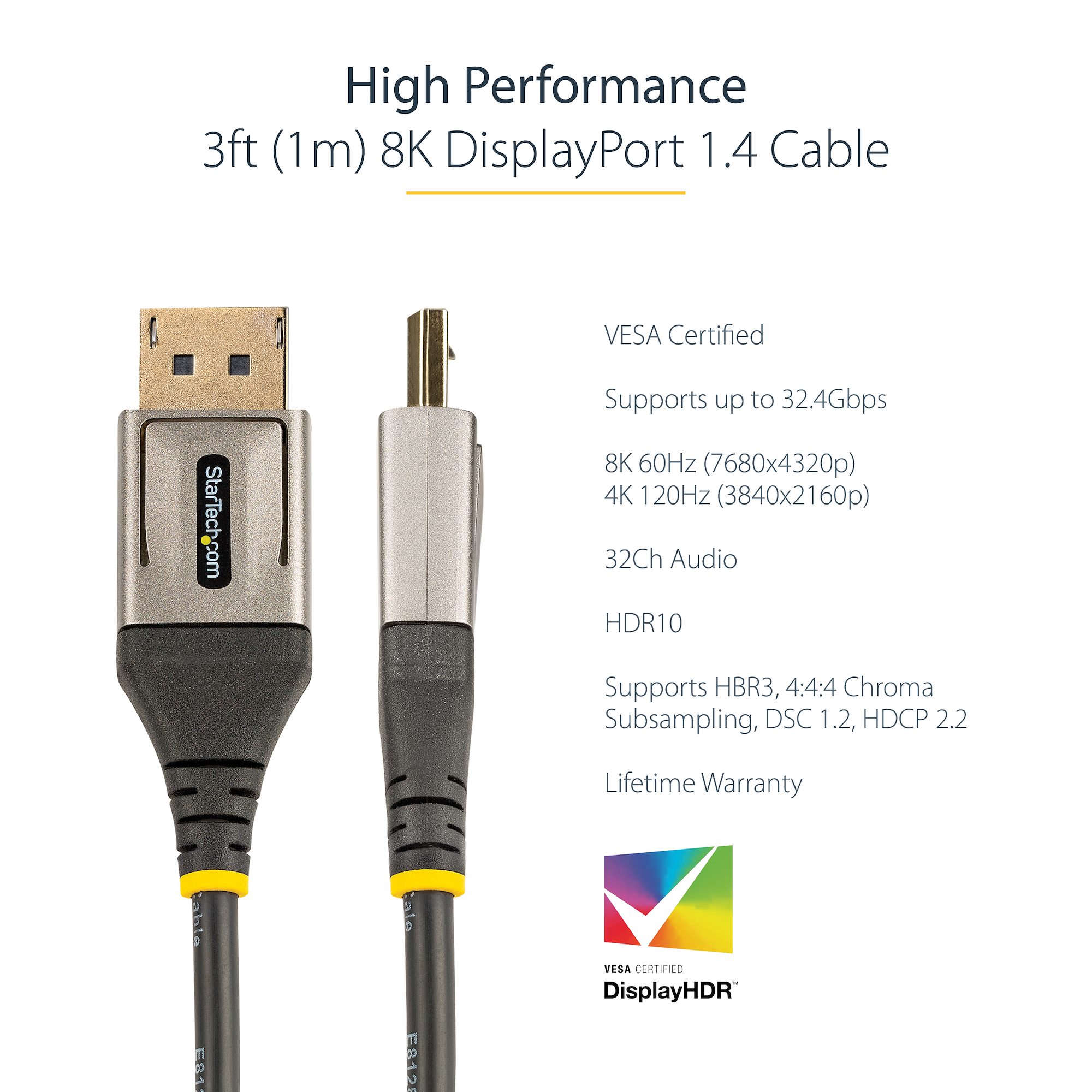

HIGH PERFORMANCE: 3.3ft (1m) VESA Certified DisplayPort 1.4 cable; 8K 60Hz (7680x4320p), 4K 120Hz (3840x2160p), 32.4Gbps bandwidth, HDR10, 32Ch Audio, MST, GTC for precise audio channel timing; future-proof your equipment by making it 8K ready

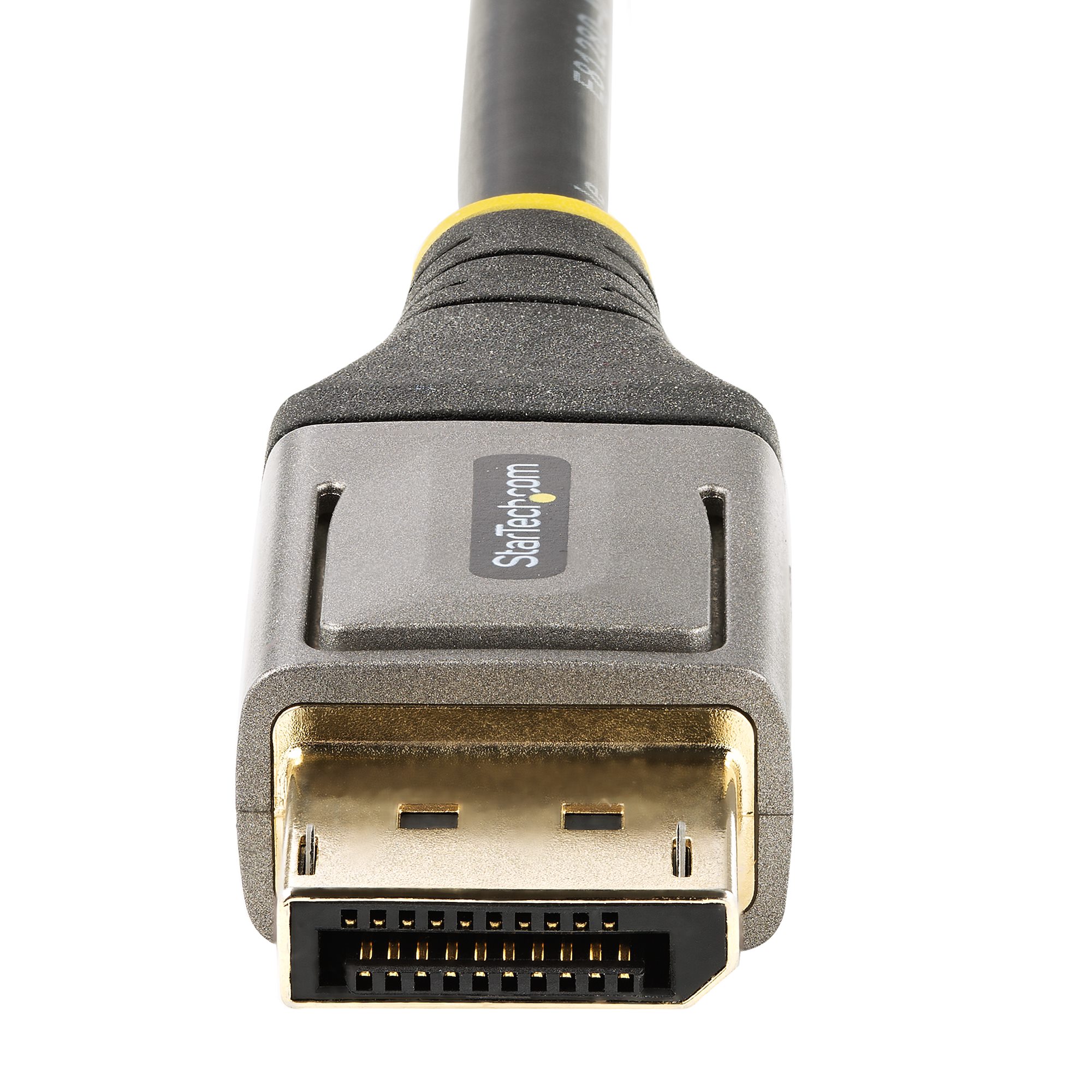

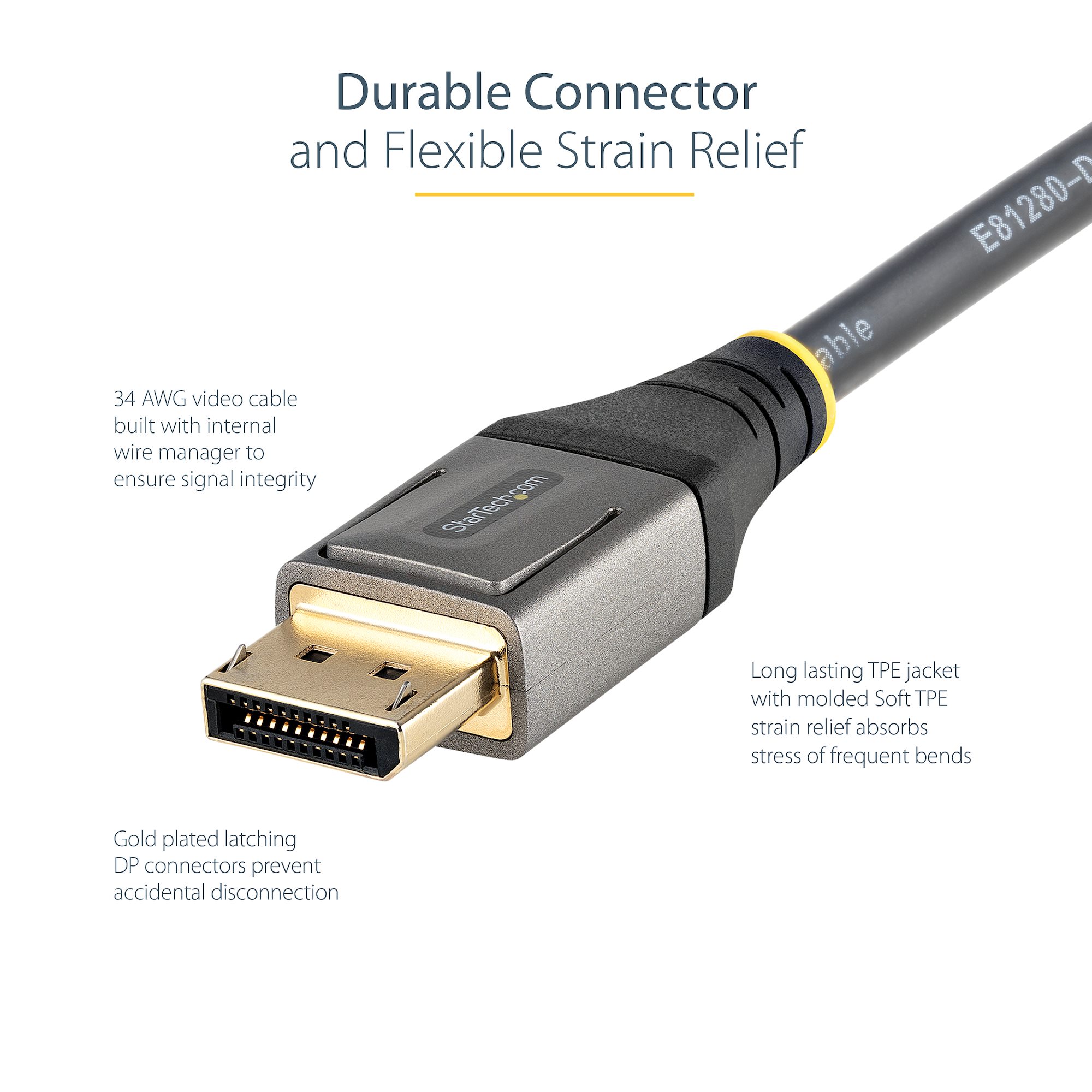

RELIABLE: 34 AWG video cable built with internal wire manager to ensure signal integrity; Metal connector sub-structure & Al-Mylar Foil w/Braid (85% coverage) for superior EMI shielding; Gold-plated latching DP connectors prevent accidental disconnection

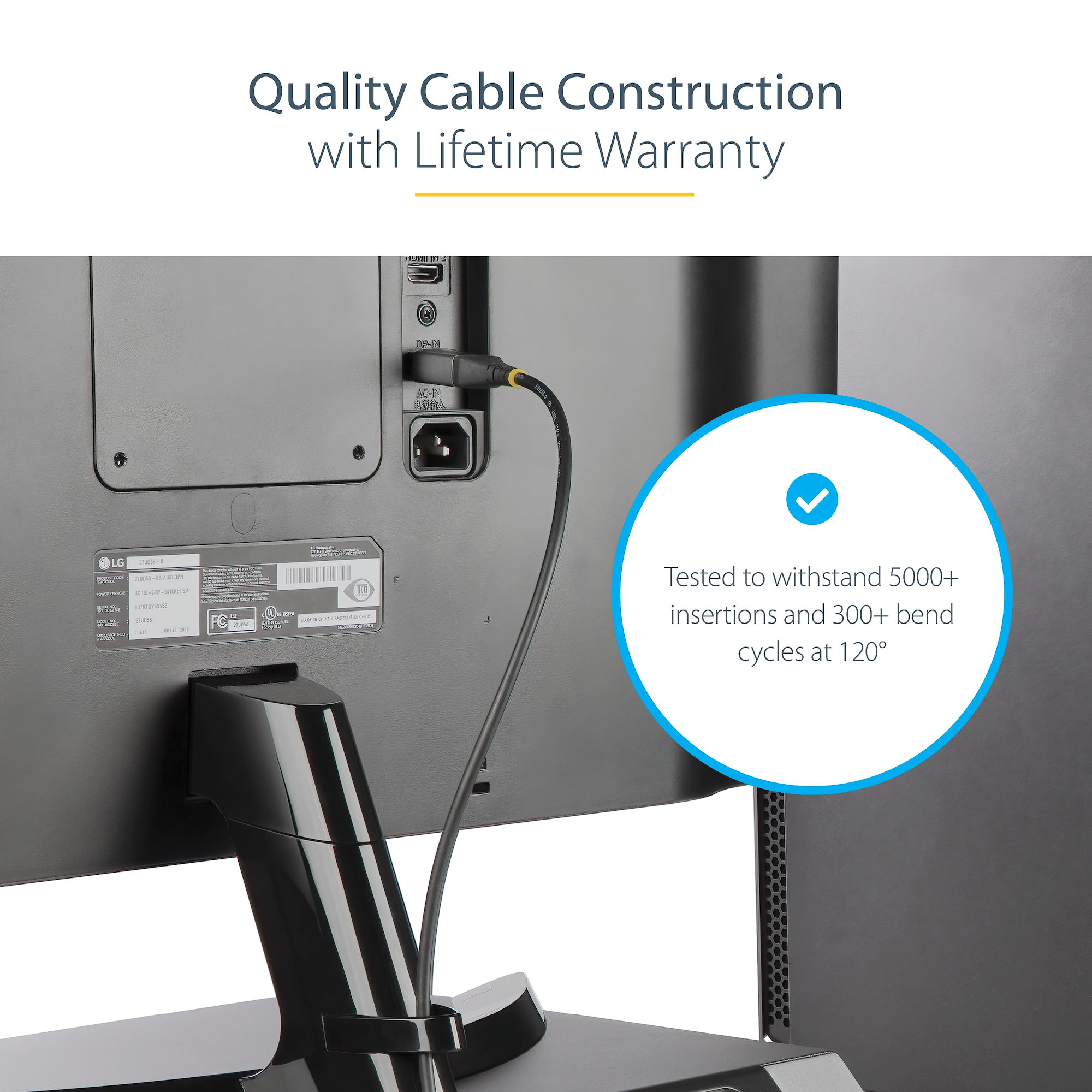

DURABLE: Tested to withstand 5000+ insertions & 300+ bend cycles at 120° angle; Long lasting TPE jacket w/ molded Soft TPE strain relief absorbs stress of frequent bends; TPE is non-toxic, halogen free & RoHS certified for environmental sustainability

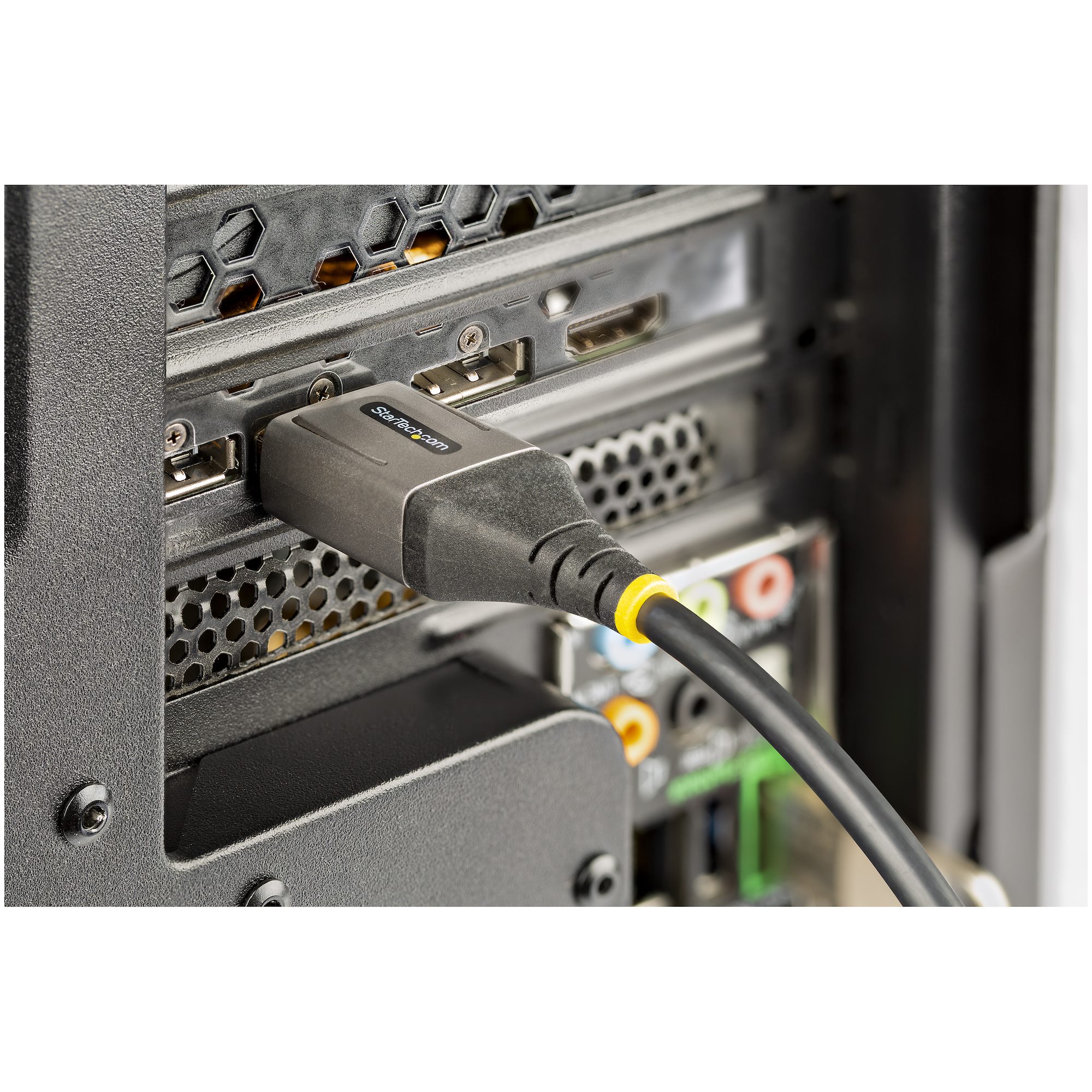

APPLICATIONS: 8K DisplayPort cable for home or professional workstations w/ Radeon Vega Frontier/Pro WX Series 2100/3100/5100/7100/W5500, Pro Duo 2000 & Nvidia Quadrop GP100, GV100/RTX™ 4000; Dell XPS 11th Gen, HP Z2 G8; Connect to DP monitor/display/TV
SPECS: 3.3 feet (1 meter) / Black / DP 1.4 cable / Male to Male Cord / Gold-plated connectors / EMI Shield: Al-Mylar Foil w/85% Braid / Supports: HBR3, 4:4:4 Chroma Subsampling, DSC 1.2, HDCP 2.2 / Works w/DP 1.4 & previous versions / Lifetime Warranty

Product Properties

Manufacturer
StarTech.com

Model
DP14VMM1M

EAN
65030889216

Bullet points

Point
APPLICATIONS

DURABLE

HIGH PERFORMANCE

RELIABLE

SPECS

Features

AWG wire size
34

Bandwidth
32400 MB/s

Cable length
1 m

Cable shielding
Aluminum mylar foil

Connector 1
DisplayPort

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2
DisplayPort

Connector 2 form factor
Straight

Connector 2 gender
Male

Connector contacts plating
Gold

DisplayPort version
1.4

HBR3 support
Y

HDCP
Y

High Dynamic Range (HDR) supported
Y

Jacket material
Thermoplastic elastomer (TPE)

Latching connectors
Y

Maximum refresh rate
120 Hz

Maximum resolution
7680 x 4320 pixels

Number of conductors
19

Product colour
Black, Grey

Supported graphics resolutions
3840 x 2160, 7680 x 4320

Logistics data

Harmonized System (HS) code
84733080

Master (outer) case height
270 mm

Master (outer) case length
330 mm

Master (outer) case width
400 mm

Products per master (outer) case
120 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 85%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
0 - 50 °C

Packaging data

Cable diameter
4.5 mm

Package depth
200 mm

Package height
20 mm

Package weight
59 g

Package width
220 mm

Quantity per pack
1 pc(s)

Weight
56 g

Sustainability

Sustainability certificates
RoHS
