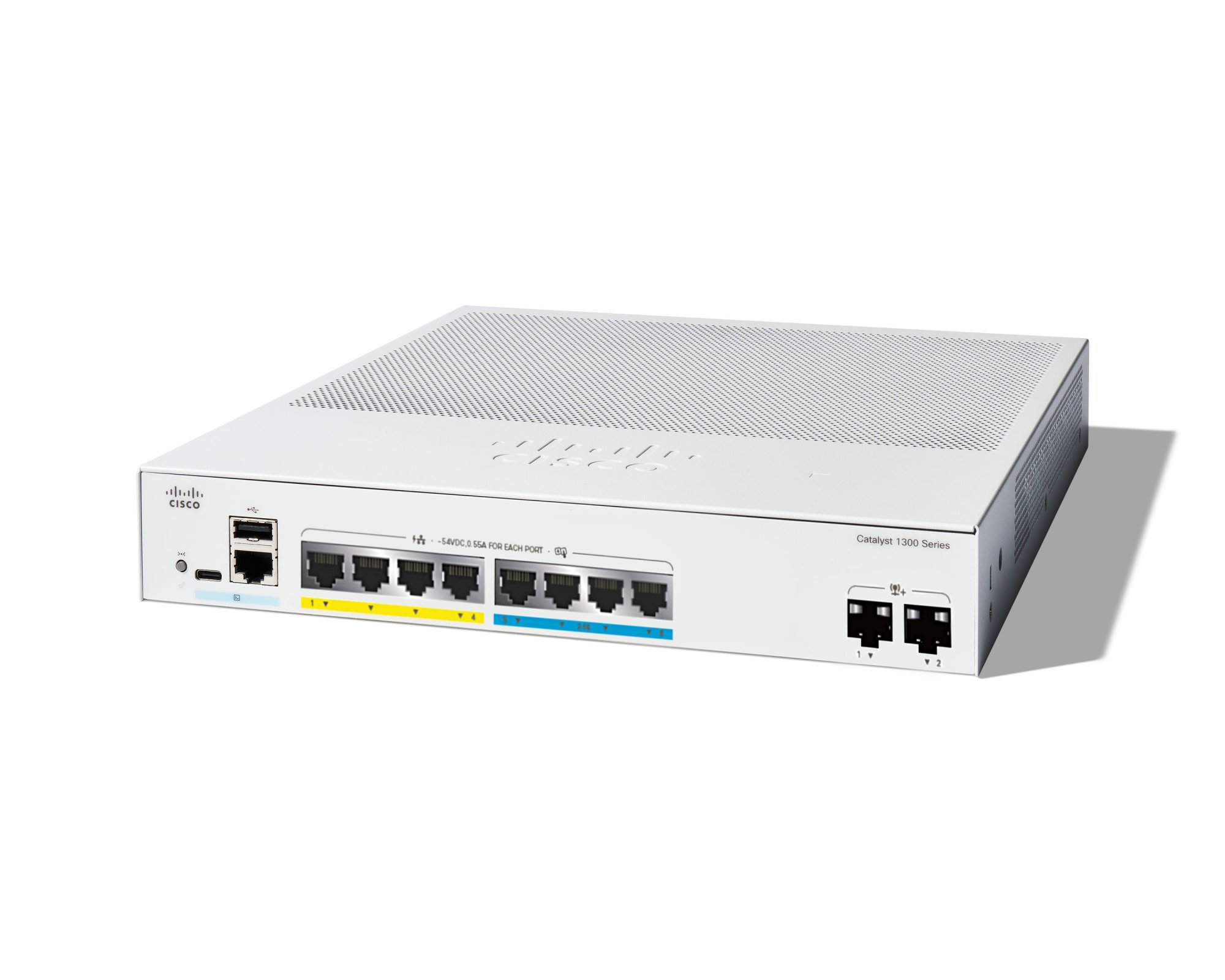

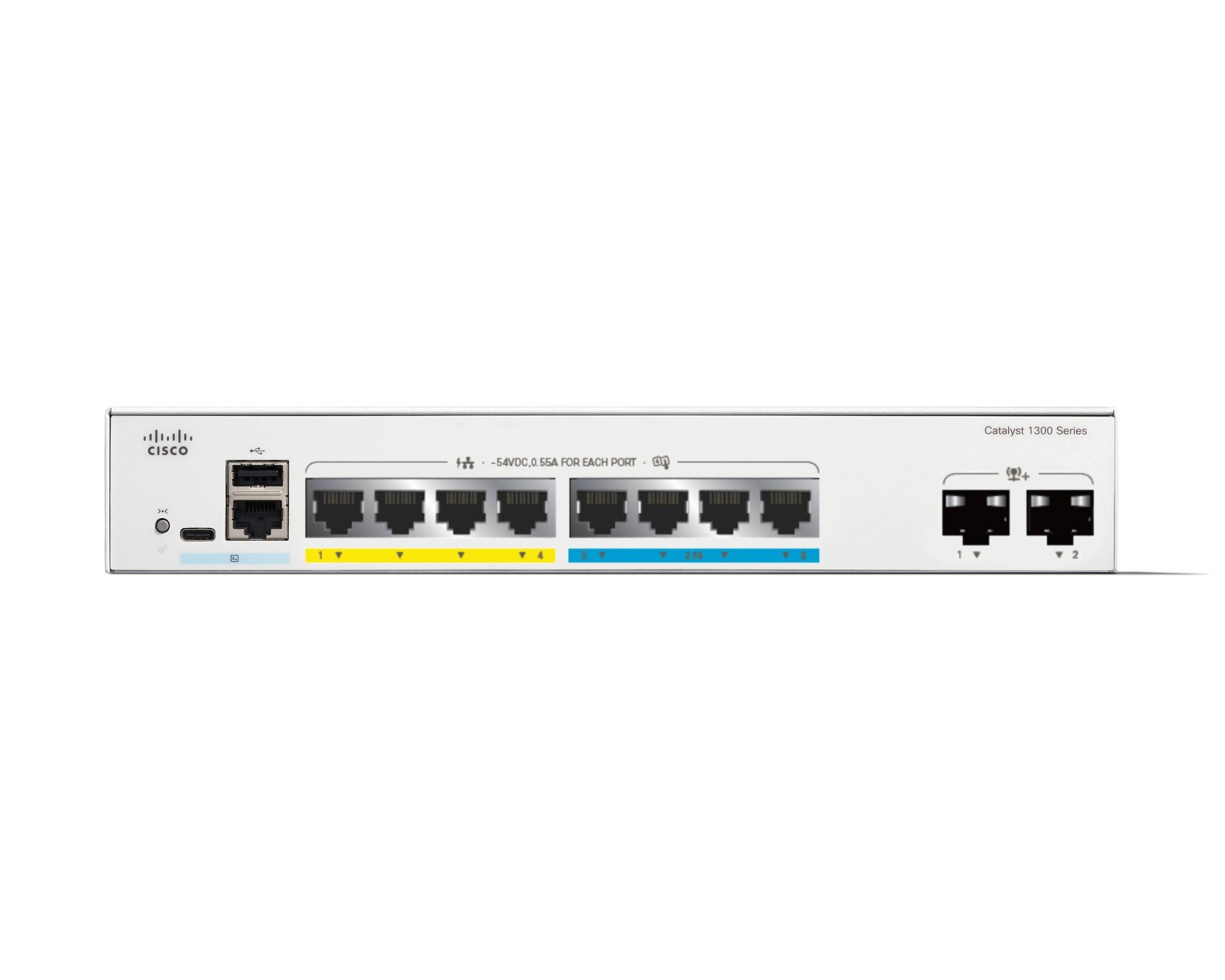

Cisco Catalyst C1300-8MGP-2X network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Roll over image to zoom inClick to Open expanded view
Cisco Catalyst C1300-8MGP-2X network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Cisco Catalyst C1300-8MGP-2X network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Print
Model: C1300-8MGP-2X

Cisco Catalyst C1300-8MGP-2X network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Manufacturer:
Cisco
Cisco Catalyst C1300-8MGP-2X, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst C1300-8MGP-2X. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting

Product Properties

  • Model
  • C1300-8MGP-2X
  • Data transmission
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Number of queues
  • 8
  • Packet buffer memory
  • 1.5 MB
  • Static route
  • Yes
  • Switching capacity
  • 56 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Reset button
  • Yes
  • Management features
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Head-of-line (HOL) blocking
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Policy-based routing
  • Yes
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Private VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -25 - 70 °C
  • Packaging data
  • Package depth
  • 398.8 mm
  • Package height
  • 108 mm
  • Package weight
  • 3.75 kg
  • Package width
  • 441.3 mm
  • Performance
  • Built-in processor
  • Yes
  • Ports & interfaces
  • 2.5G Ethernet (copper) ports quantity
  • 4
  • SFP+ module slots quantity
  • 2
  • Switch Number of Ports
  • 4
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 220 V
  • Power plug type
  • Type C
  • Power source
  • AC
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • IPv4 & IPv6 features
  • ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
  • Security
  • Access Control List (ACL)
  • Yes
  • Access Control List (ACL) rules
  • 1024
  • Authentication
  • MAC-based authentication, Web-based authentication
  • Authentication type
  • RADIUS, TACACS+
  • DHCP features
  • DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
  • IGMP proxy
  • Yes
  • IGMP snooping
  • Yes
  • Queue scheduling algorithms
  • Weighted Round Robin (WRR)
  • Security algorithms
  • HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 323 mm
  • Height
  • 44 mm
  • Weight
  • 2.64 kg
  • Width
  • 268 mm
