Description

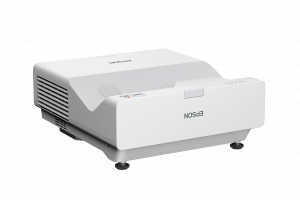

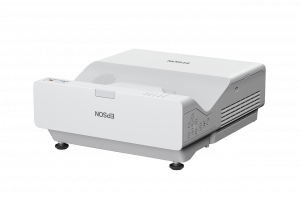

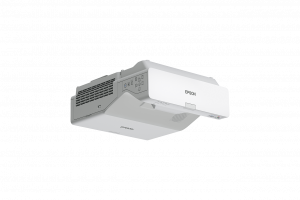

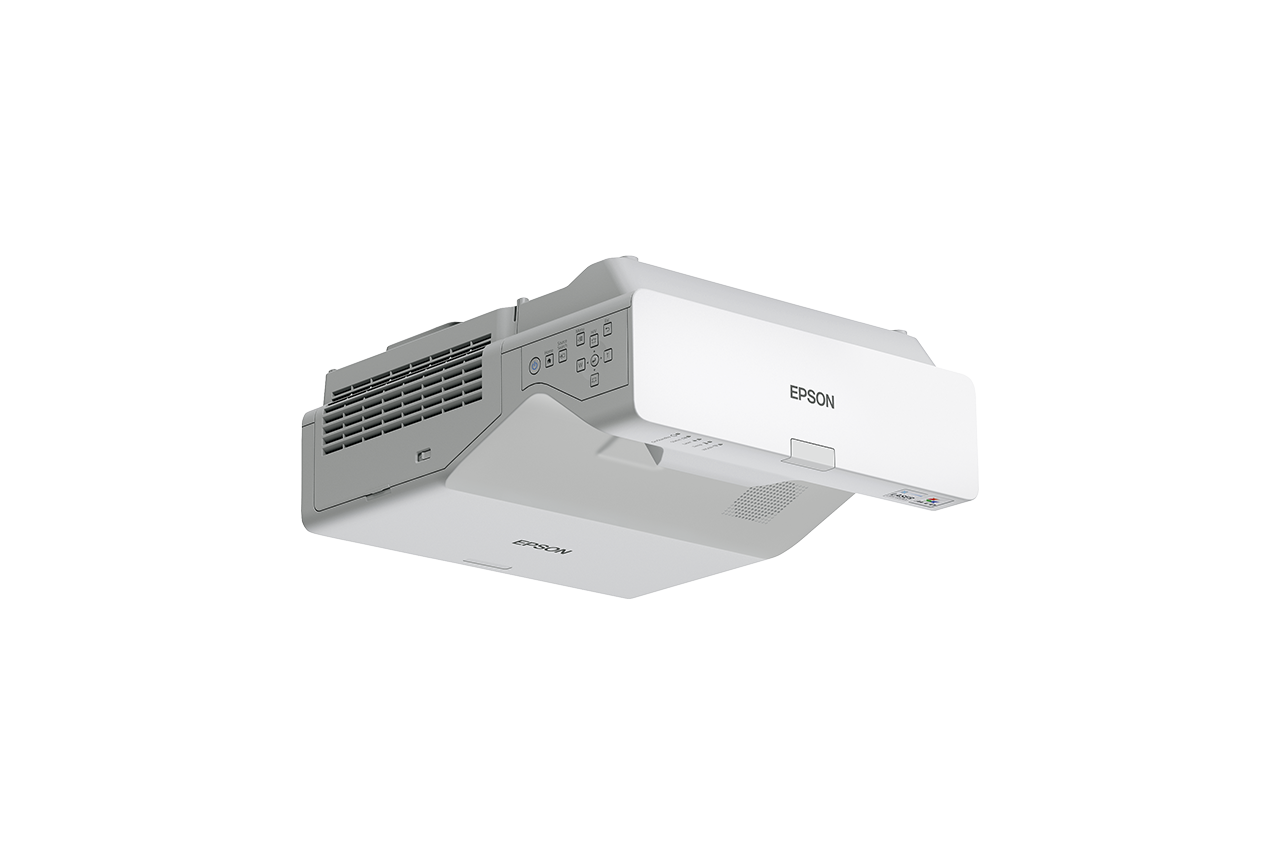

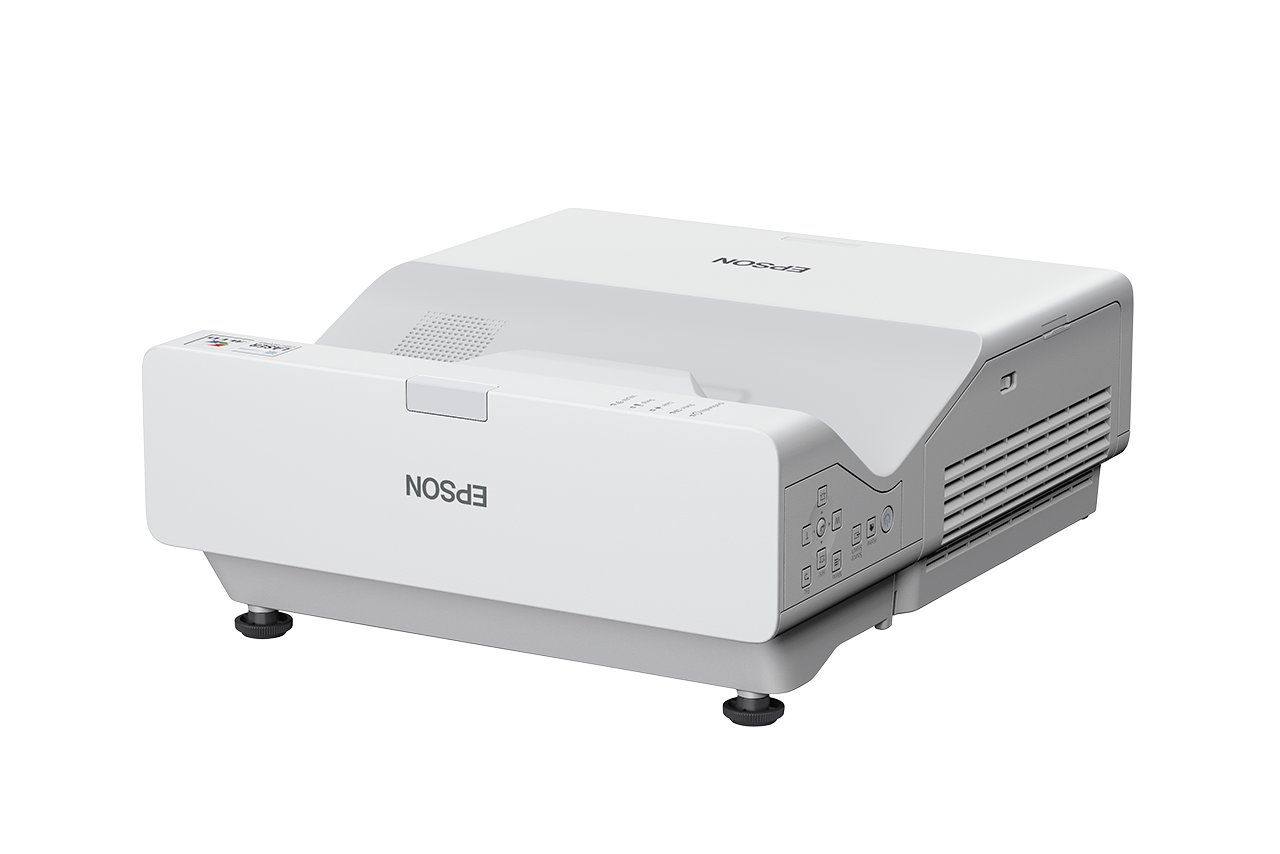

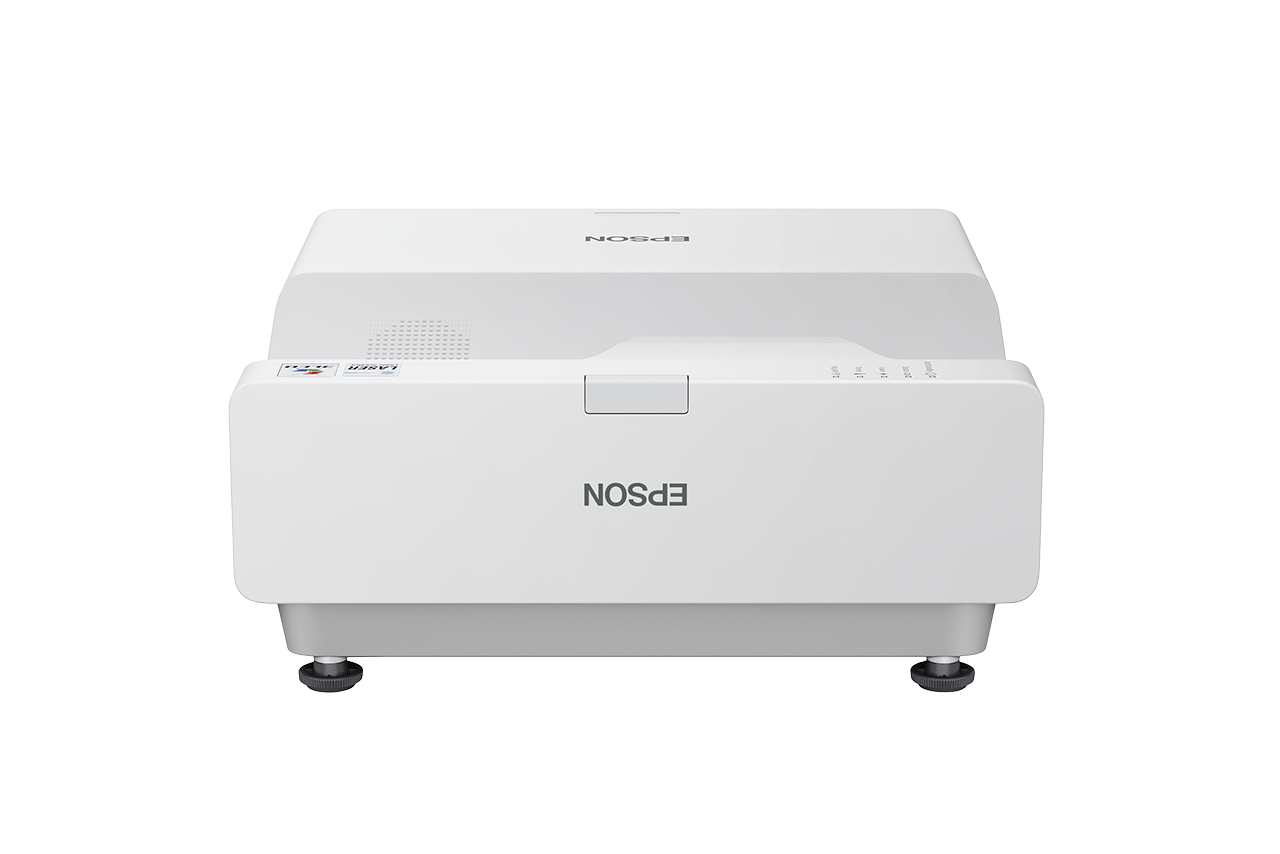

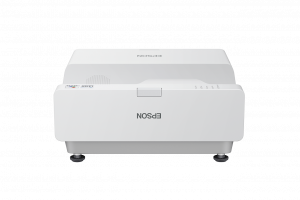

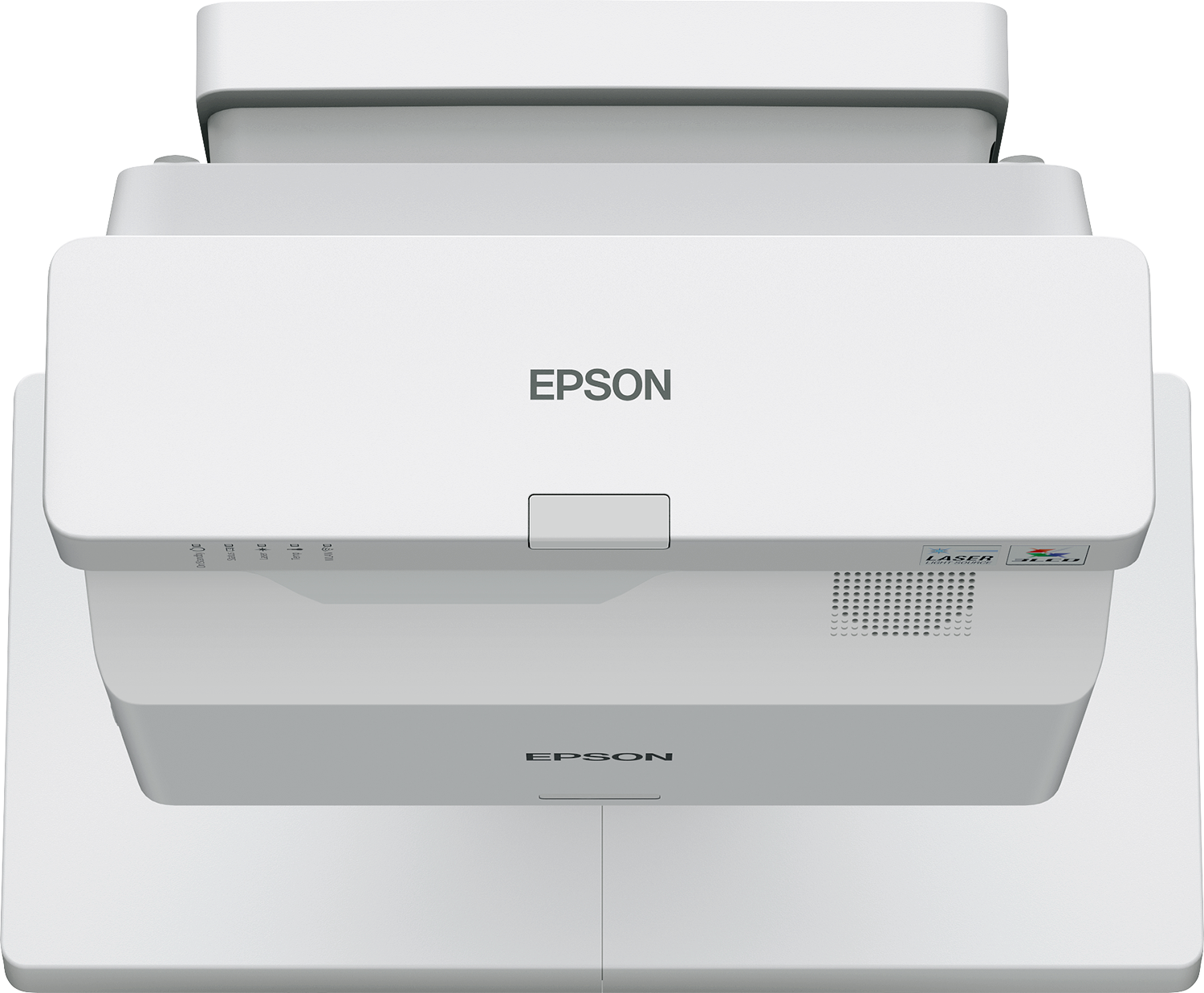

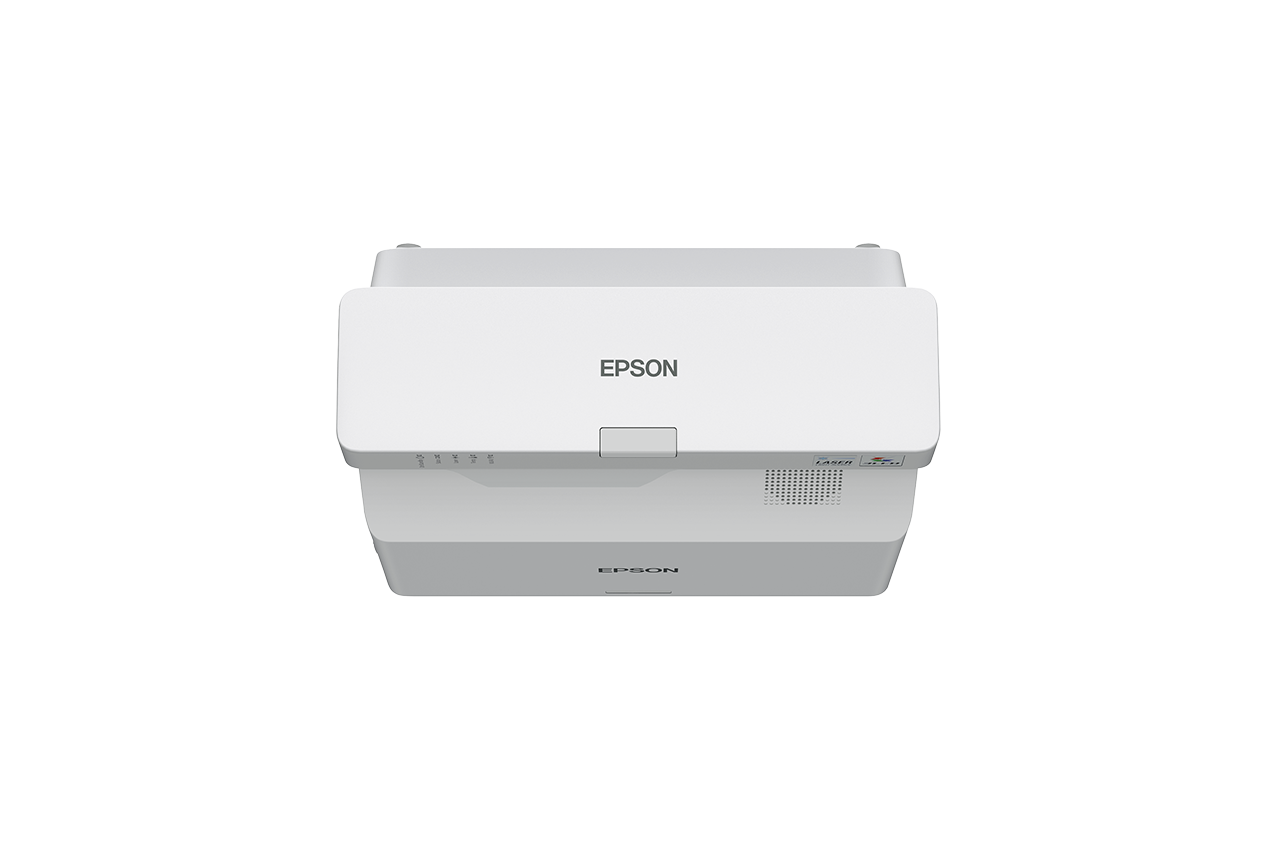

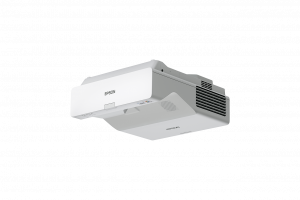

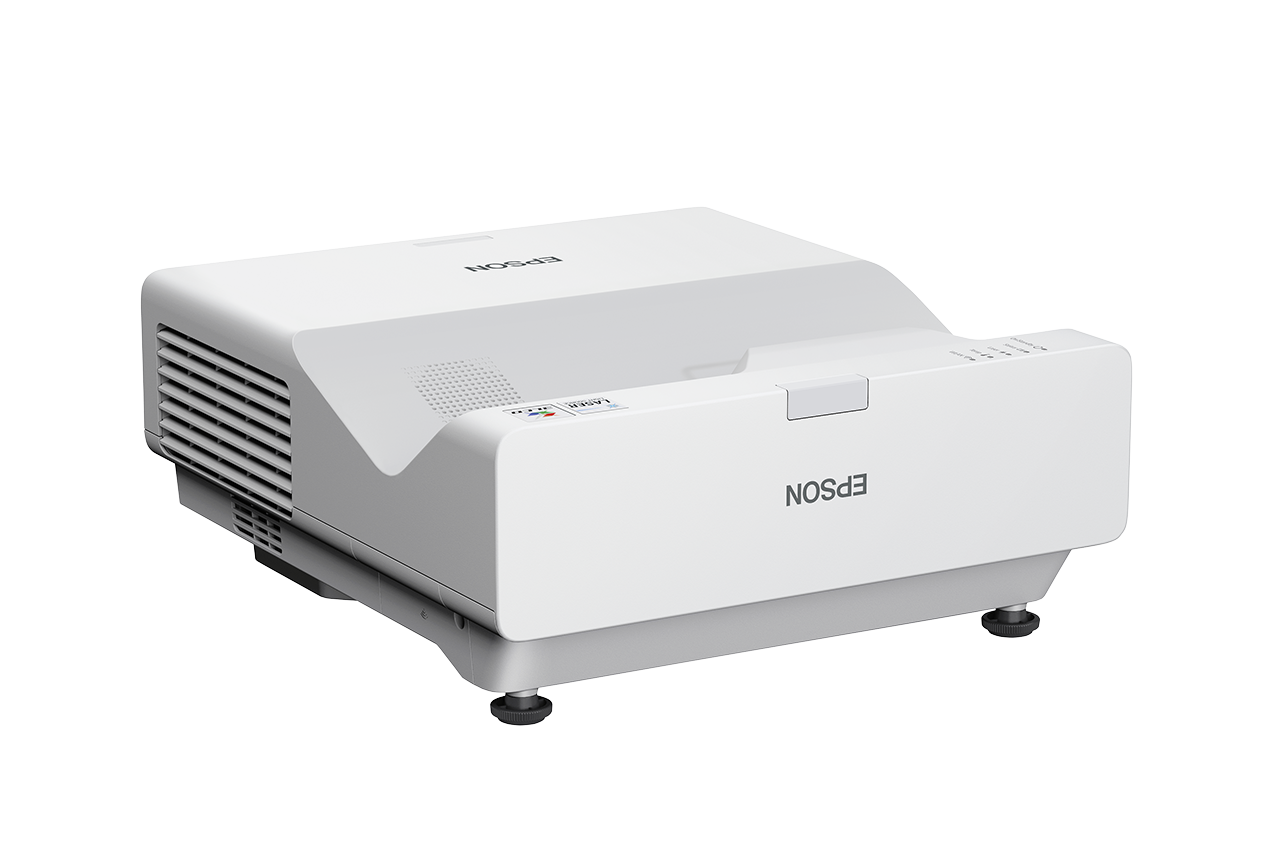

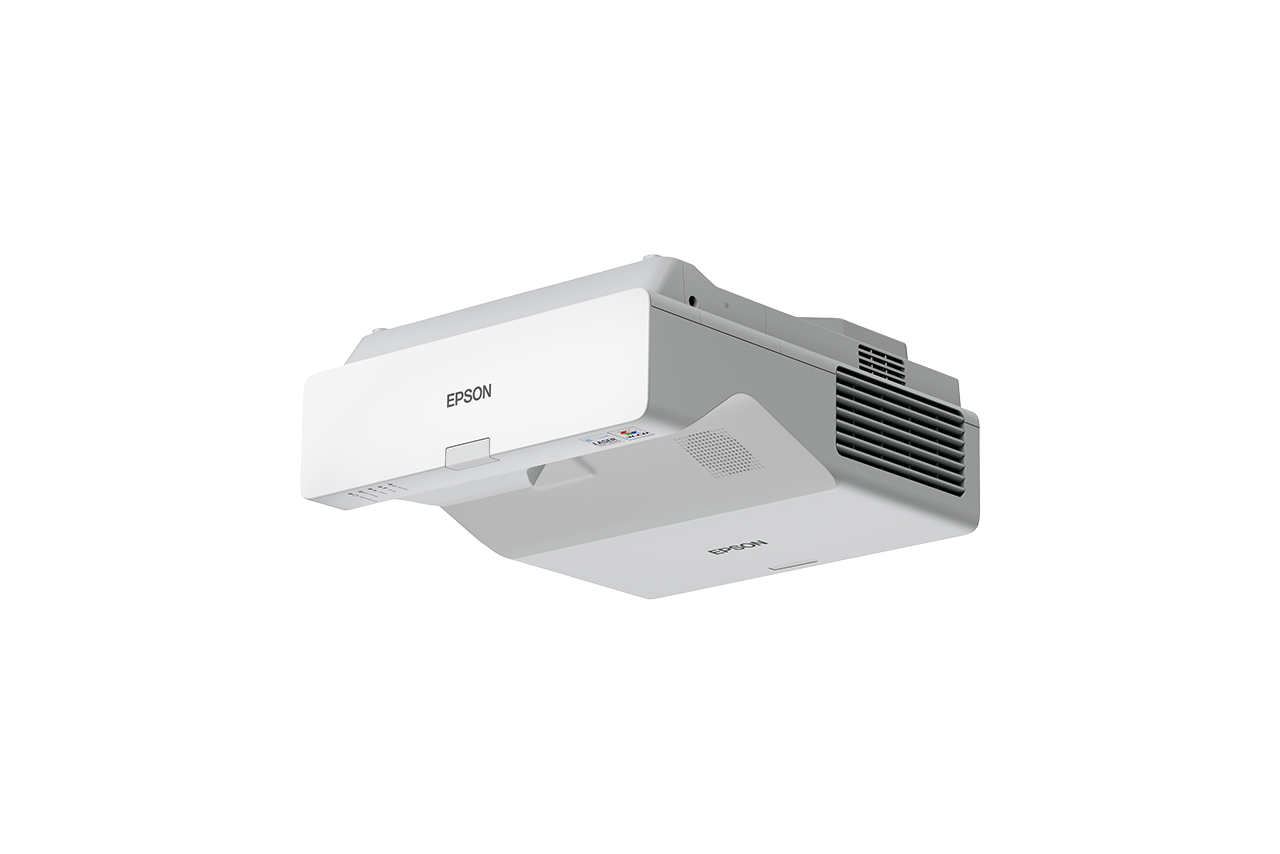

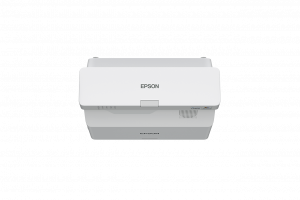

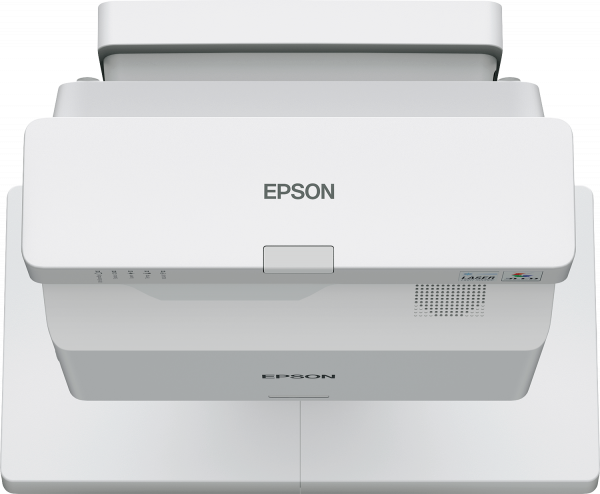

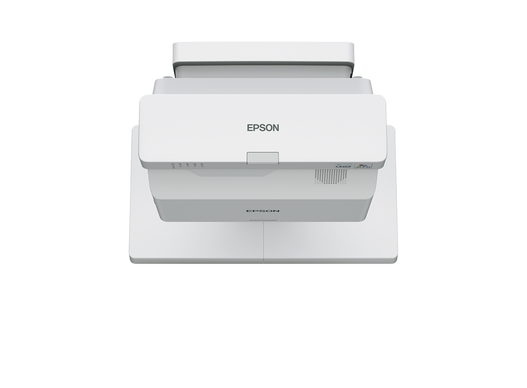

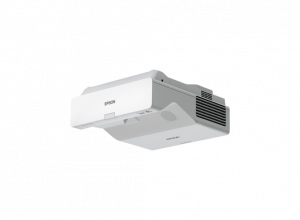

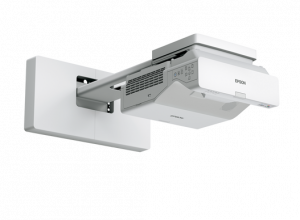

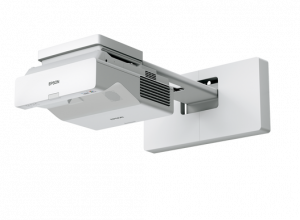

Epson EB-760W. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C

Scalable HD display for any room: 53-150" UST display for unrestricted viewing (no shadows/reflections)
Bright and energy efficient laser: 4,100lm CLO with 3LCD technology for brighter colours at only 205W
Effortless connectivity options: Auto-on, wired / wireless display with USB 2A output for smart sticks
Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty
Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA81080

EAN
8715946715285

Bullet points

Point
Bright and energy efficient laser

Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Effortless connectivity options

Scalable HD display for any room

Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Presentation

Product colour
White

Product type
Ultra short throw projector

Display

Built-in display
No

Features

Country of origin
Philippines

Noise level
37 dB

Noise level (economic mode)
27 dB

On Screen Display (OSD)
Yes

Password protection
Yes

Screen mirroring
Yes

Lens system

F-number (relative aperture)
1.6

Fixed focal length
3.7 mm

Focal length range
3.7 mm

Focus
Manual

Throw ratio
0.27 - 0.37:1

Zoom capability
Yes

Zoom ratio
1.35:1

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Pallet gross height
2.1 m

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
2.1 m

Pallet length (UK)
120 cm

Products per pallet
12 pc(s)

Products per pallet (UK)
24 pc(s)

Products per pallet layer
2 pc(s)

Products per pallet layer (UK)
4 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
16 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100 Mbit/s

Miracast
Yes

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Warranty document

Control panel
0.59 inch with C2 Fine

Interface

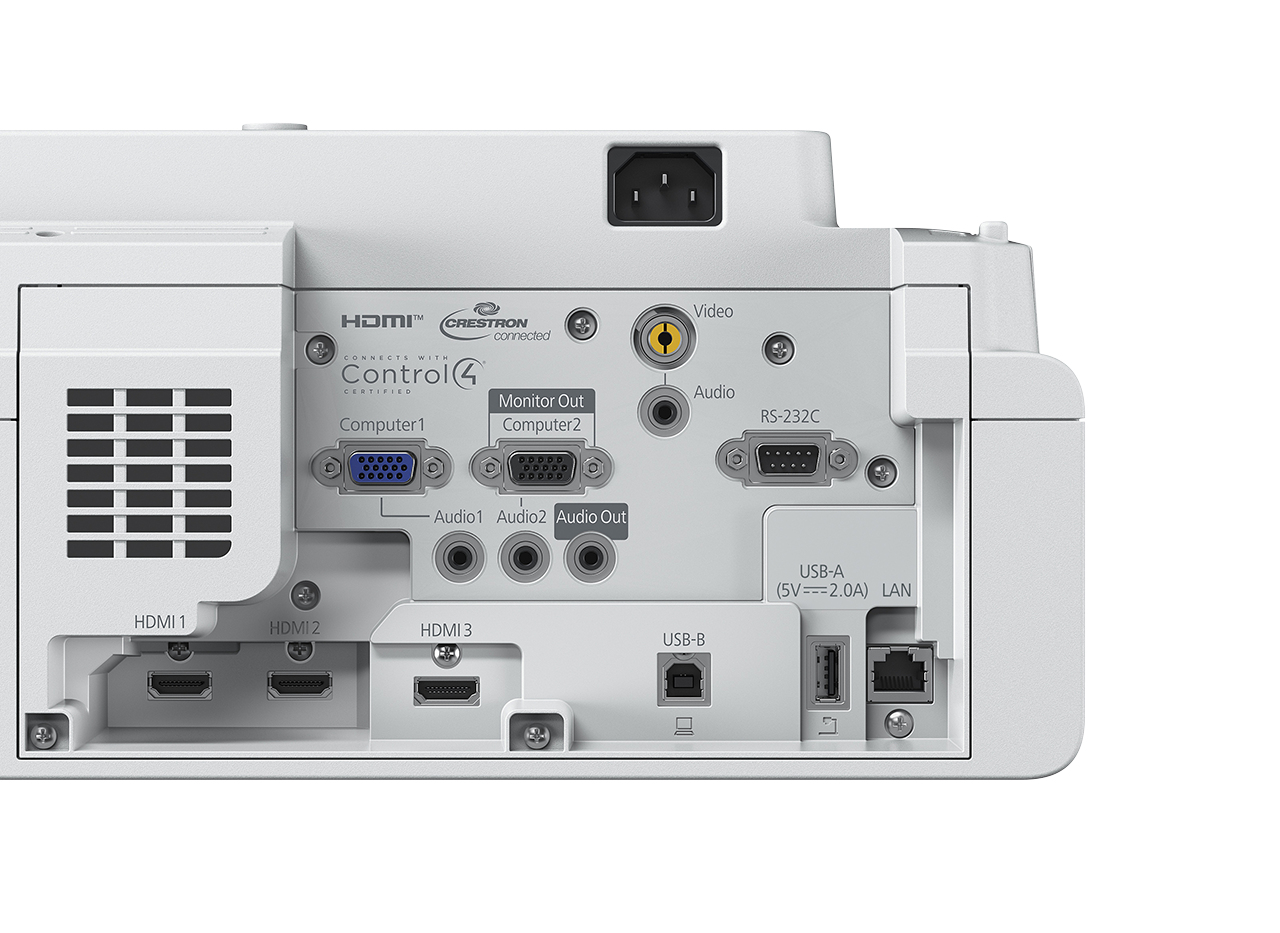

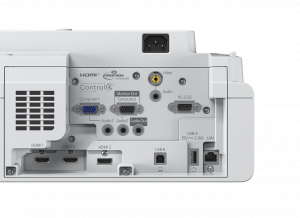

USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input

Option type

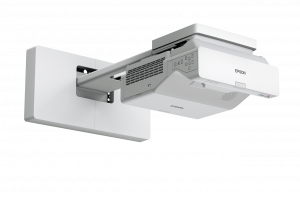

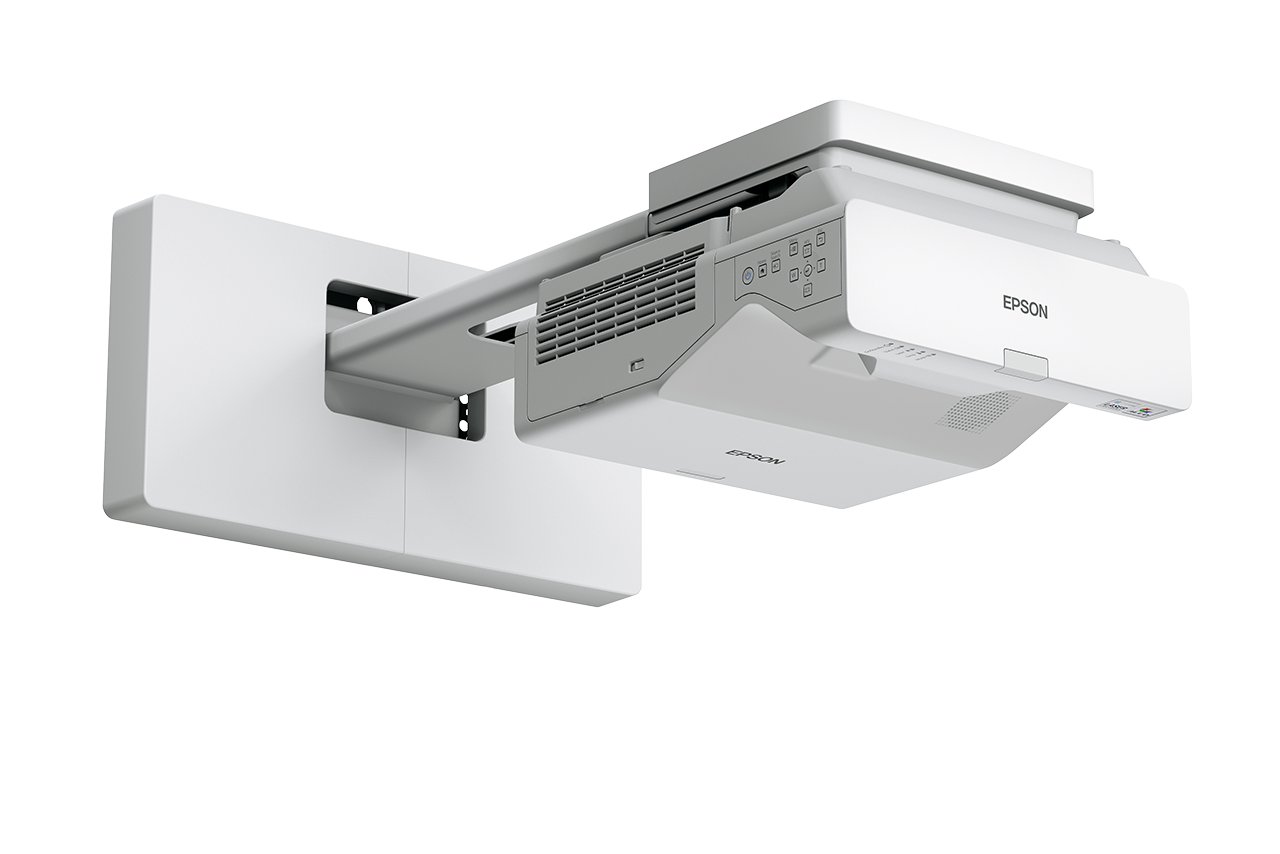

Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01

Security features
Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Supported network protocols
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Batteries included
Yes

Bundled software
EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management

Cables included
AC

Manual
Yes

Remote control included
Yes

Ports & interfaces

Audio (L/R) in
3

Audio (L/R) out
1

Audio Return Channel (ARC)
Yes

Component video (YPbPr/YCbCr) in
0

Composite video in
1

Consumer Electronics Control (CEC) support
Yes

DVI port
No

HDMI ports
3

Microphone in
Yes

Serial interface type
RS-232C

USB 2.0 ports quantity
3

USB 2.0 Type-A ports quantity
2

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
263 W

Power consumption (PowerSave)
199 W

Power consumption (standby)
0.5 W

Power consumption (typical)
197 W

Power source
AC

Projector

Contrast ratio (dynamic)
5000000:1

Contrast ratio (typical)
2500000:1

Heat dissipation
895 BTU/h

Keystone correction, horizontal
±3°

Keystone correction, vertical
±3°

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection technology
3LCD

Projector brightness
4100 ANSI lumens

Projector brightness (economic mode)
2800 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
1524 - 3810 mm (60 - 150")

Supported aspect ratios
16:10

Vertical scan range
100 - 120 Hz

Storage

Card reader integrated
No

Supplier features

Recommended gender
Any gender

Technical details

Mobile app support
Yes

Other features
A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

Warranty period
5 year(s)

Video

Full HD
Yes

Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
395 mm

Height
133 mm

Package depth
485 mm

Package height
325 mm

Package weight
8.74 kg

Package width
450 mm

Weight
5.9 kg

Width
356 mm
