Product Properties

Manufacturer
Epson

Model
V11HA80080

EAN
8715946715261

Bullet points

Point
Bright and energy efficient laser

Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Effortless connectivity options

Interactive HD display for any room

Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Presentation

Placement
Ceiling, Desktop, Wall

Product colour
White

Display

Built-in display
No

Features

Air filter
Yes

Country of origin
Philippines

Interactive
Yes

Noise level
37 dB

Noise level (economic mode)
27 dB

On Screen Display (OSD)
Yes

Password protection
Yes

Lens system

F-number (relative aperture)
1.6

Fixed focal length
3.7 mm

Focal length range
3.7 mm

Focus
Manual

Throw ratio
0.27 - 0.37:1

Zoom capability
Yes

Zoom ratio
1.35:1

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Pallet gross height
2.1 m

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
2.1 m

Pallet length (UK)
120 cm

Products per pallet
12 pc(s)

Products per pallet (UK)
24 pc(s)

Products per pallet layer
2 pc(s)

Products per pallet layer (UK)
4 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
16 W

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100 Mbit/s

Miracast
Yes

Smart TV
No

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document

Control panel
0.59 inch with C2 Fine

Interface
USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input

Option type
Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01

Security features
Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Supported network protocols
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Batteries included
Yes

Bundled software
Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management

Cables included
AC, USB

Interactive pen included
Yes

Remote control included
Yes

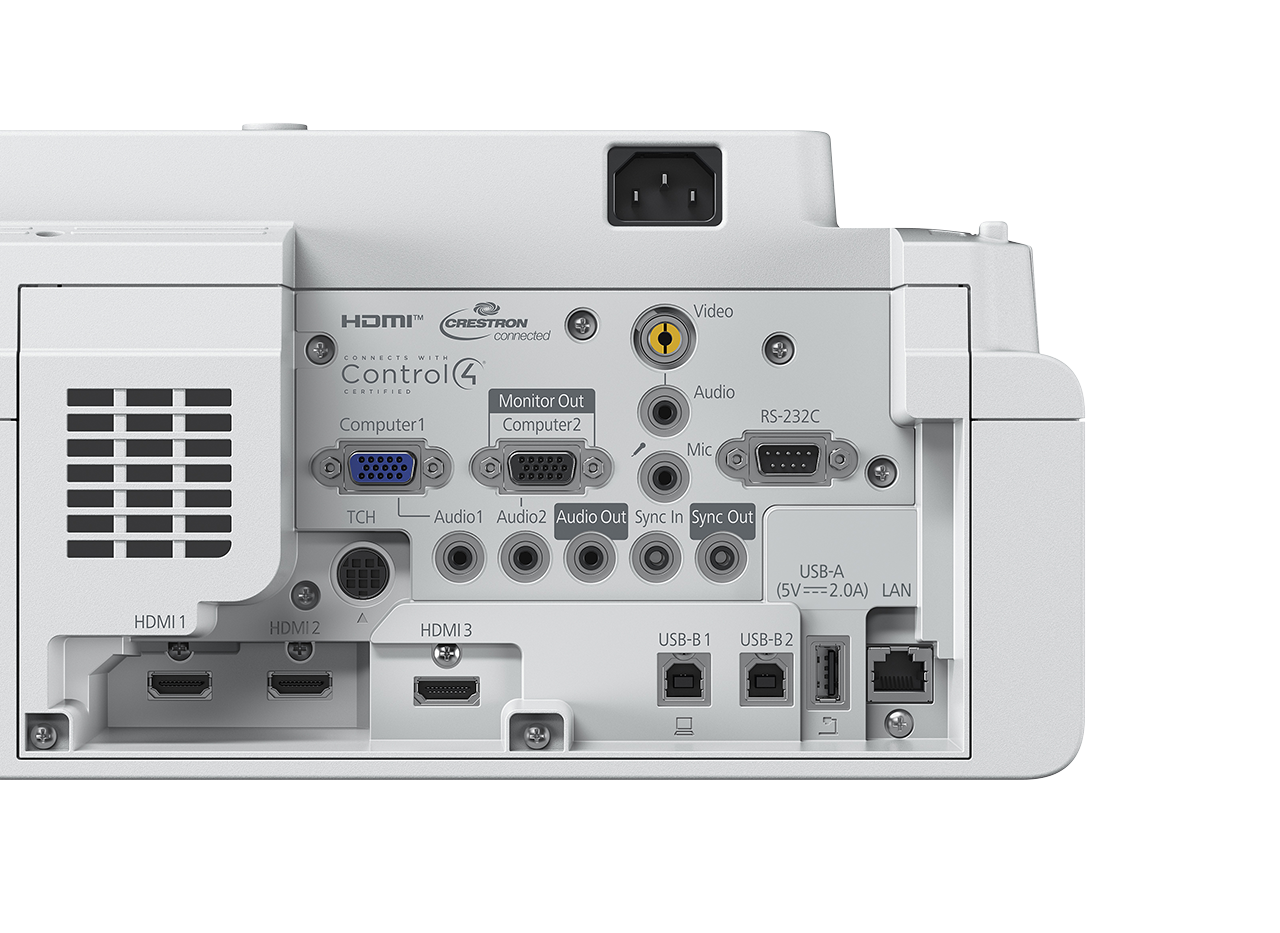

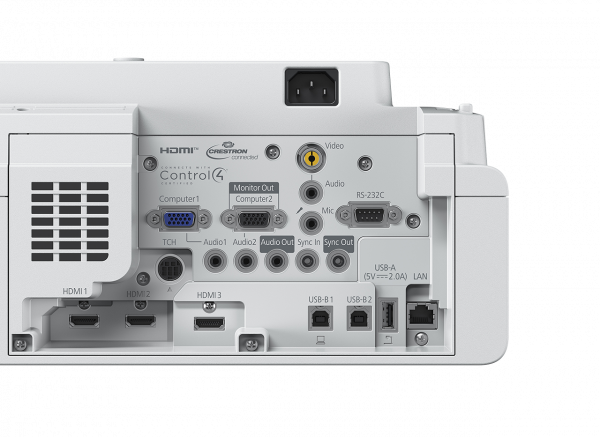

Ports & interfaces

Component video (YPbPr/YCbCr) in
0

Composite video in
1

DVI port
No

HDMI ports
3

Headphone outputs
3

Microphone in
Yes

Serial interface type
RS-232C

Service port type
USB Type-B

USB 2.0 ports quantity
2

VGA (D-Sub) ports quantity
3

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
141 W

Power consumption (typical)
197 W

Power source
AC

Projector

Contrast ratio (dynamic)
5000000:1

Contrast ratio (typical)
2500000:1

Keystone correction, horizontal
±3°

Keystone correction, vertical
±3°

Matrix size
1.5 cm (0.59")

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection technology
3LCD

Projector brightness
4100 ANSI lumens

Projector brightness (economic mode)
2800 ANSI lumens

Projector native resolution
WXGA (1280x800)

Screen size compatibility
1346.2 - 2540 mm (53 - 100")

Smart projector
No

Vertical scan range
100 - 120 Hz

Storage

Card reader integrated
No

Technical details

Mobile app support
Yes

Other features
A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, JPEG Viewer, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Free, PC Interactive, PC free annotation, Power on button, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code

Video

Analog signal format system
Not supported

Full HD
No

Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
395 mm

Height
133 mm

Package depth
490 mm

Package height
325 mm

Package weight
9.17 kg

Package width
450 mm

Weight
6 kg

Width
356 mm

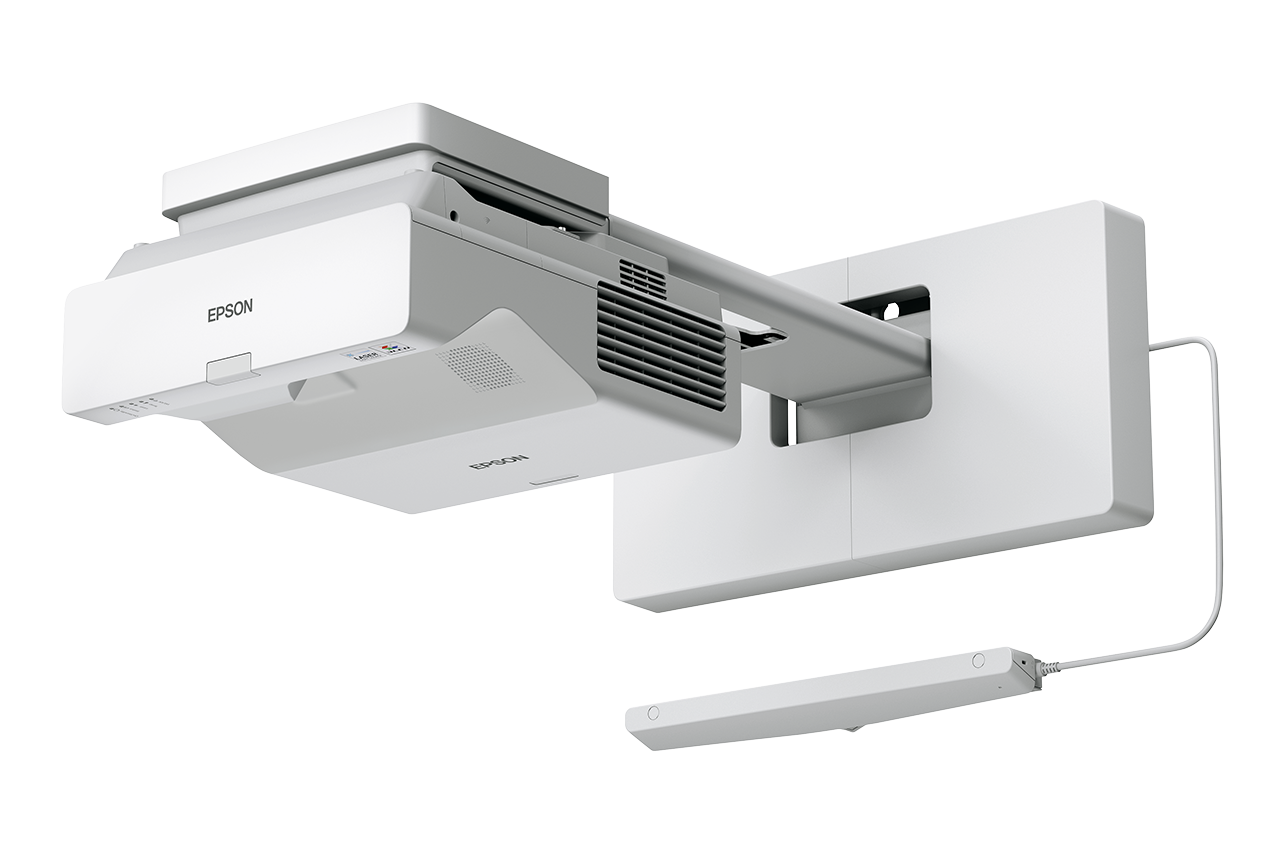

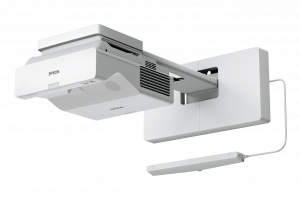

Epson EB-760Wi
