Description

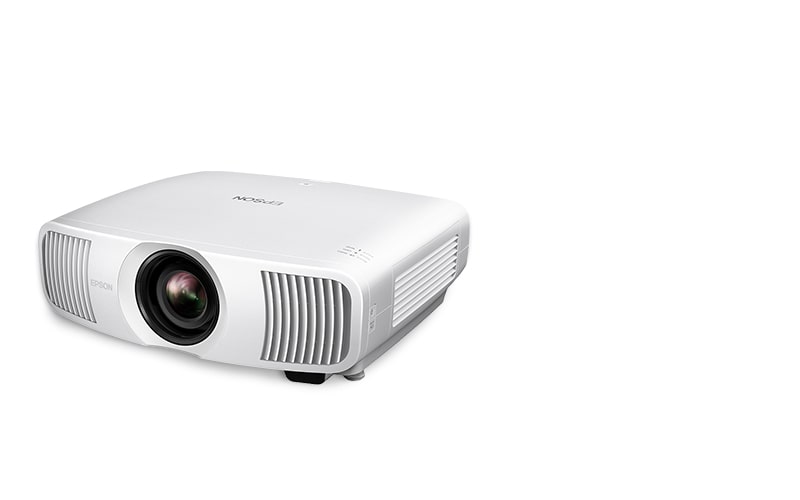

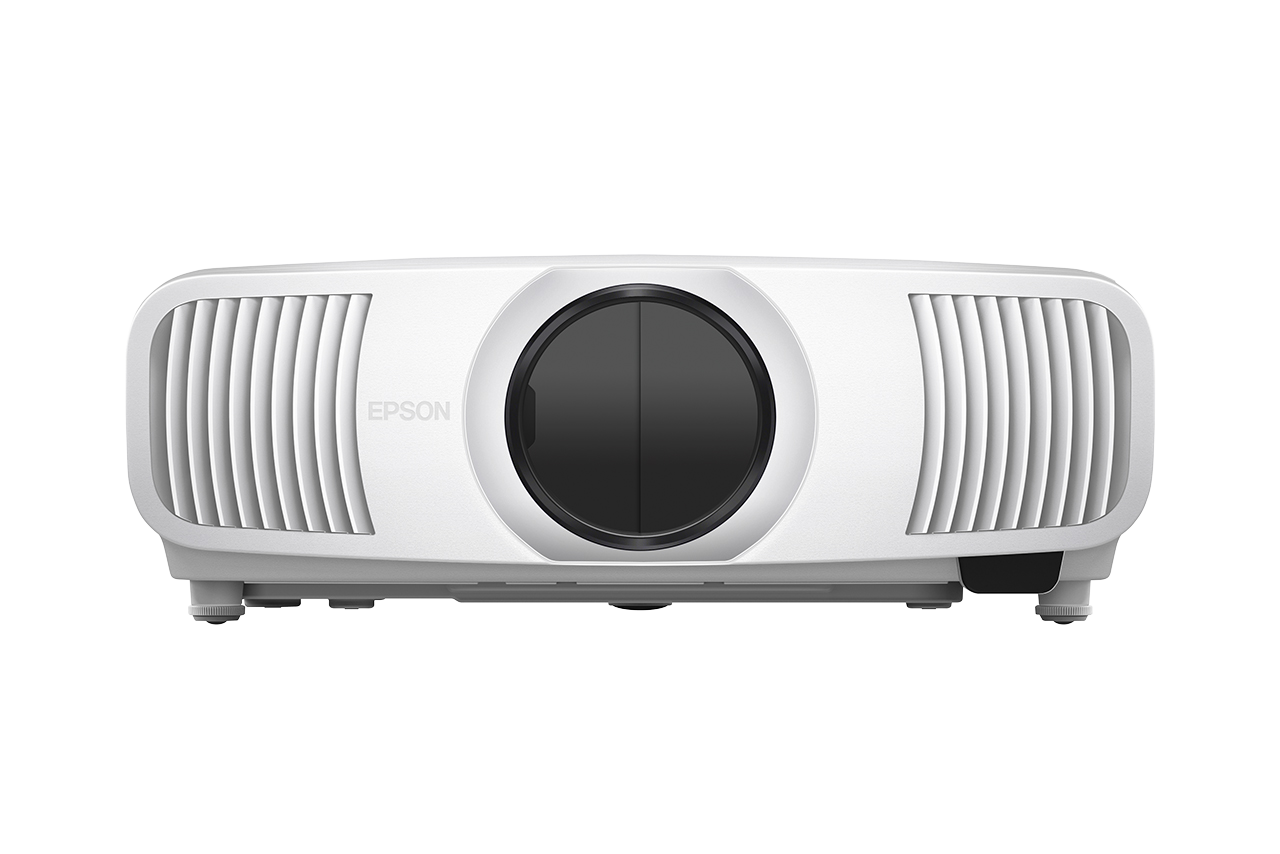

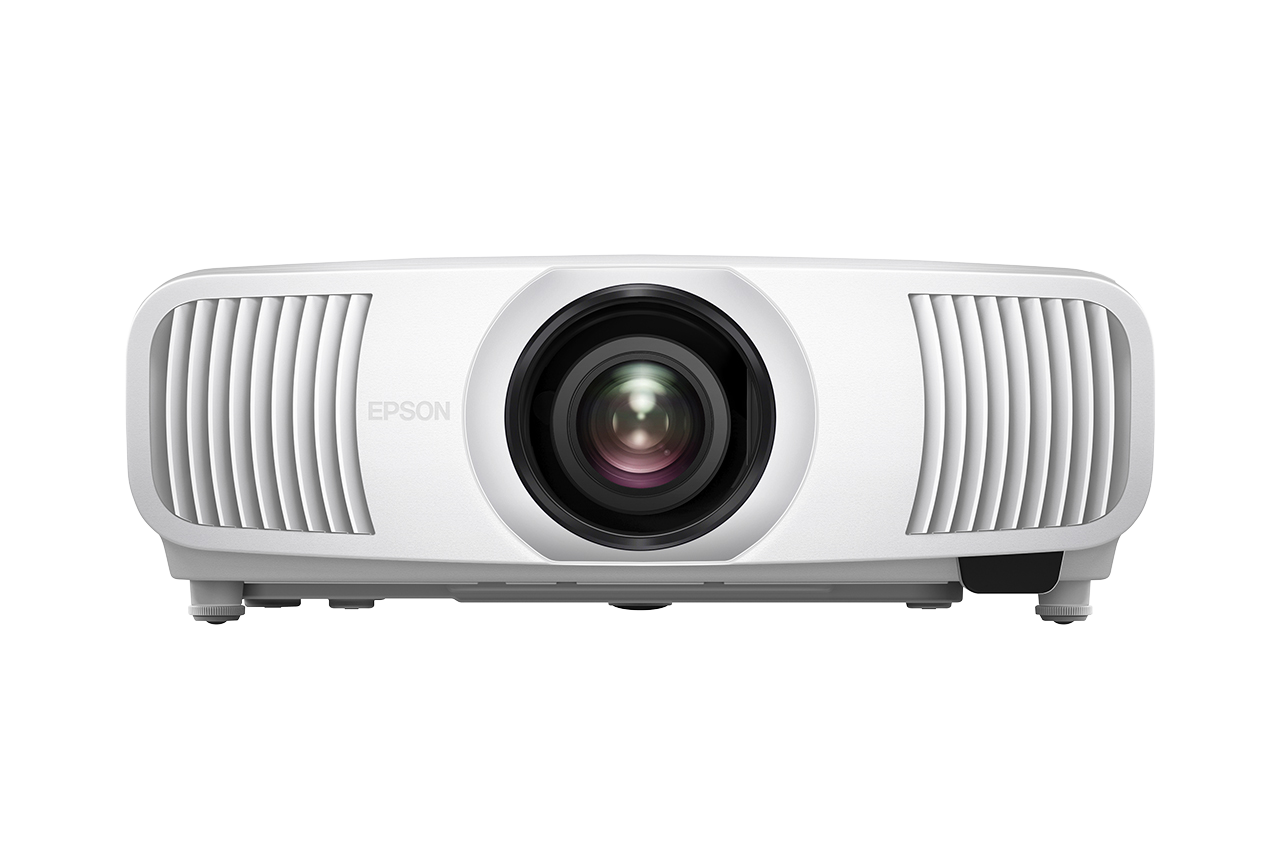

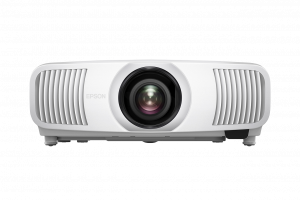

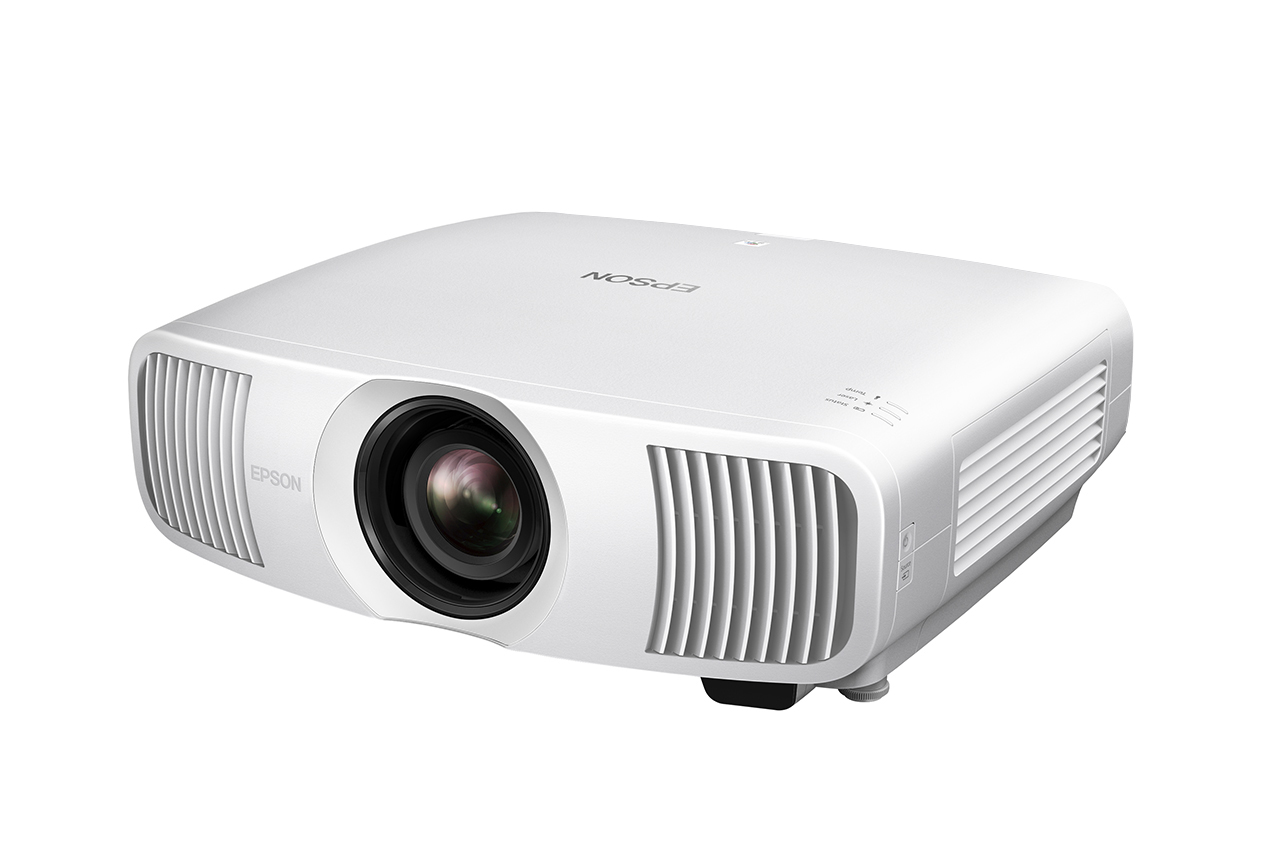

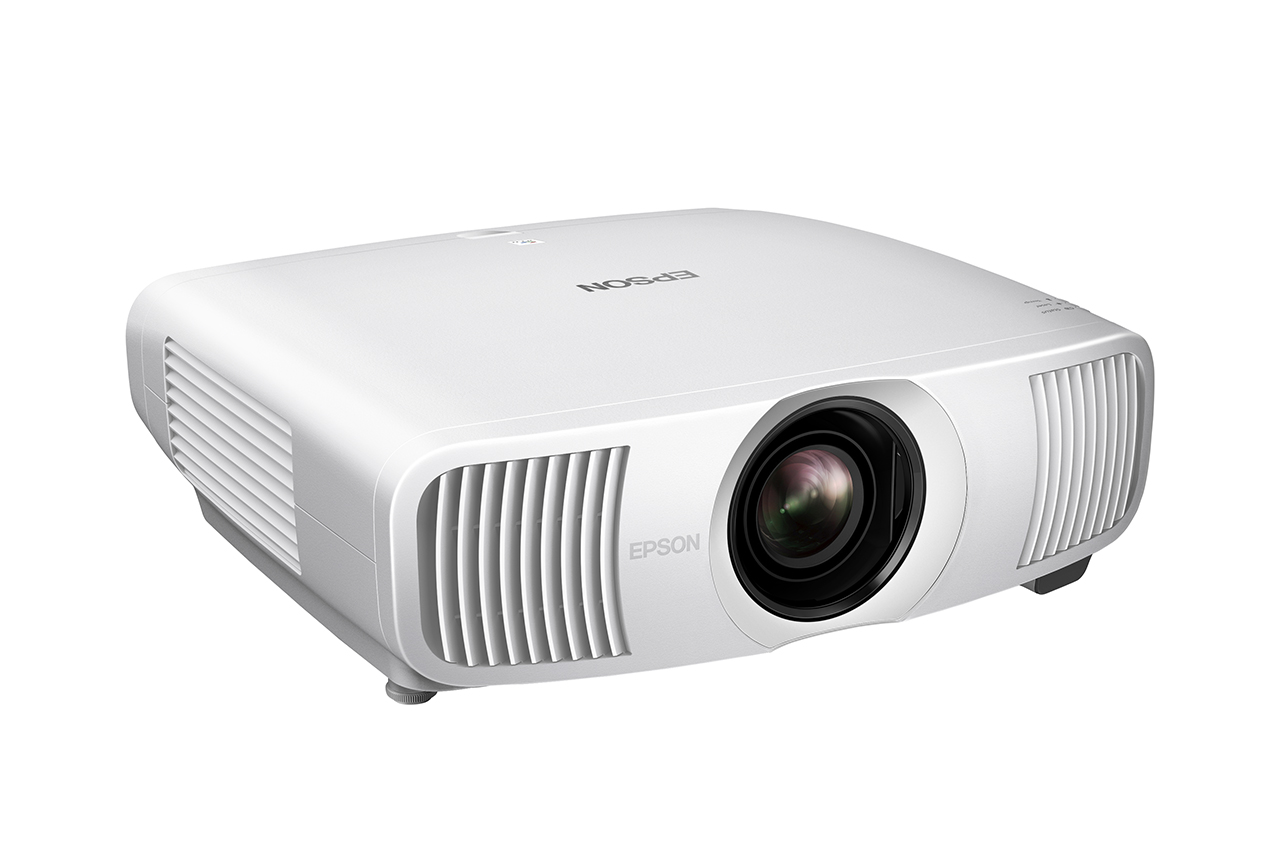

Epson EH-LS11000W. Projector brightness: 2500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: UHD 4K (3840x2160). Light source type: Laser, Service life of light source: 20000 h. Focal length range: 22.5 - 46.7 mm, Aperture range (F-F): 2 - 3, Zoom type: Auto. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Natural, Bright cinema, Vivid. Serial interface type: RS-232C

Impressive sharp display: 4K resolution (8.3mil pixels) and HDR10+ support
Smooth, fast-moving action: 4K Frame Interpolation and 4K Super Resolution
Long-lasting solution: Enjoy up to 10 years of entertainment¹ thanks to laser light-source
Fully motorised optics: Powered zoom, focus and lens shift
Wide lens shift: Vertical ±96.3% and horizontal ±47.1%

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA48040

EAN
8715946700748

Bullet points

Point
Fully motorised optics: Powered zoom, focus and lens shift

Impressive sharp display: 4K resolution (8.3mil pixels) and HDR10+ support

Long-lasting solution: Enjoy up to 10 years of entertainment¹ thanks to laser light-source

Smooth, fast-moving action: 4K Frame Interpolation and 4K Super Resolution

Wide lens shift: Vertical ±96.3% and horizontal ±47.1%

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

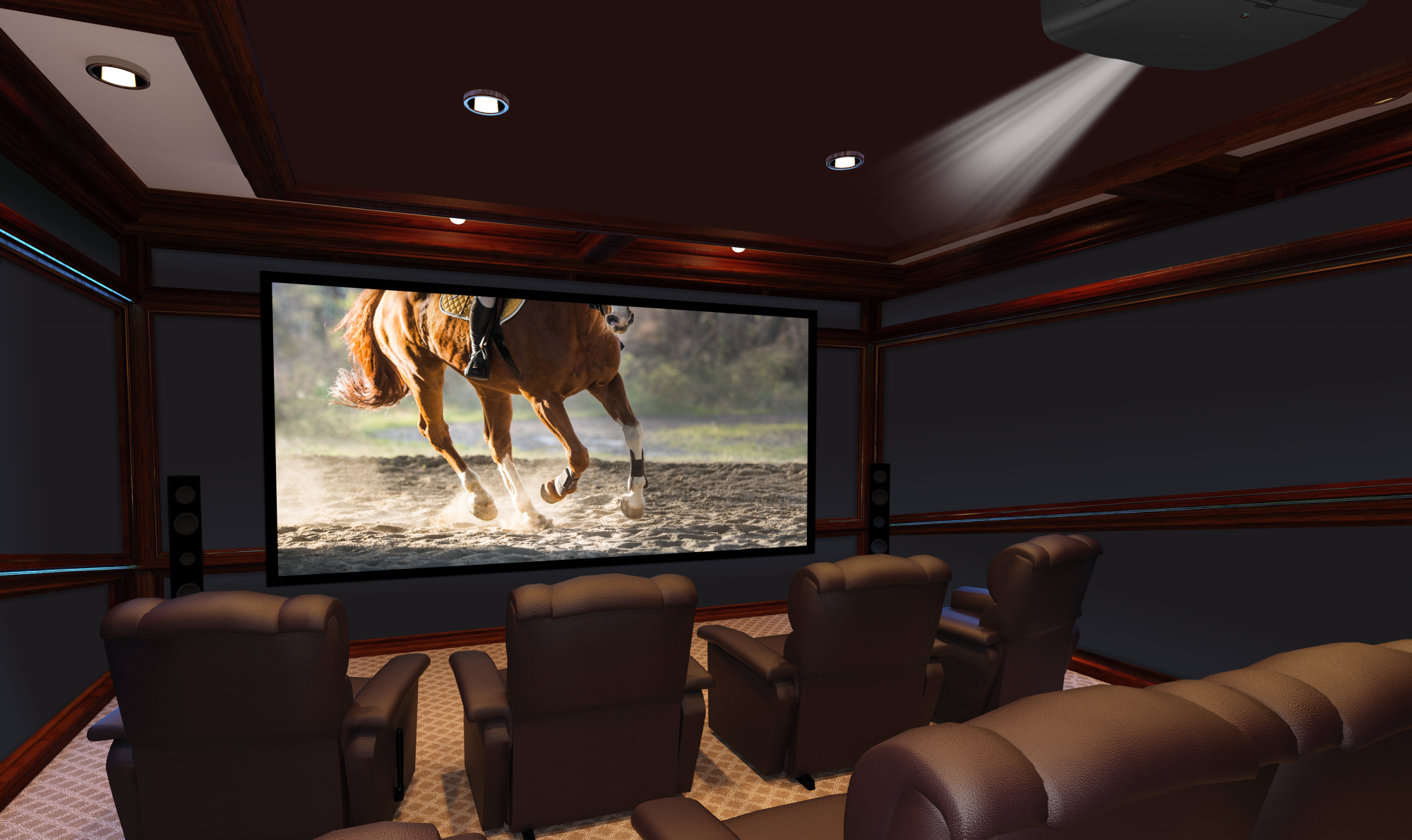

Market positioning
Home cinema

Placement
Ceiling, Desktop

Product colour
White

Product type
Projector module

Display

Built-in display
No

Features

2D/3D frequency image
384/480 Hz

Country of origin
China

Noise level
30 dB

Noise level (economic mode)
22 dB

Lens system

Aperture range (F-F)
2 - 3

Focal length range
22.5 - 46.7 mm

Horizontal lens shift range
-47.1 - 47.1%

Lens position memory
10

Throw ratio
1.35 - 2.84:1

Vertical lens shift range
-96.3 - 96.3%

Zoom ratio
2.1:1

Zoom type
Auto

Light source

Light source type
Laser

Service life of light source
20000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
14 pc(s)

Products per pallet (UK)
14 pc(s)

Quantity per pack
1 pc(s)

Network

Ethernet LAN
Yes

Wi-Fi
No

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
10 - 90%

Packaging content

Batteries included
Yes

Cables included
AC

Remote control included
Yes

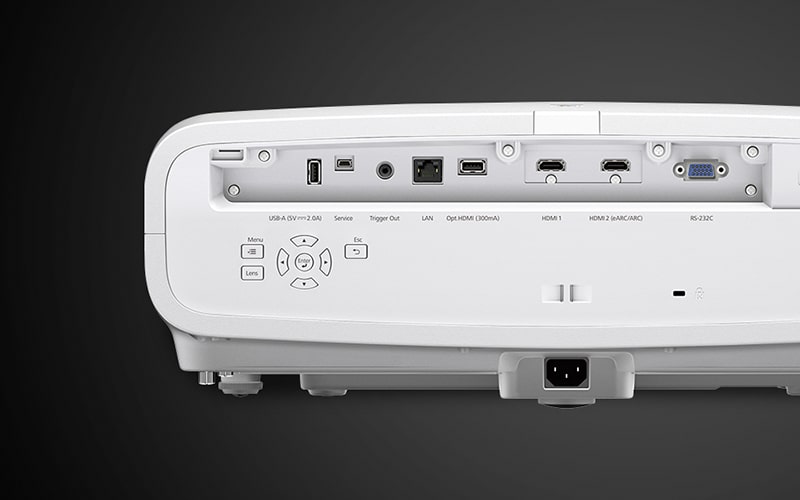

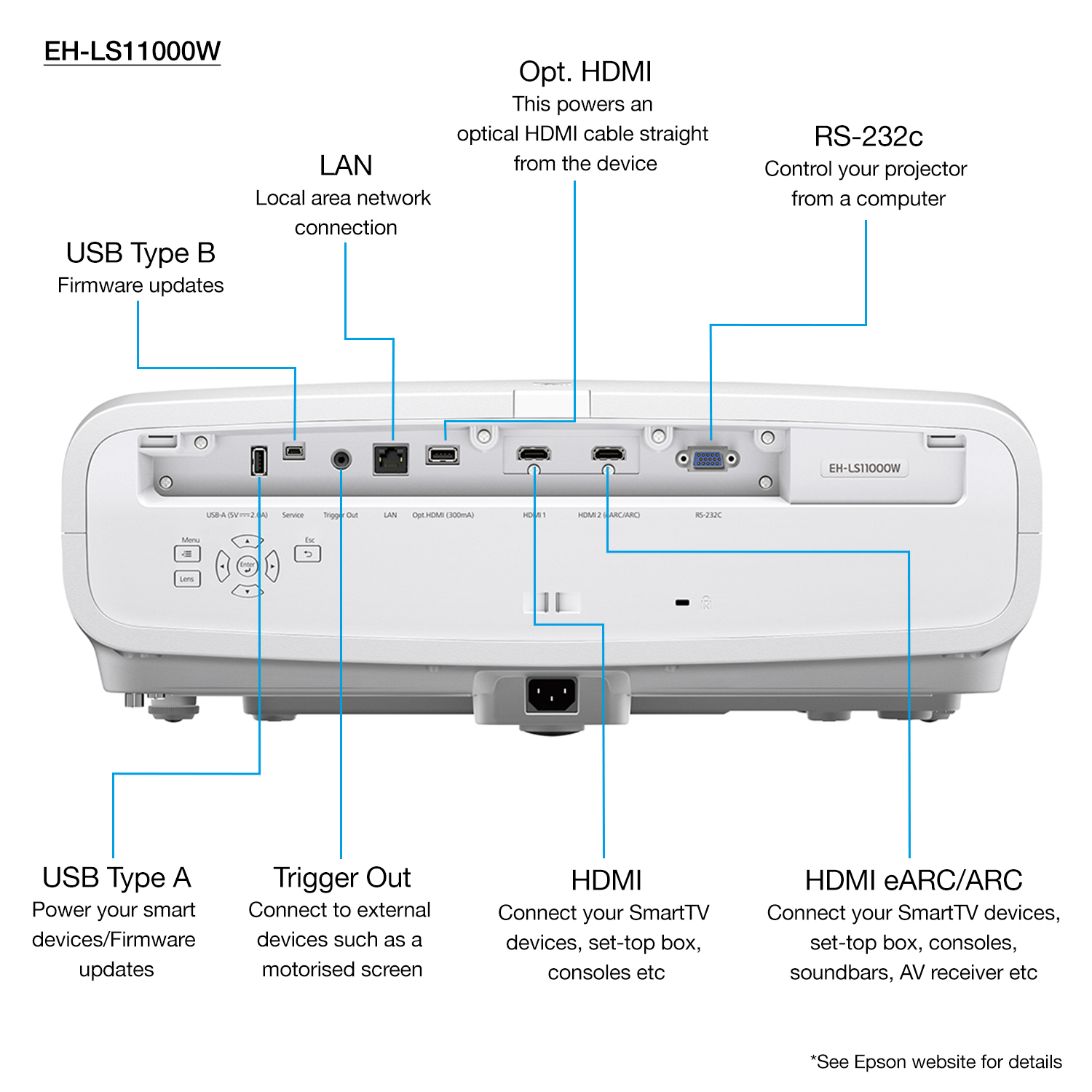

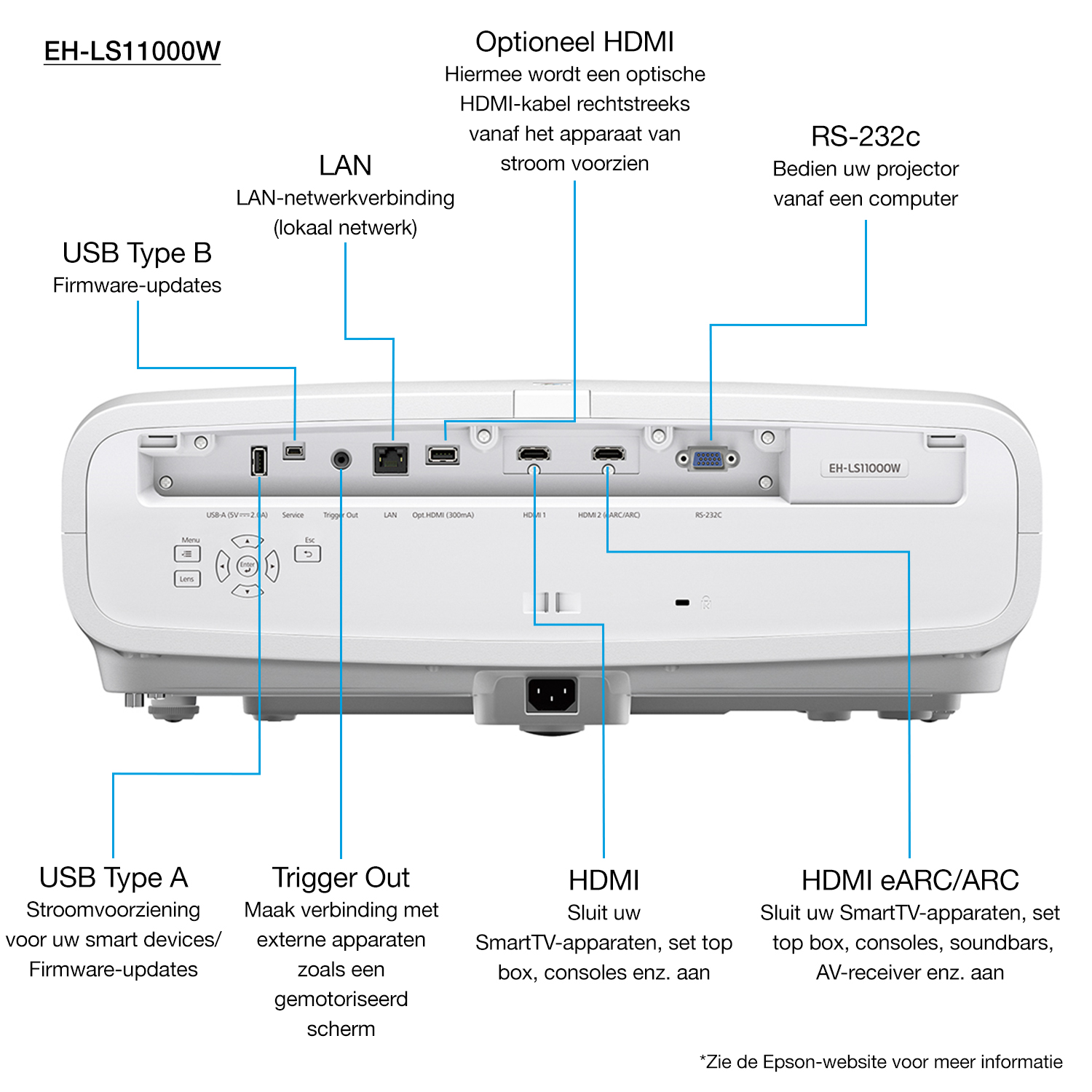

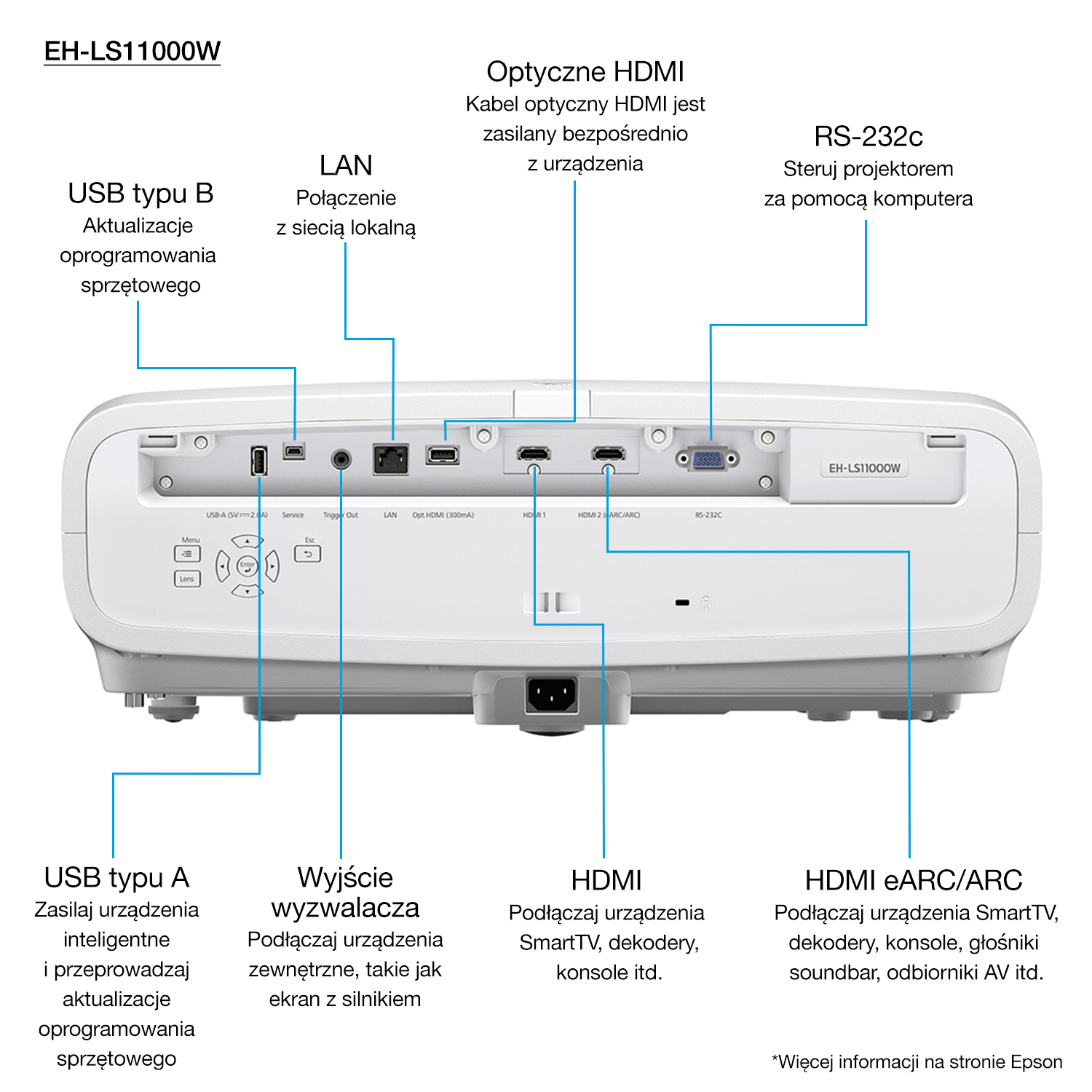

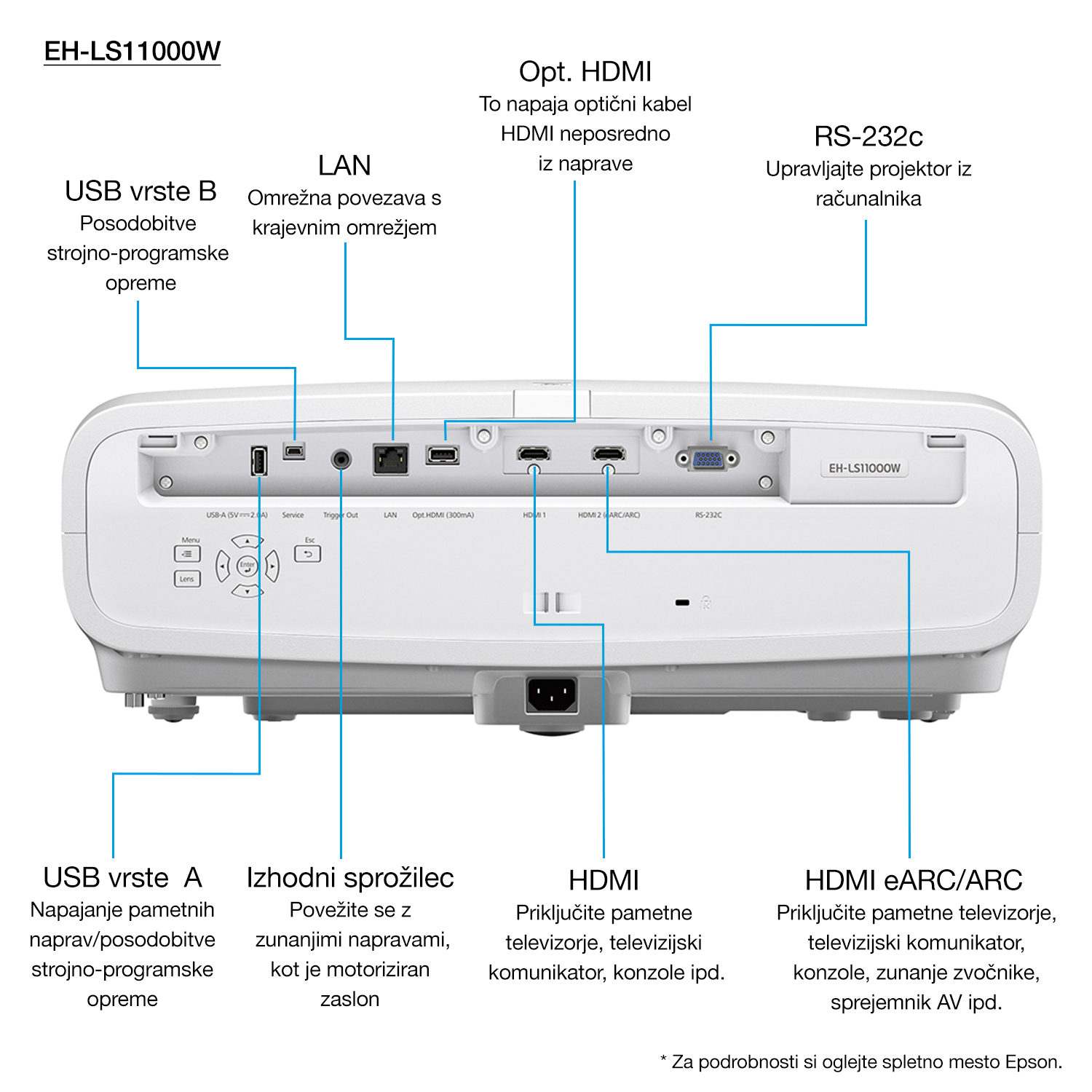

Ports & interfaces

Audio Return Channel (ARC)
Yes

DVI port
No

HDMI ports
3

Serial interface type
RS-232C

USB 2.0 ports quantity
3

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
0

Power

AC input frequency
50 - 60 Hz

AC input voltage
100-240 V

Power consumption (economy mode)
198 W

Power consumption (standby)
0.4 W

Power consumption (typical)
302 W

Power source
AC

Projector

Contrast ratio (typical)
2500000:1

Heat dissipation
1026.8 BTU/h

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-30 - 30°

Matrix size
1.88 cm (0.74")

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection distance
3 - 6.4 m

Projection technology
3LCD

Projector brightness
2500 ANSI lumens

Projector native resolution
UHD 4K (3840x2160)

Screen size compatibility
1270 - 7620 mm (50 - 300")

Vertical scan range
384 - 480 Hz

Software

Software support
via: Crestron Integrated Partner, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Storage

Card reader integrated
No

Video

Analog signal format system
Not supported

Full HD
Yes

Video colour modes
Cinema, Dynamic, Natural, Bright cinema, Vivid

Video processing
10 bit

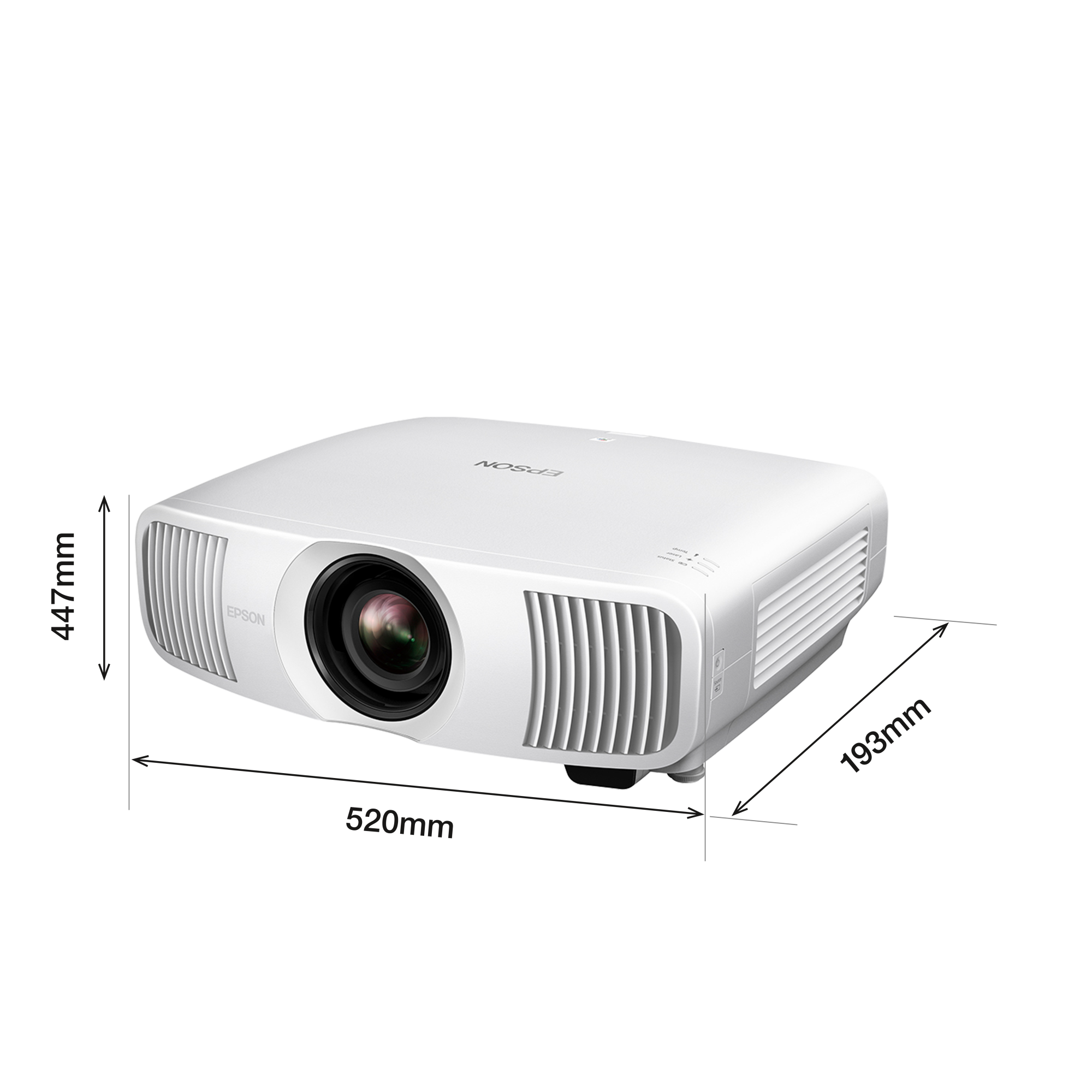

Weight & dimensions

Depth
447 mm

Height
193 mm

Package depth
695 mm

Package height
193 mm

Package weight
16.9 kg

Package width
520 mm

Weight
12.7 kg

Width
520 mm
