Description

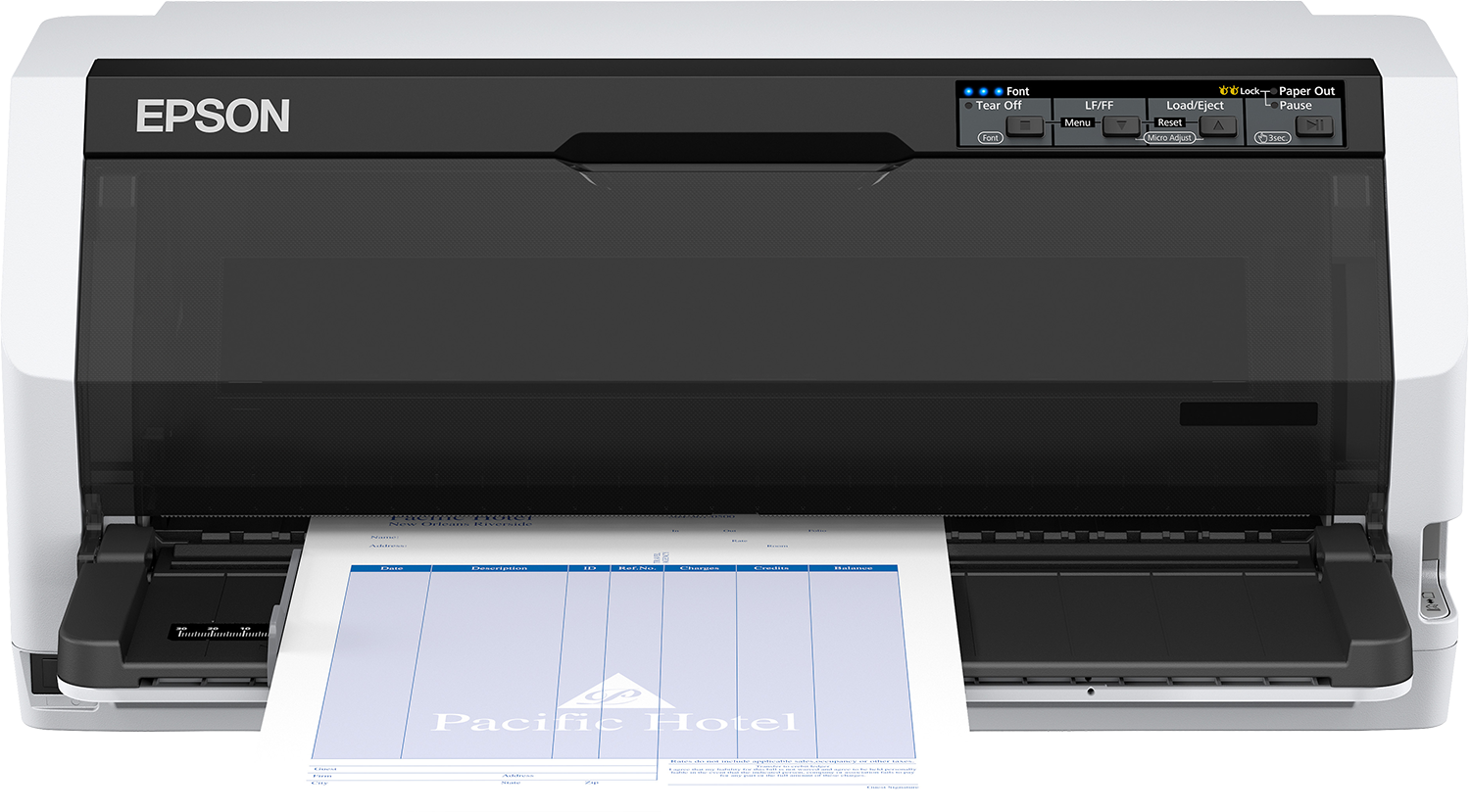

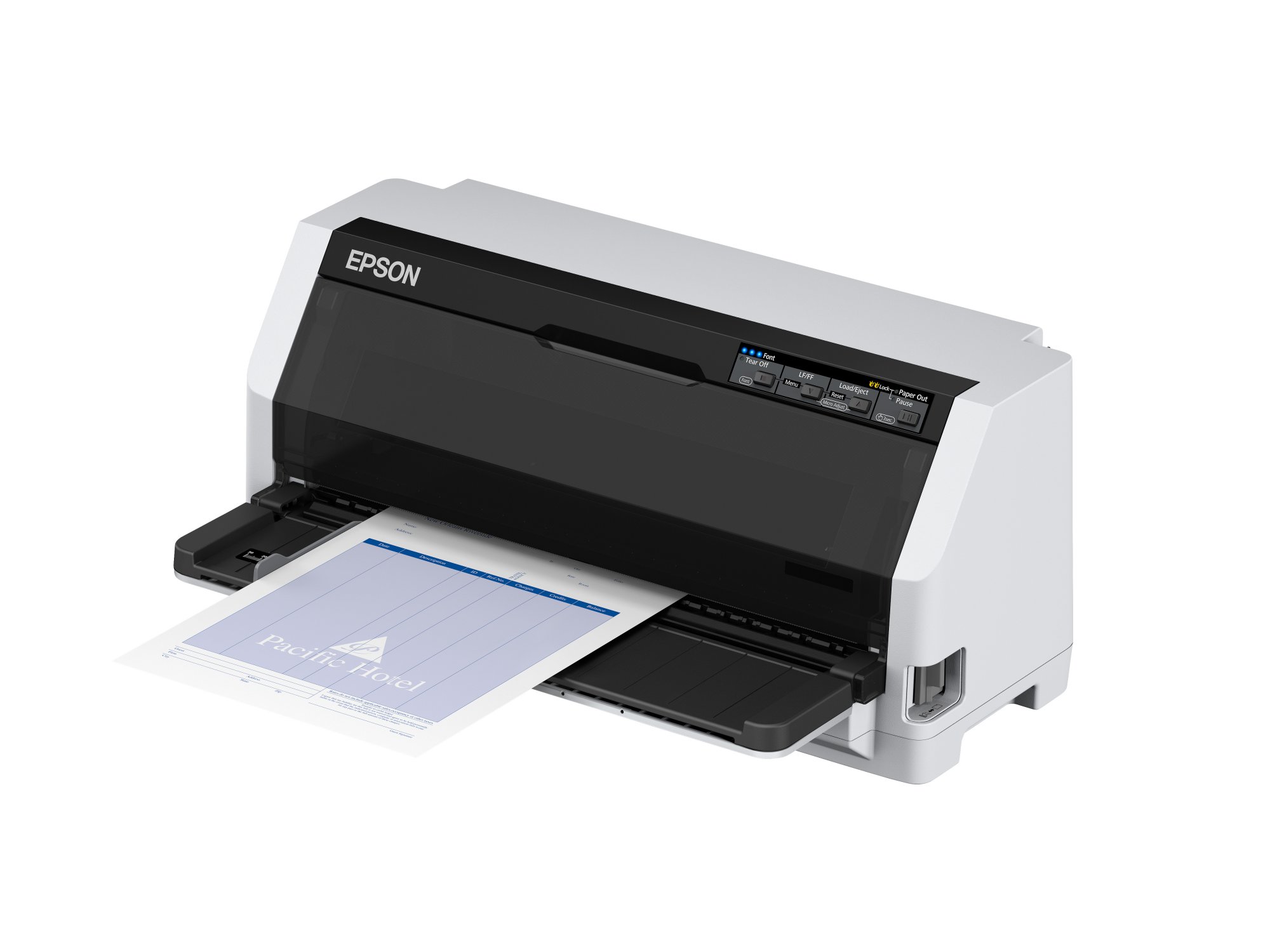

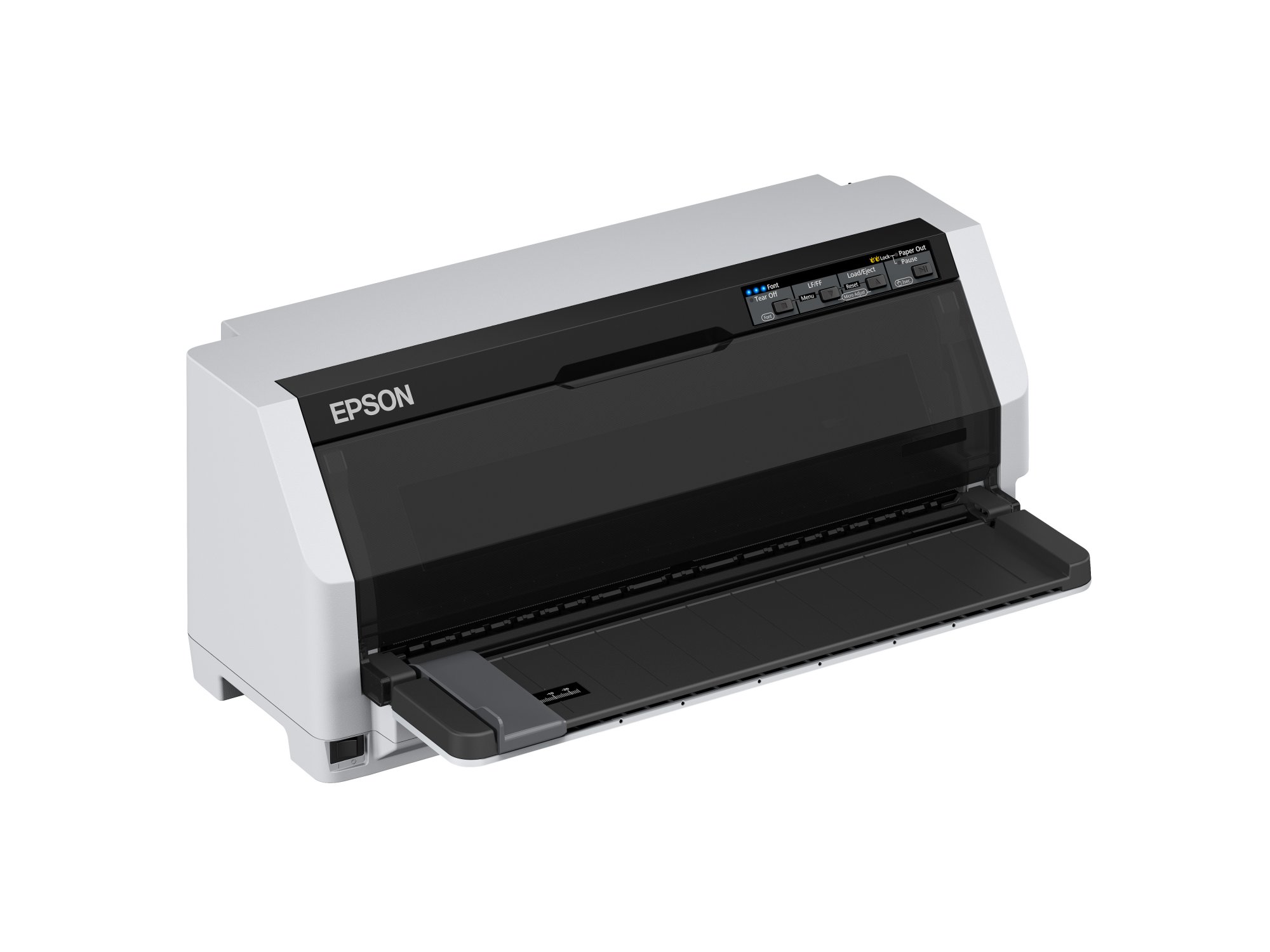

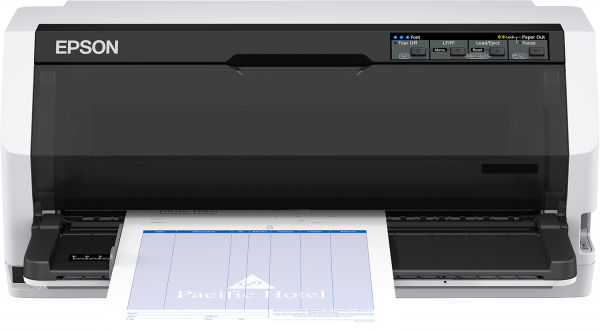

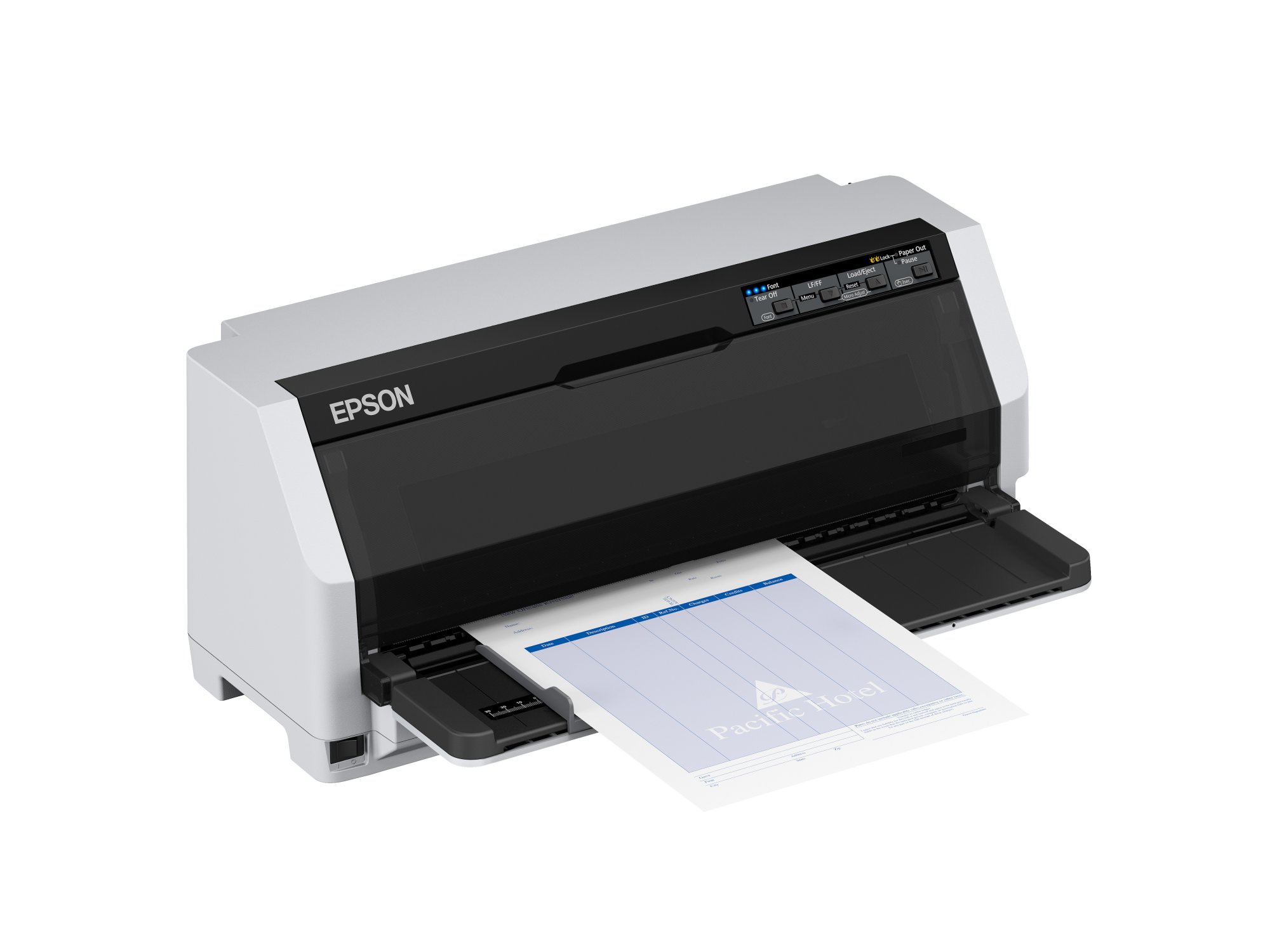

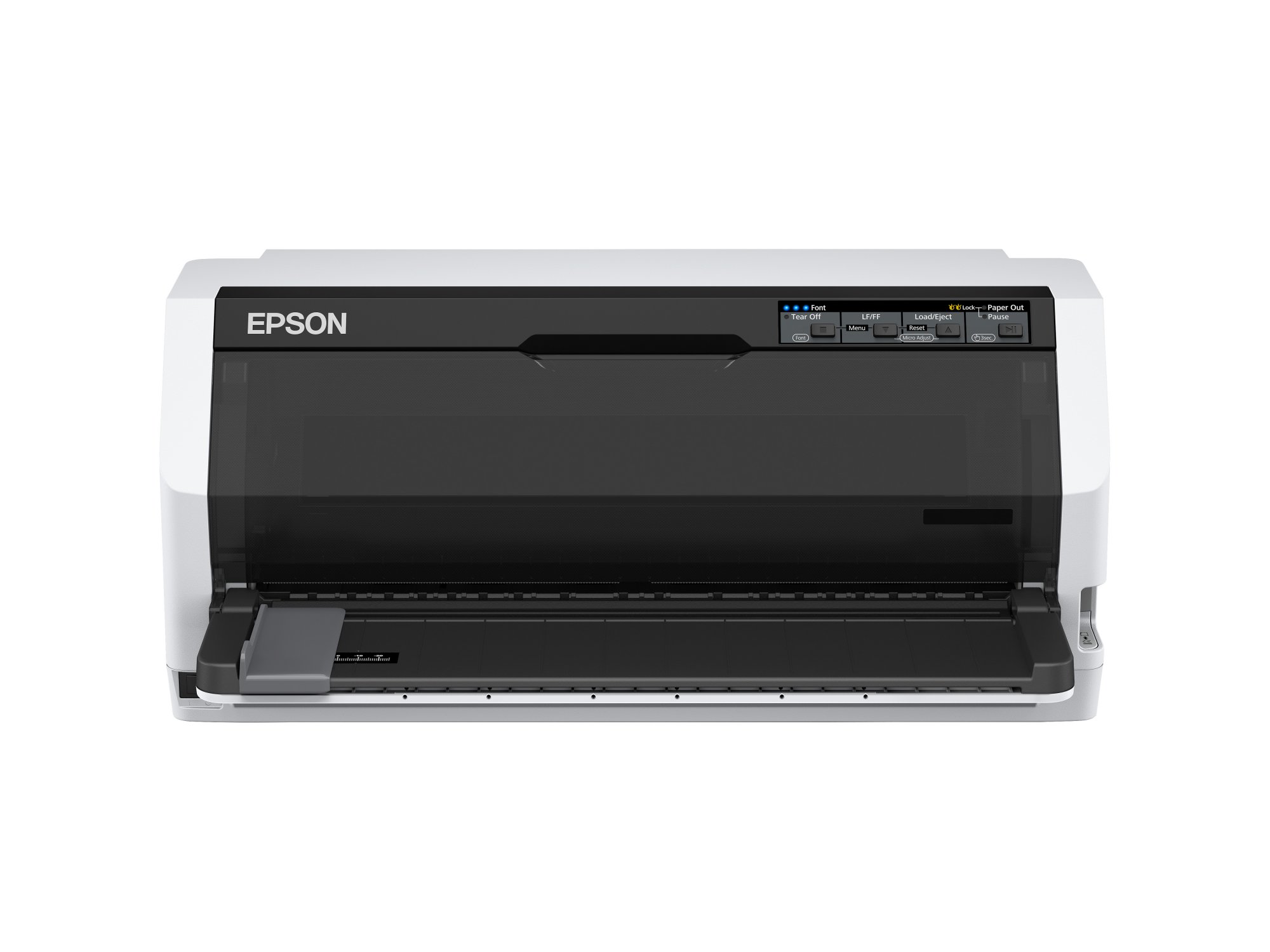

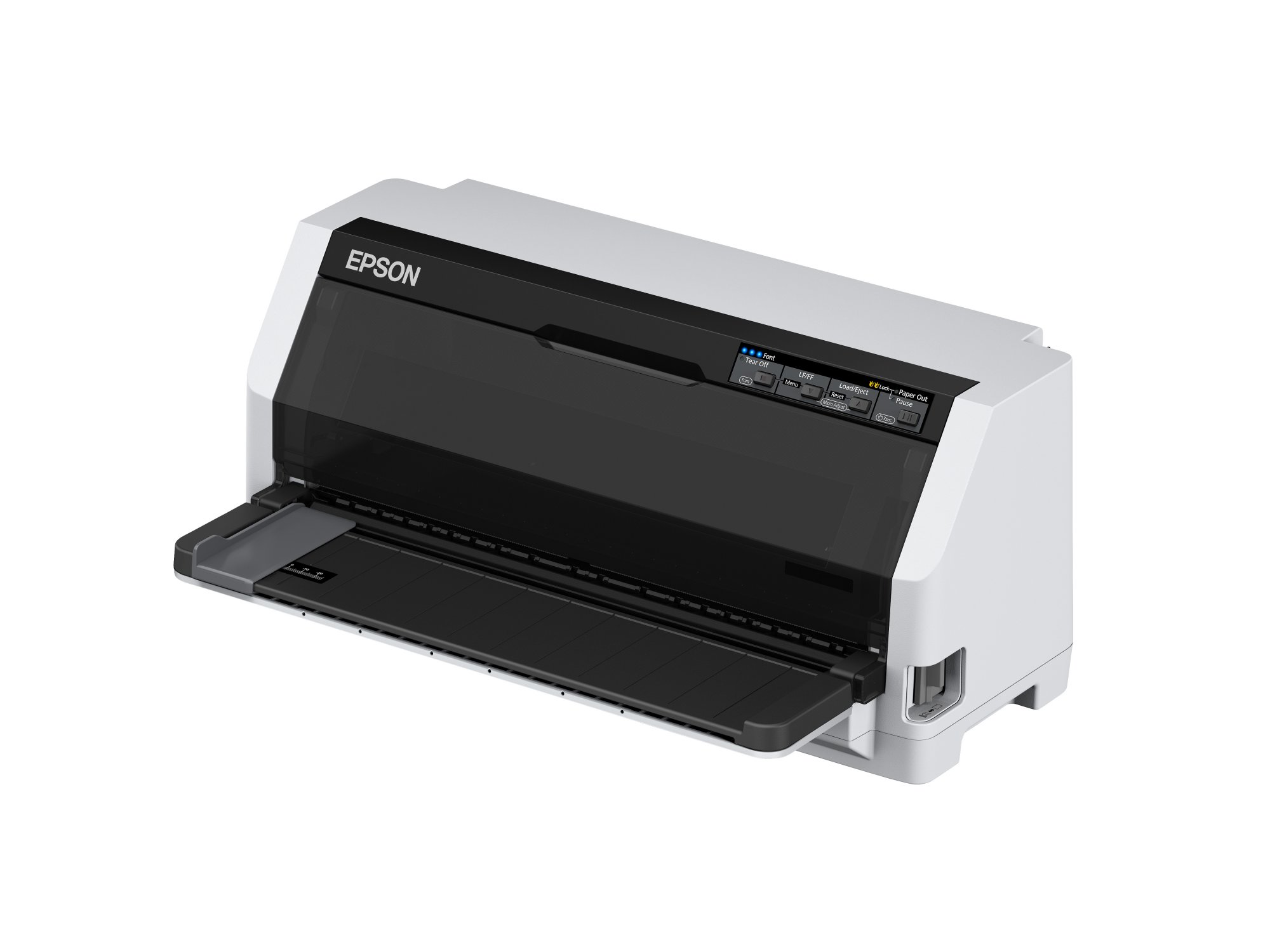

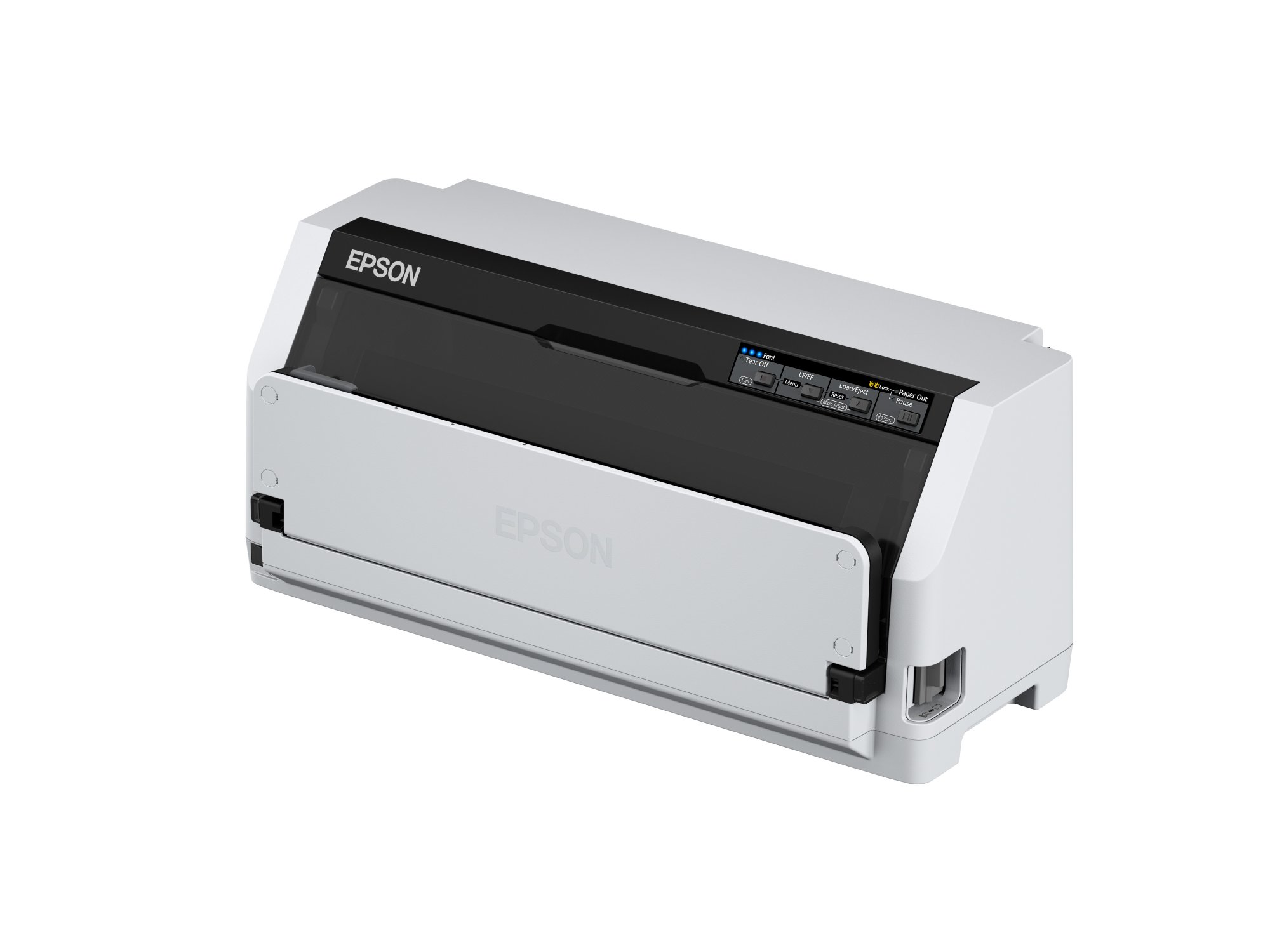

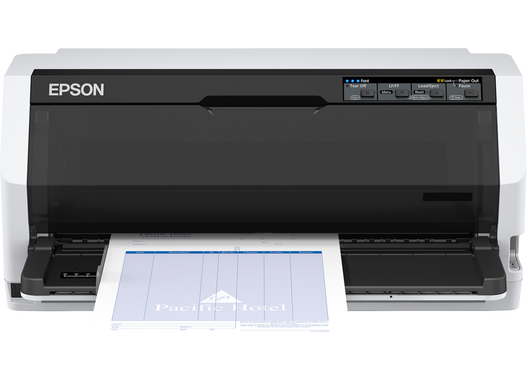

Epson LQ-690IIN. Maximum print speed: 487 cps, Maximum resolution: 360 x 180 DPI, Maximum print speed (draft): 366 cps. Paper feed: Manual, Pull tractor, Paper tray media types: Envelopes, Labels, Plain paper, Roll, Continuous paper thickness range: 0.065 - 0.49 mm. Product colour: Black, White, Buffer size: 128 KB, Sound pressure level (printing): 59 dB. Standard interfaces: Ethernet, Parallel, USB 2.0, Cabling technology: 10/100Base-T(X). Print head: 24-pin, Print head life: 400 million characters, Ribbon life: 10 million characters

High speed: Impressive print speed of 487 cps (10cpi) with 1+6 copies
Quality: The 106 column capacity with 24 pins means greater quality
Reliable: Combined power of print head life and MTBF of 20,000 hours
Modern design: The black and white casing blends comfortably into any work environment

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
C11CJ82403A0

EAN
8715946695990

Bullet points

Point
High speed: Impressive print speed of 487 cps (10cpi) with 1+6 copies

Modern design: The black and white casing blends comfortably into any work environment

Quality: The 106 column capacity with 24 pins means greater quality

Reliable: Combined power of print head life and MTBF of 20,000 hours

Endurance

Mean time between failures (MTBF)
20000 h

Print head
24-pin

Print head life
400 million characters

Ribbon life
10 million characters

Features

Buffer size
128 KB

Country of origin
Indonesia

Product colour
Black, White

Sound pressure level (printing)
59 dB

Operational conditions

Operating temperature (T-T)
5 - 35 °C

Paper handling

Continuous paper thickness range
0.065 - 0.49 mm

Label thickness range
0.16 - 0.19 mm

Multi-part paper thickness range
0.12 - 0.49 mm

Paper feed
Manual, Pull tractor

Paper tray media types
Envelopes, Labels, Plain paper, Roll

Single sheet thickness range
0.065 - 0.15 mm

Ports & interfaces

Cabling technology
10/100Base-T(X)

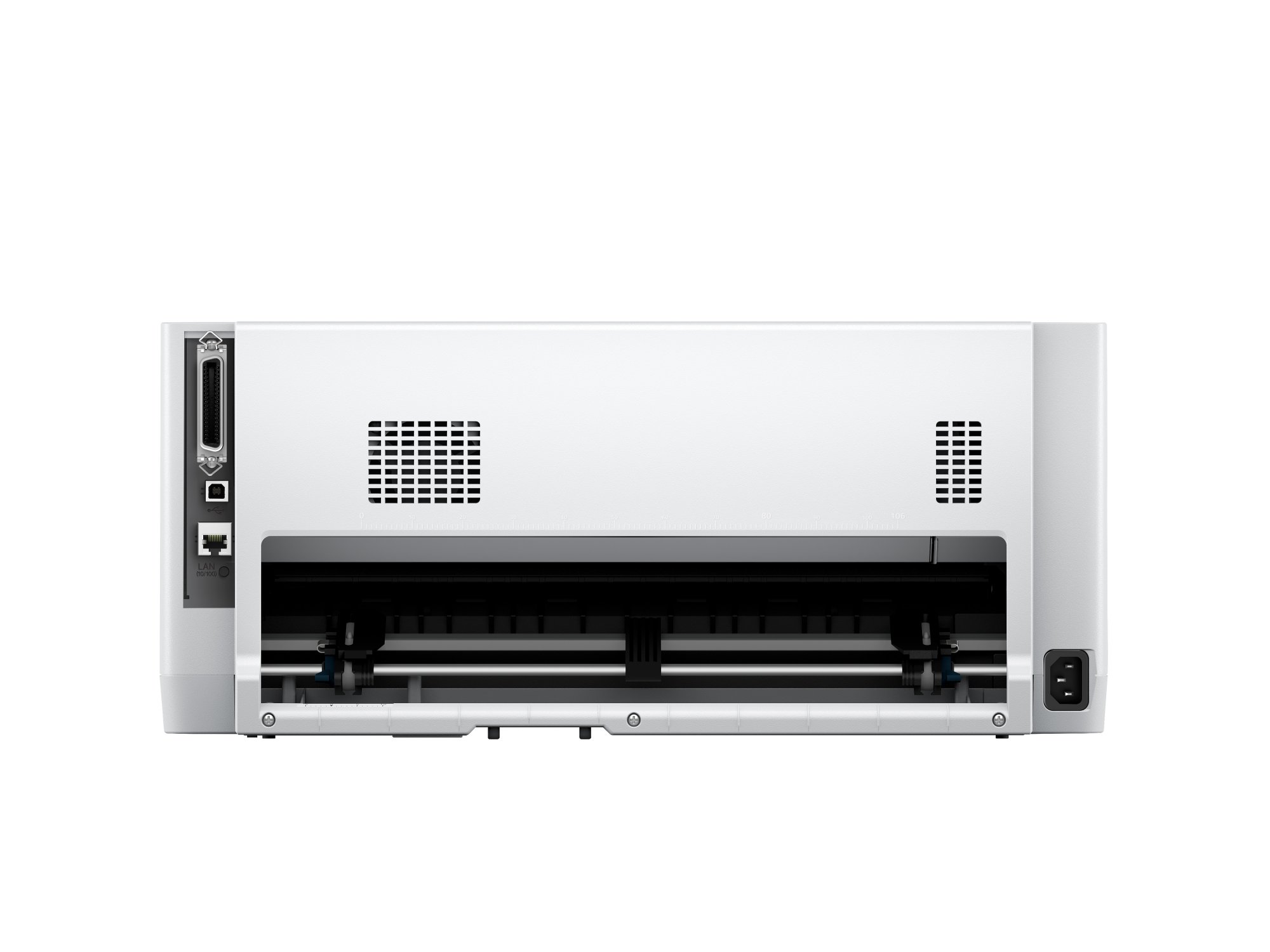

Standard interfaces
Ethernet, Parallel, USB 2.0

Power

Power consumption (standby)
3 W

Power consumption (typical)
38 W

Printing

Built-in barcodes
CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E

Character sets
ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8

Colour
No

Maximum number of copies
7 copies

Maximum print speed
487 cps

Maximum print speed (draft)
366 cps

Maximum print speed (LQ)
121 cps

Maximum printing width (columns)
106

Print Quality
360 x 180 DPI

System requirements

Bundled software
Epson Status Monitor

Windows operating systems supported
Yes

Weight & dimensions

Depth
301 mm

Height
211 mm

Weight
6.8 kg

Width
480 mm
