F5-UPG-SFPC-R

Product Highlights

Built-in Marvell Chip, Max. Power Consumption 1.2W

Tested in Targeted Switches for Superior Performance, Quality, and Reliability

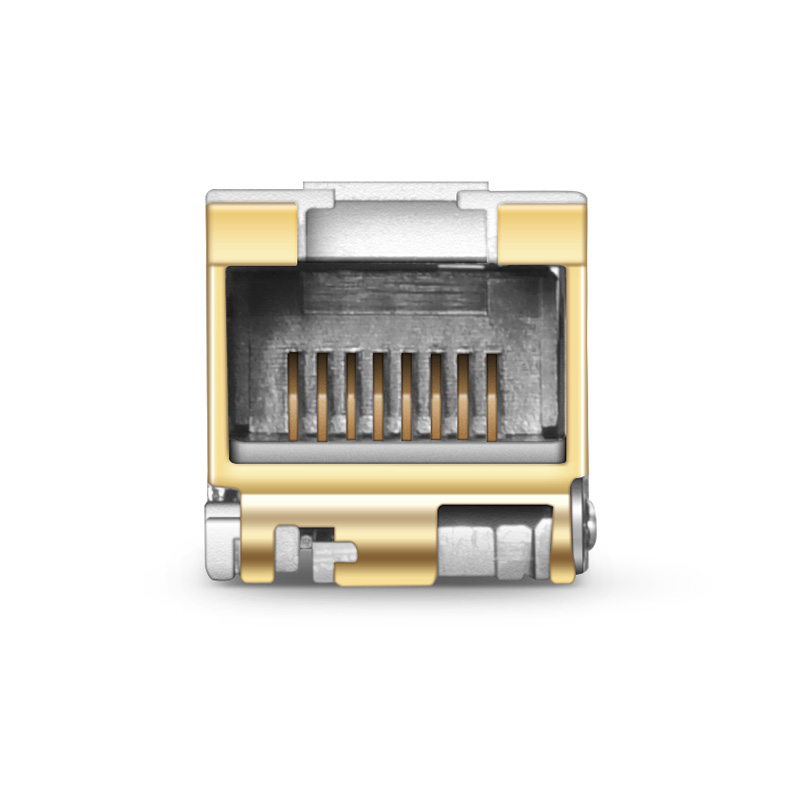

Terminated RJ45 Connectors Allow 1G Bandwidth over Existing Copper Infrastructure

FS BOX - Support Real-time Configuration

Hot Pluggable SFP MSA Compliant

Compliant to IEEE Std 802.3 and 802.3ab Gigabit Ethernet

RoHS Compliant

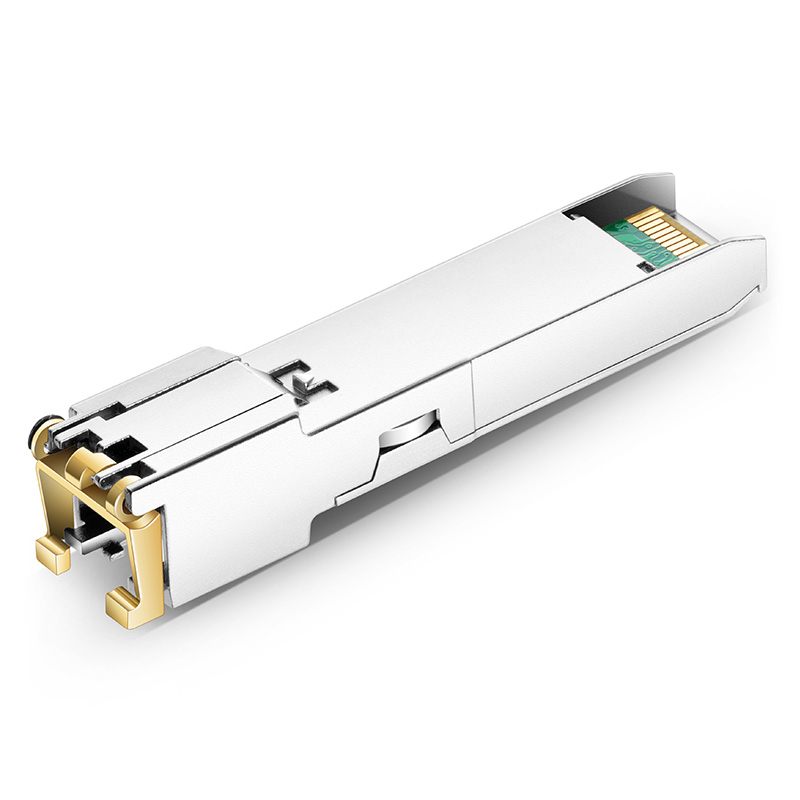

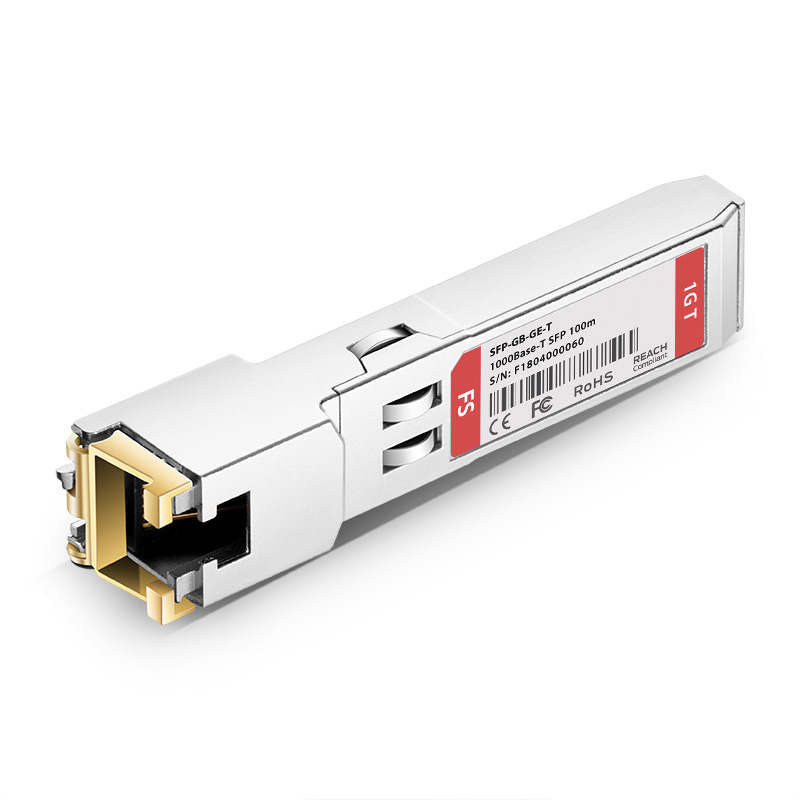

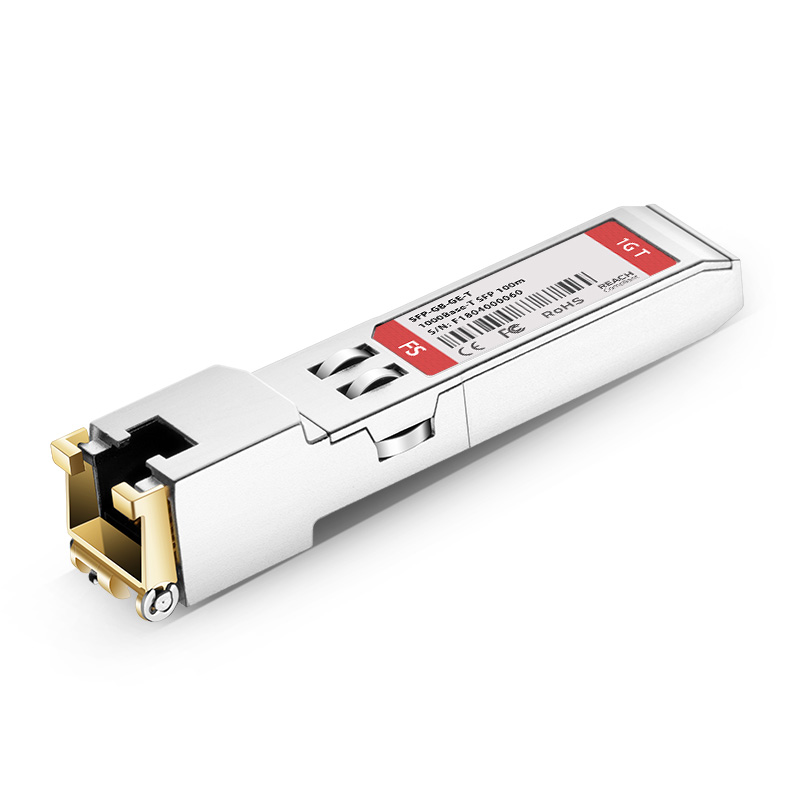

F5 Networks F5-UPG-SFPC-R Compatible 1000BASE-T SFP Transceiver Module (Copper, 100m, RJ-45)

F5 Networks F5-UPG-SFPC-R compatible SFP transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of F5 switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.

Specifications

F5 Networks Compatible

F5-UPG-SFPC-R

Vendor Name

FS

Form Factor

SFP

Max. Data Rate

1000Mbps

Max. Cable Distance

100m

Media

Cat 5e/6/6a

Connector

RJ-45

Rx LOS

NO

Power Consumption

≤1.2W

DDM/DOM

Not Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Bit Error Ratio (BER)

1E-12



EMC (Electro Magnetic Compatibility)

Supported

MTBF

217,330 Hours
