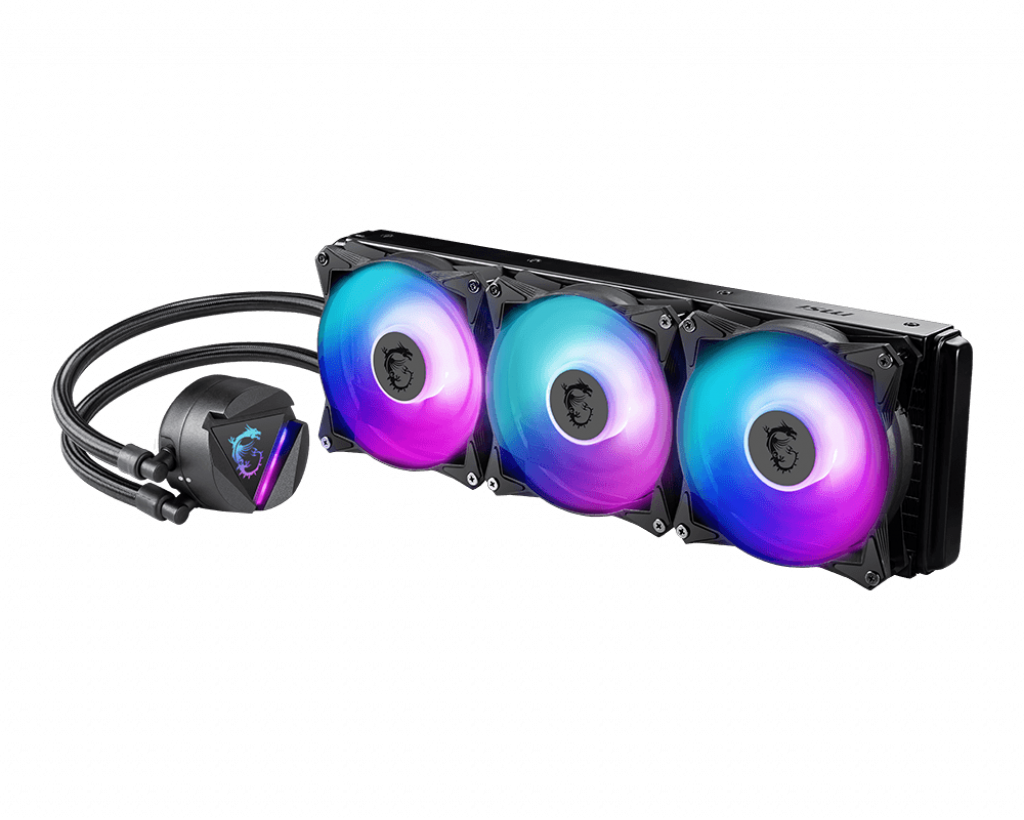

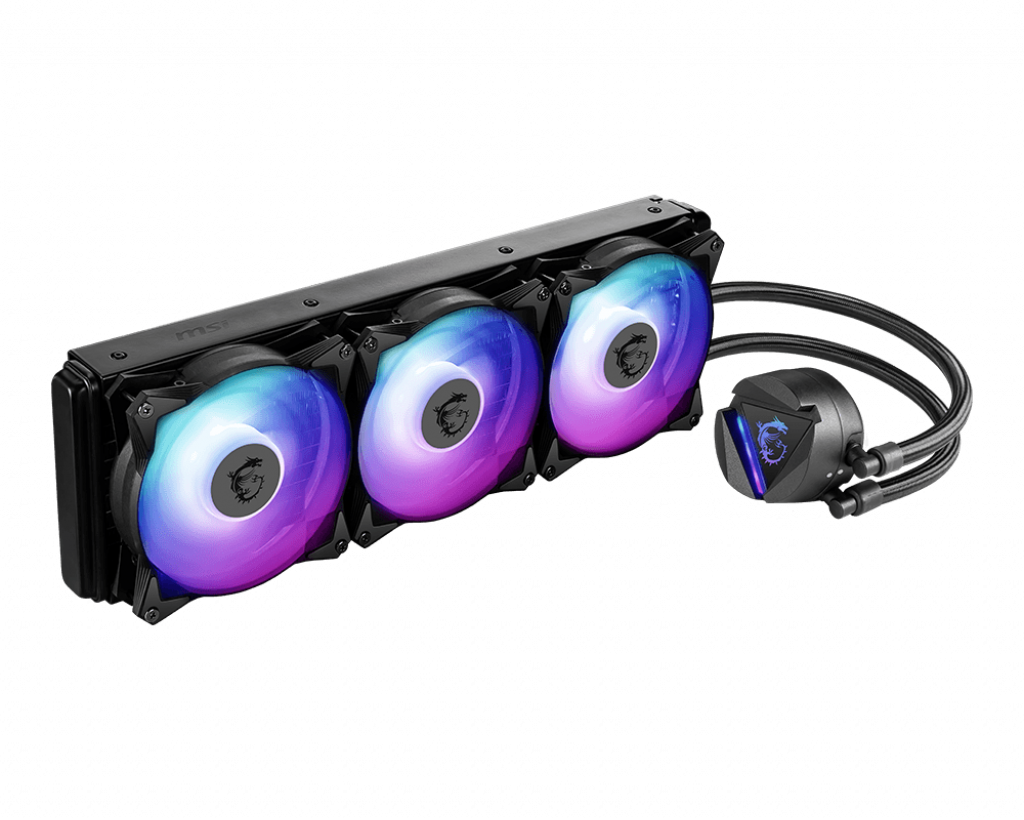

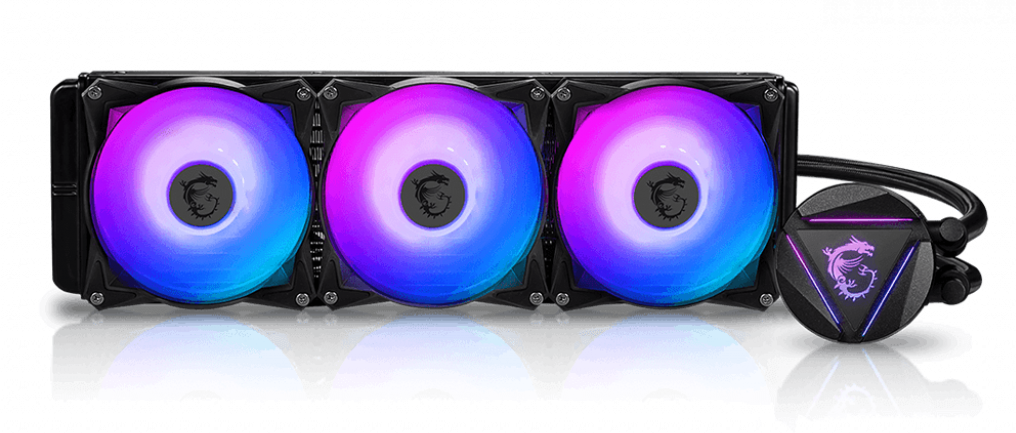

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
Roll over image to zoom inClick to Open expanded view
Model: 306-7ZW1C41-813
EAN: 4526541039089

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'

Manufacturer:
MSI
MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready', Liquid сooling kit, 12 cm, 78.73 cfm, Black
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge. Click here for details
Related products

Description

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'. Type: Liquid сooling kit, Fan diameter: 12 cm, Maximum airflow: 78.73 cfm, Minimum air pressure: 0.23 mmH2O, Maximum air pressure: 2.39 mmH2O. Product colour: Black
  • Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
  • The pump has been integrated into the radiator for sound dampening and noise reduction
  • Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
  • A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
  • Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200,1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, SocketTR4, sTRX4, SP3

Product Properties

  • Manufacturer
  • MSI
  • Model
  • 306-7ZW1C41-813
  • EAN
  • 4526541039089
  • Bullet points
  • Point
  • Compatible Sockets & CPU
    Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
    Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
    The pump has been integrated into the radiator for sound dampening and noise reduction
  • Design
  • Fan connector
  • 4-pin
  • Illumination LED
  • Y
  • Number of fans
  • 3 fan(s)
  • Product colour
  • Black
  • Radiator material
  • Aluminum
  • Other features
  • Harmonized System (HS) code
  • 84733080
  • Performance
  • Compatible processor series
  • AMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen™ Threadripper™, Intel® Core™ i7, Intel® Core™ i9
  • Fan bearing technology
  • Ball bearing
  • Fan diameter
  • 12 cm
  • Fan diameter 2
  • 12 cm
  • Fan noise level (max)
  • 34.3 dB
  • Fan noise level (min)
  • 14.3 dB
  • Fan speed (max)
  • 2000 RPM
  • Fan speed (min)
  • 500 RPM
  • Maximum air pressure
  • 2.39 mmH2O
  • Maximum airflow
  • 78.73 cfm
  • Minimum air pressure
  • 0.23 mmH2O
  • Minimum airflow (imperial)
  • 21.63 cfm
  • Pulse-width modulation (PWM) support
  • Y
  • Pump bearing technology
  • Ceramic bearing
  • Pump connector
  • 3-pin
  • Pump motor speed
  • 4200 RPM
  • Pump noise level
  • 18 dB
  • Suitable location
  • Motherboard, Processor
  • Supported processor sockets
  • LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
  • Type
  • Liquid сooling kit
  • Power
  • Fan current
  • 0.15 A
  • Fan power consumption
  • 1.8 W
  • Fan voltage
  • 12 V
  • Pump current
  • 340 mA
  • Pump power consumption
  • 4.08 W
  • Pump voltage
  • 12 V
  • Weight & dimensions
  • Fan dimensions (W x D x H)
  • 120 x 120 x 25 mm
  • Radiator depth
  • 12 cm
  • Radiator height
  • 2.7 cm
  • Radiator width
  • 39.4 cm
  • Tube length
  • 40 cm
  • Waterblock depth
  • 6.68 cm
  • Waterblock height
  • 4.86 cm
  • Waterblock width
  • 8.06 cm
