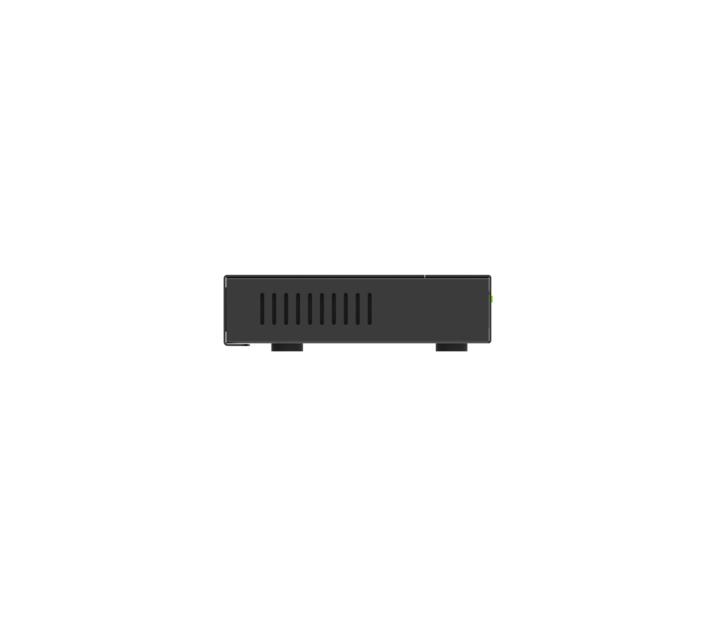

NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Print
Model: GS305P-300EUS
EAN: 606449164909

NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
Netgear
NETGEAR GS305Pv3, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

NETGEAR GS305Pv3. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Product Properties

  • Model
  • GS305P-300EUS
  • EAN
  • 606449164909
  • Data transmission
  • Jumbo frames
  • 9216
  • Jumbo frames support
  • Yes
  • MAC address table
  • 2000 entries
  • Packet buffer memory
  • 0.128 MB
  • Packet forwarding rate (1 Gbps)
  • 1448000 pps
  • Switching capacity
  • 10 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • No
  • Stackable
  • No
  • Wall mountable
  • Yes
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-sensing
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • Half duplex
  • Yes
  • Networking standards
  • IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • Operational conditions
  • Heat dissipation
  • 228.38 BTU/h
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Performance
  • Mean time between failures (MTBF)
  • 4113947 h
  • Ports & interfaces
  • Power connector
  • DC-in jack
  • Switch Number of Ports
  • 5
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • DC input voltage
  • 54 V
  • Input current
  • 1.25 A
  • Power consumption (max)
  • 66.78 W
  • Power source
  • DC
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Total Power over Ethernet (PoE) budget
  • 63 W
  • Weight & dimensions
  • Depth
  • 101 mm
  • Height
  • 27 mm
  • Weight
  • 400 g
  • Width
  • 158 mm
