Description

NETGEAR M4350-48G4XF. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

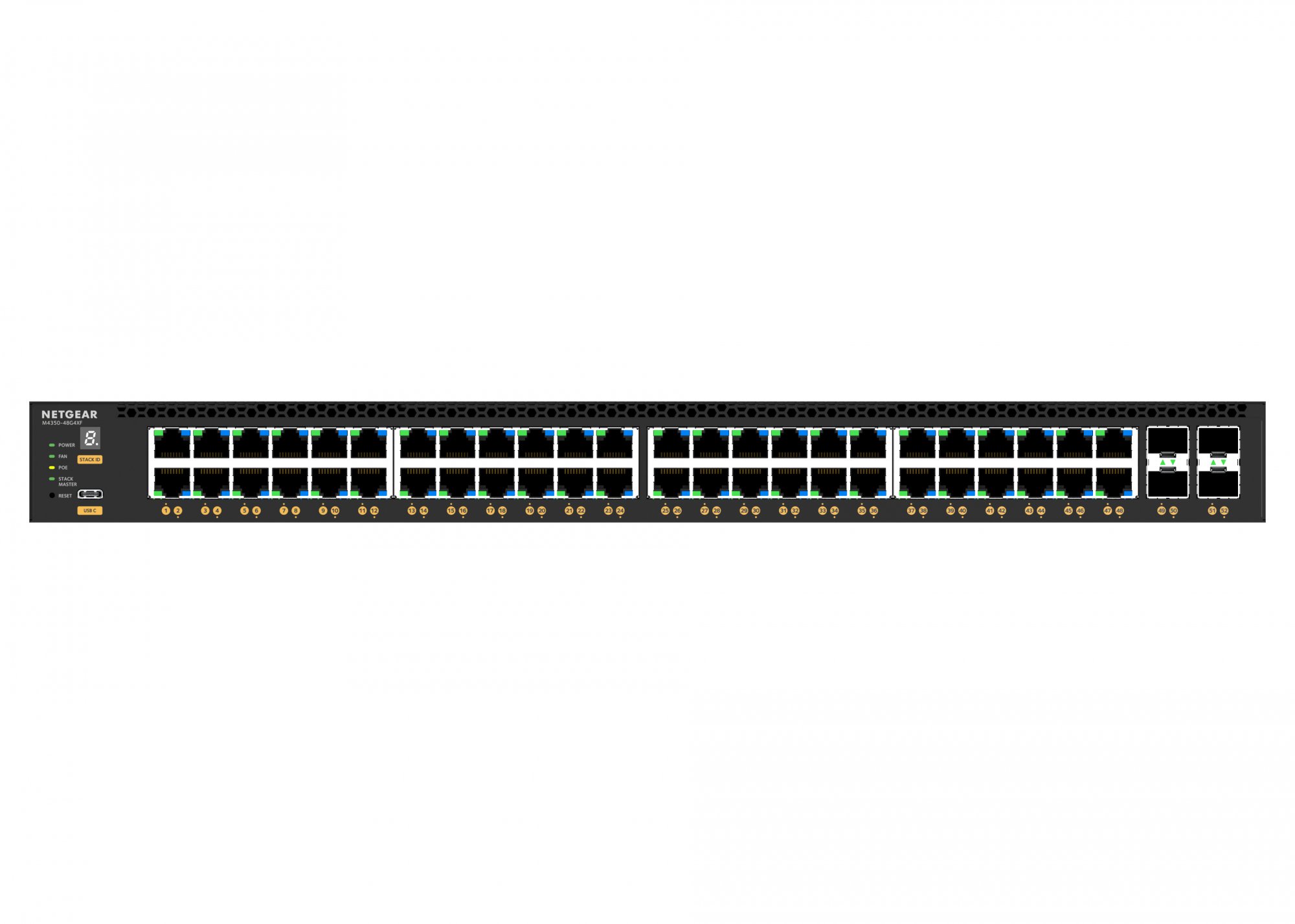

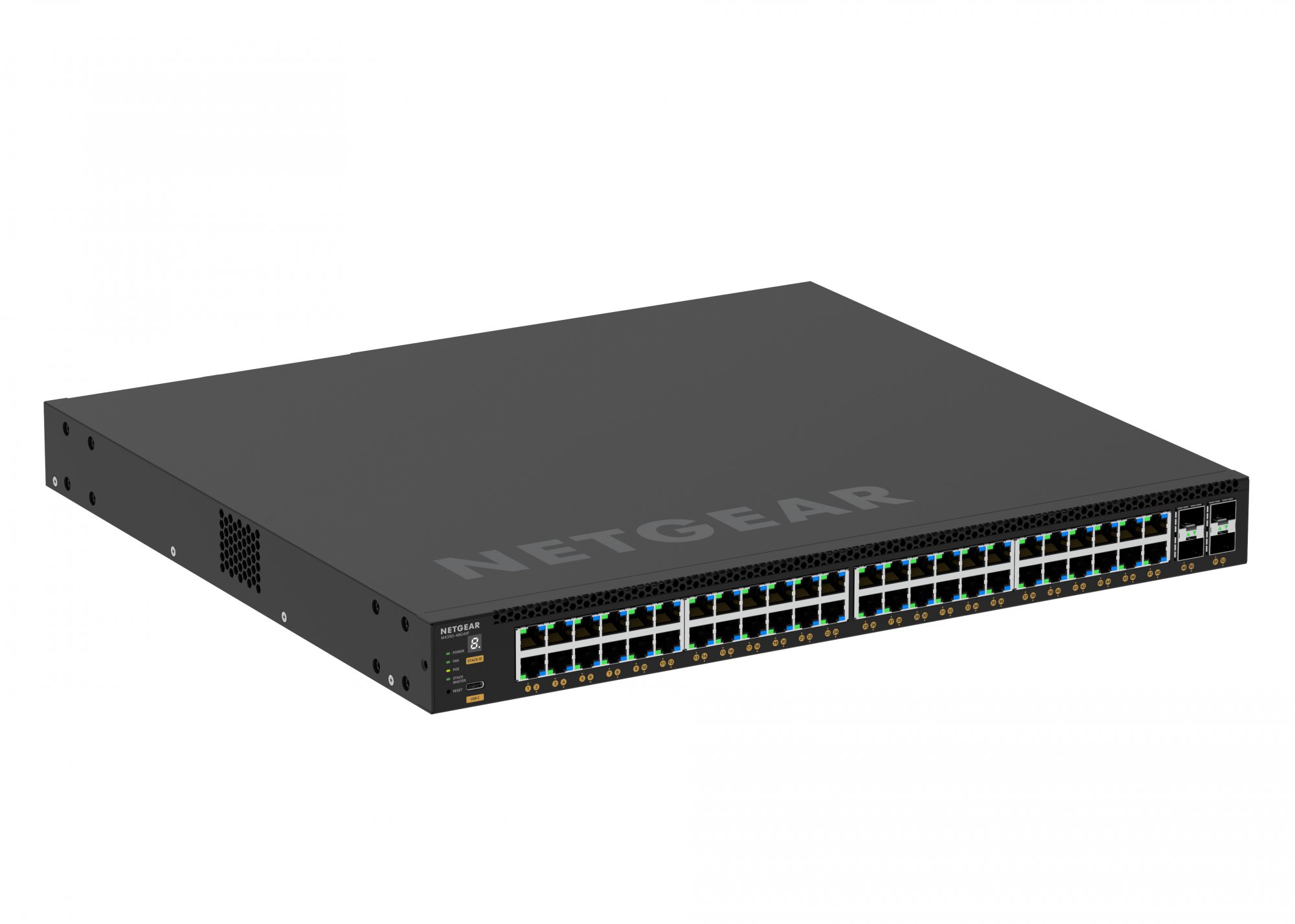

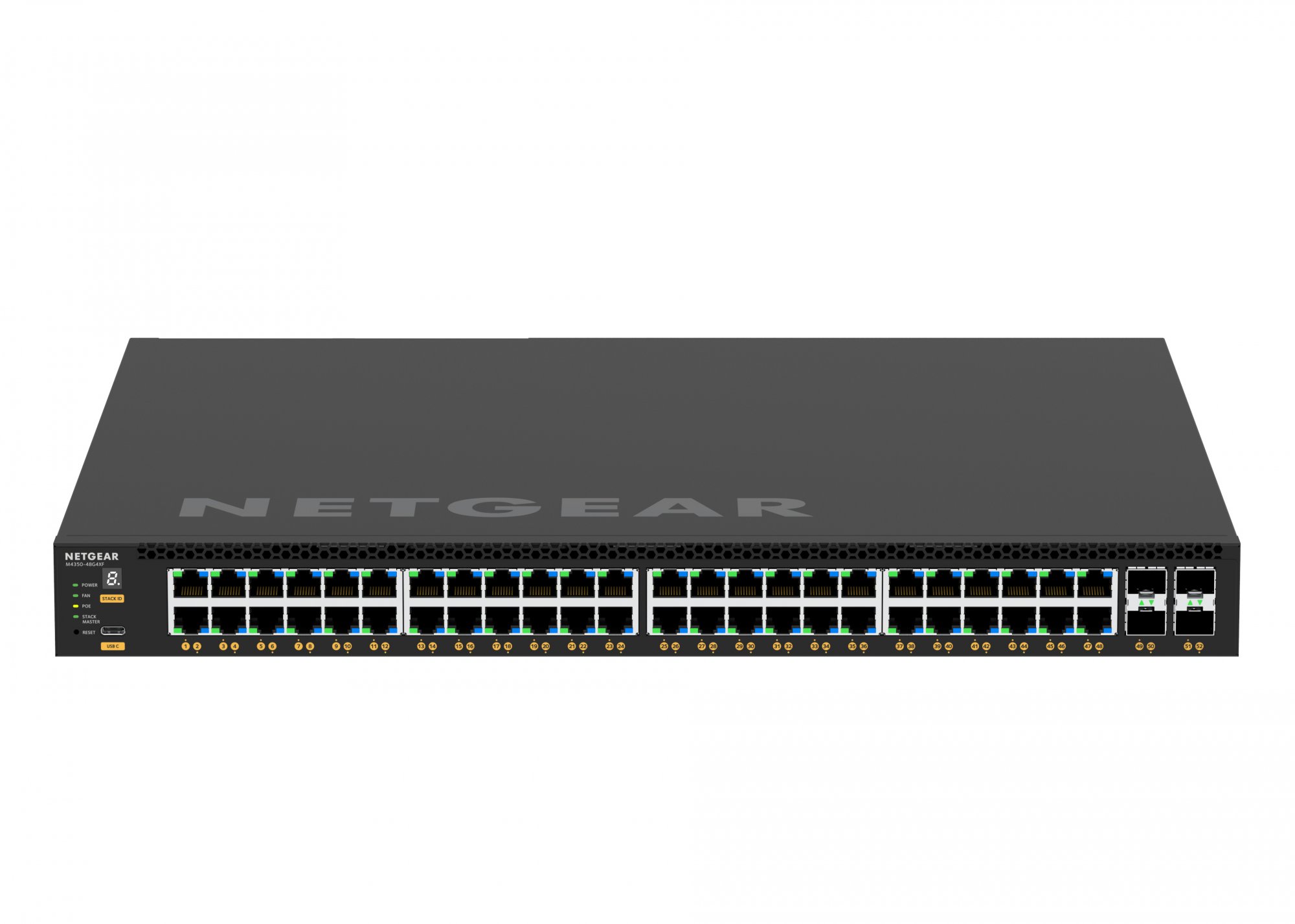

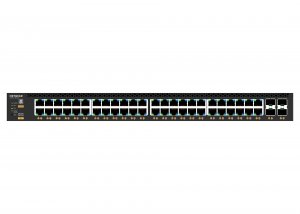

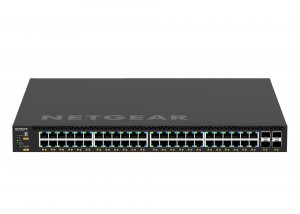

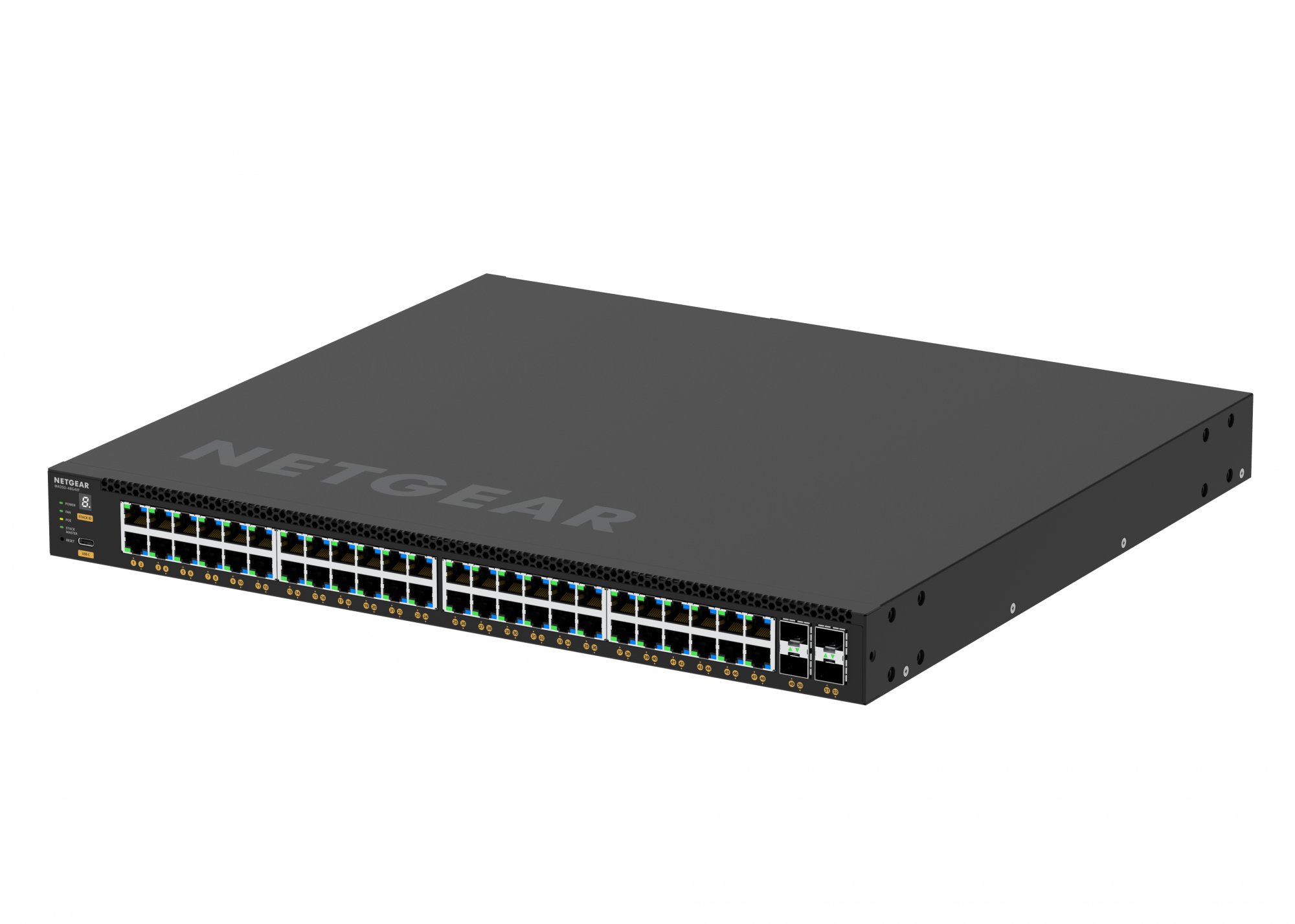

48 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
550W internal power supply providing 236W of PoE budget

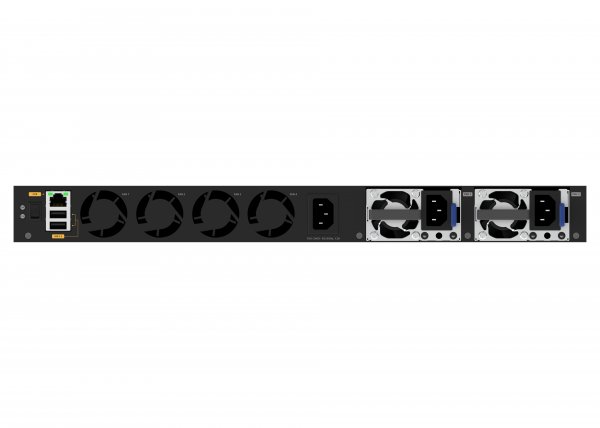

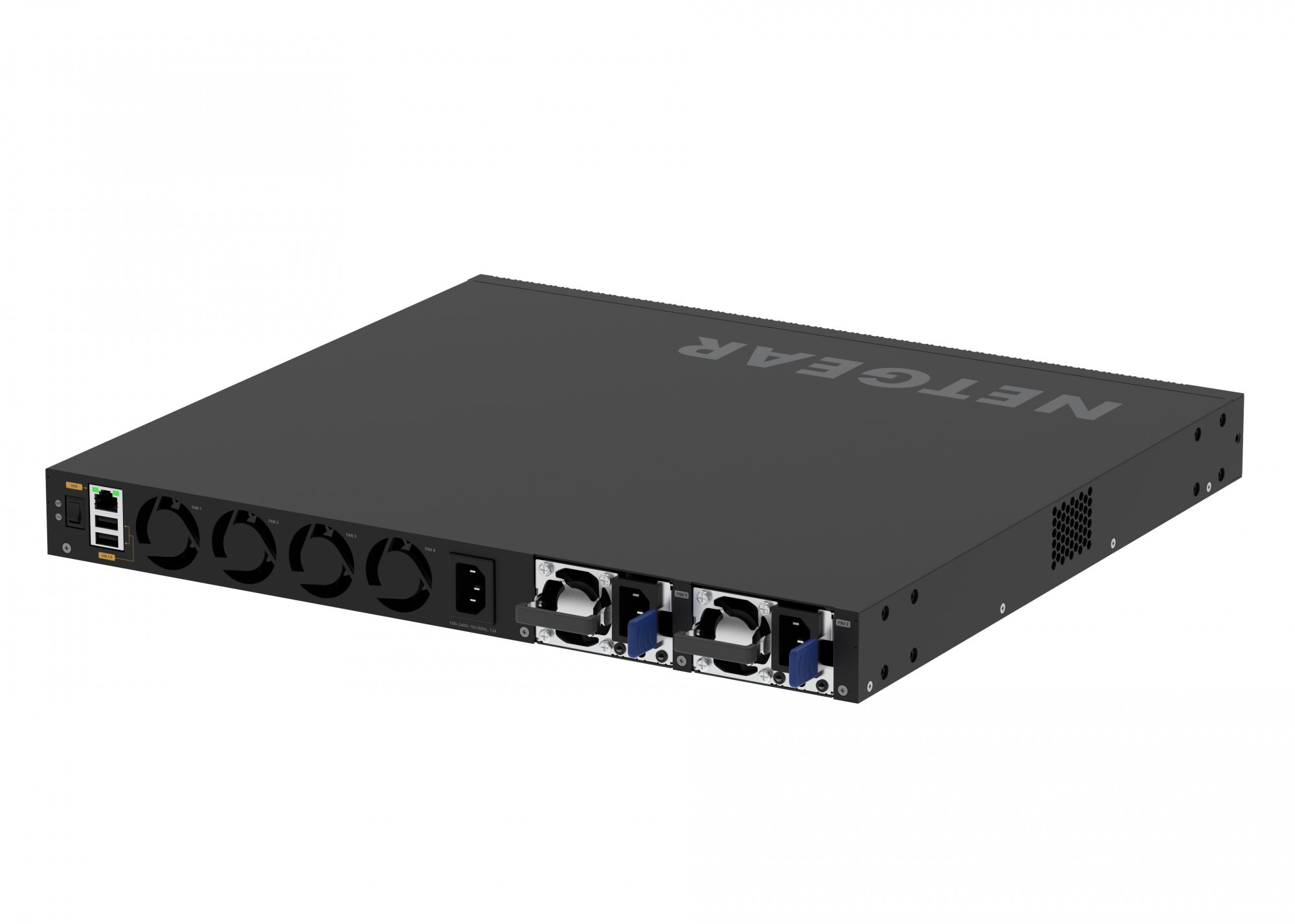

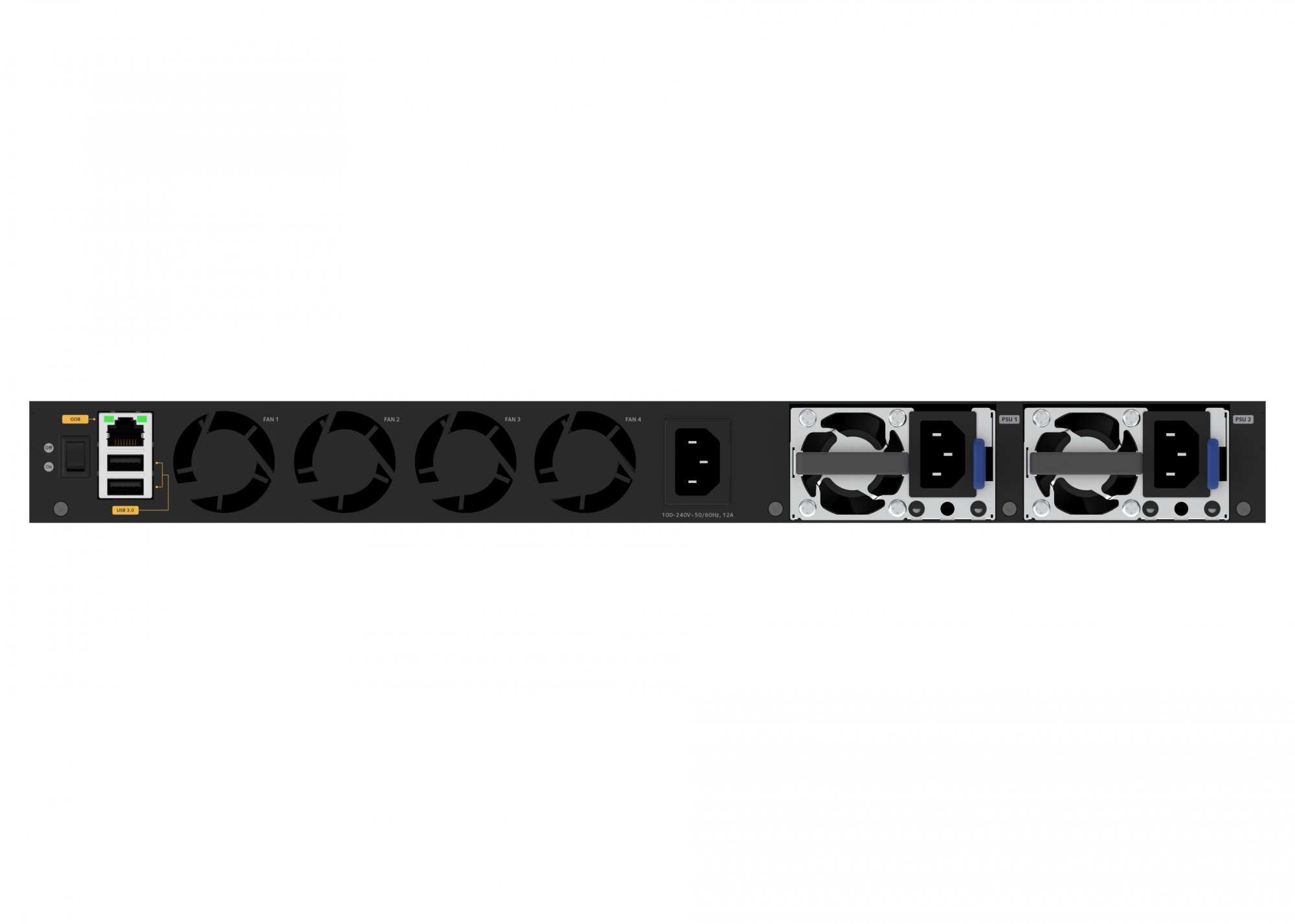

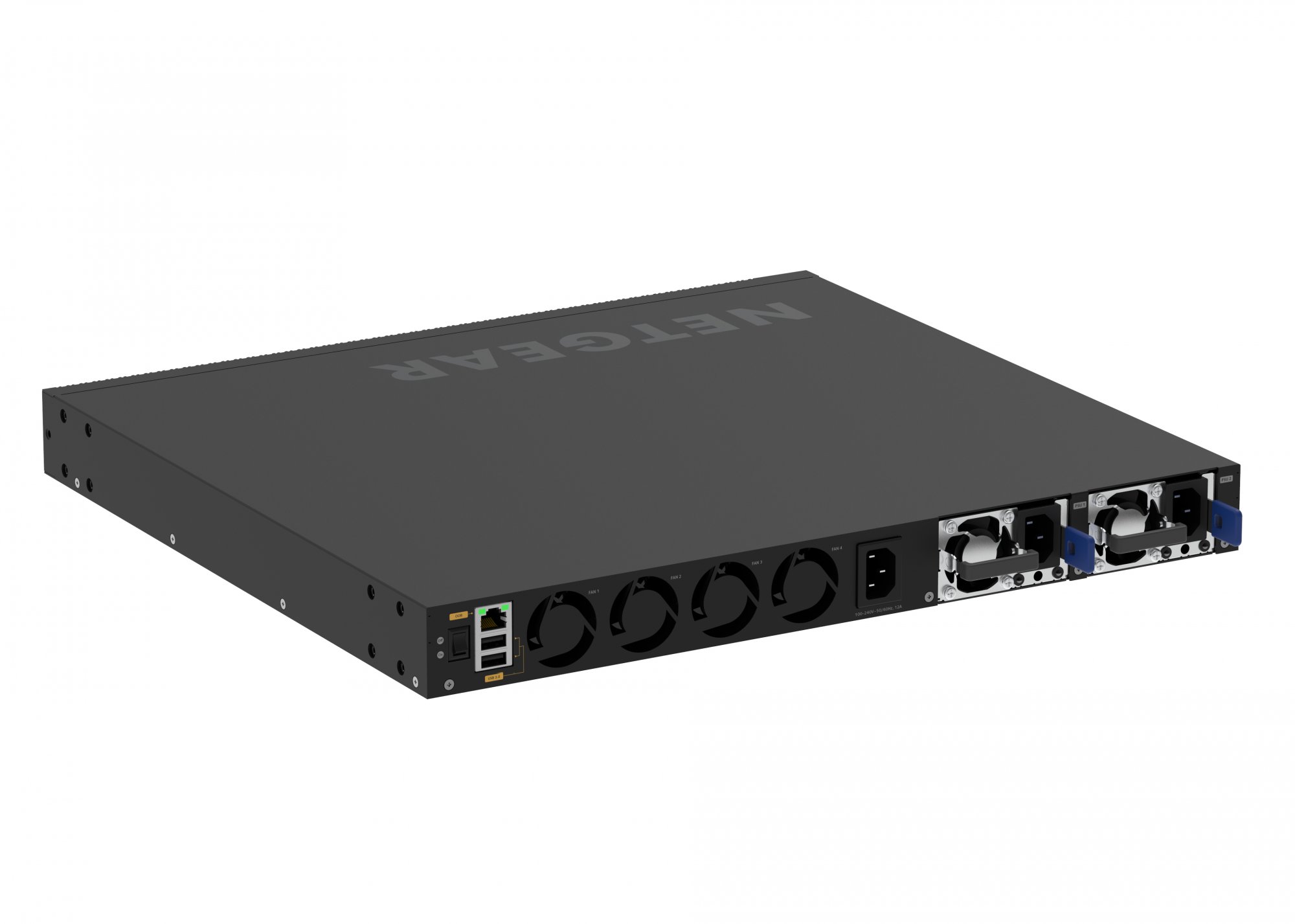

2 slots for modular power supplies (1+1 redundancy and/or EPS share)
Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
The PoE budget can reach 1,440W, the redundant PoE budget can also reach 1,440W
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
Layer 3 feature set includes static, policy-based, and dynamic routing
NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations

Product Properties

Manufacturer
Netgear

Model
GSM4352-100NES

EAN
606449161953

Bullet points

Point
2 slots for modular power supplies (1+1 redundancy and/or EPS share)

48 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks

550W internal power supply providing 236W of PoE budget

Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used

Layer 3 feature set includes static, policy-based, and dynamic routing

NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations

The PoE budget can reach 1,440W, the redundant PoE budget can also reach 1,440W

Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover

Certificates

Compliance certificates
BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Data transmission

Jumbo frames
12000

Jumbo frames support
Yes

Latency (1 Gbps)
2.2 µs

Latency (10 Gbps)
0.7 µs

MAC address table
16000 entries

Packet buffer memory
32 MB

Store-and-forward
Yes

Switching capacity
176 Gbit/s

Throughput
130.94 Mpps

Design

Airflow direction
Front-to-back airflow

Form factor
1U

LED indicators
Yes

Product colour
Black

Rack mounting
Yes

Stackable
Yes

Management features

ARP inspection
Yes

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping
Y

Multicast support
Yes

Network

10G support
Yes

6to4 tunnel
Yes

Broadcast storm control
Yes

Flow control support
Yes

Full duplex
Yes

IPv4 routes
512

IPv6 routes
256

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u

Number of VLANs
4093

Policy-based routing
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
MAC address-based VLAN, Private VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Non-operating altitude
0 - 3000 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Other features

Power supply
550 W

Packaging content

Cables included
AC, USB Type-C

Quick start guide
Yes

Rack mount kit
Yes

Packaging data

Included power plug types
EU, UK, NA

Performance

Built-in processor
Yes

Flash memory
512 MB

Internal memory
2048 MB

Memory type
DDR4-SDRAM

Processor frequency
1800 MHz

Processor model
ARM Cortex-A57

sFlow
Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
48

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Power connector
AC-in jack

SFP+ module slots quantity
4

Switch Number of Ports
48

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

Power consumption (max)
348 W

Power consumption (typical)
99 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
48

Total Power over Ethernet (PoE) budget
1440 W

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Management protocols
SNMP V1, V2, V3

Routing protocols
OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

Security

Access Control List (ACL)
Yes

Access Control List (ACL) egress
1023

Access Control List (ACL) ingress
511

Authentication
Guest VLAN, MAC-based authentication

Authentication type
RADIUS, TACACS+

BPDU filtering/protection
Yes

DHCP features
DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping

DoS attack prevention
Yes

IGMP proxy
Yes

IGMP snooping
Yes

Loop protection
Yes

MAC address filtering
Yes

Password protection
Yes

Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted random early detection (WRED)

Root protection
Yes

Static port security
Yes

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
400 mm

Height
43.2 mm

Weight
7.19 kg

Width
440 mm

NETGEAR M4350-48G4XF Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
