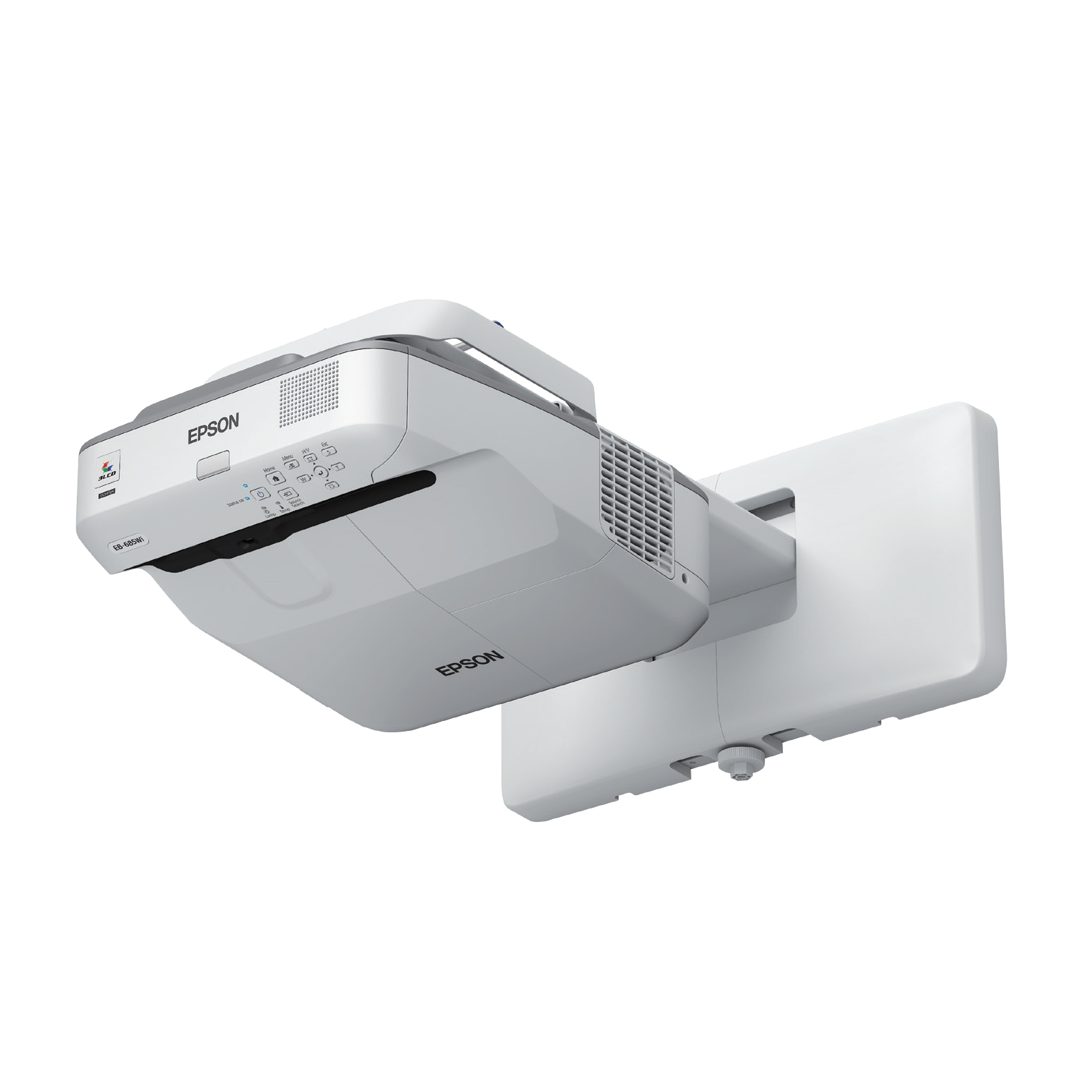

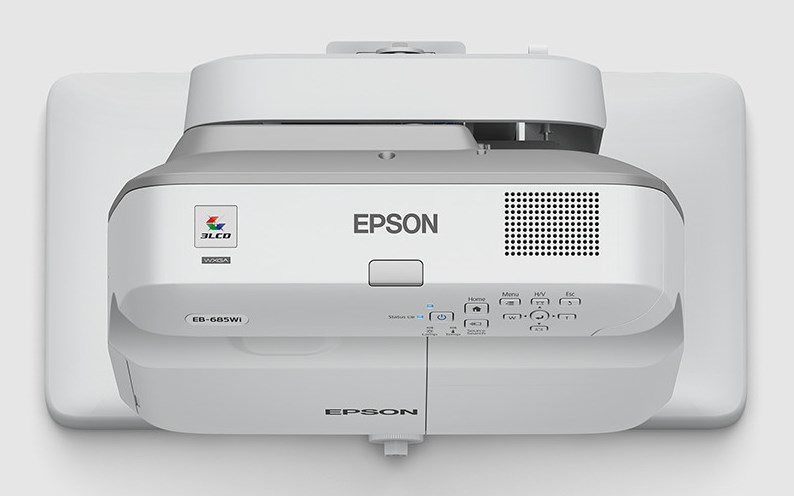

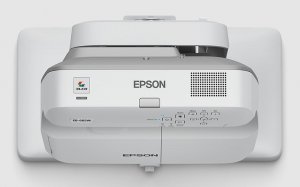

Epson EB-685Wi data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White
Roll over image to zoom inClick to Open expanded view
Model: V11H741041

Epson EB-685Wi data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White

Manufacturer:
Epson
Epson EB-685Wi, 3500 ANSI lumens, 3LCD, WXGA (1280x800), 300:1, 16:10, 1524 - 2540 mm (60 - 100")
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge. Click here for details
Related products

Description

Epson EB-685Wi. Projector brightness: 3500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Zoom ratio: 1.35:1, Throw ratio: 0.28:1. Serial interface type: RS-232C. Noise level: 35 dB, Noise level (economic mode): 30 dB, Country of origin: Philippines

Product Properties

  • Model
  • V11H741041
  • Design
  • Cable lock slot
  • Y
  • Cable lock slot type
  • Kensington
  • LED indicators
  • Y
  • Placement
  • Wall
  • Product colour
  • Grey, White
  • Product type
  • Ultra short throw projector
  • Display
  • Built-in display
  • N
  • Features
  • Country of origin
  • Philippines
  • Noise level
  • 35 dB
  • Noise level (economic mode)
  • 30 dB
  • Lens system
  • Focus
  • Manual
  • Throw ratio
  • 0.28:1
  • Zoom ratio
  • 1.35:1
  • Light source
  • Lamp power
  • 250 W
  • Light source type
  • Lamp
  • Service life of light source
  • 5000 h
  • Service life of light source (economic mode)
  • 10000 h
  • Logistics data
  • Pallet gross height
  • 15 cm
  • Pallet gross length
  • 120 cm
  • Pallet gross width
  • 80 cm
  • Pallet height (UK)
  • 15 cm
  • Pallet length (UK)
  • 120 cm
  • Pallet width (UK)
  • 100 cm
  • Products per pallet
  • 12 pc(s)
  • Products per pallet (UK)
  • 12 pc(s)
  • Products per pallet layer
  • 2 pc(s)
  • Products per pallet layer (UK)
  • 2 pc(s)
  • Quantity per pack
  • 1 pc(s)
  • Multimedia
  • Built-in speaker(s)
  • Y
  • RMS rated power
  • 16 W
  • Network
  • Ethernet LAN
  • Y
  • Ethernet LAN (RJ-45) ports
  • 1
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Operating temperature (T-T)
  • 5 - 35 °C
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -10 - 60 °C
  • Other features
  • RS-232 ports
  • 1
  • RS-232C
  • Y
  • Packaging content
  • Manual
  • Y
  • Remote control included
  • N
  • Ports & interfaces
  • AC (power) in
  • Y
  • Audio (L/R) in
  • 1
  • Composite video in
  • 1
  • DVI port
  • N
  • HDMI ports
  • 3
  • Headphone outputs
  • 1
  • Microphone in
  • Y
  • S-Video inputs quantity
  • 1
  • Serial interface type
  • RS-232C
  • USB 2.0 ports quantity
  • 3
  • VGA (D-Sub) ports quantity
  • 3
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 220 - 240 V
  • Power consumption (economy mode)
  • 310 W
  • Power consumption (standby)
  • 0.39 W
  • Power consumption (typical)
  • 354 W
  • Power source
  • AC
  • Projector
  • Colour light output
  • 3500 ANSI lumens
  • Contrast ratio (dynamic)
  • 14000:1
  • Contrast ratio (typical)
  • 300:1
  • Keystone correction, horizontal
  • ±3°
  • Keystone correction, vertical
  • ±3°
  • Matrix size
  • 1.5 cm (0.59")
  • Native aspect ratio
  • 16:10
  • Number of colours
  • 1.073 billion colours
  • Projection distance (tele)
  • 0 - 0.6 m
  • Projection distance (wide)
  • 0 - 0.4 m
  • Projection technology
  • 3LCD
  • Projector brightness
  • 3500 ANSI lumens
  • Projector brightness (economic mode)
  • 2900 ANSI lumens
  • Projector native resolution
  • WXGA (1280x800)
  • Screen size compatibility
  • 1524 - 2540 mm (60 - 100")
  • Supported aspect ratios
  • 16:10
  • Vertical synchronization (max)
  • 0.12 kHz
  • Vertical synchronization (min)
  • 0.1 kHz
  • White light output
  • 3500 ANSI lumens
  • Software
  • Windows operating systems supported
  • Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Storage
  • Card reader integrated
  • N
  • Video
  • 3D
  • N
  • Full HD
  • N
  • Weight & dimensions
  • Depth
  • 400 mm
  • Height
  • 149 mm
  • Package depth
  • 730 mm
  • Package height
  • 335 mm
  • Package weight
  • 20 kg
  • Package width
  • 490 mm
  • Weight
  • 5.9 kg
  • Width
  • 367 mm
