Description

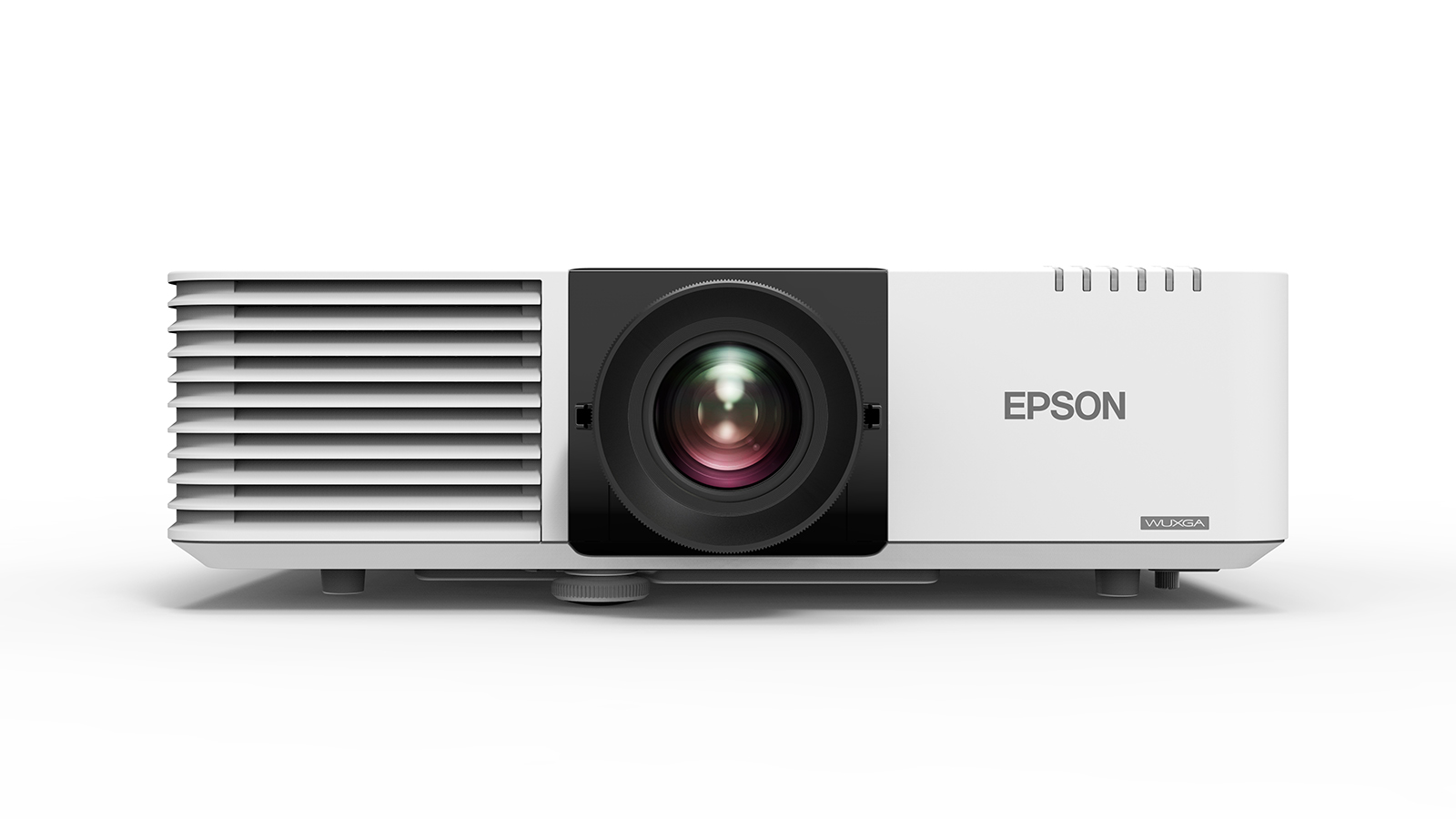

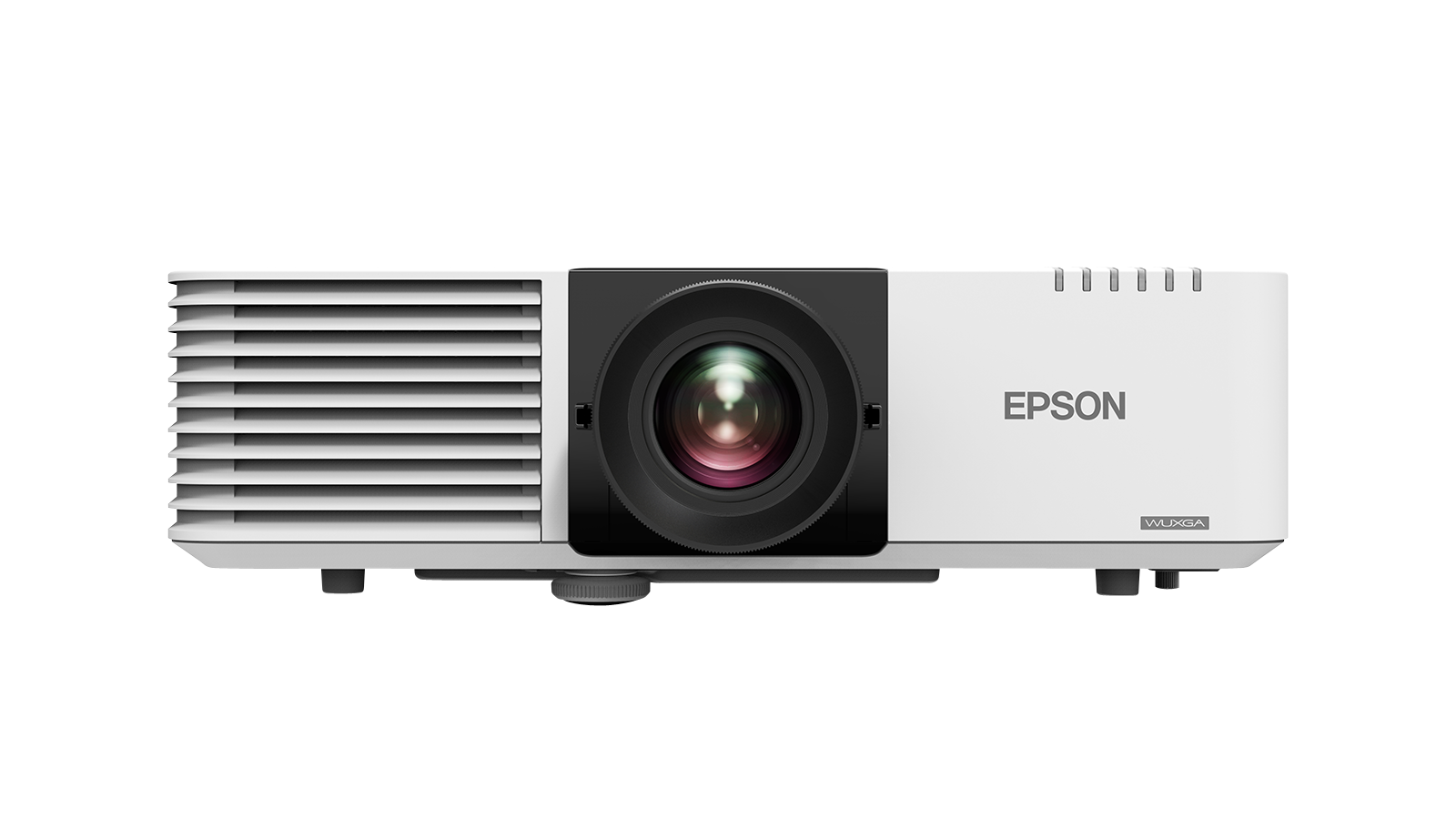

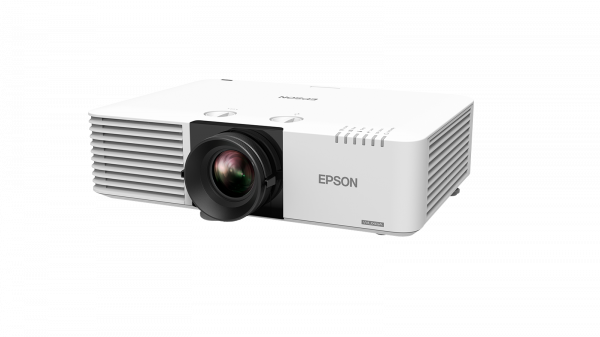

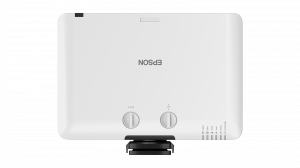

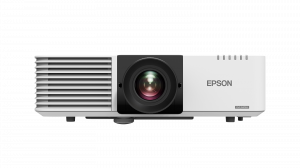

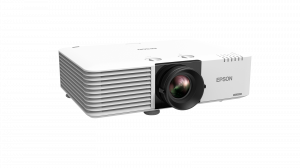

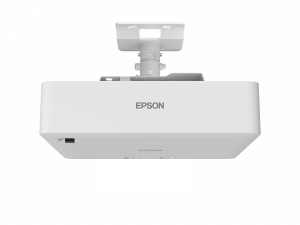

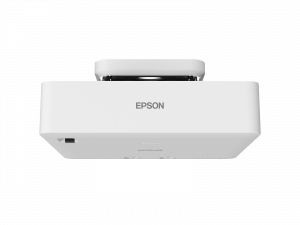

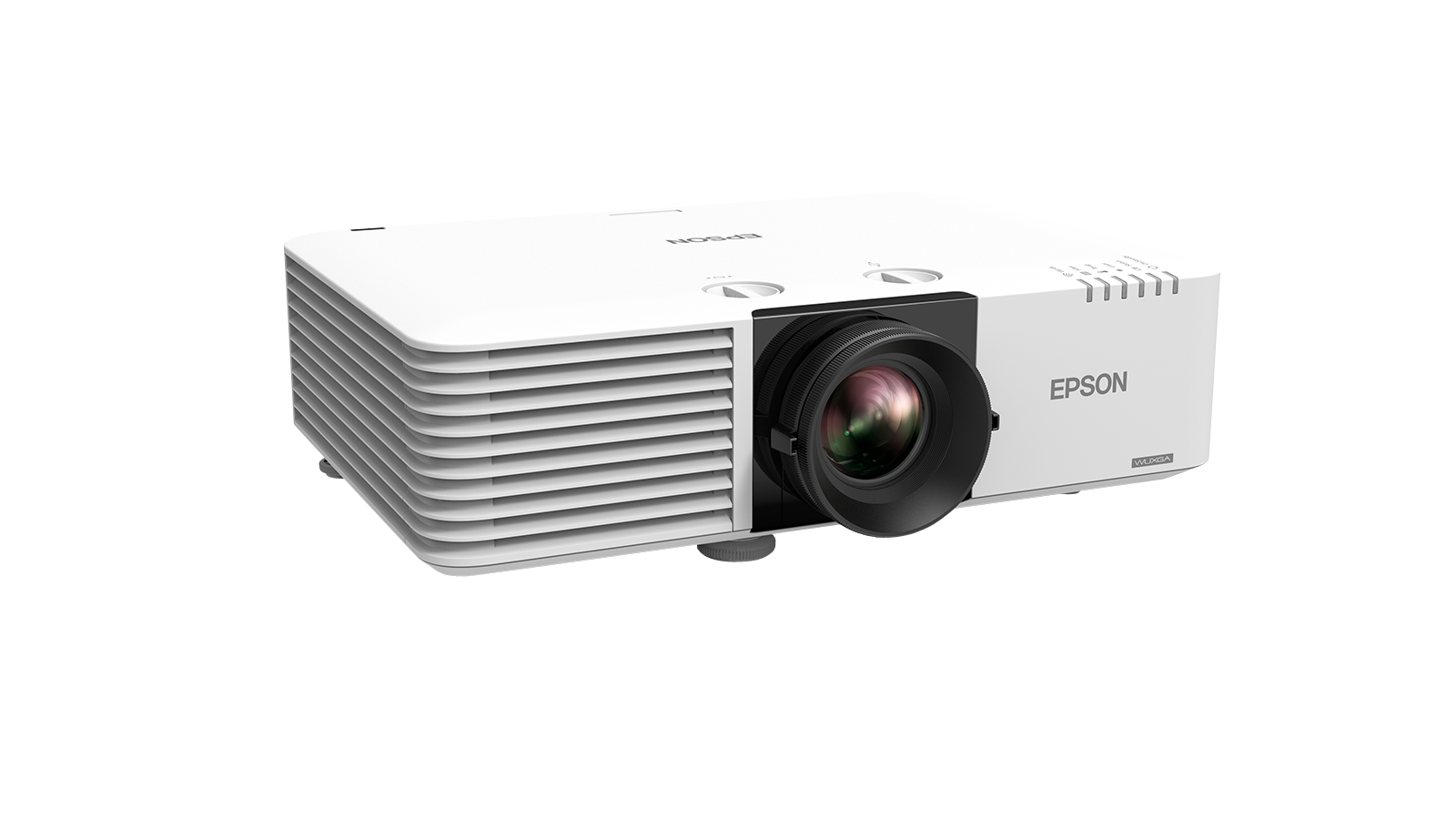

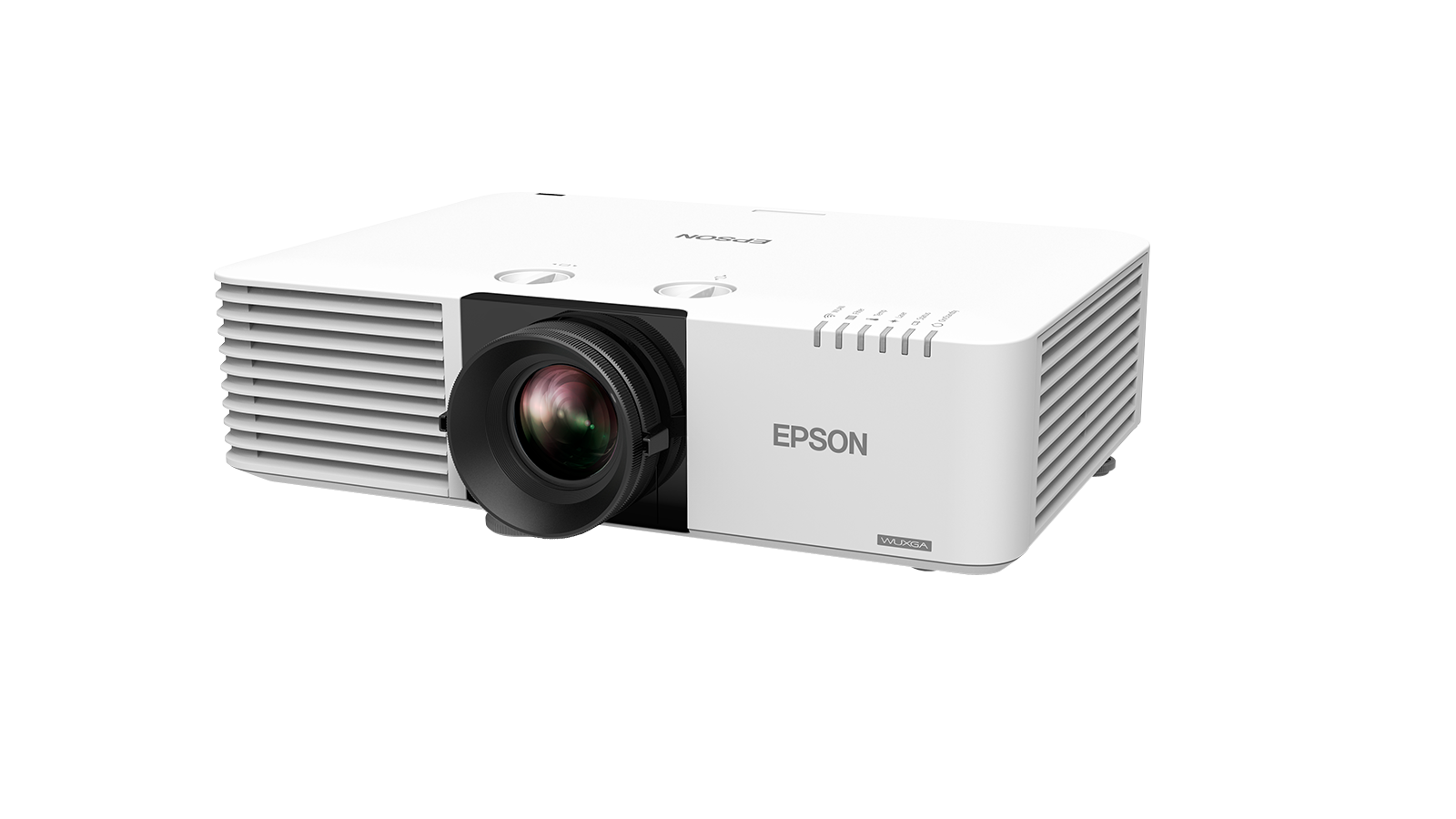

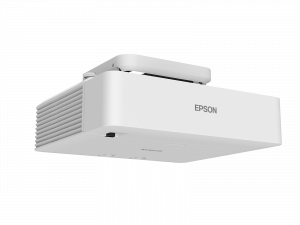

Epson EB-L630SU. Projector brightness: 6000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 11.76 mm, Fixed focal length: 11.8 mm. Video processing: 10 bit, Video colour modes: Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB. Serial interface type: RS-232C

6,000-lumen brightness: Crisp images and bright colours, even in well-lit rooms
WUXGA resolution: Sharp Full HD images for excellent clarity
Futureproofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
Easy, flexible installation: Lightweight and compact design with wide lens shift

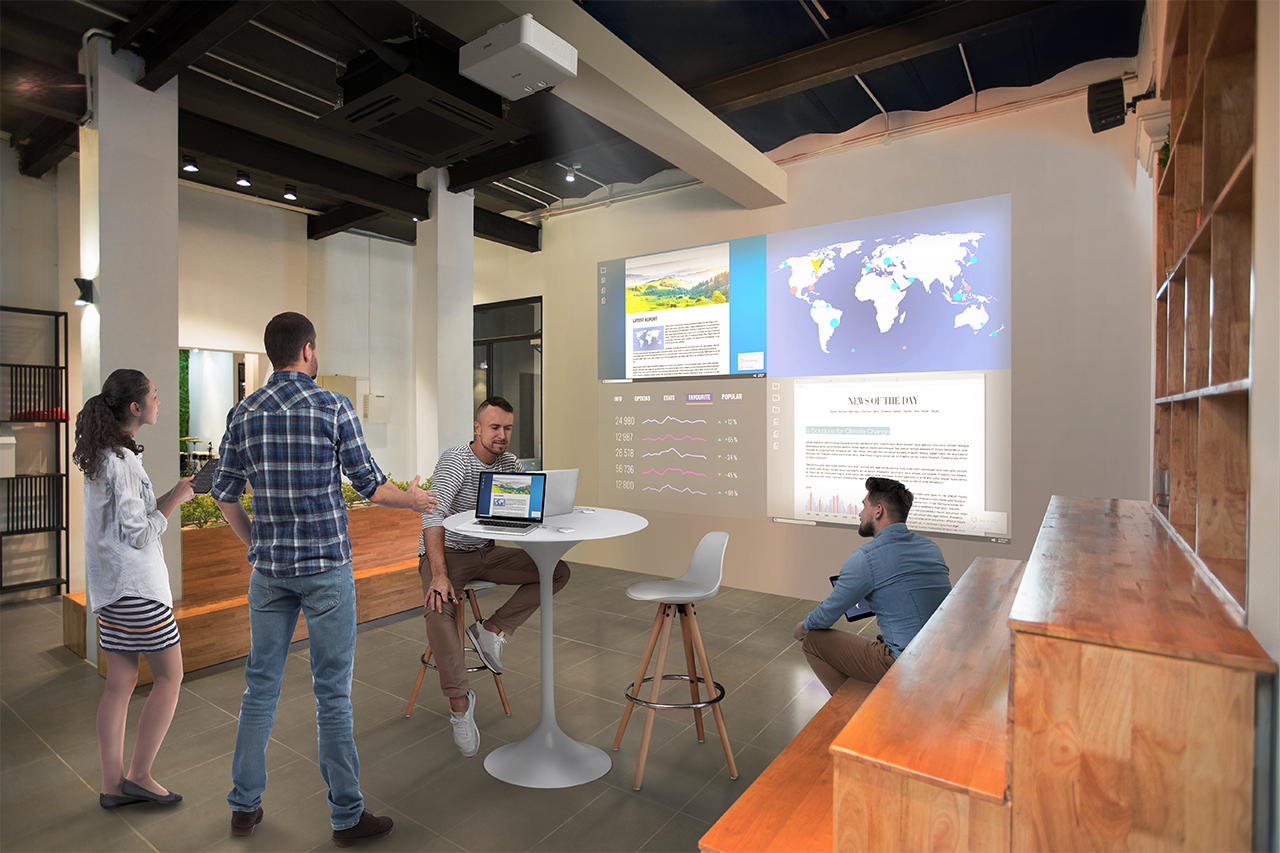

Short-throw projection: Large images in tight spaces (0.8:1 throw ratio)

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA29040

EAN
8715946695358

Bullet points

Point
6,000-lumen brightness: Crisp images and bright colours, even in well-lit rooms

Easy, flexible installation: Lightweight and compact design with wide lens shift

Futureproofed connectivity options

Short-throw projection: Large images in tight spaces (0.8:1 throw ratio)

WUXGA resolution: Sharp Full HD images for excellent clarity

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Presentation

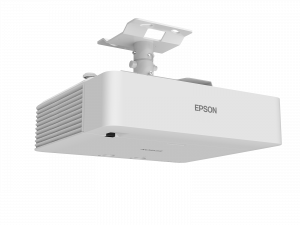

Placement

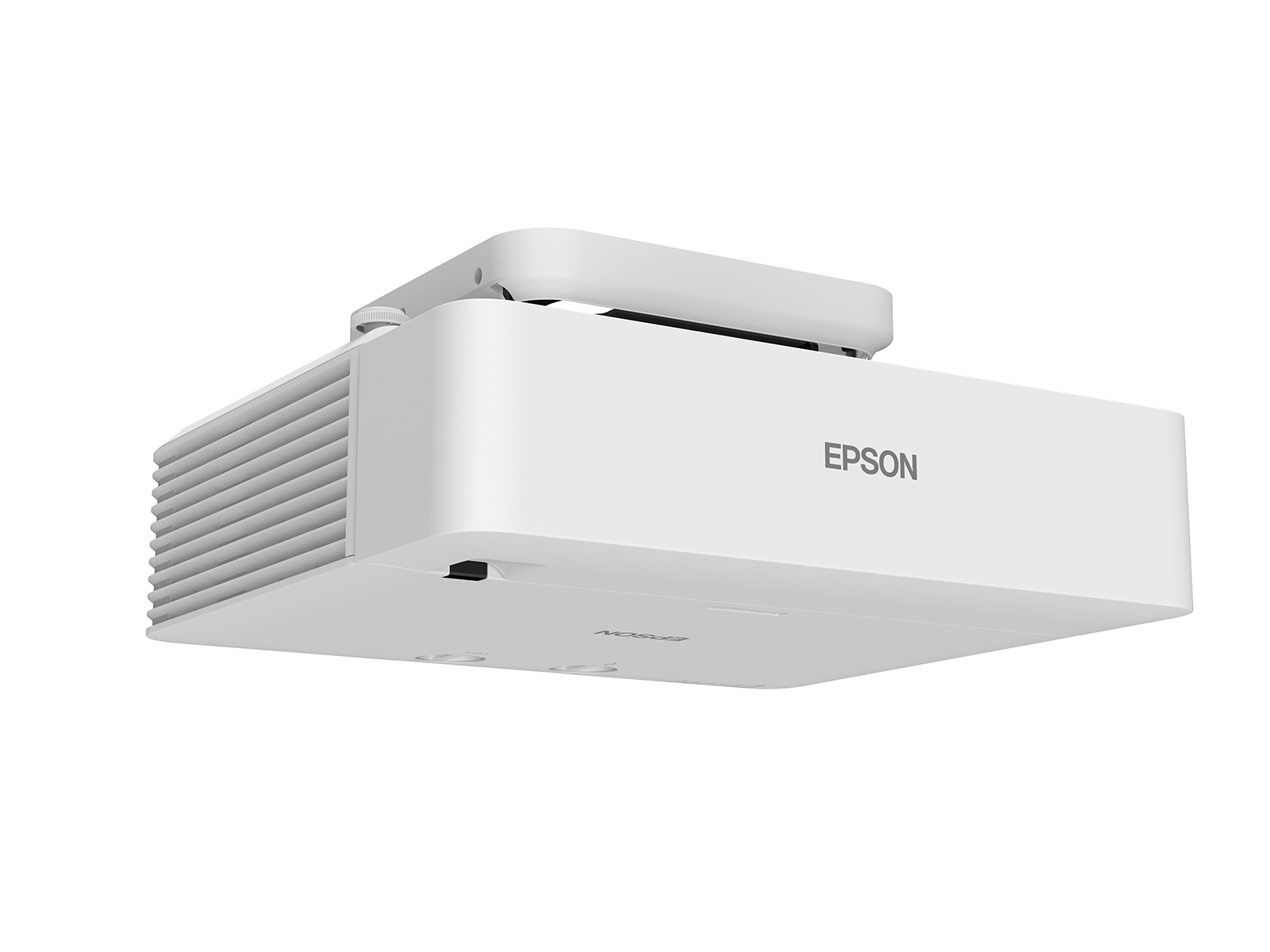

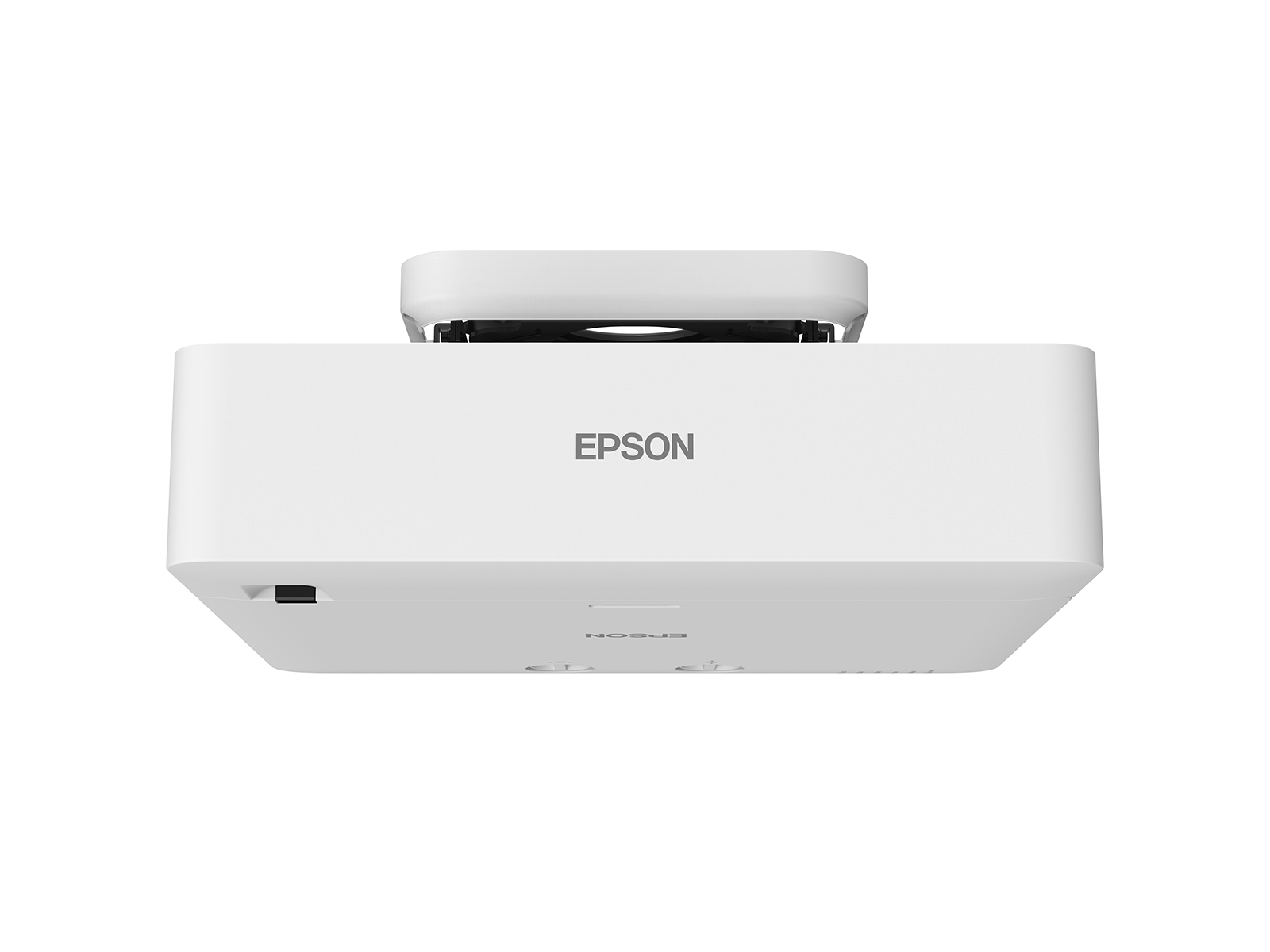

Ceiling, Desktop

Product colour
White

Product type
Short throw projector

Display

Built-in display
No

Features

Country of origin
Philippines

HDCP
Yes

Noise level
38 dB

Noise level (economic mode)
27 dB

Password protection
Yes

Lens system

F-number (relative aperture)
1.7

Fixed focal length
11.8 mm

Focal length range
11.76 mm

Focus
Manual

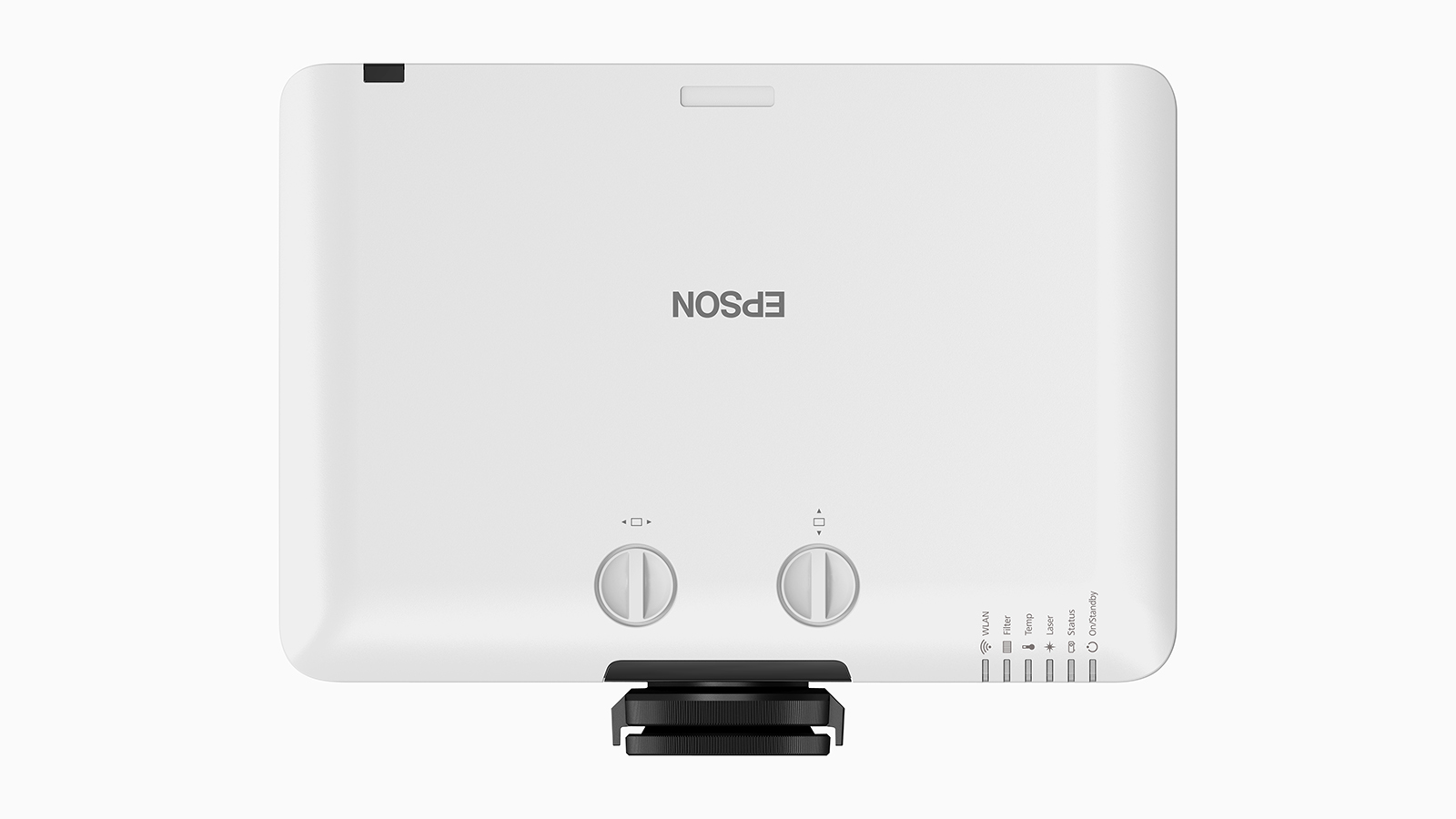

Horizontal lens shift range
-20 - 20%

Throw ratio
0.80 - 1.07:1

Vertical lens shift range
-50 - 50%

Zoom capability
Yes

Zoom ratio
1.35:1

Zoom type
Auto

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
14 pc(s)

Products per pallet (UK)
14 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
10 W

Network

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Miracast
Yes

Wi-Fi
Yes

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
Cable cover, HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents

Control panel
0.67 inch with C2 Fine

Interface

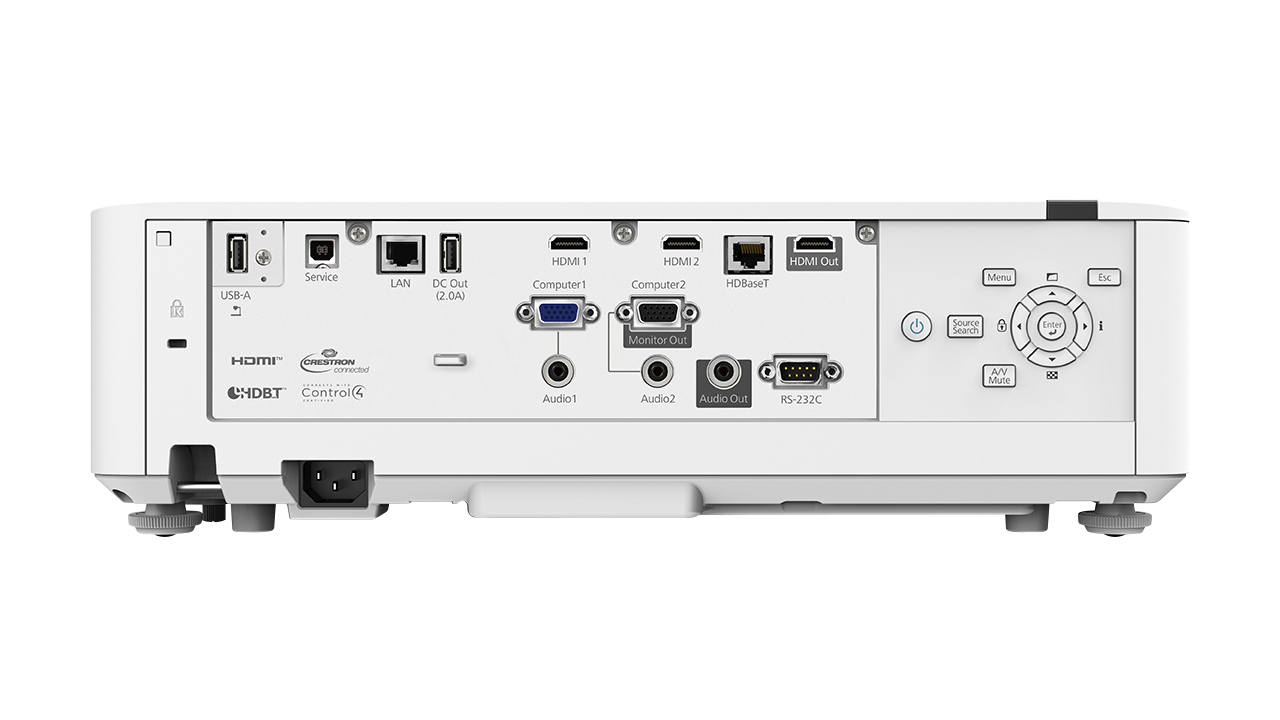

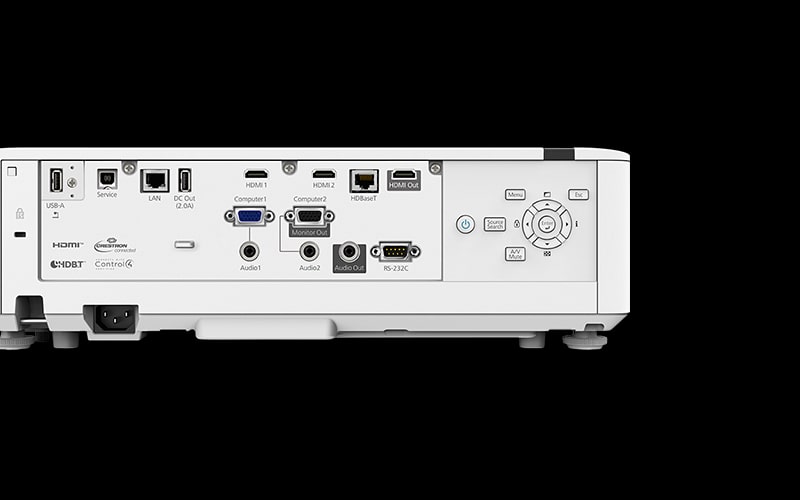

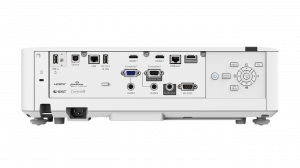

USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback

Option type

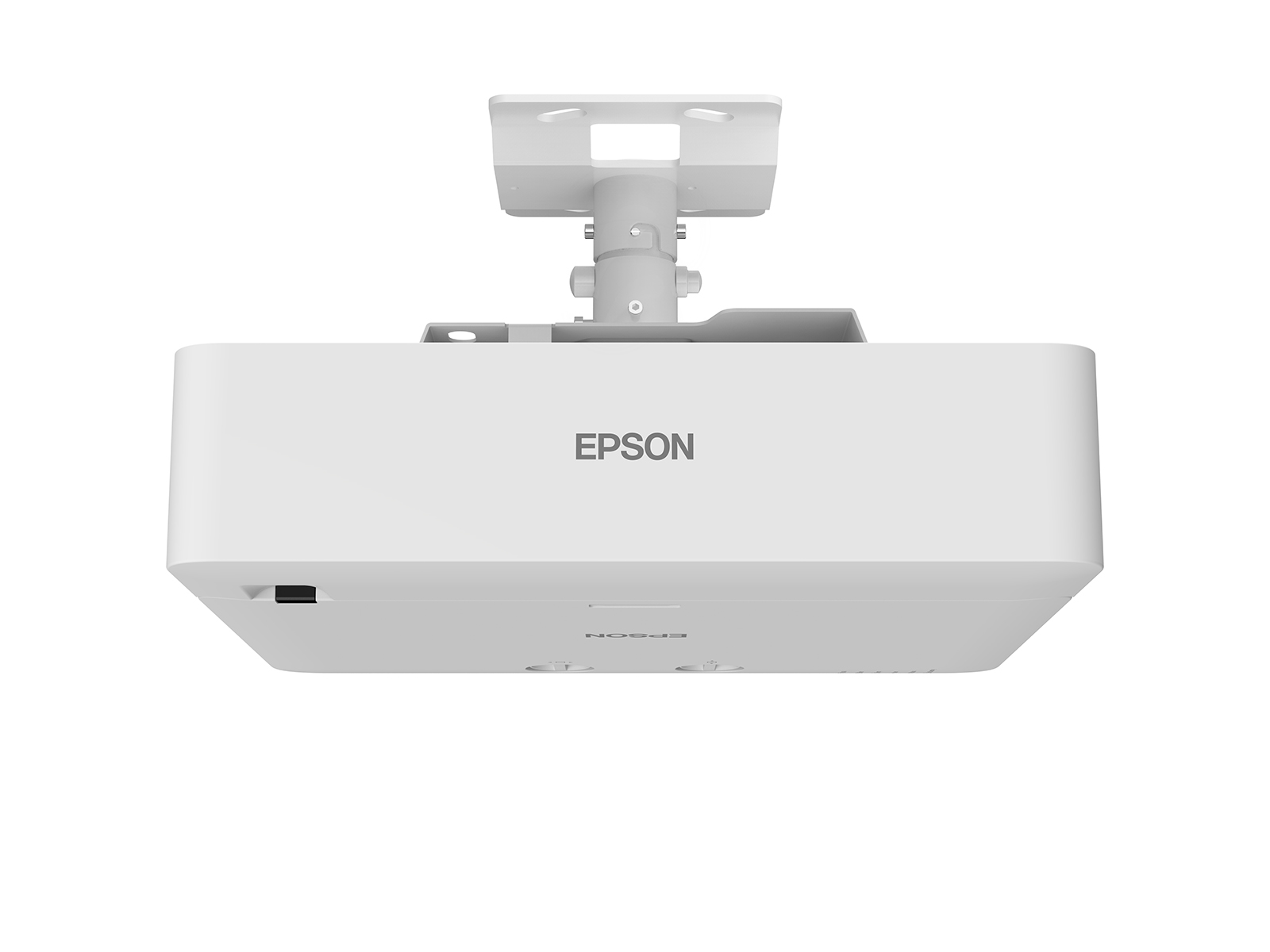

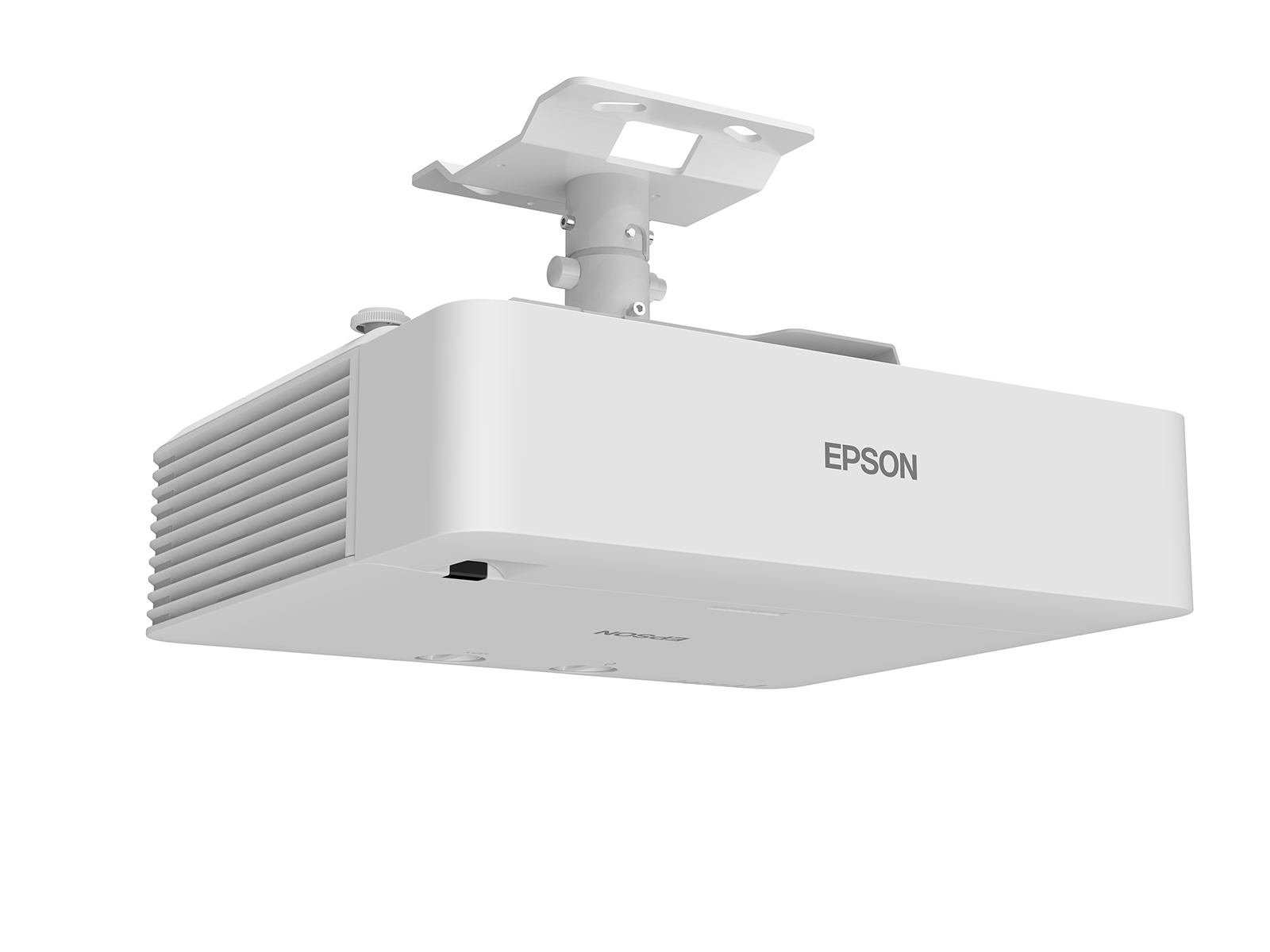

Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit

Security features
Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Supported network protocols
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Batteries included
Yes

Cables included
AC

Manual
Yes

Remote control included
Yes

Warranty card
Yes

WLAN adapter included
Yes

Ports & interfaces

Audio (L/R) in
1

DVI port
No

HDMI ports
3

Serial interface type
RS-232C

USB 2.0 ports quantity
2

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
3

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
258 W

Power consumption (standby)
0.3 W

Power consumption (typical)
345 W

Power source
AC

Projector

Contrast ratio (dynamic)
5000000:1

Contrast ratio (typical)
2500000:1

Keystone correction, horizontal
±30°

Keystone correction, vertical
±30°

Matrix size
1.7 cm (0.67")

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection distance
0.9 - 3.5 m

Projection distance (wide)
0.9 - 3.5 m

Projection technology
3LCD

Projector brightness
6000 ANSI lumens

Projector brightness (economic mode)
4200 ANSI lumens

Projector native resolution
WUXGA (1920x1200)

Screen size compatibility
1270 - 5080 mm (50 - 200")

Software

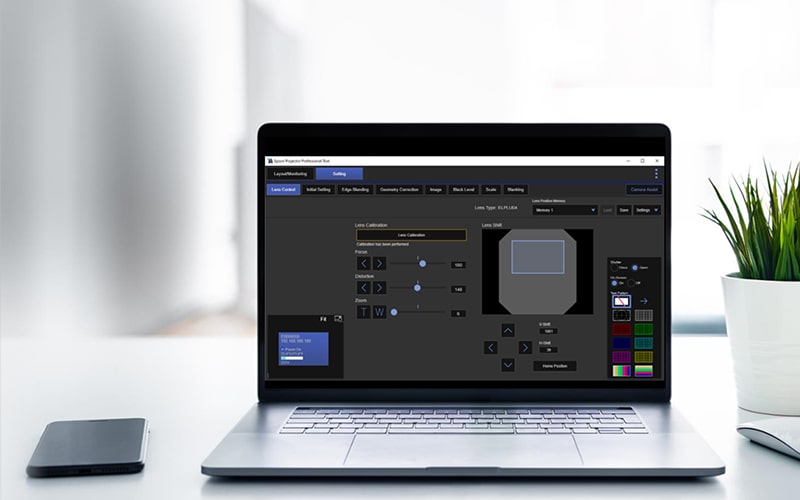

Software support
via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Storage

Card reader integrated
No

Technical details

Mobile app support
Yes

Other features

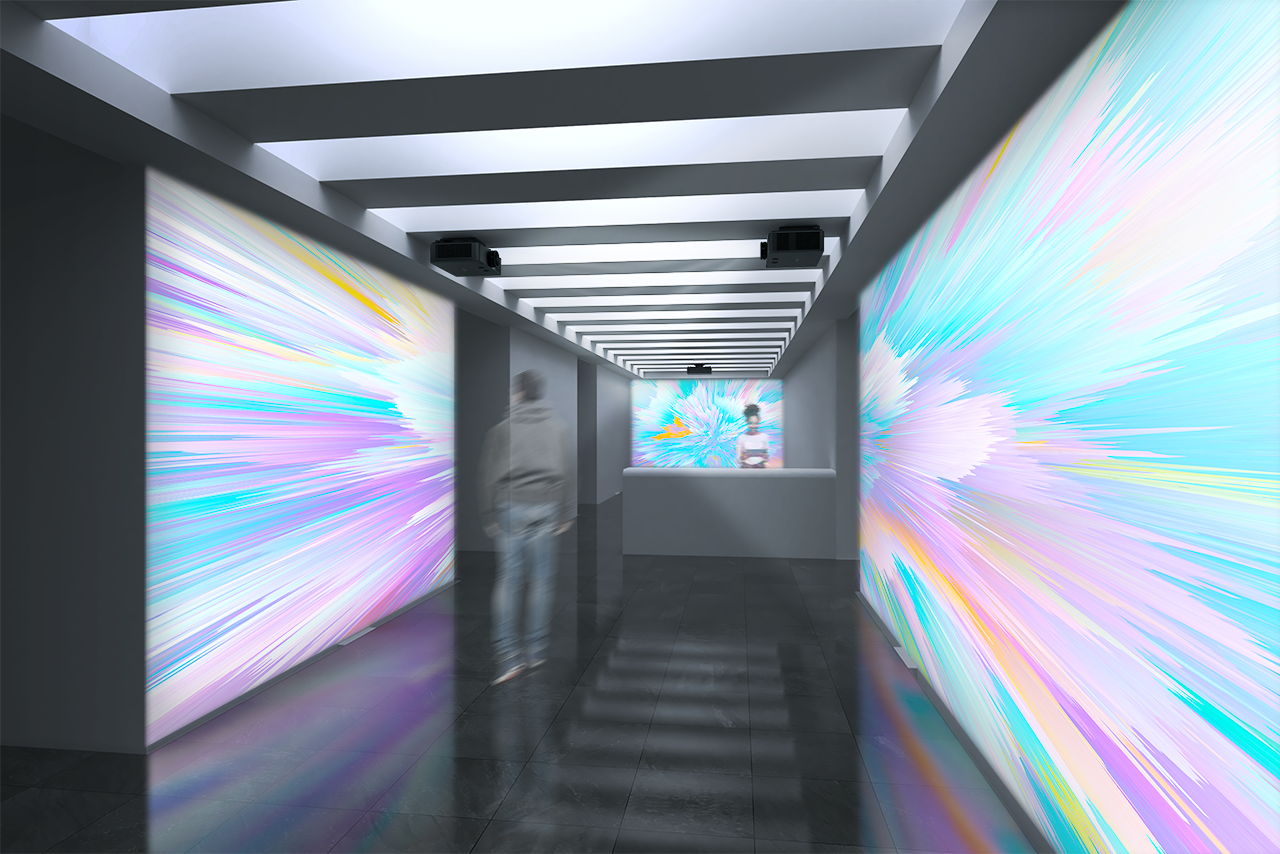

21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App
