Description

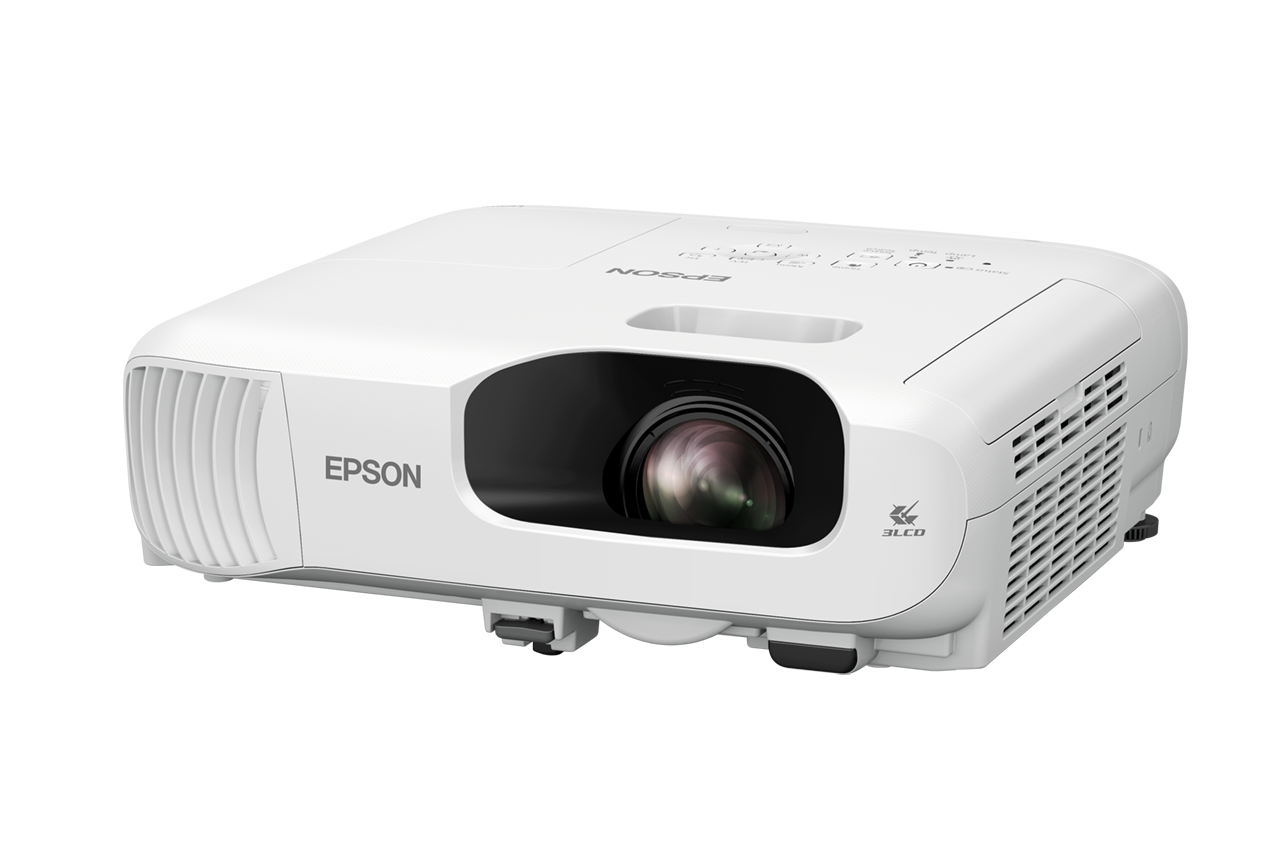

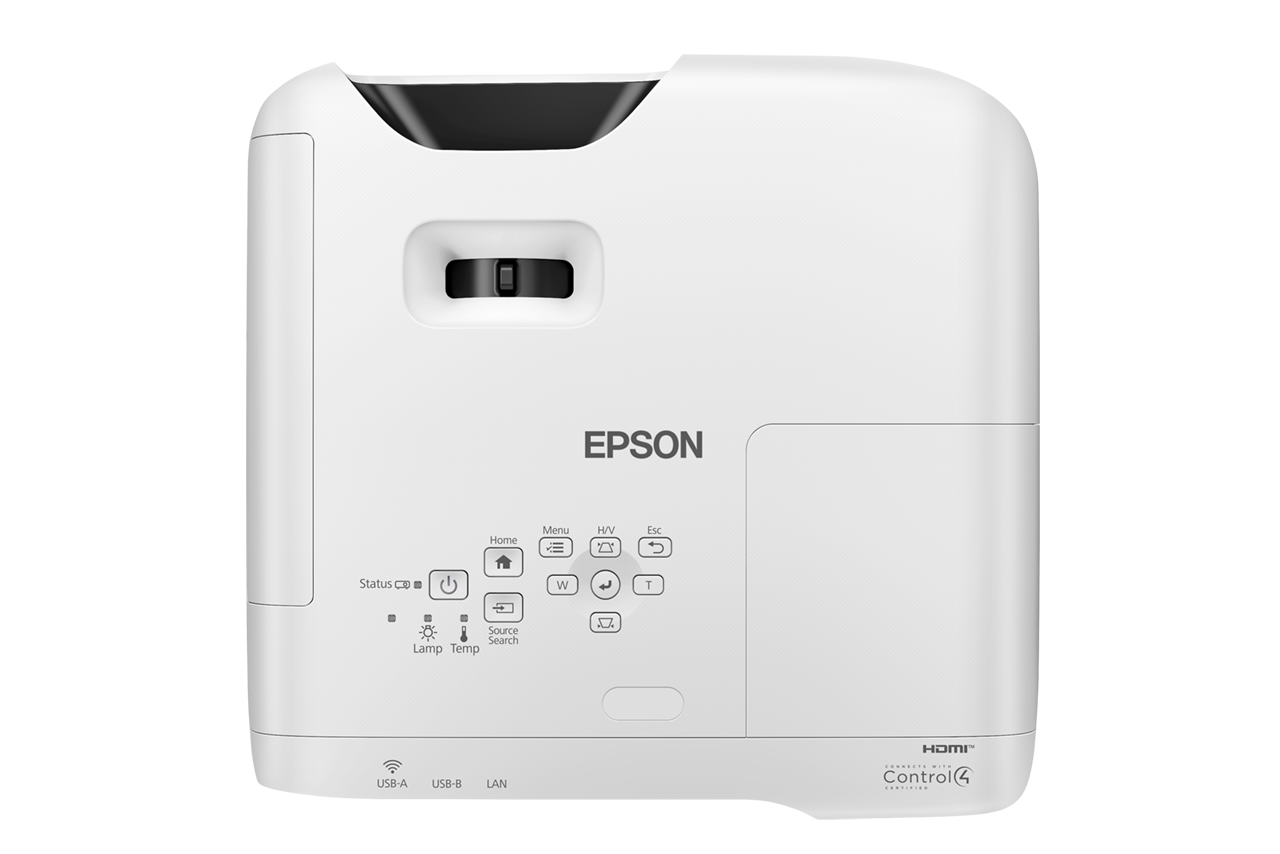

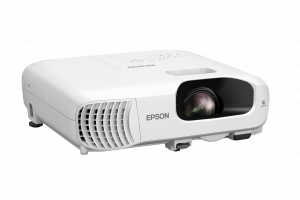

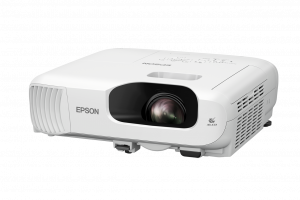

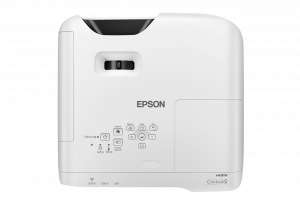

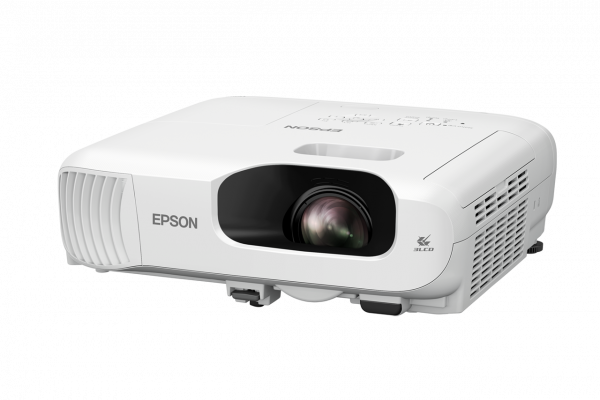

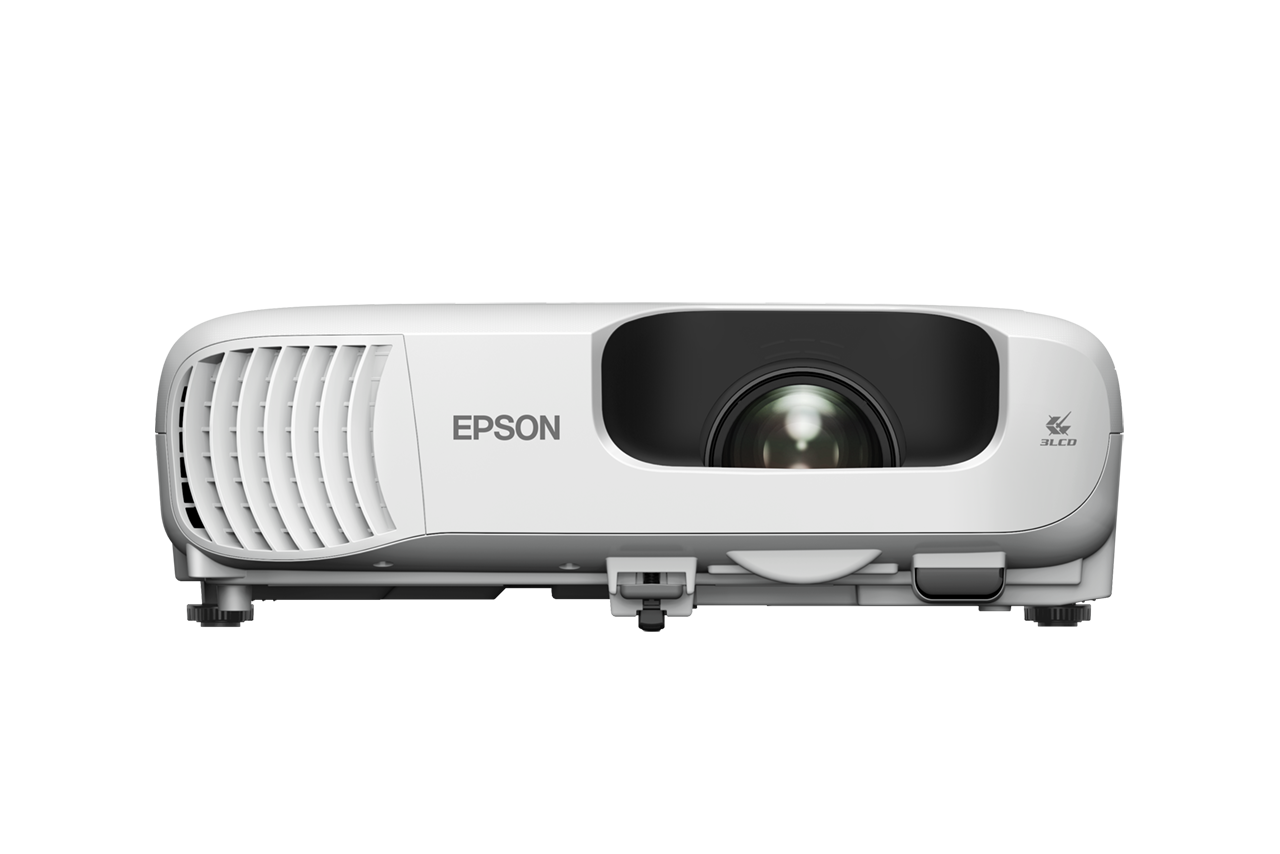

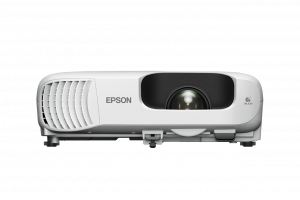

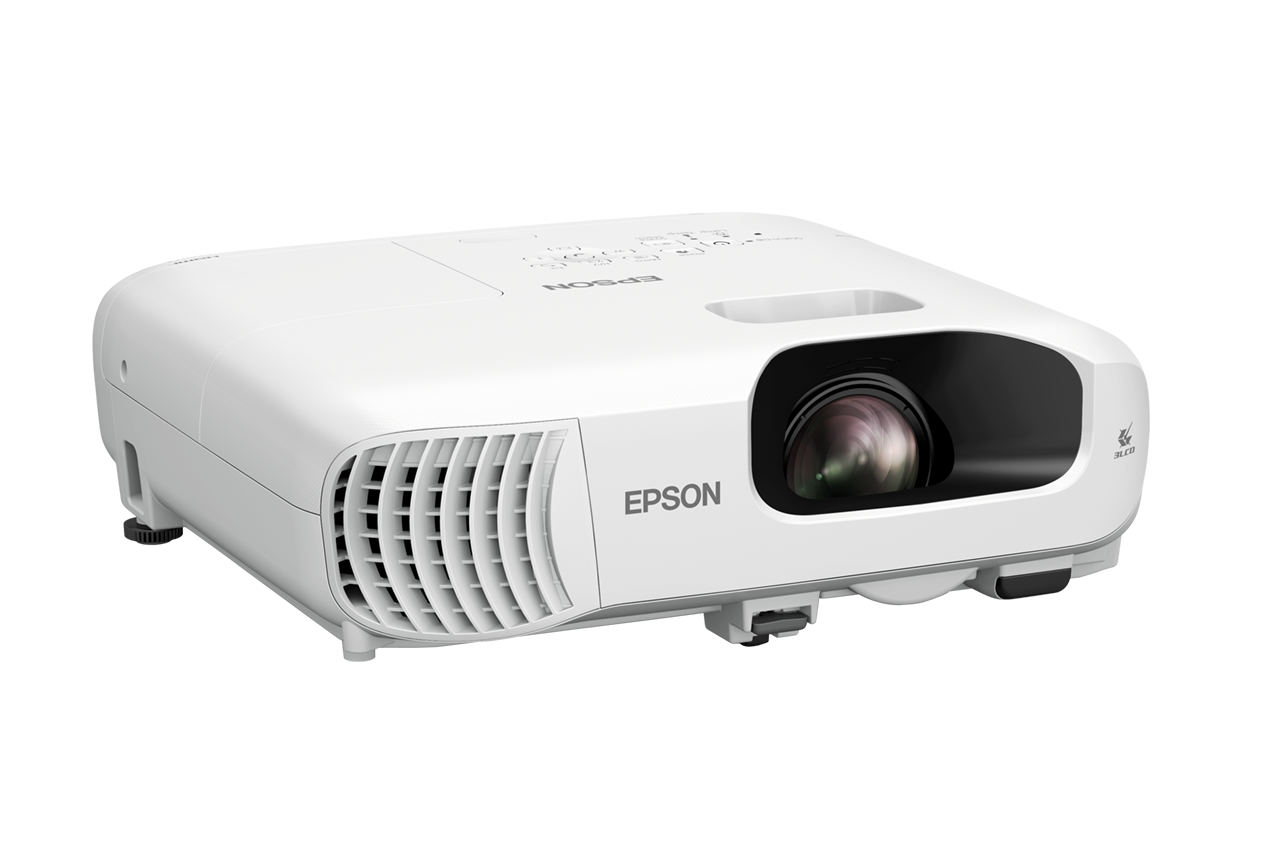

Epson EB-W56S. Projector brightness: 3700 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 6500 h, Service life of light source (economic mode): 17000 h. Focus: Manual, Focal length range: 7.8 mm, Zoom type: Manual. Video processing: 10 bit, Video colour modes: Blackboard, Dynamic, Presentation, sRGB, Theatre. Noise level: 38 dB, Noise level (economic mode): 28 dB, Preset modes: Cinema, Dynamic, Presentation

3,700 lumens for a bright, sharp and engaging display: Ensure every detail is crystal clear with a 3,700-lumen HD-ready display up to 300" that delivers sharp, vibrant images even in well-lit spaces.
Portable short-throw design: A lightweight design combined with a short-throw ratio of 0.6:1 means large, clear images from a short distance, and the flexibility to be used in any environment.
Flexible connectivity with standard Ethernet and optional wireless: Includes a standard network port, optional wireless with ELPAP11, and 2x HDMI ports, while Epson’s iProjection app enables connectivity with almost any device.
Split-screen display: Display up to 4 inputs on one display using the projector’s split-screen capability.
Low maintenance: Long lamp life of up to 10,000 hours in Eco mode.
5-year warranty: High reliability and great peace of mind.

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HB62040

EAN
8715946738093

Bullet points

Point
3,700 lumens for a bright, sharp and engaging display

5-year warranty: High reliability and great peace of mind.

Flexible connectivity with standard Ethernet and optional wireless

Low maintenance: Long lamp life of up to 10,000 hours in Eco mode.

Portable short-throw design

Split-screen display

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Education

Placement
Ceiling, Desktop

Product colour
Black, White

Product type
Short throw projector

Features

Country of origin
Philippines

Interactive
No

Noise level
38 dB

Noise level (economic mode)
28 dB

Password protection
Yes

Preset modes
Cinema, Dynamic, Presentation

Lens system

F-number (relative aperture)
1.8

Focal length range
7.8 mm

Focus
Manual

Throw ratio
0.60 - 0.81:1

Zoom capability
Yes

Zoom ratio
1.35:1

Zoom type
Manual

Light source

Light source type
Lamp

Service life of light source
6500 h

Service life of light source (economic mode)
17000 h

Logistics data

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
16 W

Network

Ethernet LAN
Yes

Wi-Fi
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty Documents

Control panel
0.59 inch with C2 Fine

Interface

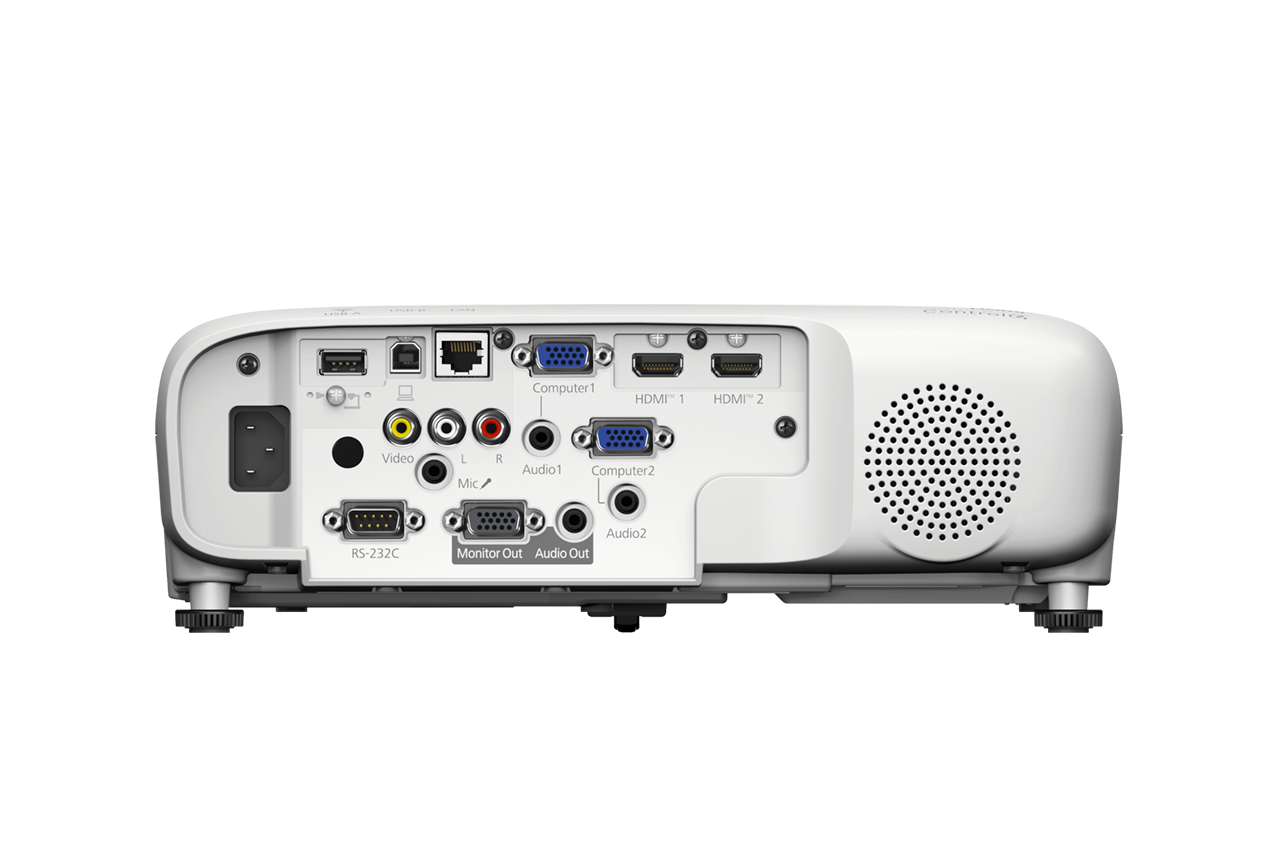

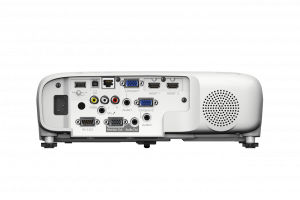

USB 2.0-A, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, Composite in, Microphone input, USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), HDMI in (2x), Jack plug out

Option type
Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Soft carry case, Spare lamp, WP System - ELPWP20, Wireless LAN unit

Security features
Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Password protection

Supported network protocols
IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Batteries included
Yes

Bundled software
Epson Projector Management, Web browser interface

Remote control included
Yes

Ports & interfaces

DVI port
Yes

HDBaseT port
Yes

HDMI ports
2

HDMI version
2.3

USB 2.0 ports quantity
1

USB 2.0 Type-A ports quantity
1

VGA (D-Sub) ports quantity
0

Power

AC adapter output voltage
100 - 240 V

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power source
AC

Projector

Contrast ratio (dynamic)
16000:1

Keystone correction, horizontal
±15°

Keystone correction, vertical
±15°

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection technology
3LCD

Projector brightness
3700 ANSI lumens

Projector brightness (economic mode)
2000 ANSI lumens

Projector native resolution
WXGA (1280x800)

Screen size compatibility
1270 - 7620 mm (50 - 300")

Vertical scan range
100 - 120 Hz

Storage

Card reader integrated
No

Technical details

Mobile app support
Yes

Other features
A/V mute, Auto source search, Automatic keystone correction, Built-in speaker, Customizable user logo, Digital zoom, JPEG Viewer, Long lamp life, Microphone input, OSD copy function
