Description

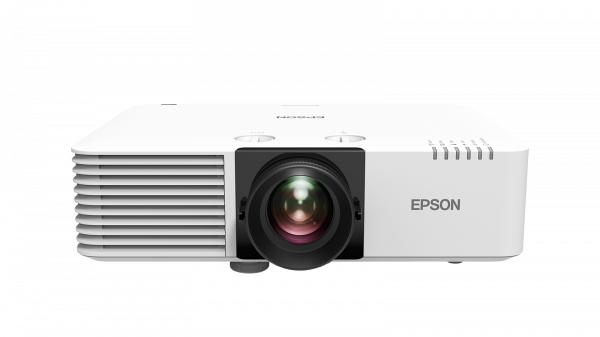

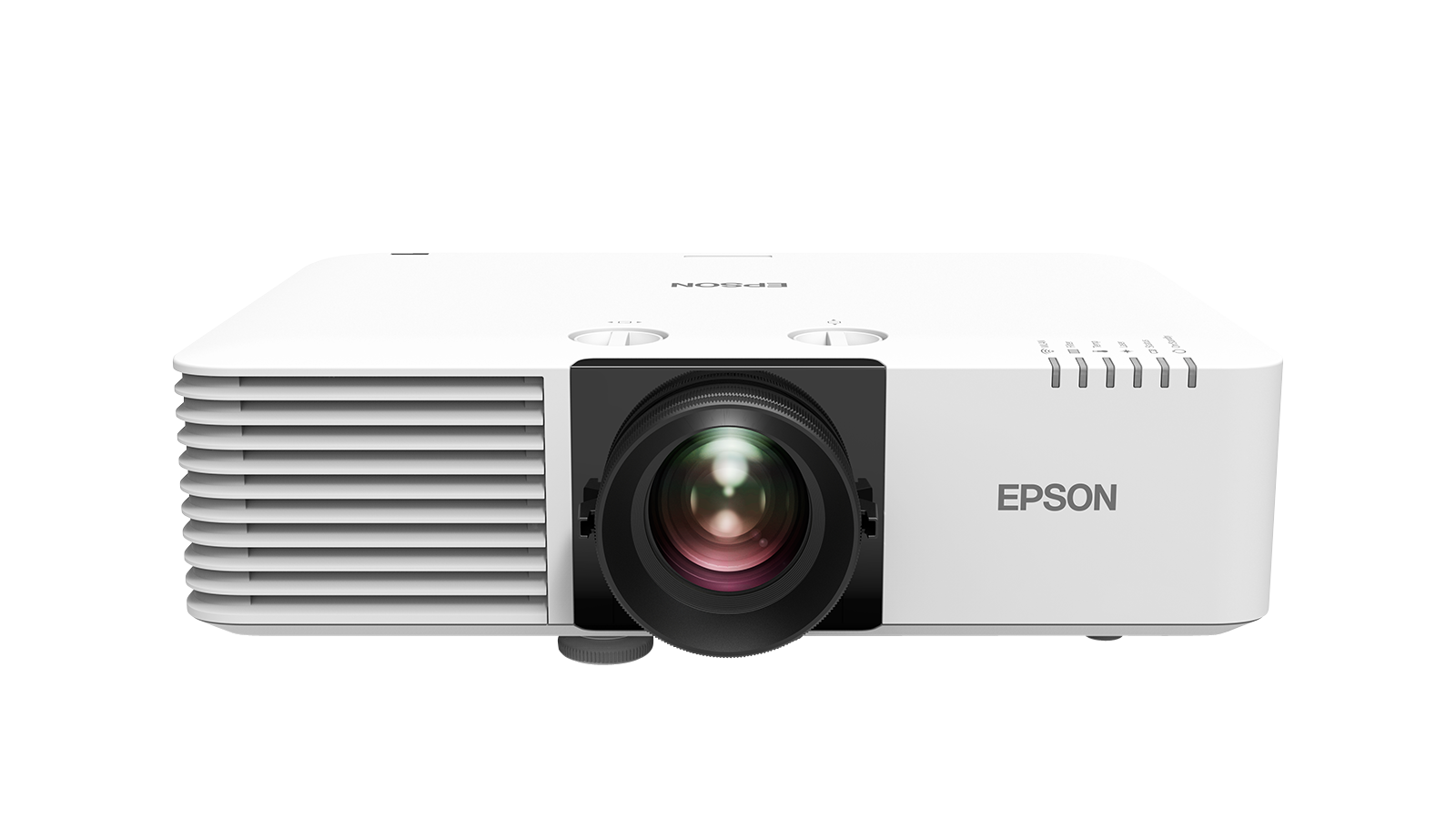

Epson EB-L570U. Projector brightness: 5200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Video processing: 10 bit, Video colour modes: BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation. Serial interface type: RS-232C

5,200-lumen brightness: Sharp images and vivid colours, even in well-lit rooms
4KE resolution: Sharp 4KE images for excellent clarity
BYOD connectivity: with optional wireless or wired and HDBaseT
Effortless, flexible installation: Compact with wide lens shift and multi-projection functions
Large image: Scalable display size of up to 500 inches

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA98080

EAN
8715946714912

Bullet points

Point
4KE resolution: Sharp 4KE images for excellent clarity

5,200-lumen brightness: Sharp images and vivid colours, even in well-lit rooms

BYOD connectivity: with optional wireless or wired and HDBaseT

Effortless, flexible installation: Compact with wide lens shift and multi-projection functions

Large image: Scalable display size of up to 500 inches

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Business

Product colour
White

Features

Country of origin
Philippines

High Dynamic Range (HDR) supported
Yes

High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)

Interactive
No

Noise level
31 dB

Noise level (economic mode)
23 dB

Password protection
Yes

Lens system

Aperture range (F-F)
1.5 - 1.7

Focal length range
20 - 31.8 mm

Focus
Manual

Horizontal lens shift range
-20 - 20%

Throw ratio
1.35 - 2.20:1

Vertical lens shift range
-50 - 50%

Zoom capability
Yes

Zoom ratio
1.6:1

Zoom type
Manual

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Pallet gross height
2.03 m

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
2.03 m

Pallet length (UK)
120 cm

Products per pallet
16 pc(s)

Products per pallet (UK)
16 pc(s)

Products per pallet layer
2 pc(s)

Products per pallet layer (UK)
2 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
10 W

Network

Ethernet LAN
No

Wi-Fi
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
Cable cover, HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents

Control panel
0.67 inch with C2 Fine

Interface

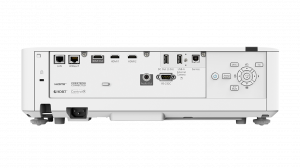

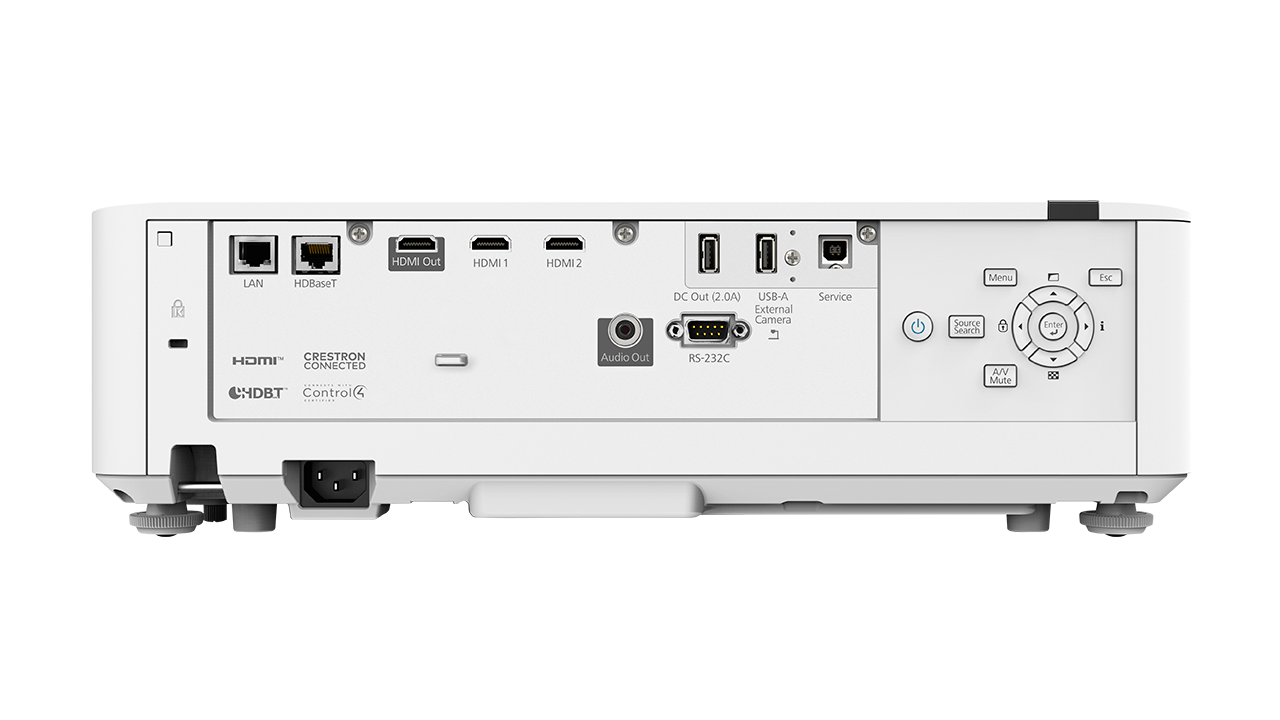

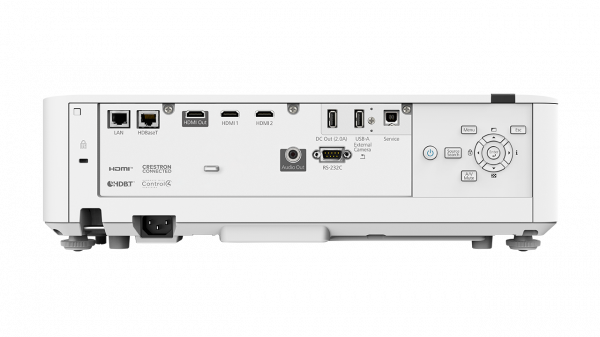

USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Ethernet interface (100 Base-TX / 10 Base-T)

Option type
Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP20

Security features
Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection

Supported network protocols
HTTPS, IPv6, SNMP, PJLink

Packaging content

Batteries included
Yes

Bundled software
Epson Projector Management

Cables included
AC

Remote control included
Yes

Ports & interfaces

DVI port
No

HDBaseT port
Yes

HDMI ports
3

Serial interface type
RS-232C

USB 2.0 ports quantity
2

USB 2.0 Type-A ports quantity
1

USB 2.0 Type-B ports quantity
1

Power

AC adapter output voltage
100 - 240 V

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
199 W

Power consumption (max)
260 W

Power consumption (standby)
2 W

Power consumption (typical)
201 W

Power source
AC

Projector

Contrast ratio (dynamic)
5000000:1

Contrast ratio (typical)
2500000:1

Keystone correction, horizontal
±30°

Keystone correction, vertical
±30°

Matrix size
1.7 cm (0.67")

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection distance
1.44 - 23.84 m

Projection distance (tele)
2.4 - 23.8 m

Projection distance (wide)
1.4 - 14.8 m

Projection technology
3LCD

Projector brightness
5200 ANSI lumens

Projector brightness (economic mode)
3640 ANSI lumens

Projector native resolution
WUXGA (1920x1200)

Screen size compatibility
1270 - 12700 mm (50 - 500")

Storage

Card reader integrated
No

Technical details

Mobile app support
Yes

Other features
21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App

Video

Analog signal format system
Not supported

Full HD
Yes

Video colour modes
BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

Video processing
10 bit

Weight & dimensions

Depth
304 mm

Height
122 mm

Package depth
575 mm

Package height
235 mm

Package weight
12.4 kg

Package width
540 mm

Weight
8.3 kg

Width
440 mm
