Description

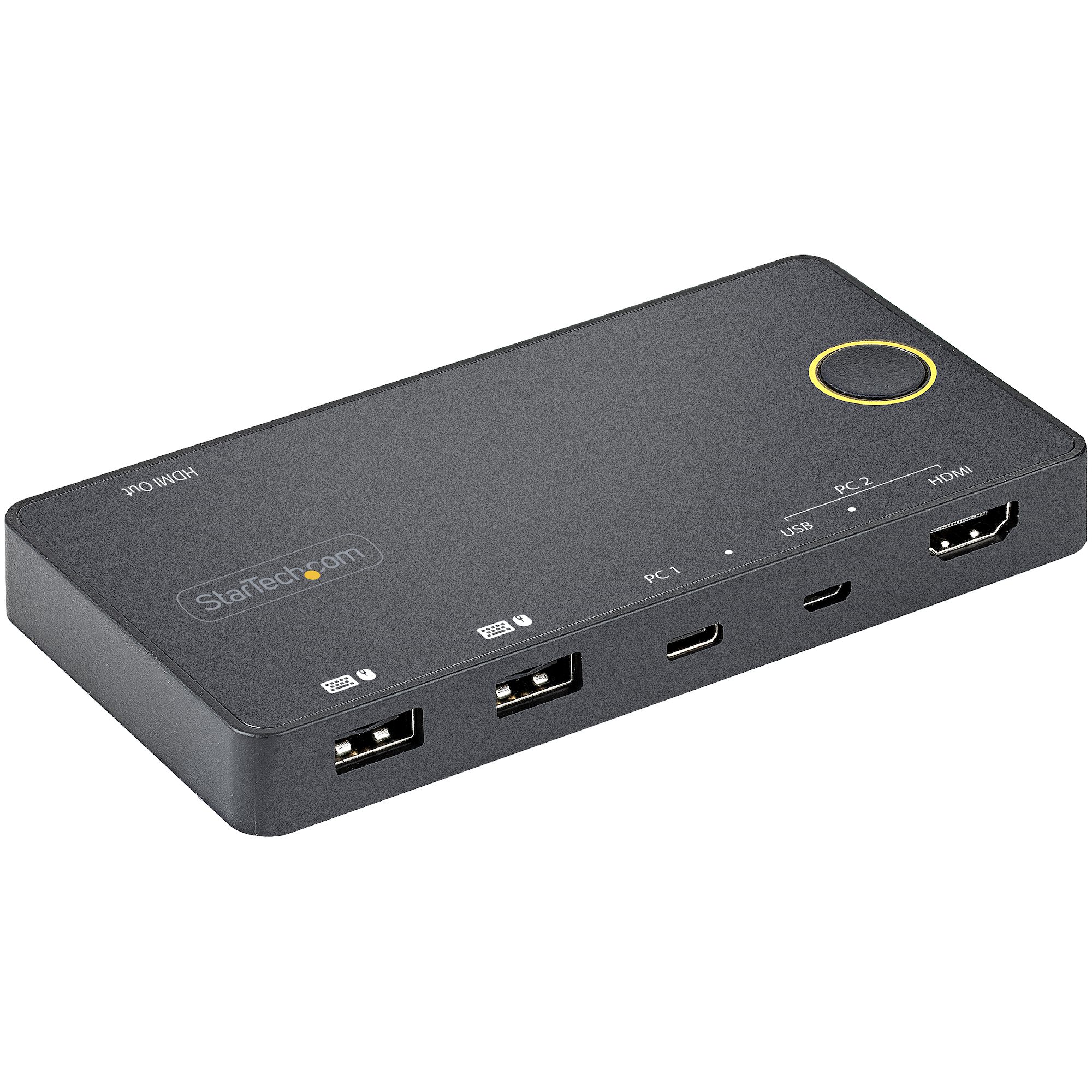

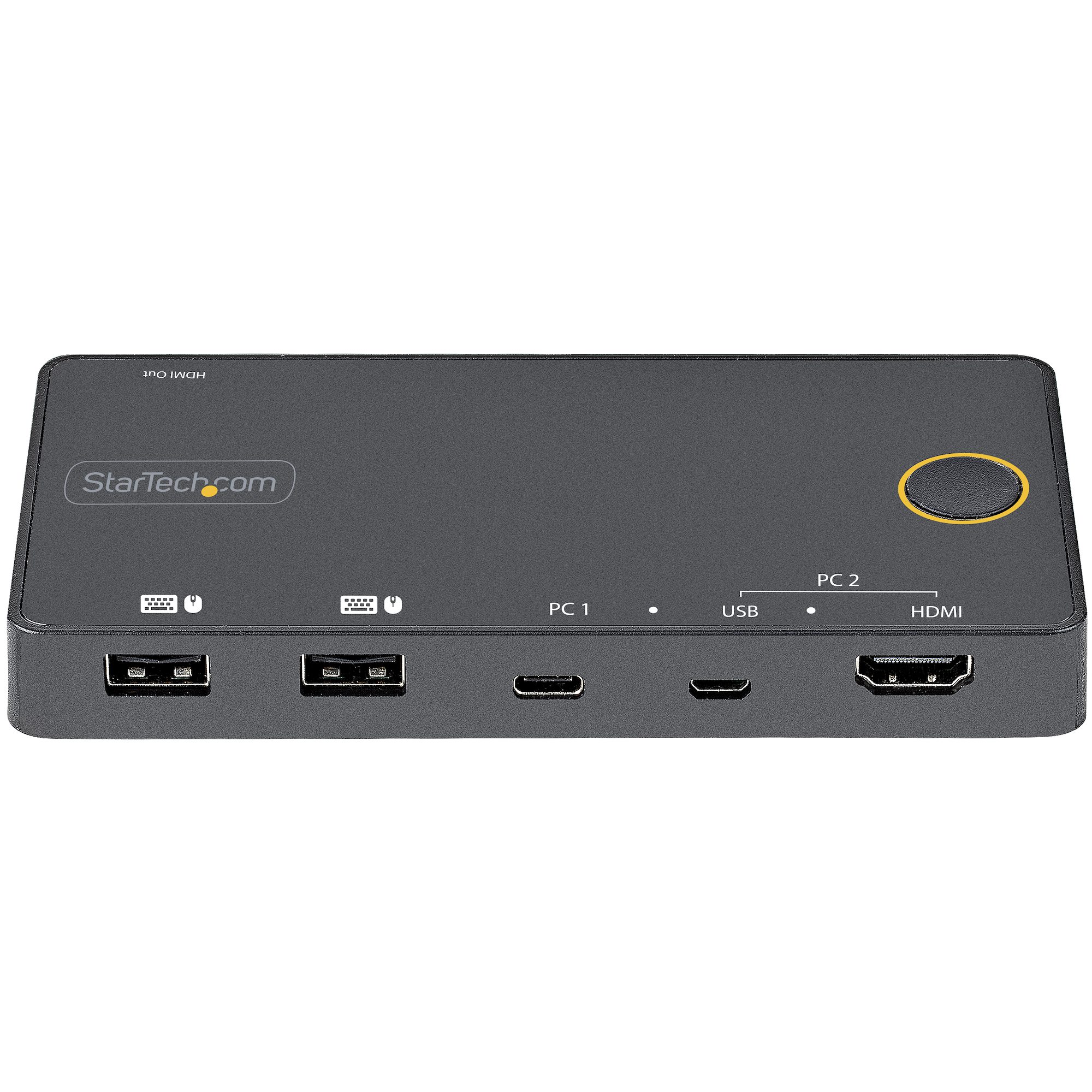

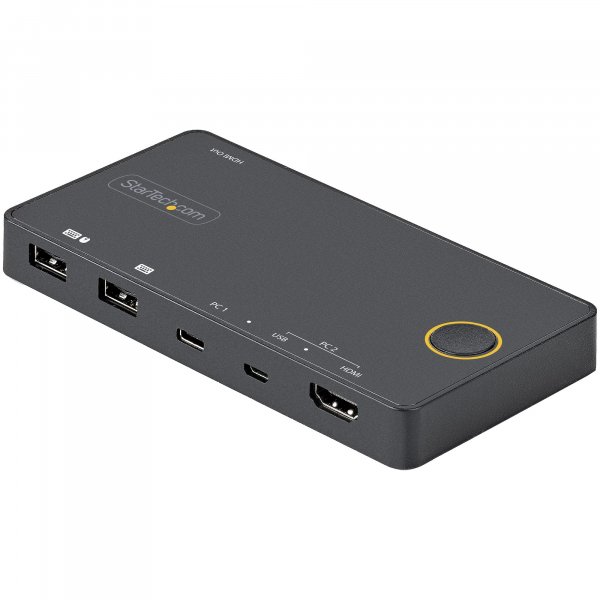

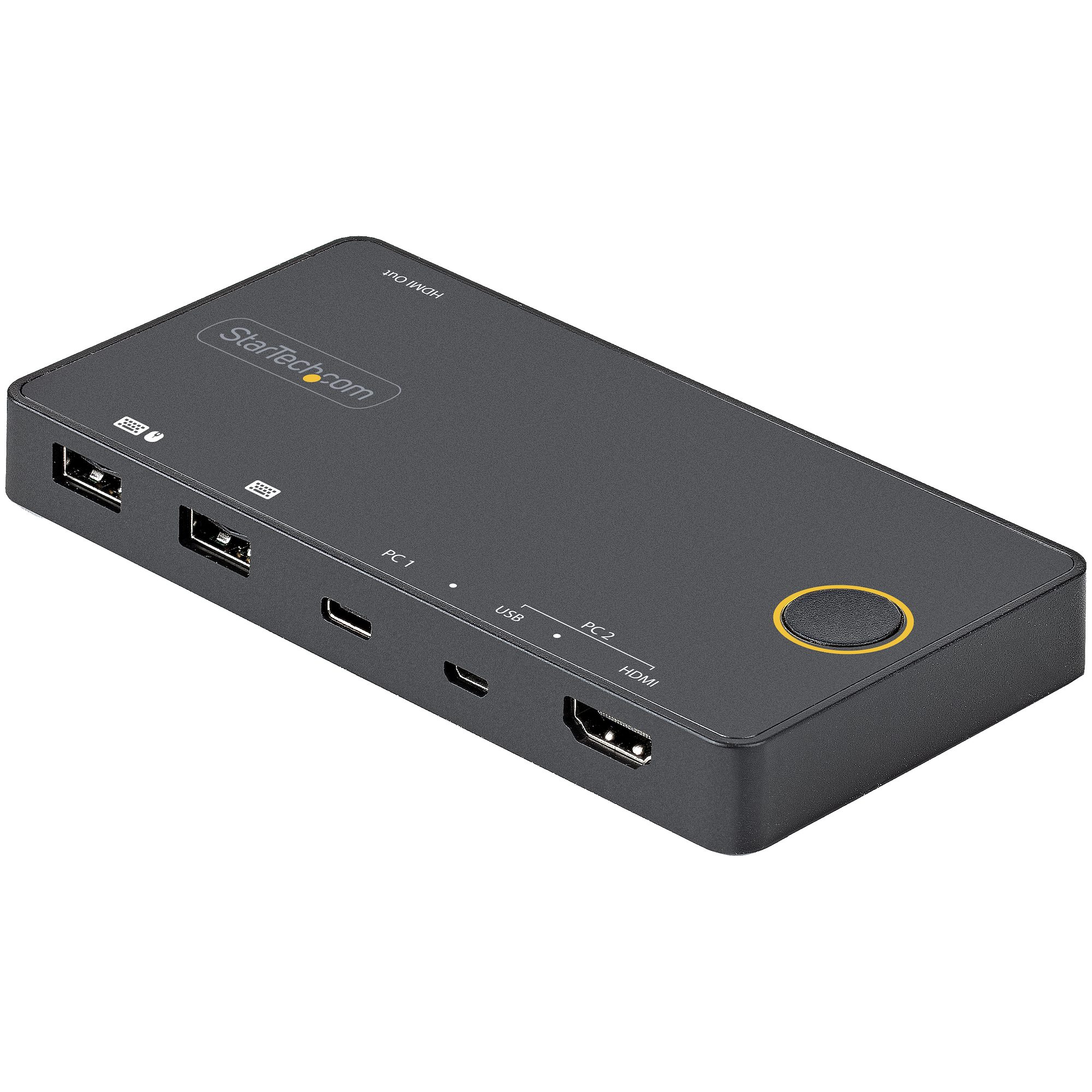

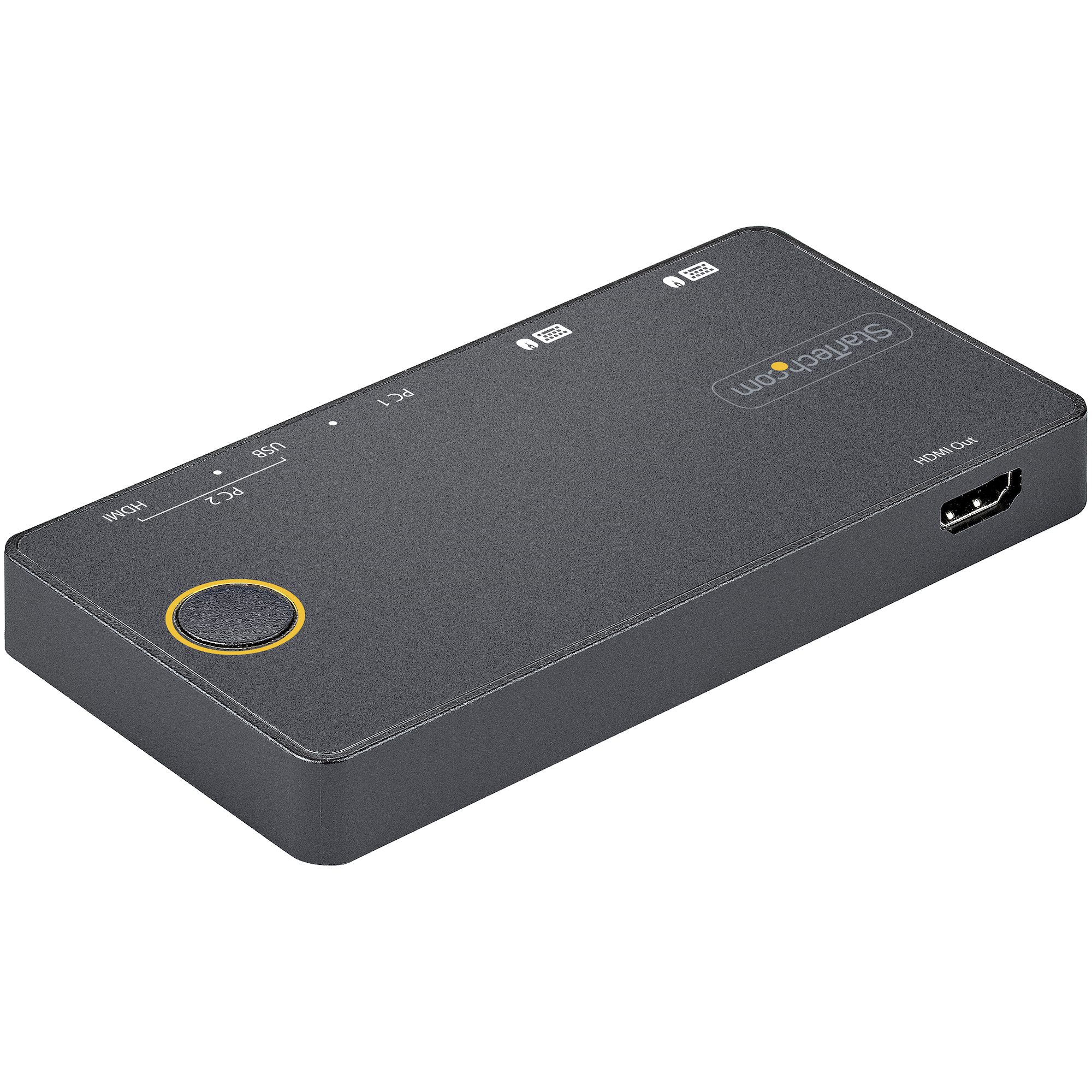

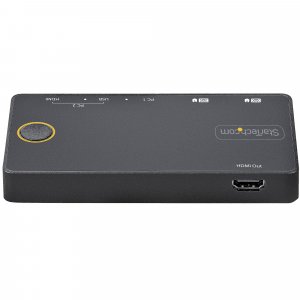

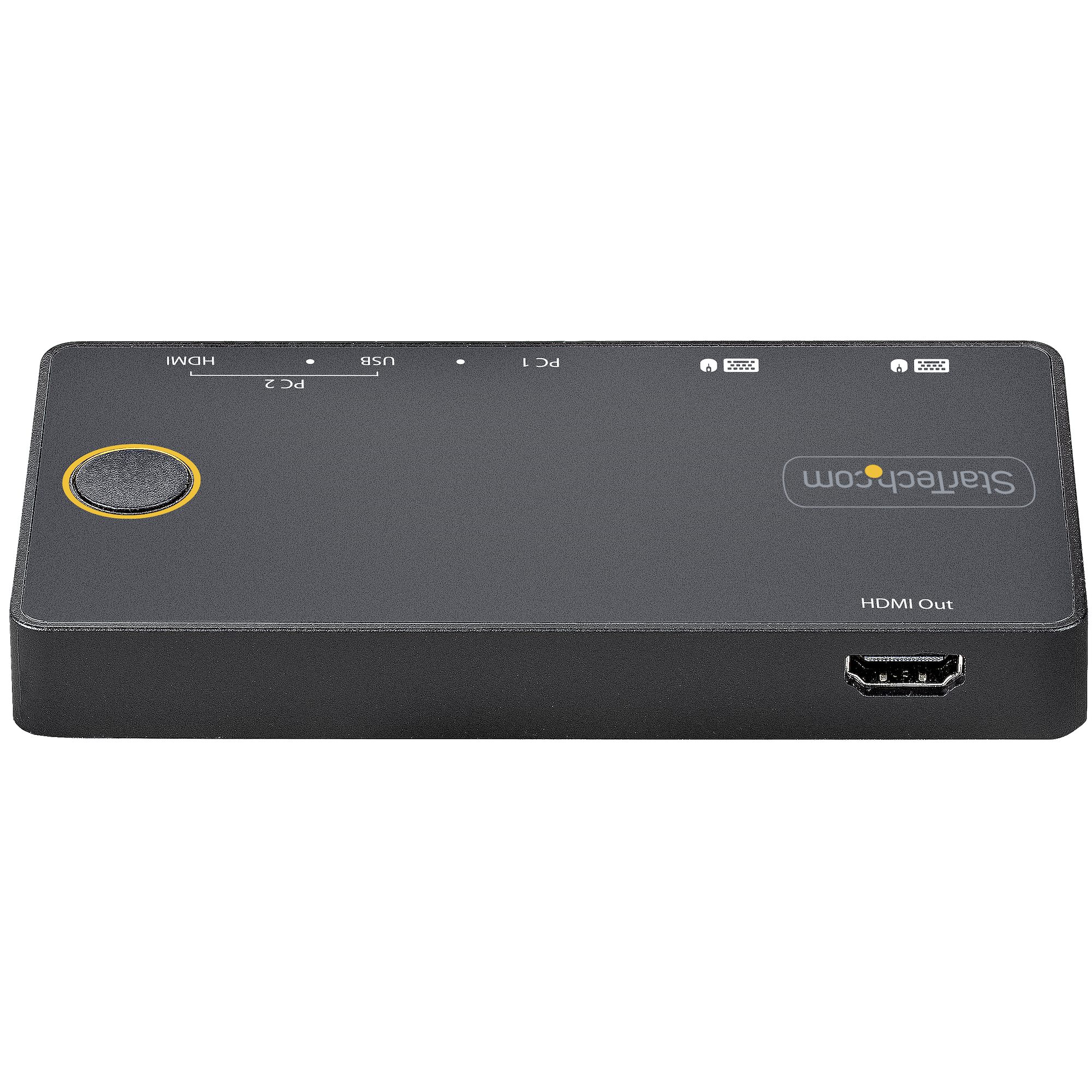

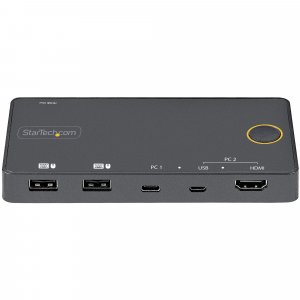

StarTech.com 2 Port Hybrid USB-A + HDMI & USB-C KVM Switch - Single 4K 60Hz HDMI 2.0 Monitor - Compact Desktop and/or Laptop HDMI KVM Switch - USB Bus Powered - Thunderbolt 3 Compatible. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Mean time between failures (MTBF): 50000 h. Width: 138 mm, Depth: 70 mm, Height: 15 mm. Package width: 120 mm, Package depth: 172 mm, Package height: 85 mm

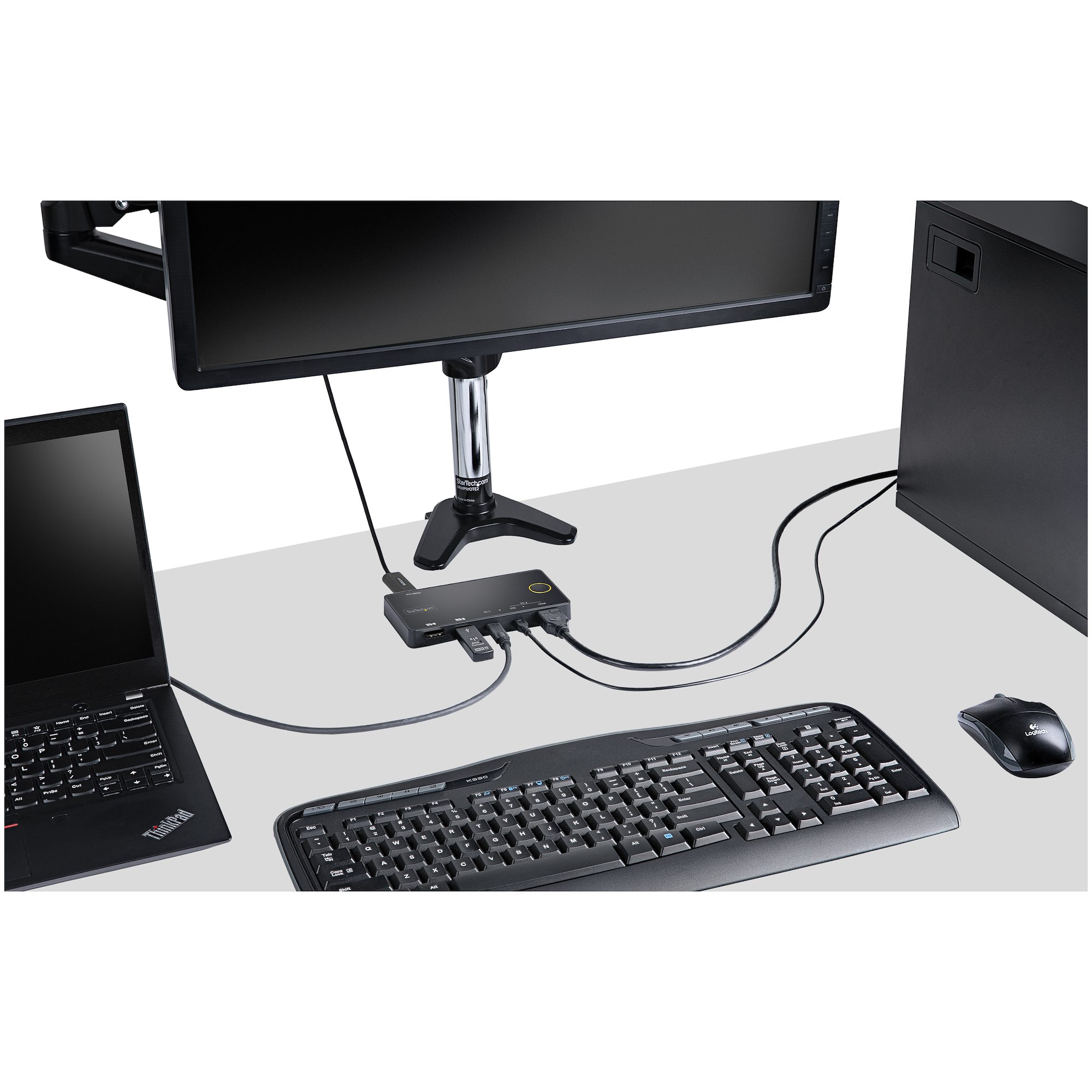

HYBRID KVM SWITCH: Enables easy switching between a USB-C (DP Alt Mode) computer/tablet and an HDMI + USB-A desktop/laptop to share 1 keyboard, 1 mouse and 1 HDMI monitor; Use a convenient single USB-C cable for video & data for your USB-C/TB3 device

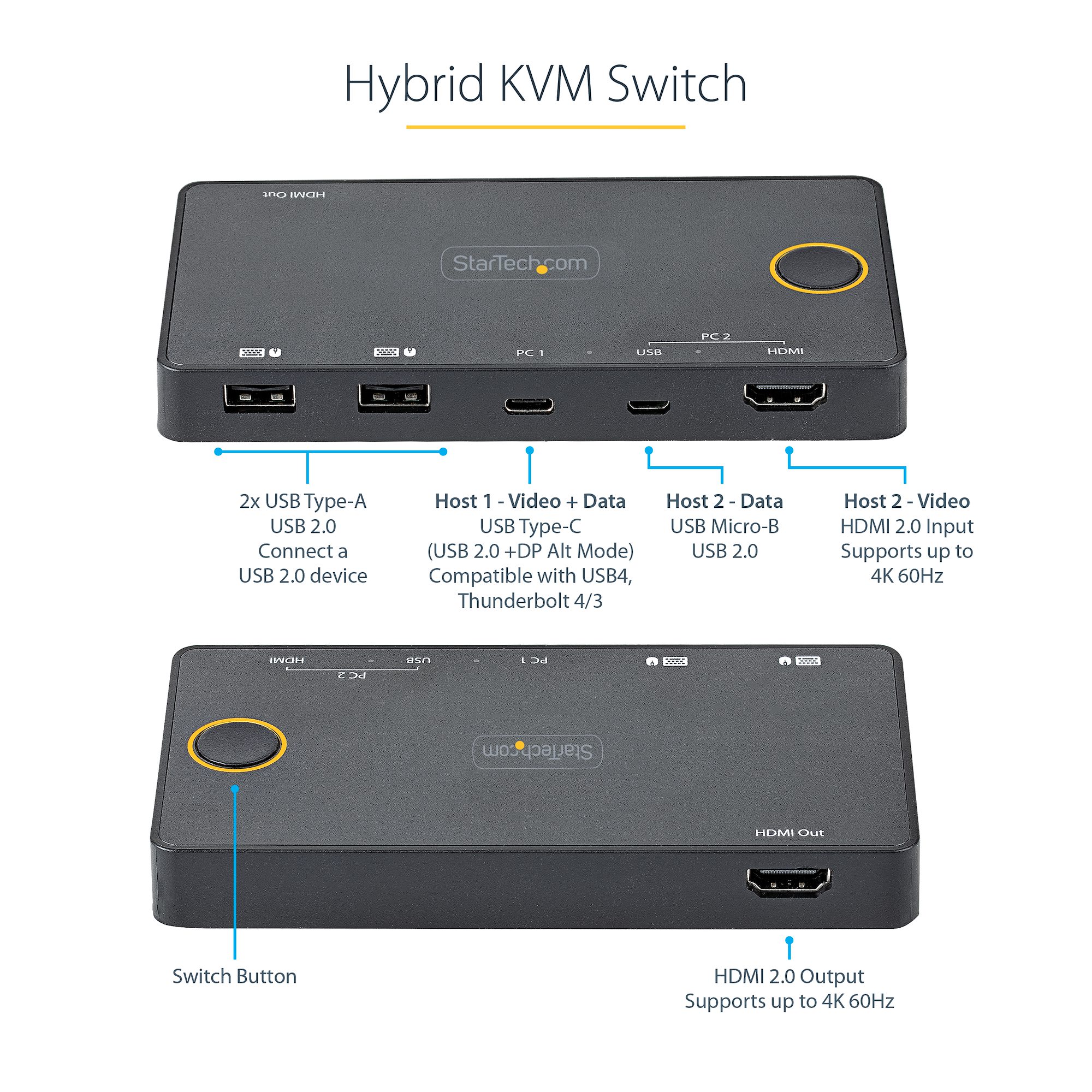

SPECS: HOST PC 1: 1x USB-C / HOST PC 2: 1x HDMI + 1x USB-A / 4K 60Hz UHD / 3840x2160 / HDMI 2.0 Video Output / Push-Button Switching / Bus Powered / OS Independent / Works with Thunderbolt 3

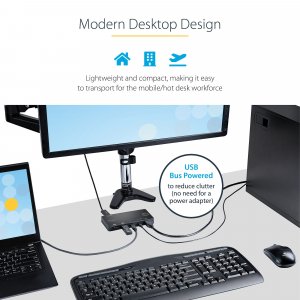

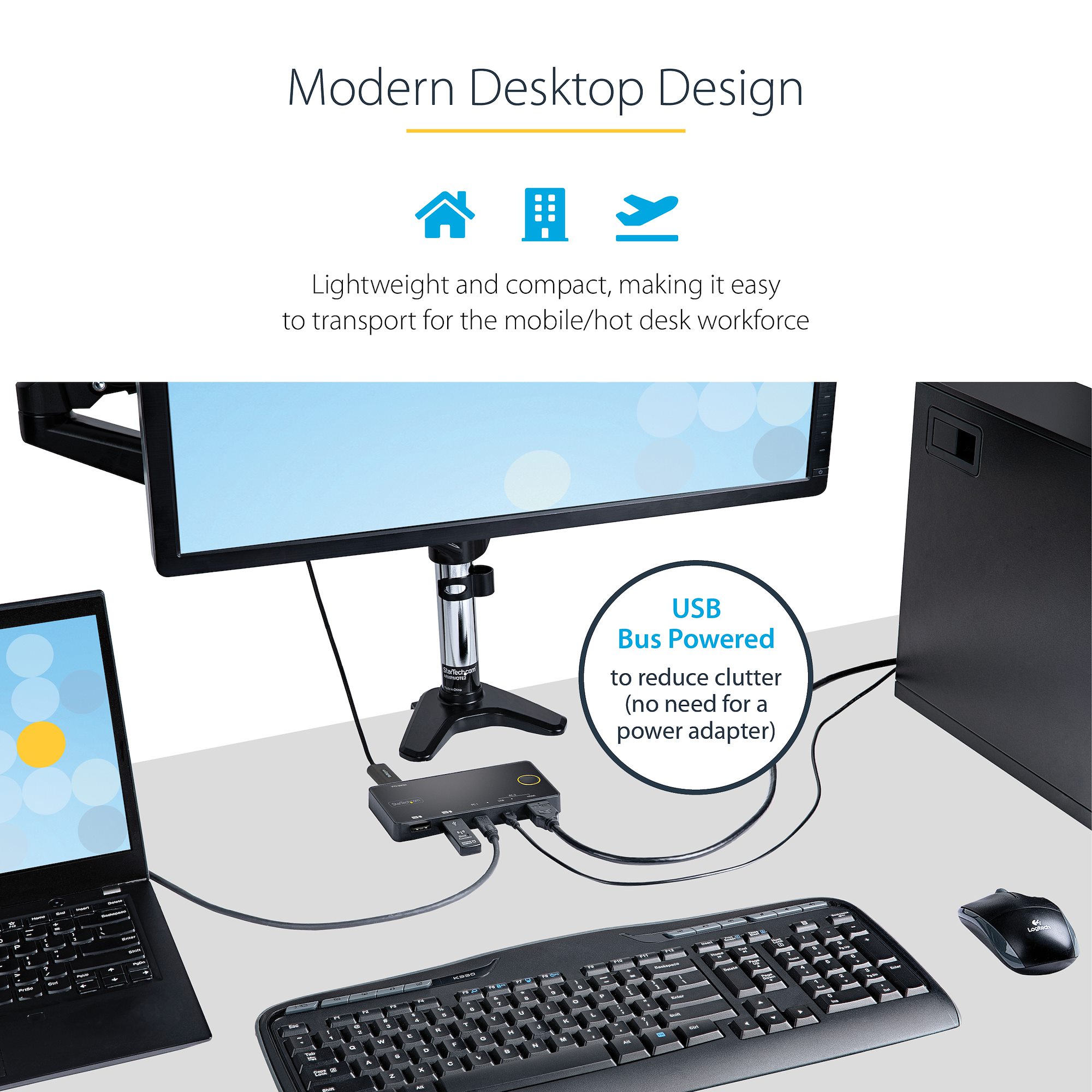

MODERN DESKTOP DESIGN: USB-C KVM Switch is USB powered to reduce clutter by avoiding the need for a power adapter; the lightweight small form factor makes this mini KVM Switch easy to carry for the mobile/hot desk workforce; Compact design

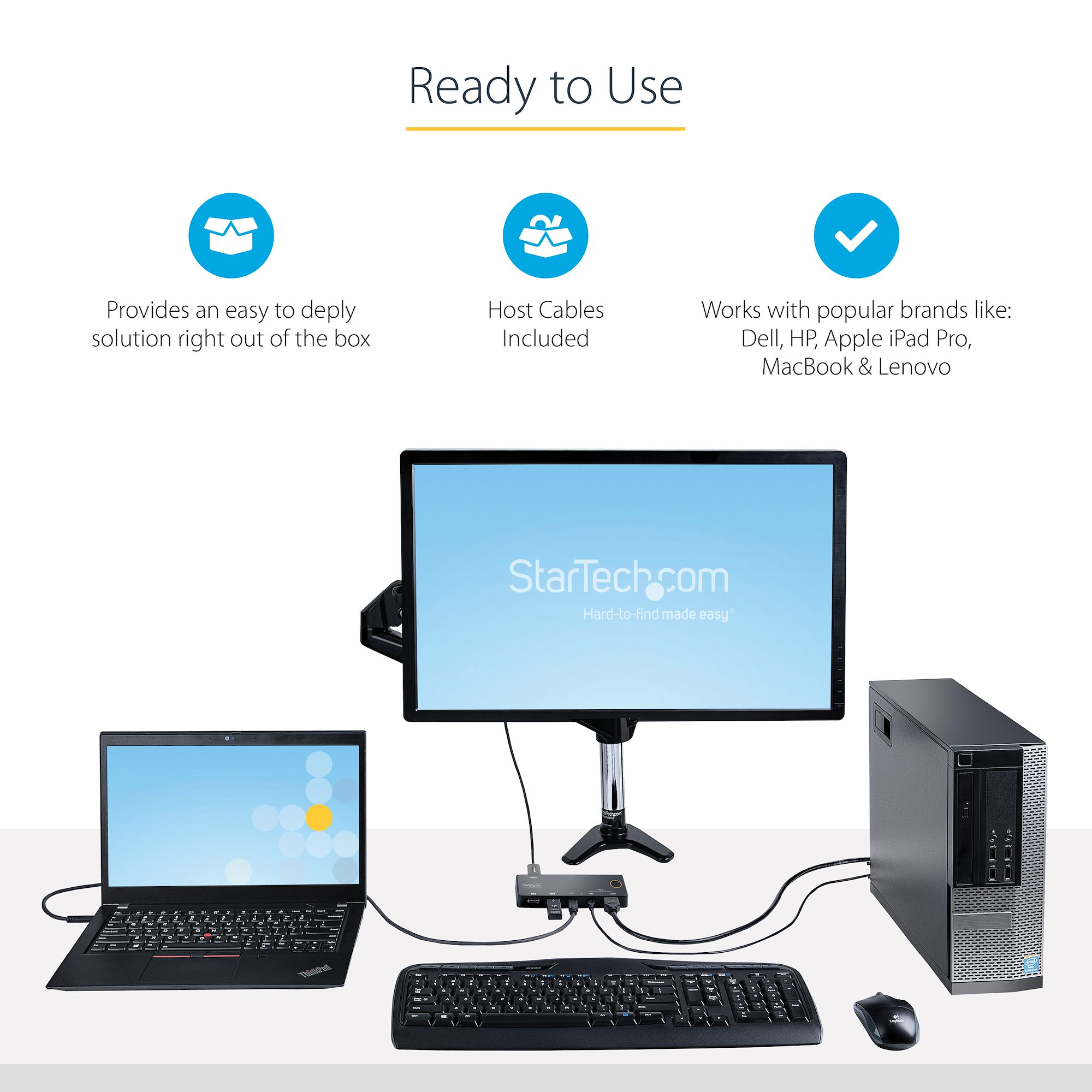

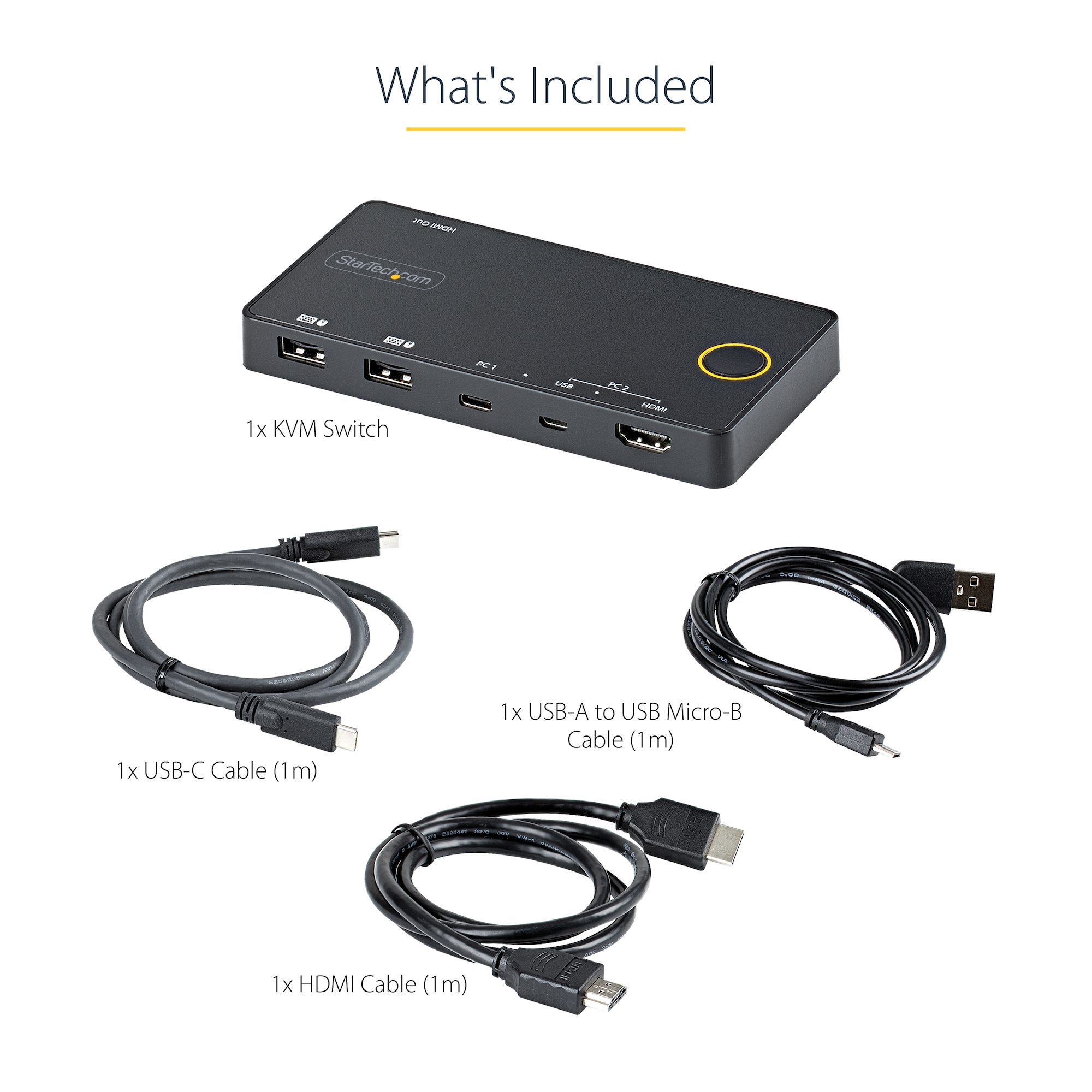

READY TO USE: Cables for host computers are included (USBC to USBC, USB-A to Micro USB-B & HDMI); the dual port KVM switch provides an easy to deploy solution straight out of the box; works w/ popular brands like Dell, HP, Apple iPad Pro/MacBook & Lenovo
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 2-Port USB Type-C & USB + HDMI KVM Switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Product Properties

Manufacturer
StarTech.com

Model
SV221HUC4K

EAN
65030891820

Bullet points

Point
HYBRID KVM SWITCH

MODERN DESKTOP DESIGN

READY TO USE

SPECS

STARTECH.COM ADVANTAGE

Design

Hot keys
No

LED indicators
Yes

Mean time between failures (MTBF)
50000 h

Product colour
Black

Push button
Yes

Rack mounting
No

Display

Built-in display
No

On Screen Display (OSD)
No

Logistics data

Harmonized System (HS) code
85176200

Master (outer) case height
370 mm

Master (outer) case length
470 mm

Master (outer) case width
410 mm

Products per master (outer) case
20 pc(s)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 55 °C

Storage temperature (T-T)
-20 - 50 °C

Other features

IP control
No

Packaging content

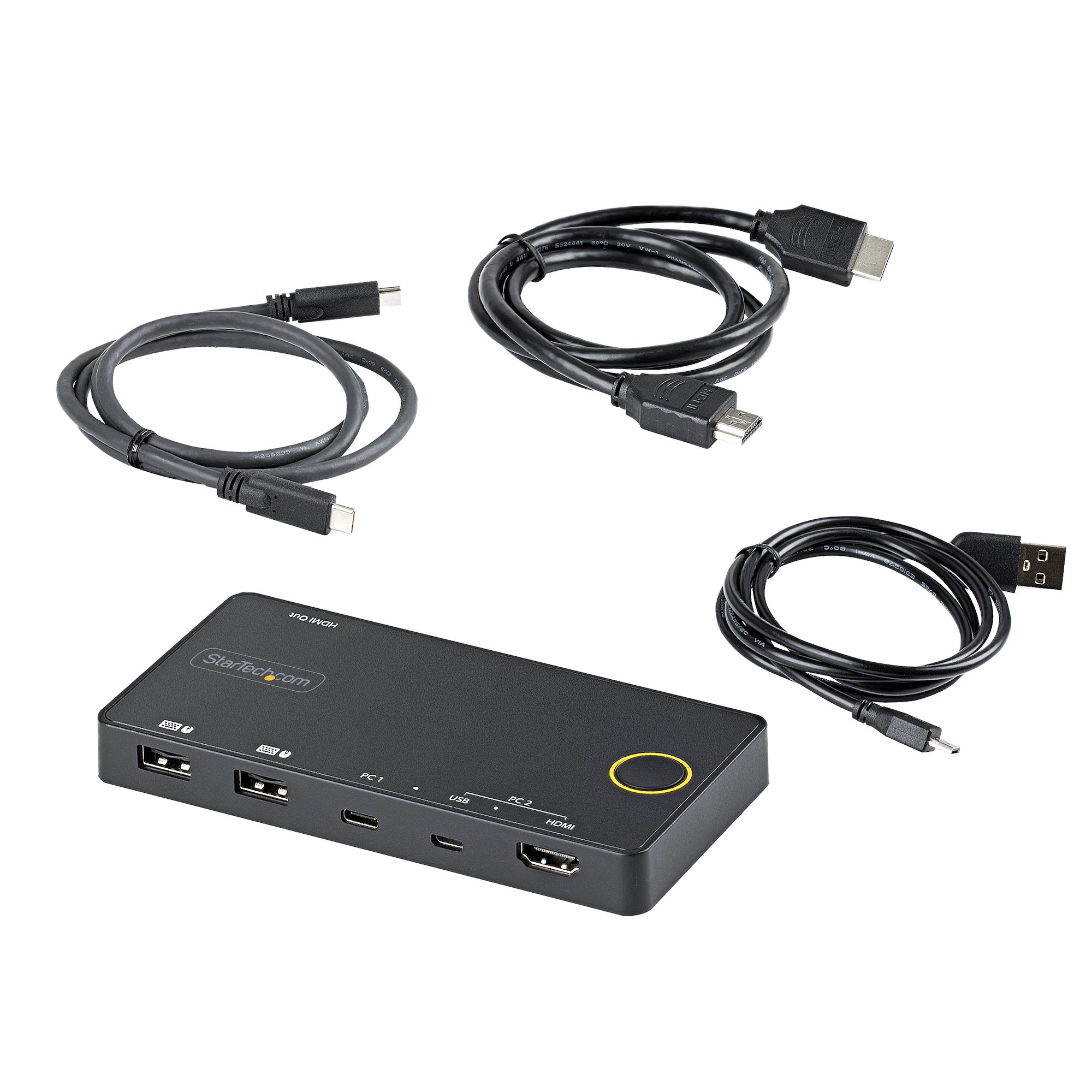

Cables included
HDMI, Micro-USB, USB Type-C to USB Type-C

Quick installation guide
Yes

Packaging data

Package depth
172 mm

Package height
85 mm

Package weight
250 g

Package width
120 mm

Performance

Audio channels
7.1

Chipset
Parade - PS176, VLI - VL170, Terminus - FE1.1S

Daisy chain
No

Data transfer rate (max)
0.48 Gbit/s

HD type
4K Ultra HD

Maximum resolution
3840 x 2160 pixels

Number of displays supported
1

Video bandwidth
60 Hz

Ports & interfaces

DisplayPort version
1.2

HDMI ports
2

HDMI version
2.0

Keyboard port type
USB

Mouse port type
USB

Number of computers controlled
2

USB connector type
Micro-USB B, USB Type-A, USB Type-C

Video port type
HDMI

Power

USB powered
Yes

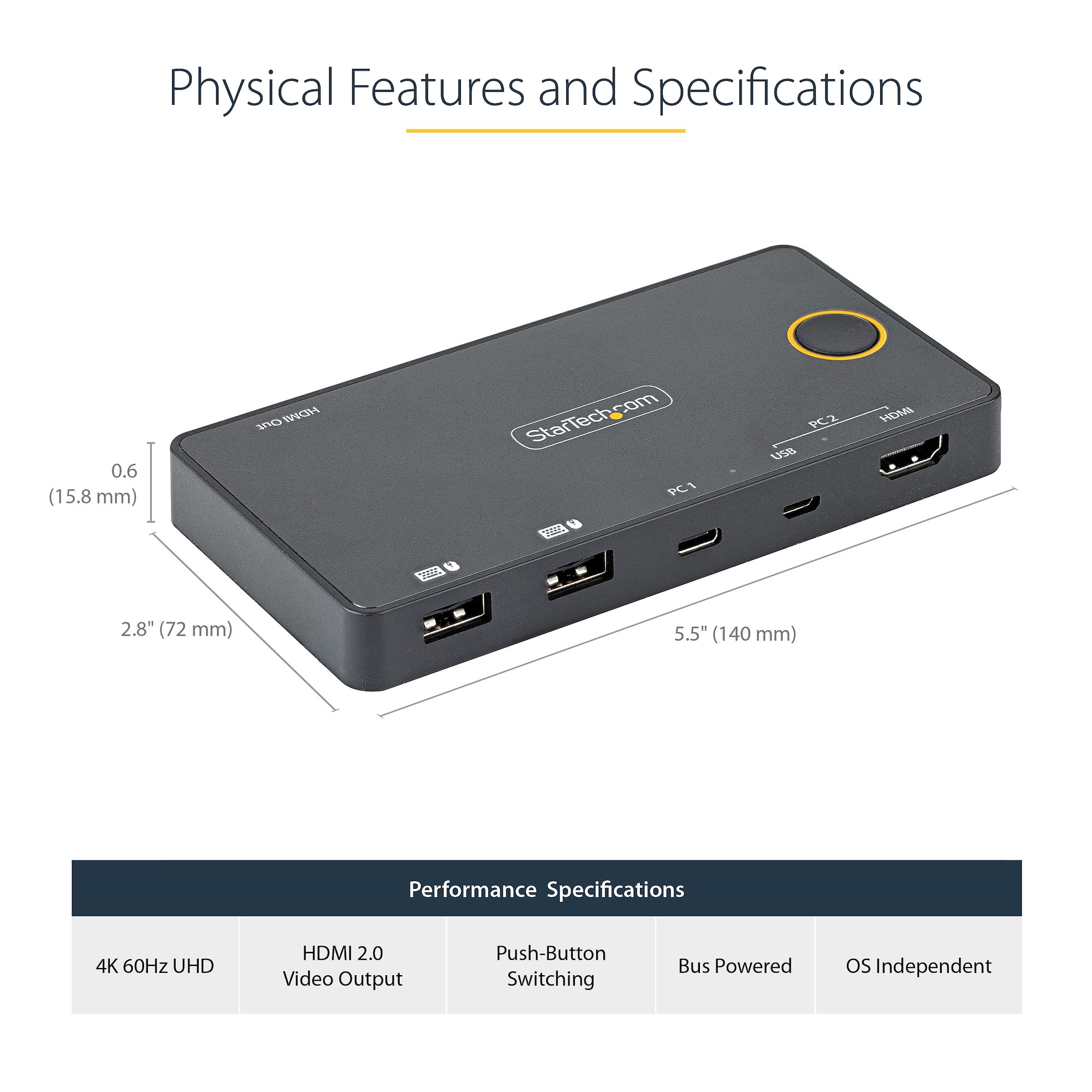

Weight & dimensions

Depth
70 mm

Height
15 mm

Weight
200 g

Width
138 mm
