Model: USBC-PWRTESTER
EAN: 65030904469

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester

Manufacturer:
StarTech.com
StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester, 57 mm, 23 mm, 10 mm, 12 g, 80 mm, 84 mm
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester. Width: 57 mm, Depth: 23 mm, Height: 10 mm. Master (outer) case width: 430 mm, Master (outer) case length: 180 mm, Master (outer) case height: 270 mm

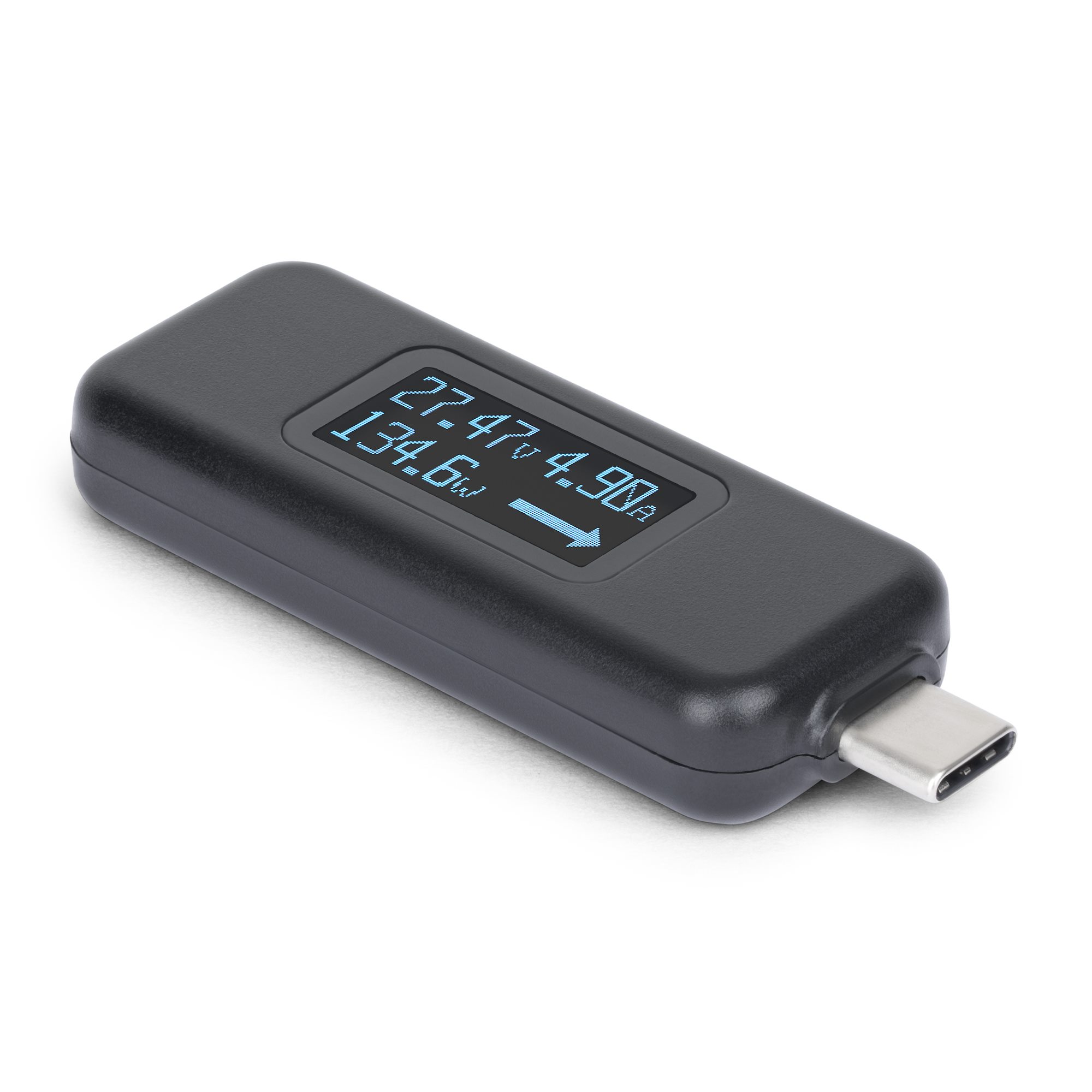

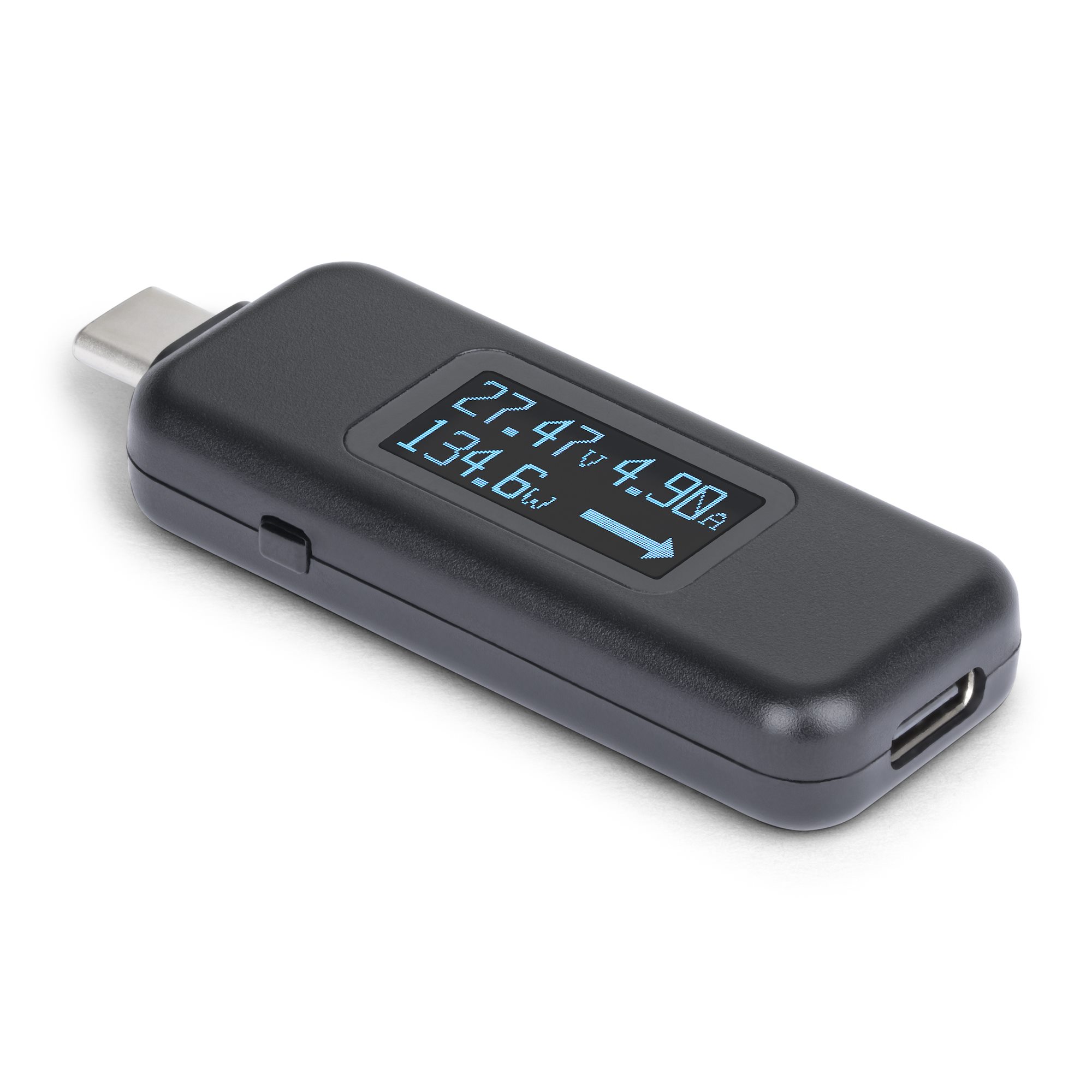

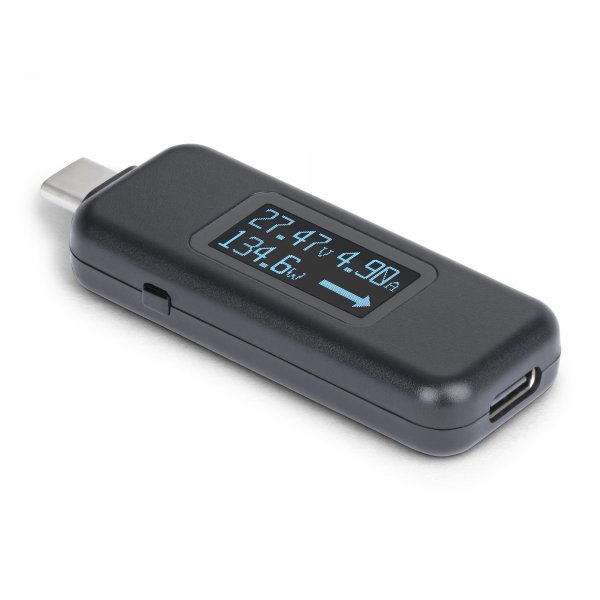

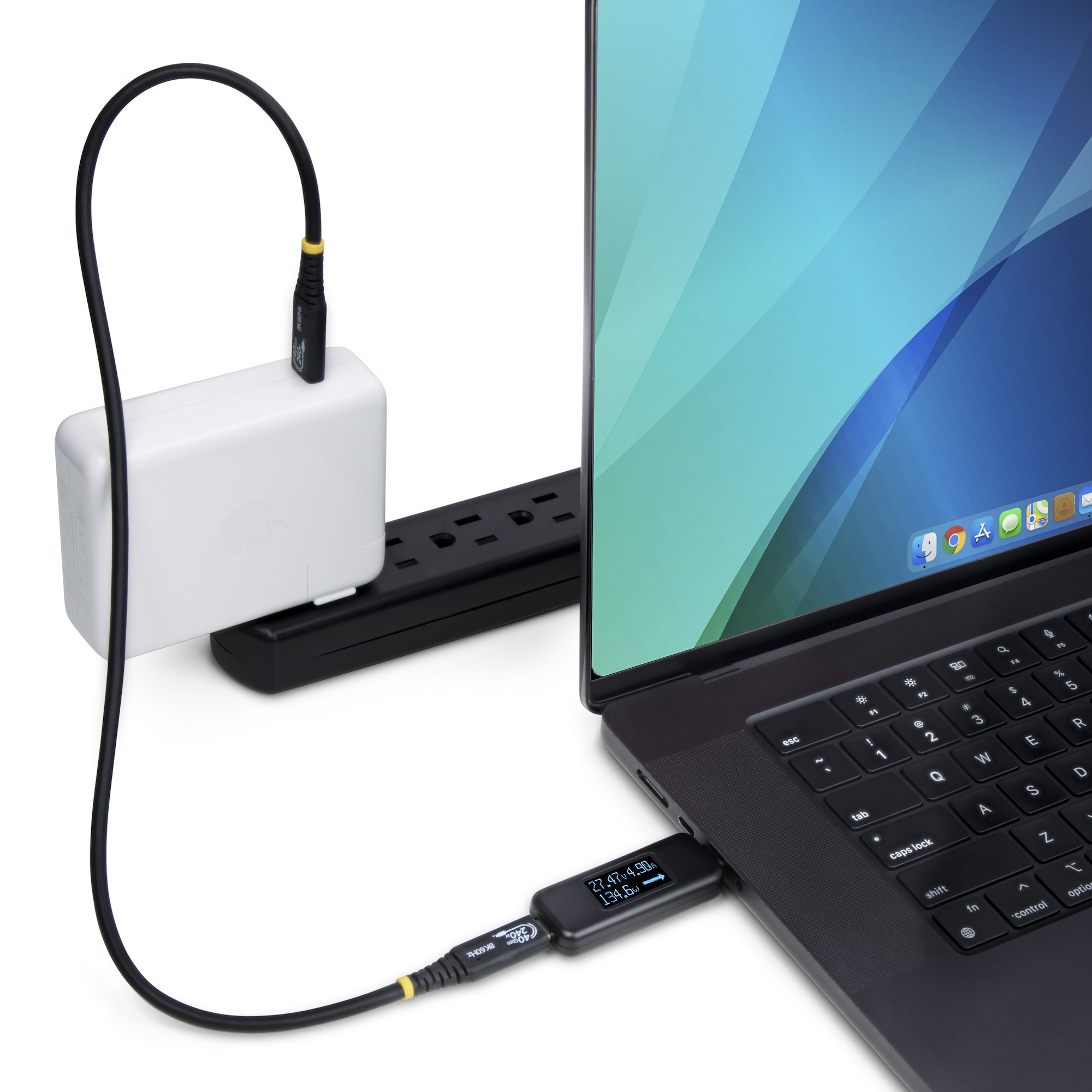

  • PORTABLE USB-C POWER TESTING: Measure Voltage, Current, and Wattage in any direction with this bi-directional USB-C Power Tester; Digital display w/180° flip rotation provides real-time at-a-glance readings; Portable design ideal for IT Pros on-the-go

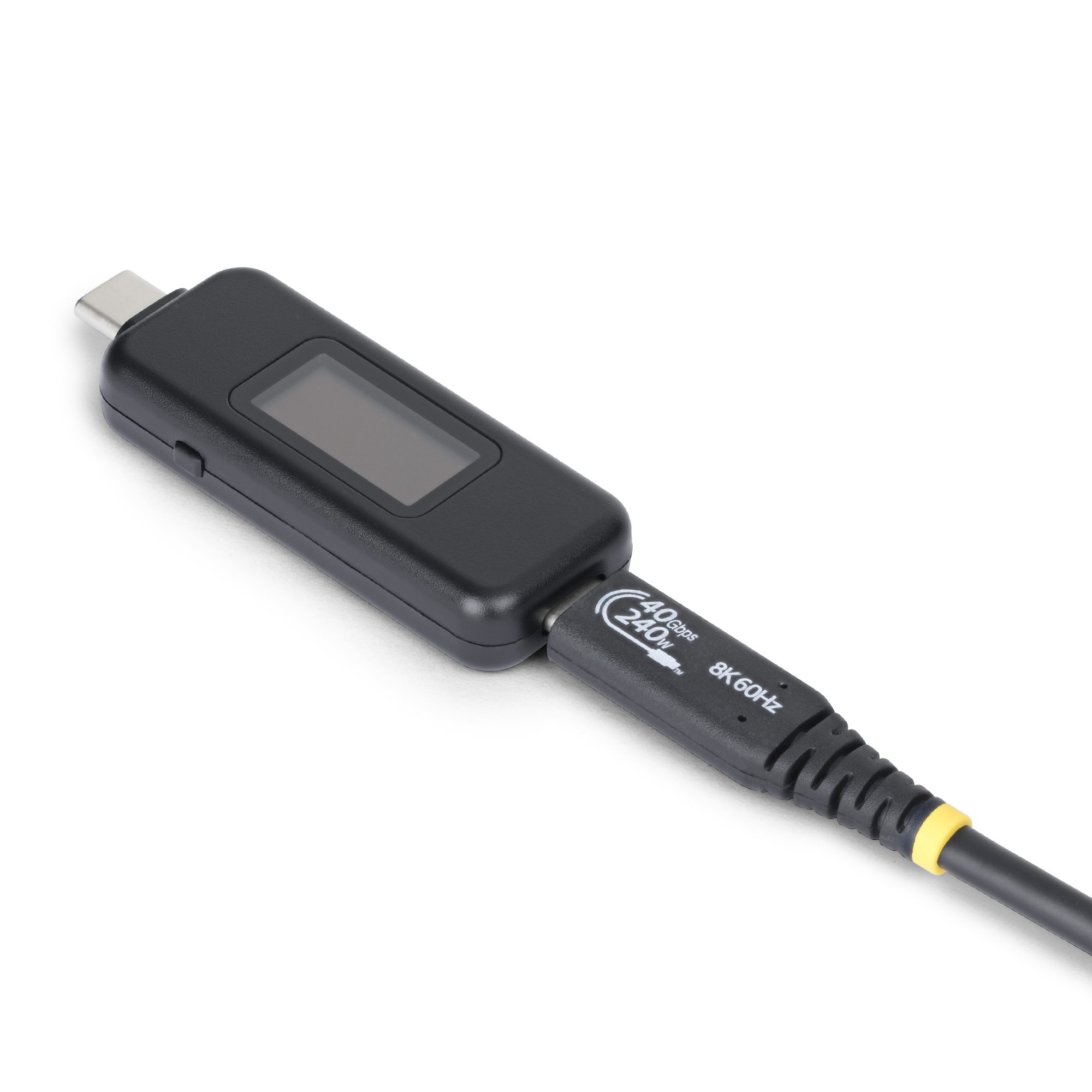

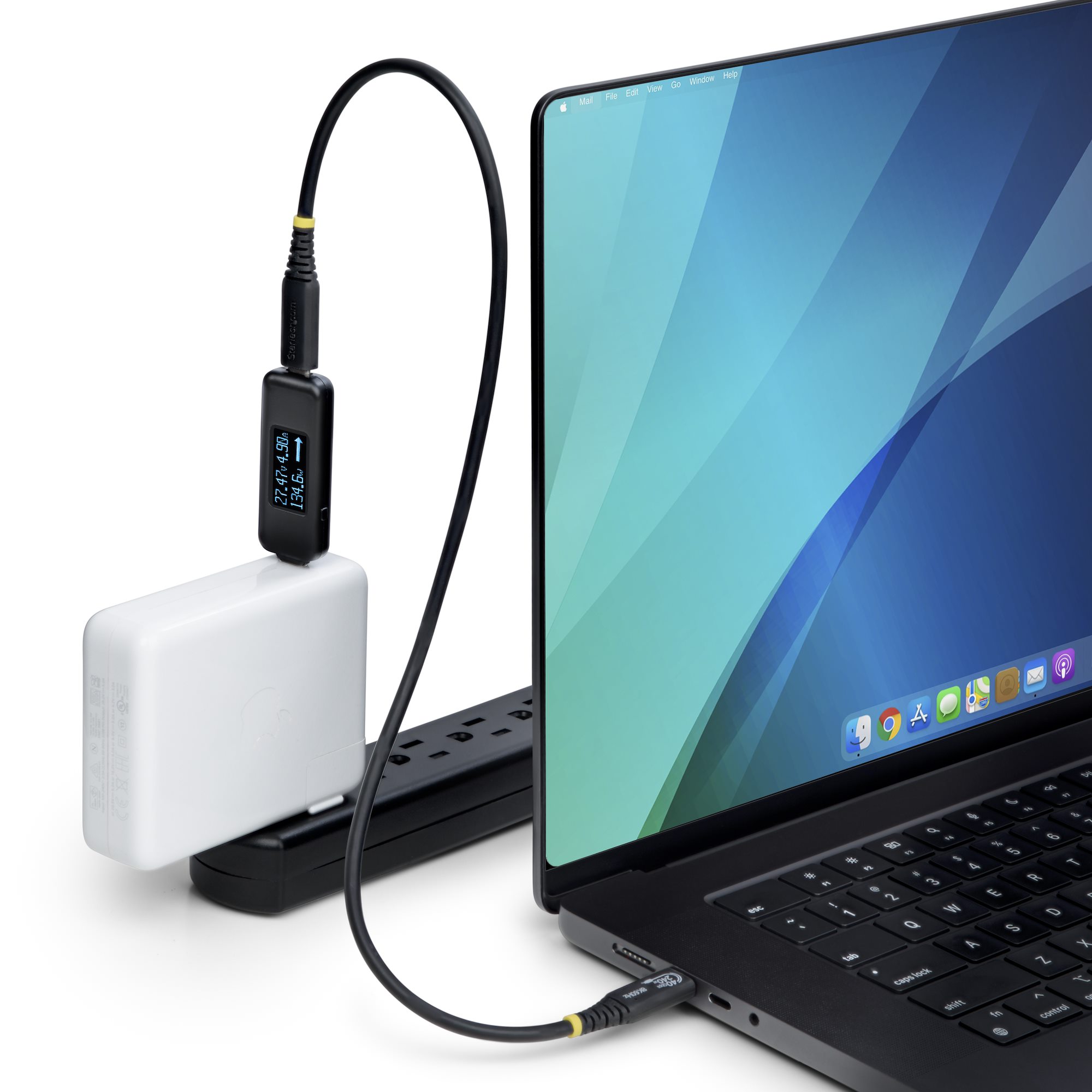

  • SIMPLIFY TROUBLESHOOTING: Quickly identify Power Delivery issues between USB-C docking stations, chargers/hubs, and connected devices; Test USB-C cables to ensure full power transmission from USB-C sources; Validate performance of high-power devices
  • UNIVERSAL COMPATIBILITY: Supports USB data pass-through up to 10Gbps, including DP Alt Mode video (backward compatible); Measures up to 4.5V-50V/50mA-6.5A operating range, and 240W USB Power Delivery 3.1 Extended Power Range (EPR)

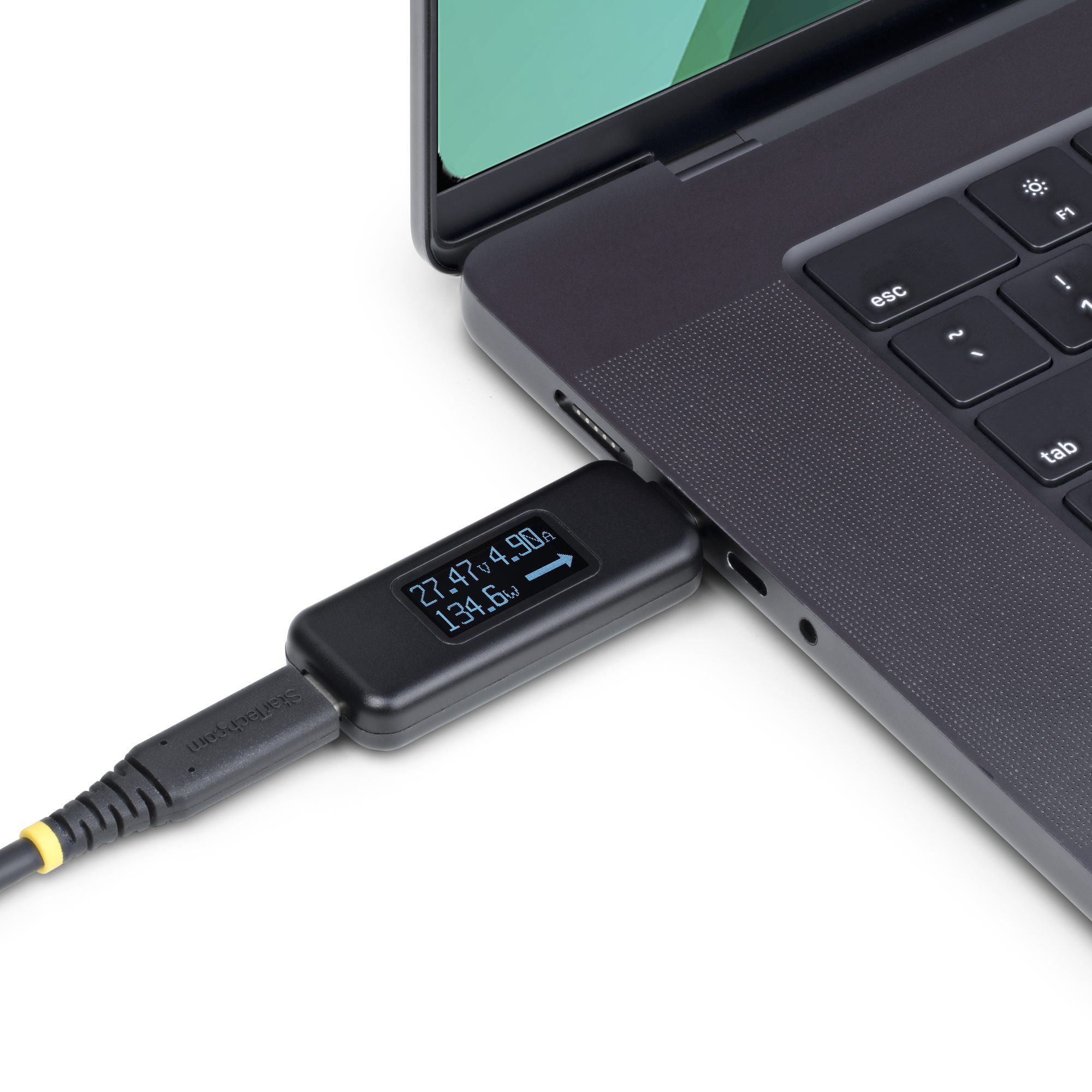

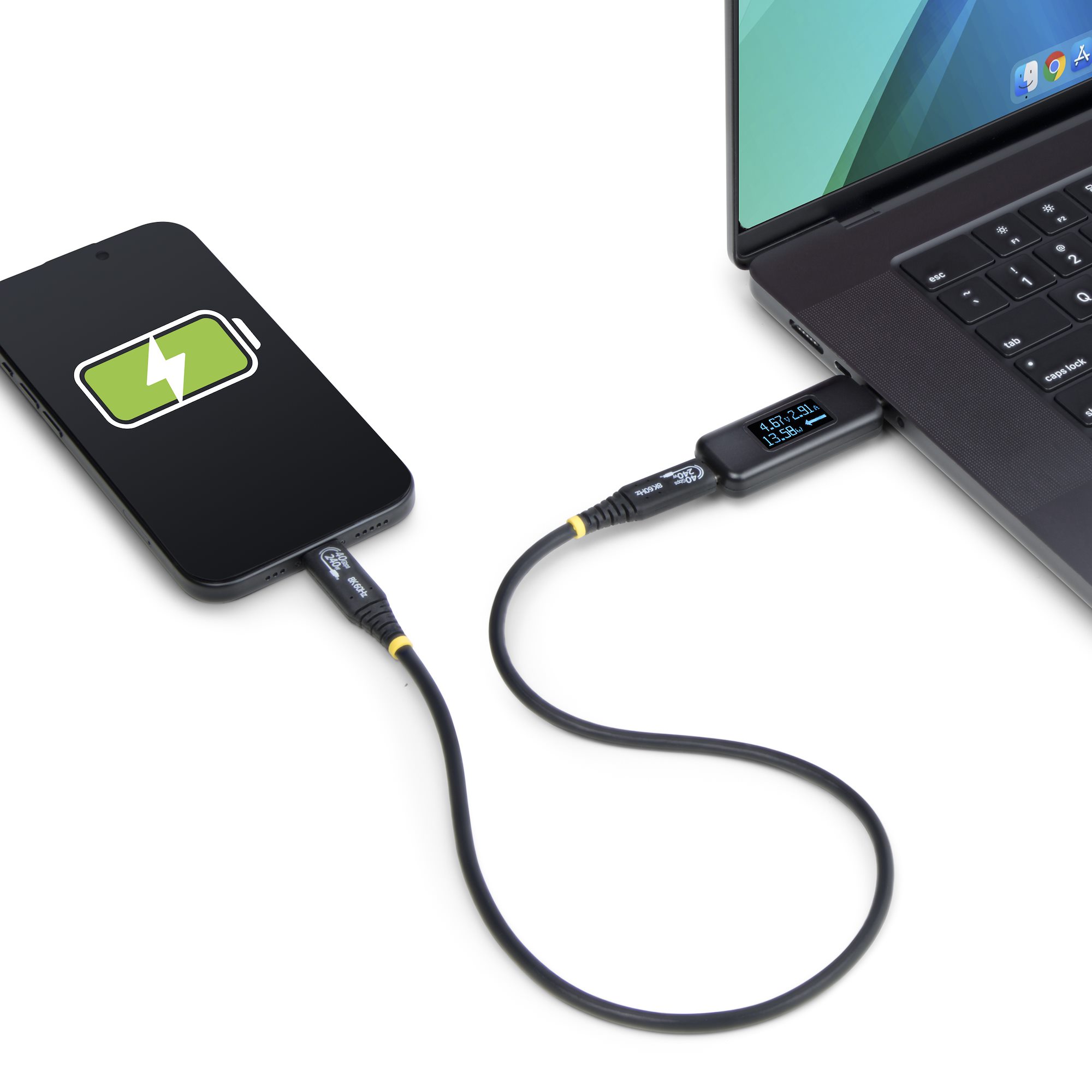

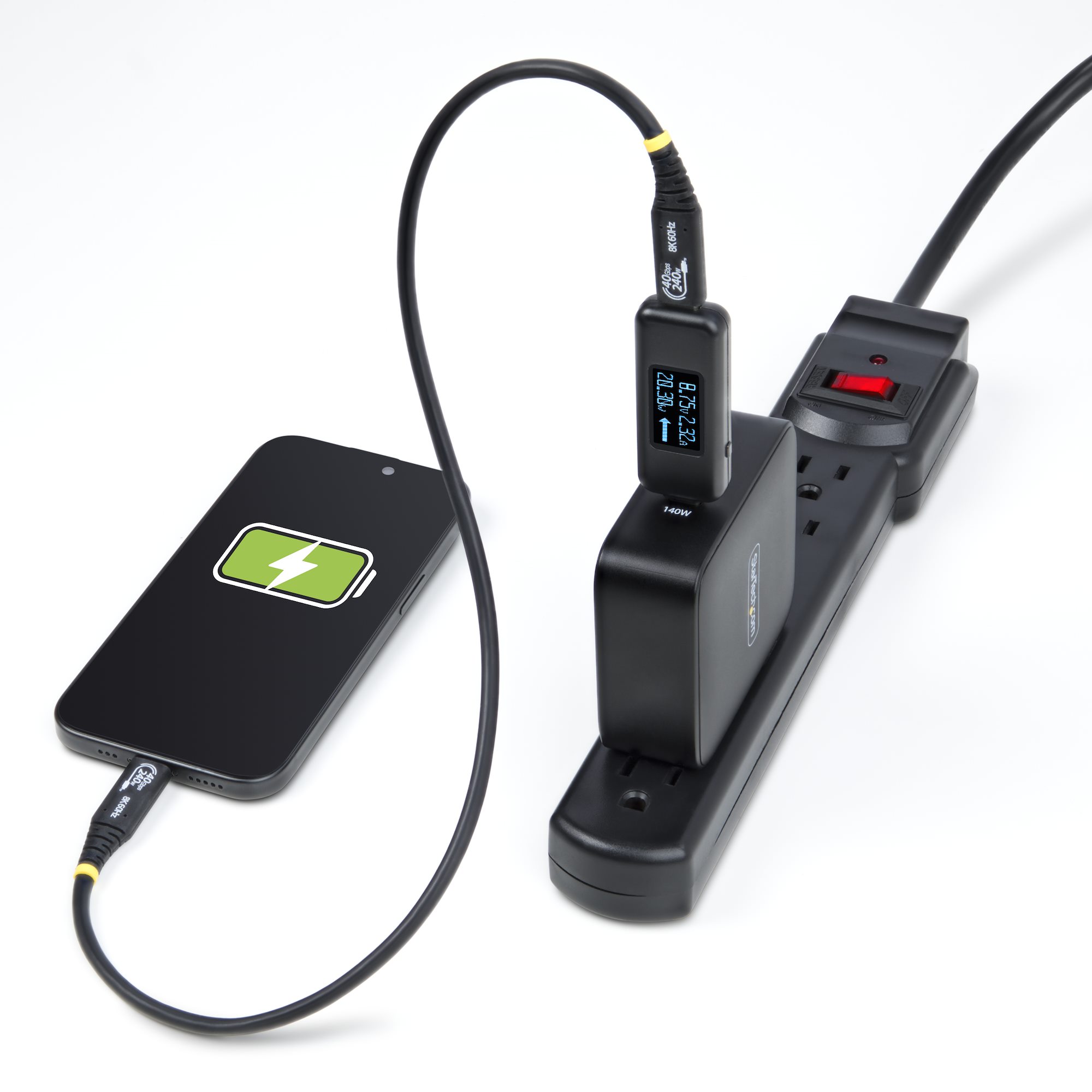

  • APPLICATIONS: Test USB-C charging stations, verify power delivery across devices & diagnose port or cable issues; Measure power draw from bus-powered USB-C devices; Ensure USB-C port compliance w/VBUS & voltage drop tests

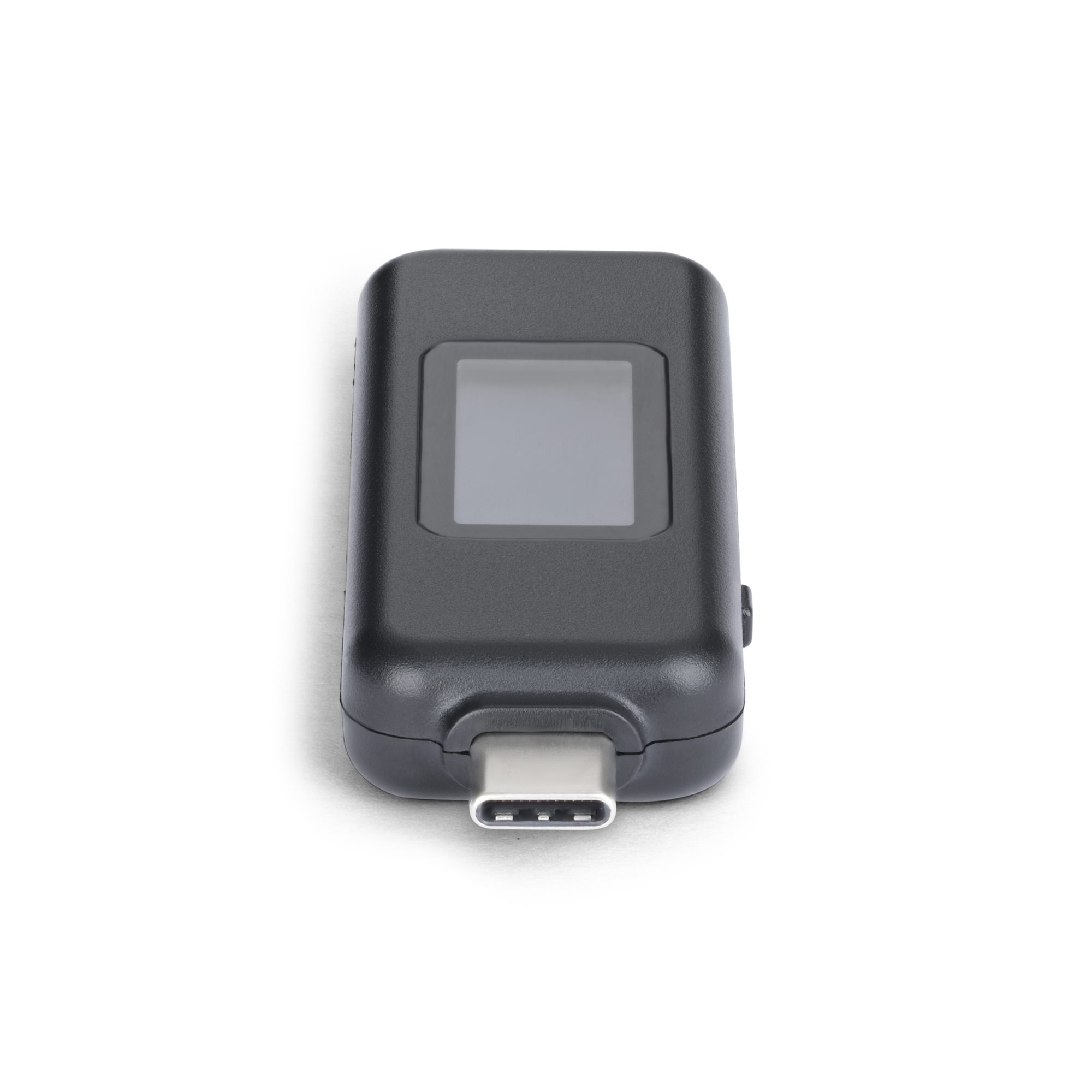

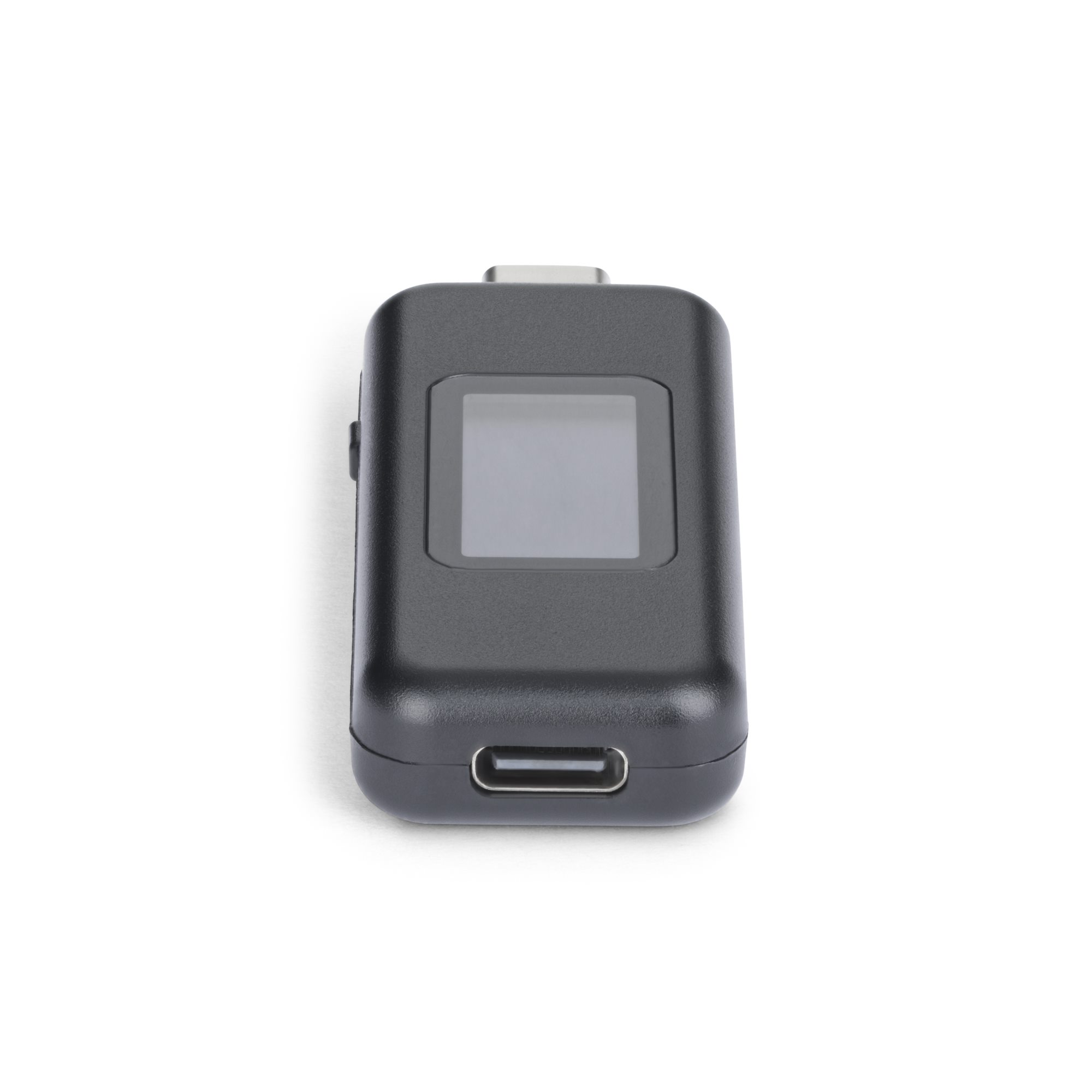

  • SPECS: Bi-directional USB Type-C Male to Female; Digital display with 180° flip rotation; Voltage/Current Range: 4.5V-50V / 50mA-6.5A; Up to 240W USB PD 3.1 EPR; USB 10Gbps Data Pass-Through w/DP Alt Mode; Not compatible with Thunderbolt 3 devices

Product Properties

  • Model
  • USBC-PWRTESTER
  • EAN
  • 65030904469
  • Bullet points
  • Point
  • APPLICATIONS
    PORTABLE USB-C POWER TESTING
    SIMPLIFY TROUBLESHOOTING
    SPECS
    UNIVERSAL COMPATIBILITY
  • Logistics data
  • Master (outer) case height
  • 270 mm
  • Master (outer) case length
  • 180 mm
  • Master (outer) case width
  • 430 mm
  • Products per master (outer) case
  • 150 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -20 - 85 °C
  • Technical details
  • Backlight colour
  • Blue
  • Backlight display
  • Yes
  • Built-in display
  • Yes
  • Compliance certificates
  • RoHS
  • DC input voltage test
  • 4.5V-50V
  • DC output voltage test
  • 4.5V-50V
  • Host interface
  • USB 3.2 USB Type C
  • Housing material
  • Polycarbonate (PC)
  • Input current
  • 0.05 - 6.5 A
  • Maximum charging test
  • 240 W
  • Output current
  • 6.5 A
  • Output interface
  • USB 3.2 USB Type C
  • Power connectors supported
  • USB Type-C
  • Product colour
  • Black
  • Testing type
  • Amperage, Voltage, Wattage
  • USB version
  • 3.2 Gen 2 (3.1 Gen 2)
  • Weight & dimensions
  • Depth
  • 23 mm
  • Height
  • 10 mm
  • Package depth
  • 84 mm
  • Package height
  • 15 mm
  • Package weight
  • 28 g
  • Package width
  • 80 mm
  • Weight
  • 12 g
  • Width
  • 57 mm
