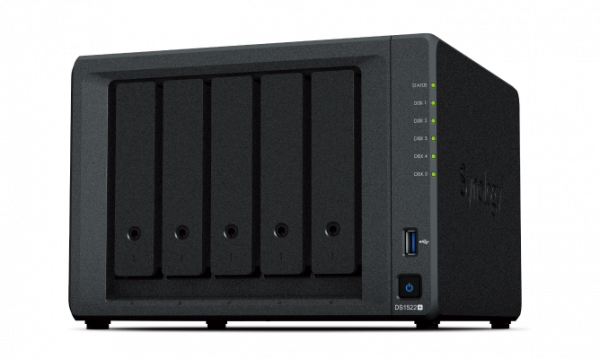

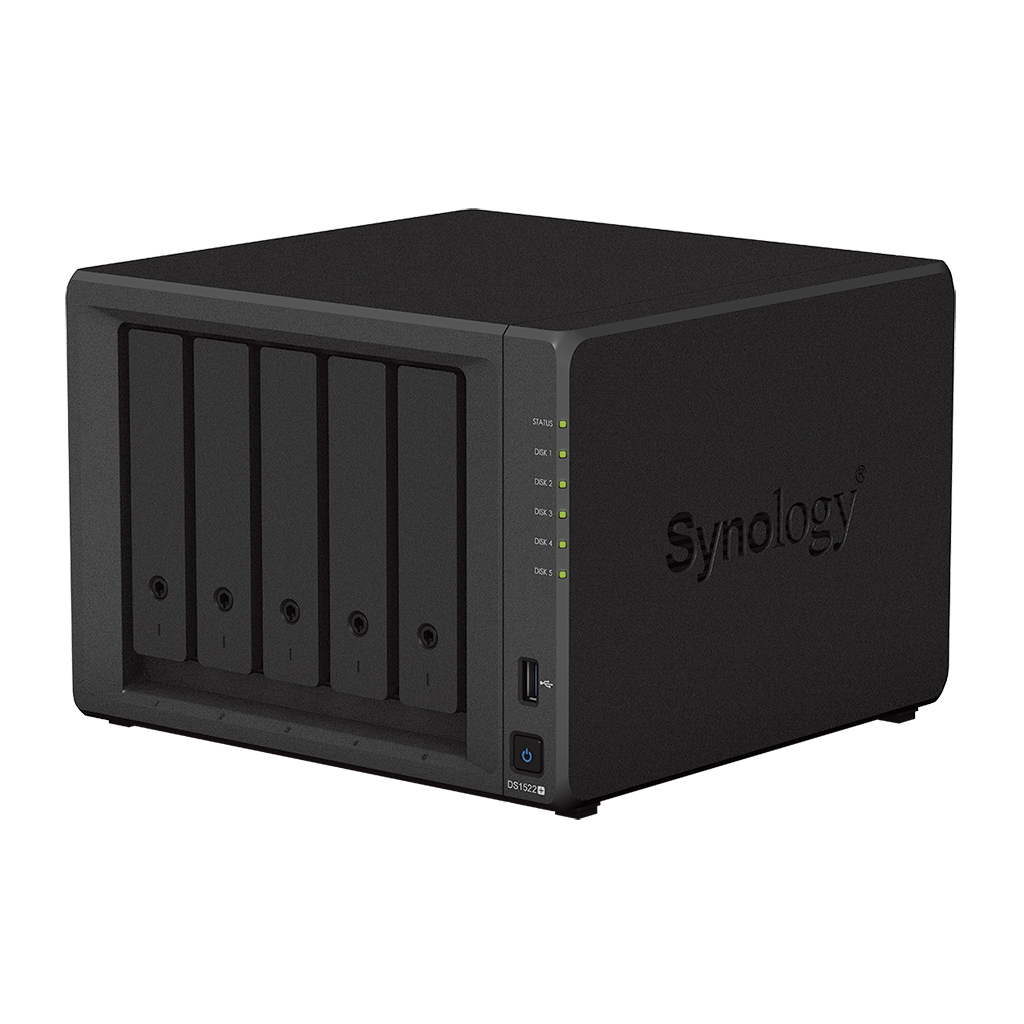

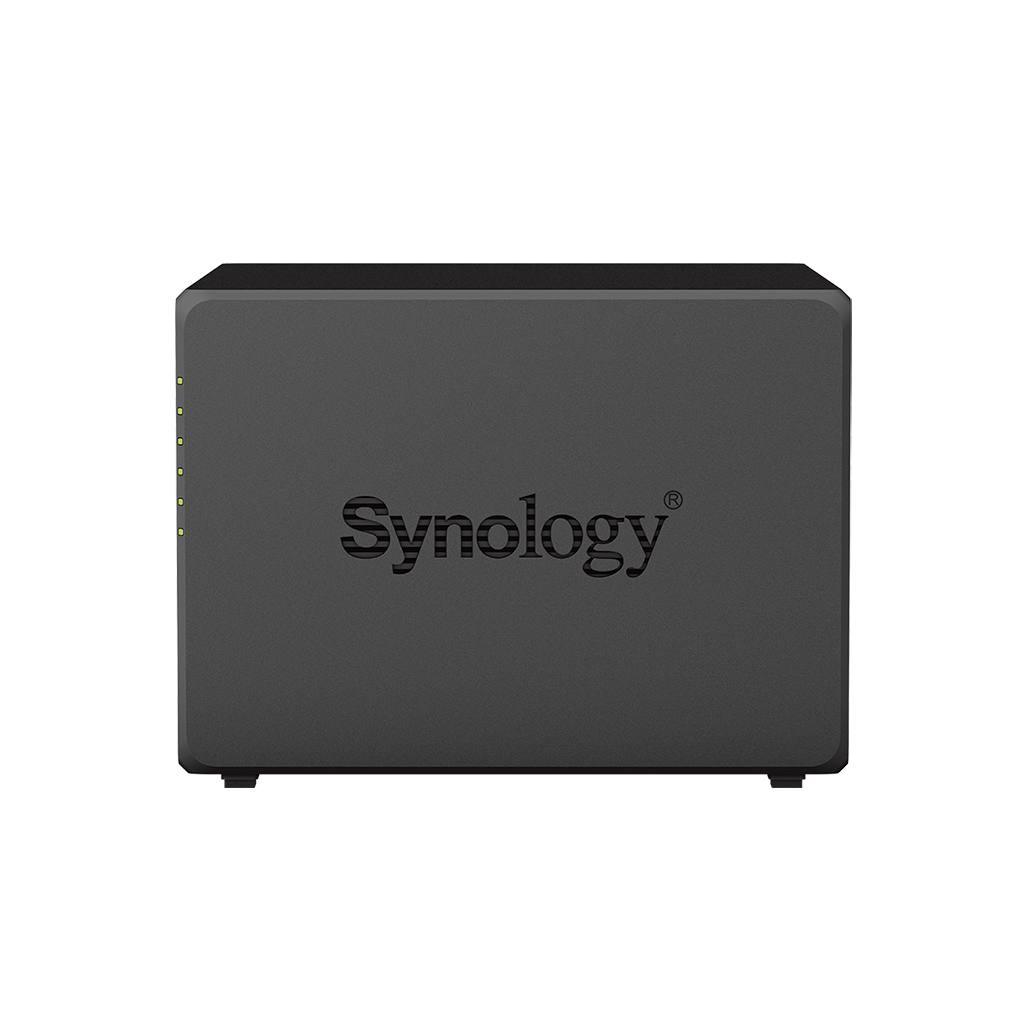

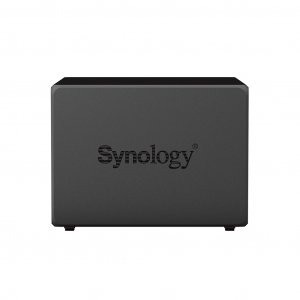

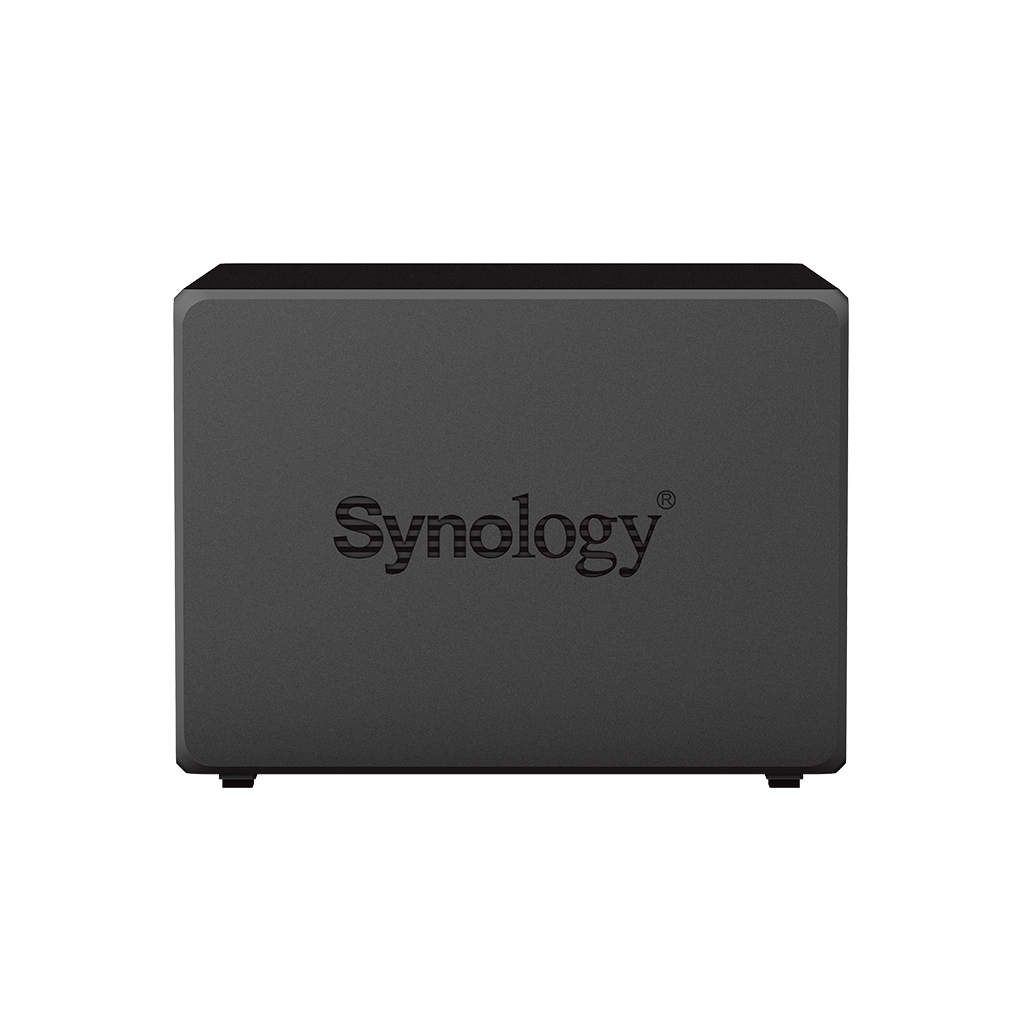

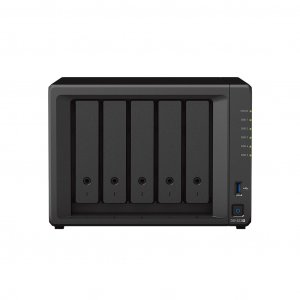

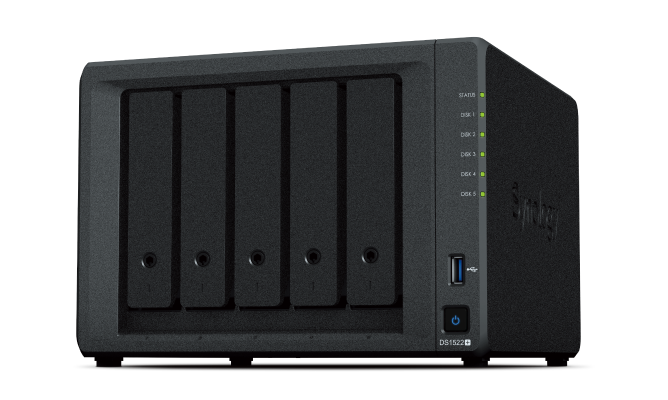

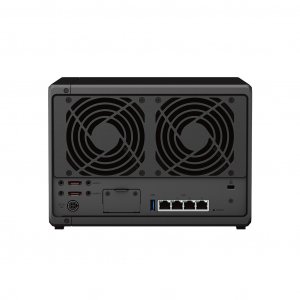

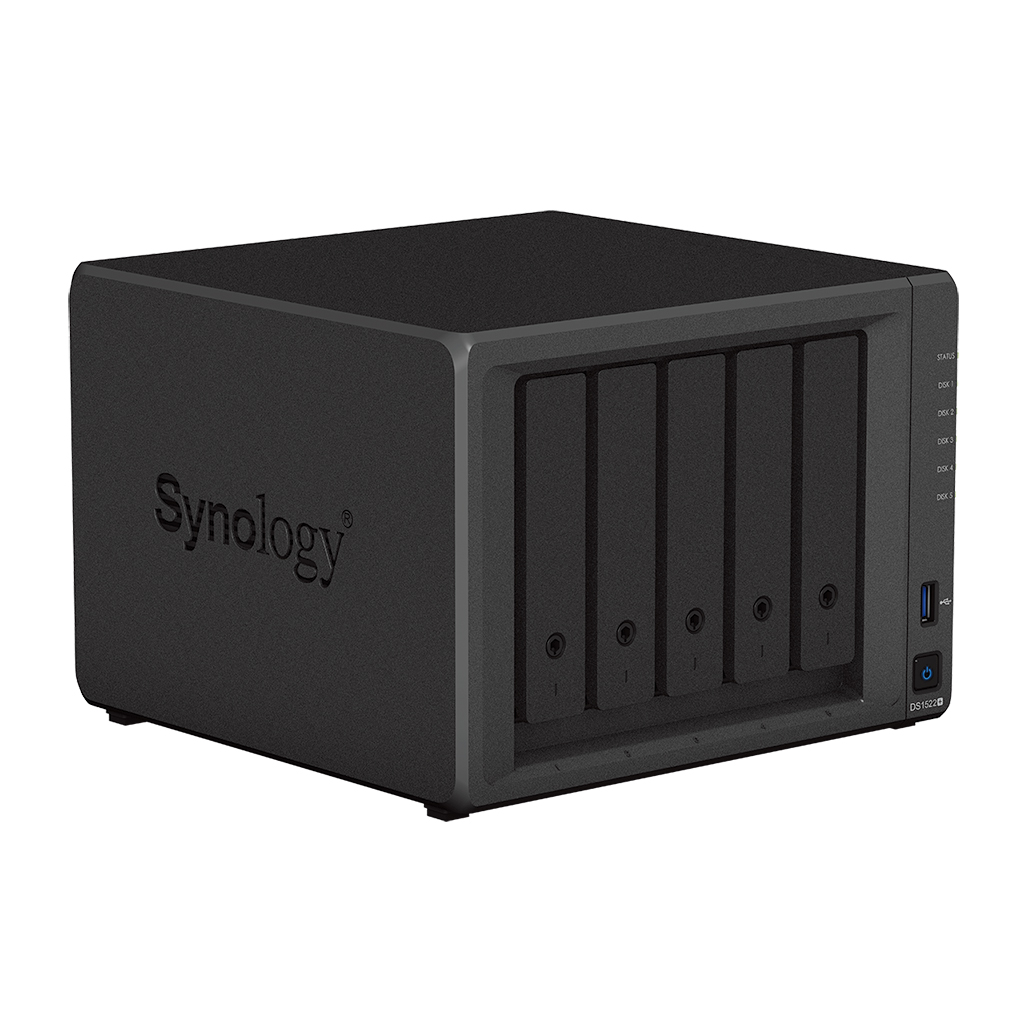

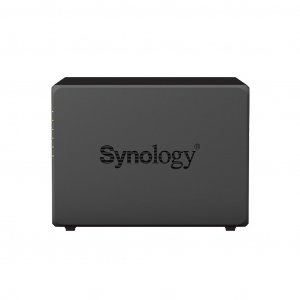

Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black
Roll over image to zoom inClick to Open expanded view
Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black
Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black
Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black
Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black
Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black
Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black
Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black
Print
Model: DS1522+
EAN: 4711174724468

Synology DiskStation DS1522+ NAS/storage server Tower AMD Embedded R-Series SoC R1600 8 GB DDR4 0 TB DiskStation Manager Black

Manufacturer:
Synology
Synology DiskStation DS1522+, NAS, Tower, AMD Embedded R-Series SoC, R1600, 8 GB, DDR4
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Synology DiskStation DS1522+. Type: NAS. Chassis type: Tower. Device class: Home & Home Office. Processor family: AMD Embedded R-Series SoC, Processor model: R1600, Processor frequency: 2.6 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager

Product Properties

  • Model
  • DS1522+
  • EAN
  • 4711174724468
  • Design
  • Built-in display
  • No
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Chassis type
  • Tower
  • Cooling type
  • Active
  • Drive bay locking
  • Yes
  • Fan diameter
  • 9.2 cm
  • LED indicators
  • Yes
  • Number of fans
  • 2 fan(s)
  • Product colour
  • Black
  • Logistics data
  • Harmonized System (HS) code
  • 84714100
  • Memory
  • ECC
  • Yes
  • Internal memory type
  • DDR4
  • Maximum RAM supported
  • 32 GB
  • Memory form factor
  • SO-DIMM
  • Memory Installed
  • 8 GB
  • Memory slots
  • 2
  • Network
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Ethernet LAN
  • Yes
  • Ethernet LAN data rate supported (max)
  • 10000 Mbit/s
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • iSCSI support
  • Yes
  • Link aggregation
  • Yes
  • Supported network protocols
  • SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
  • Wake-on-LAN ready
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Other features
  • Certification
  • FCC BSMI VCCI RCM UKCA EAC CCC KC
  • Compliance certificates
  • RoHS
  • Packaging content
  • Cables included
  • AC, LAN (RJ-45)
  • External power adapter
  • Yes
  • Power cables quantity
  • 1
  • Remote control included
  • No
  • Performance
  • Access Control List (ACL)
  • Yes
  • Backup features
  • Cloud, iSCSI LUN
  • Backup function
  • Yes
  • Browser supported
  • Google Chrome, Firefox, Microsoft Edge, Safari
  • Built-in UPnP AV media server
  • Yes
  • Card reader integrated
  • No
  • Device class
  • Home & Home Office
  • Hot spare
  • Yes
  • Management protocols
  • SNMP
  • Multilingual support
  • Yes
  • Noise level
  • 22.9 dB
  • Number of users
  • 2048 user(s)
  • On/off switch
  • Yes
  • Reset button
  • Yes
  • Security algorithms
  • HTTPS
  • Snapshot
  • Yes
  • Type
  • NAS
  • Video input channels
  • 2 channels
  • Web-based management
  • Yes

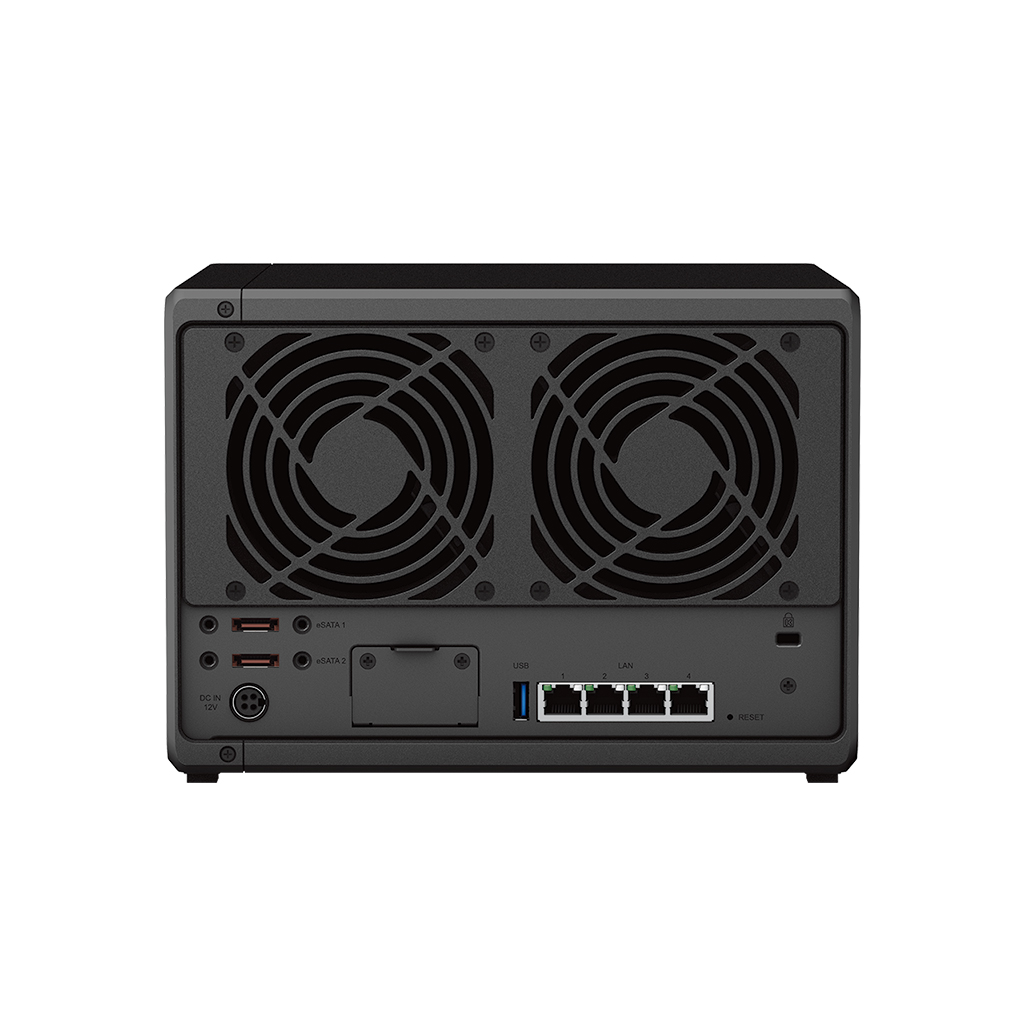

  • Ports & interfaces
  • eSATA ports quantity
  • 2
  • Ethernet LAN (RJ-45) ports
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB port
  • Yes
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Number of power supply units
  • 1
  • Power consumption (HDD standby)
  • 16.71 W
  • Power consumption (typical)
  • 52.06 W
  • Power supply location
  • External
  • Power supply unit (PSU) capacity
  • 120 W
  • Redundant power supply (RPS) support
  • No
  • Processor
  • Number of Cores
  • 2
  • Processor
  • R1600
  • Processor boost frequency
  • 3.1 GHz
  • Processor family
  • AMD Embedded R-Series SoC
  • Processor frequency
  • 2.6 GHz
  • Processor manufacturer
  • AMD
  • Software
  • Operating system installed
  • DiskStation Manager
  • Operating system version
  • 7.1
  • Windows operating systems supported
  • Yes
  • Storage
  • Hot-swap drive bays
  • Yes
  • Installed storage drive type
  • No
  • Number of M.2 (M & B) slots
  • 2
  • Number of storage drives installed
  • 0
  • Number of storage drives supported
  • 5
  • Online RAID expansion
  • Yes
  • Online RAID migration
  • Yes
  • RAID levels
  • 0, 1, 5, 6, 10, JBOD
  • RAID support
  • Yes
  • Storage drive sizes supported
  • 2.5,3.5,M.2
  • Storage drives installed
  • No
  • Supported file systems
  • BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
  • Supported storage drive interfaces
  • Serial ATA II, Serial ATA III
  • Supported storage drive types
  • HDD & SSD
  • Total installed storage capacity
  • 0 TB
  • Sustainability
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 223 mm
  • Height
  • 166 mm
  • Weight
  • 2.7 kg
  • Width
  • 230 mm
