Description

NETGEAR GS728TPP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

Fully-integrated cloud-manageable devices
Smart IT, not Big IT
NETGEAR quality and reliability

Product Properties

Manufacturer
Netgear

Model
GS728TPP-300EUS

EAN
606449162356

Bullet points

Point
Fully-integrated cloud-manageable devices

NETGEAR quality and reliability

Smart IT, not Big IT

Certificates

Certification
CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA

Data transmission

Latency (1 Gbps)
4.701 µs

Latency (10-100 Mbps)
8.871 µs

MAC address table
16000 entries

Packet buffer memory
1.5 MB

Switching capacity
56 Gbit/s

Design

Number of fans
2 fan(s)

Product colour
Grey

Rack mounting
Yes

Redundant fans support
Yes

Management features

ARP inspection
Yes

Switch layer
L2/L3/L4

Switch type
Managed

Multicast features

Multicast support
Yes

Number of multicast groups filtered
512

Network

IPv4 routes
32

IPv6 routes
32

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x

Number of VLANs
256

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 70 °C

Performance

Built-in processor
Yes

Flash memory
64 MB

Internal memory
512 MB

Mean time between failures (MTBF)
1252990 h

Noise level
33.3 dB

Processor frequency
800 MHz

Processor manufacturer
ARM

Processor model
ARM Cortex-A55

Ports & interfaces

Installed SFP modules quantity
4

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

USB Type-A ports quantity
1

Power

Power consumption (max)
427 W

Power consumption (typical)
26 W

Power source
AC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
380 W

Power over Ethernet plus (PoE+) ports quantity
24

Security

Access Control List (ACL)
Yes

Access Control List (ACL) IPv4 entries
100

DHCP features
DHCP snooping, DHCPv6 client

Weight & dimensions

Depth
257 mm

Height
432 mm

Weight
4.11 kg

Width
440 mm

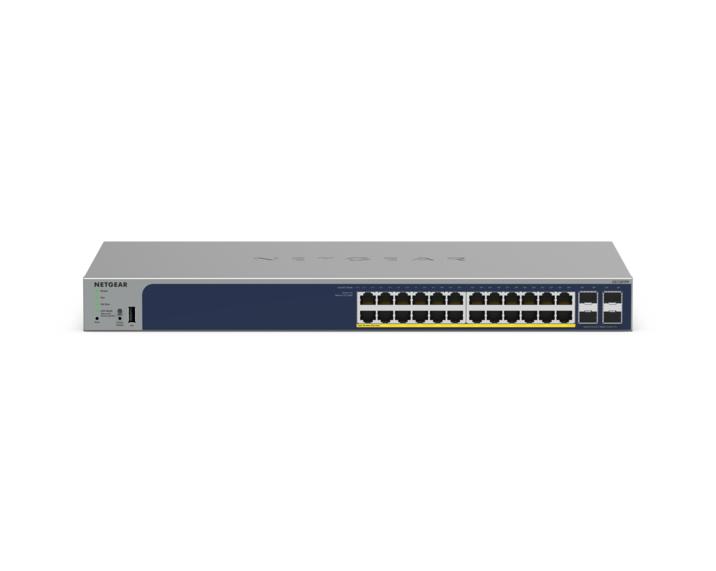

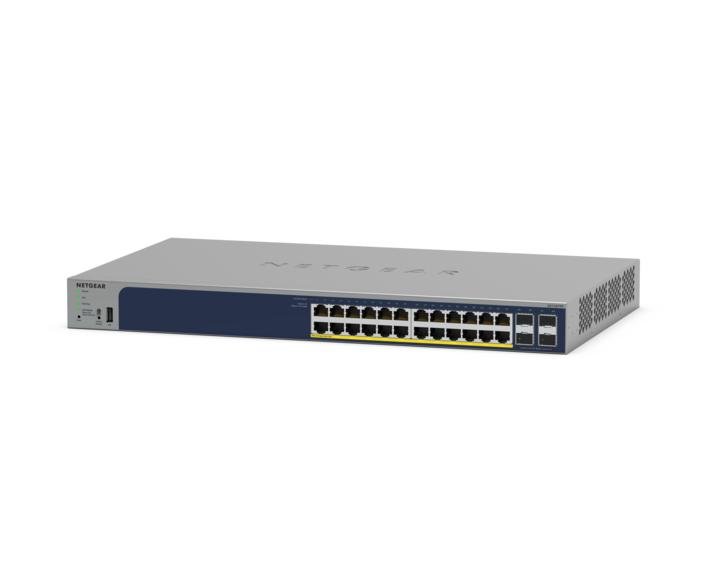

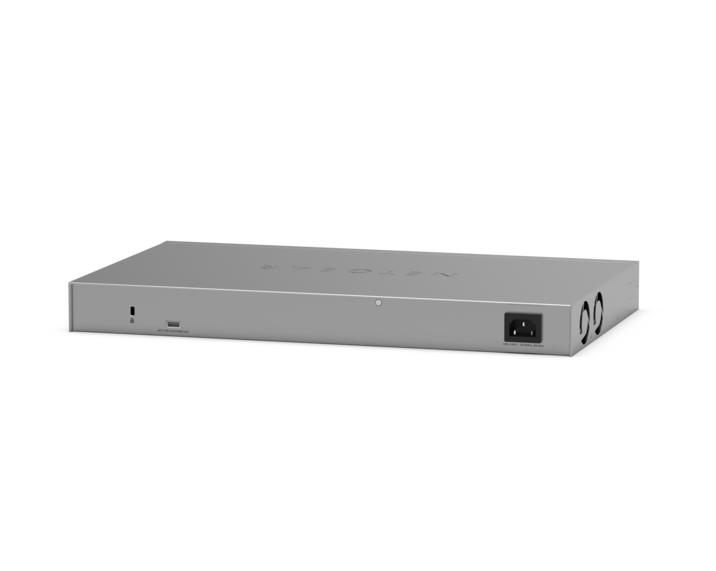

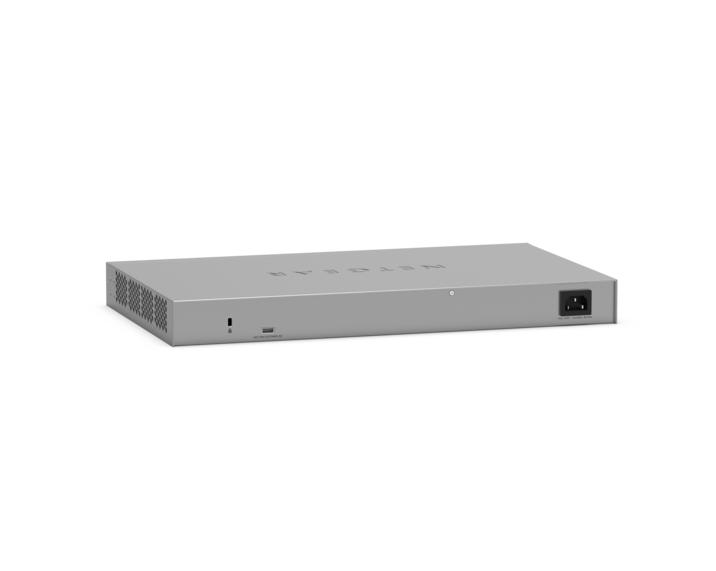

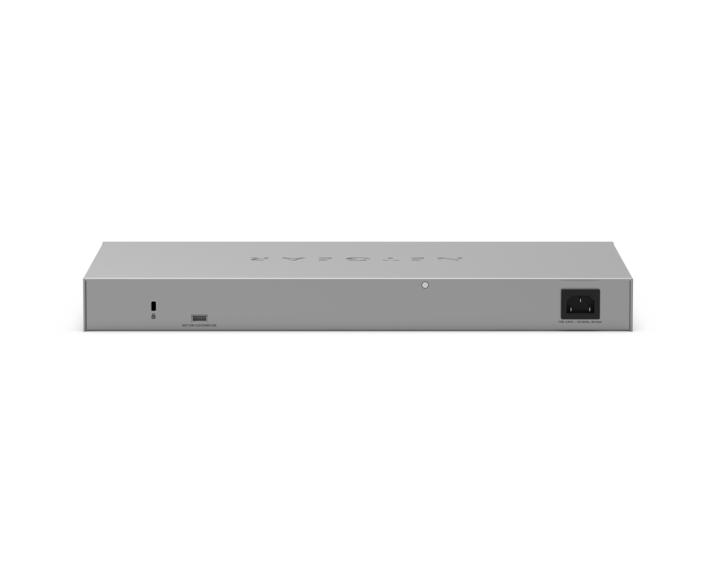

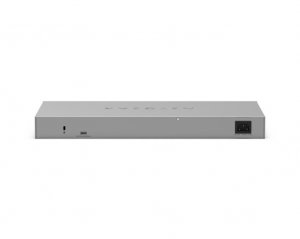

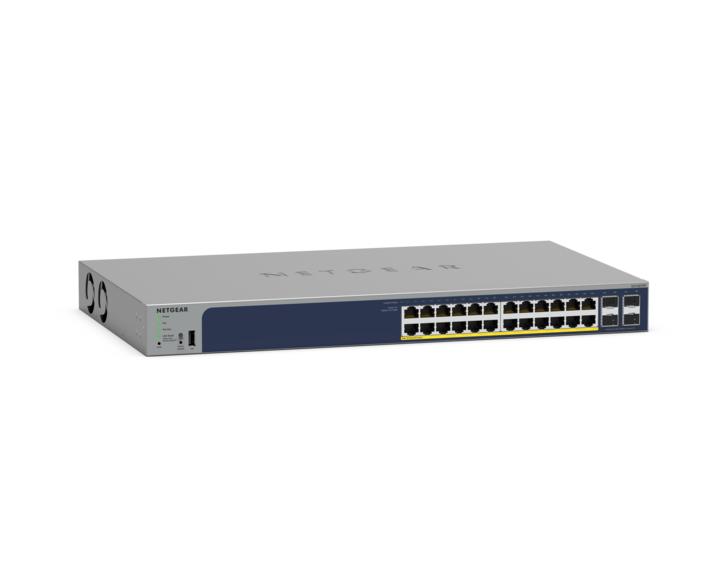

NETGEAR GS728TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
