Description

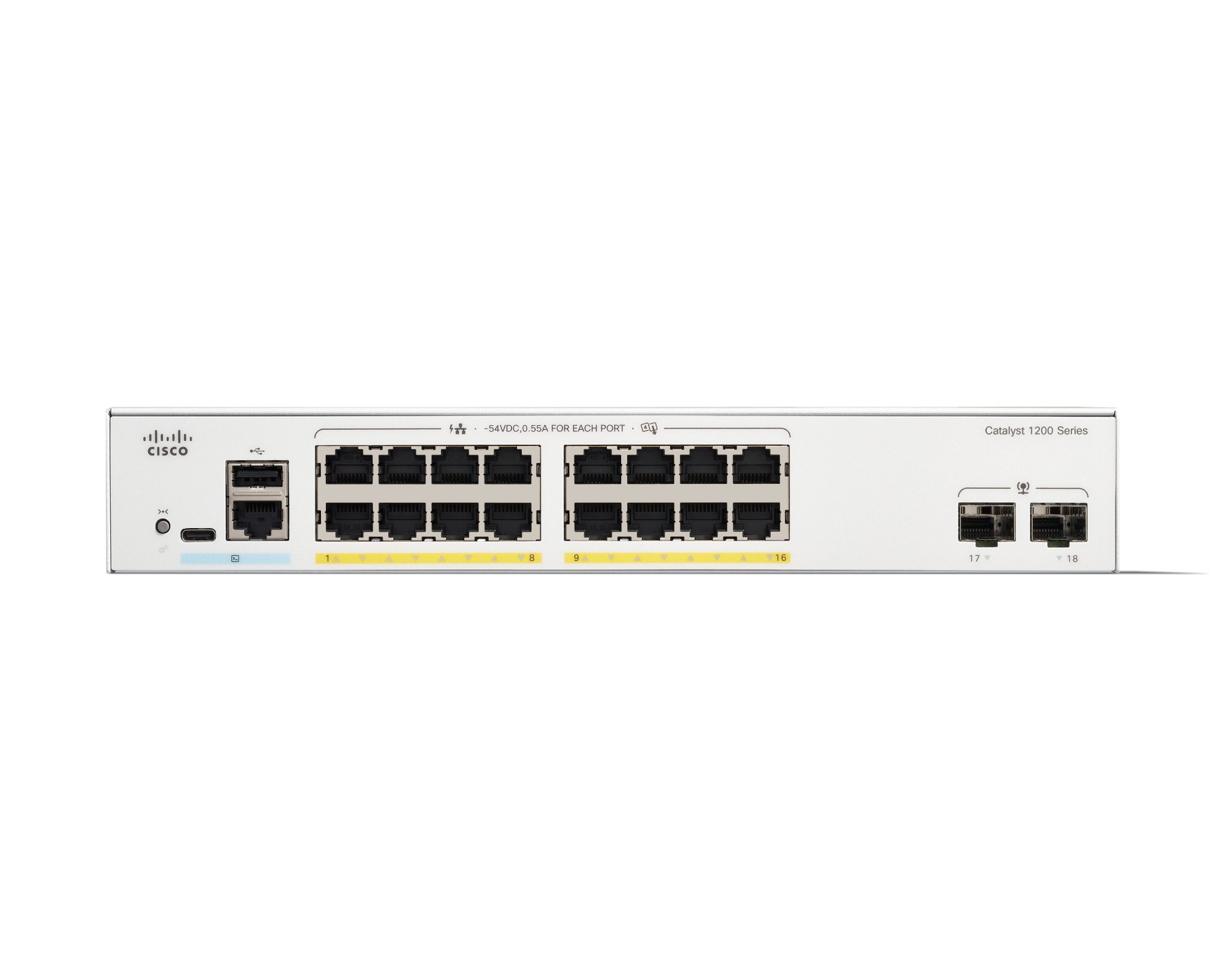

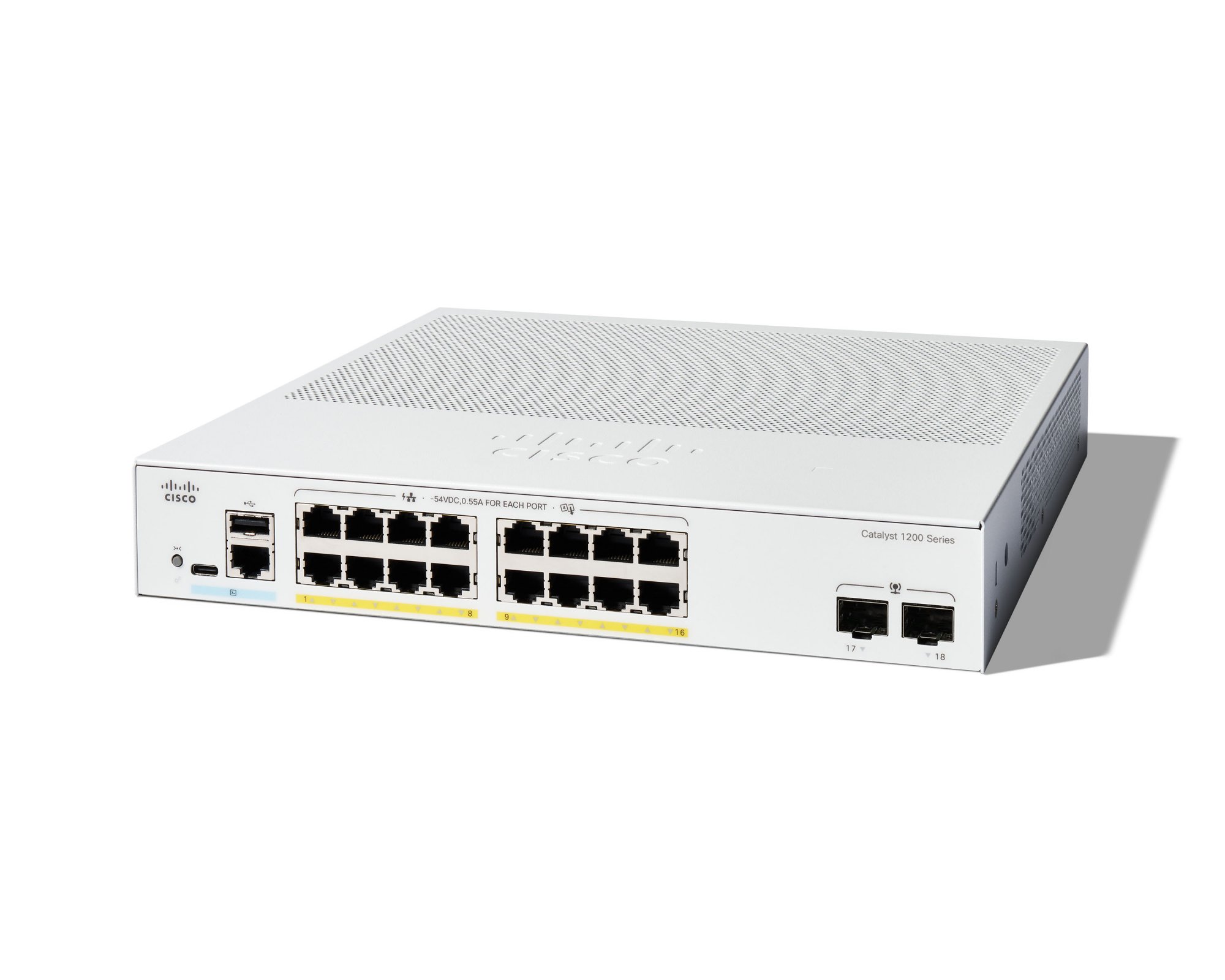

Cisco Catalyst 1200-16P-2G Smart Switch, 16 Port GE, PoE, 2x1GE SFP, Limited Lifetime Protection (C1200-16P-2G). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45/USB Type-C. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

SWITCH PORTS: 16 ports 10/100/1000 + 2x 1GE SFP (total PoE power budget: 120W, PoE, PoE+)
SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Product Properties

Manufacturer
Cisco

Model
C1200-16P-2G

Bullet points

Point
ENERGY EFFICIENT

PERFECT FOR SMALL BUSINESS

SECURITY

SIMPLE

SWITCH PORTS: 16 ports 10/100/1000 + 2x 1GE SFP (total PoE power budget: 120W, PoE, PoE+)

Data transmission

Forwarding rate
26.78 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
8000 entries

Number of static routes
32

Packet buffer memory
1.5 MB

Static route
Yes

Switching capacity
36 Gbit/s

Design

LED indicators
Yes

Product colour
Grey

Rack mounting
Yes

Logistics data

Country of origin
China

Management features

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

Broadcast storm control
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
255

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Heat dissipation
536.05 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-5 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 70 °C

Other features

Packaging content
Switch, power cable, USB Type C cable and mounting hardware

Packaging data

Package depth
399 mm

Package height
108 mm

Package weight
4.11 kg

Package width
414 mm

Performance

Mean time between failures (MTBF)
706983 h

Ports & interfaces

Console port
RJ-45/USB Type-C

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

SFP module slots quantity
2

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
110 - 220 V

Power consumption (max)
156.4 W

Power plug type
Type C

Power source
AC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet plus (PoE+) ports quantity
16

Total Power over Ethernet (PoE) budget
120 W

Security

Access Control List (ACL)
Yes

Authentication
Guest VLAN

Authentication type
RADIUS

DHCP features
DHCP client

IGMP entries
255

IGMP snooping
Yes

Loop protection
Yes

SSH/SSL support
Yes

Weight & dimensions

Depth
268.2 mm

Height
43.9 mm

Weight
2.38 kg

Width
296.9 mm
